DAFNE/LD

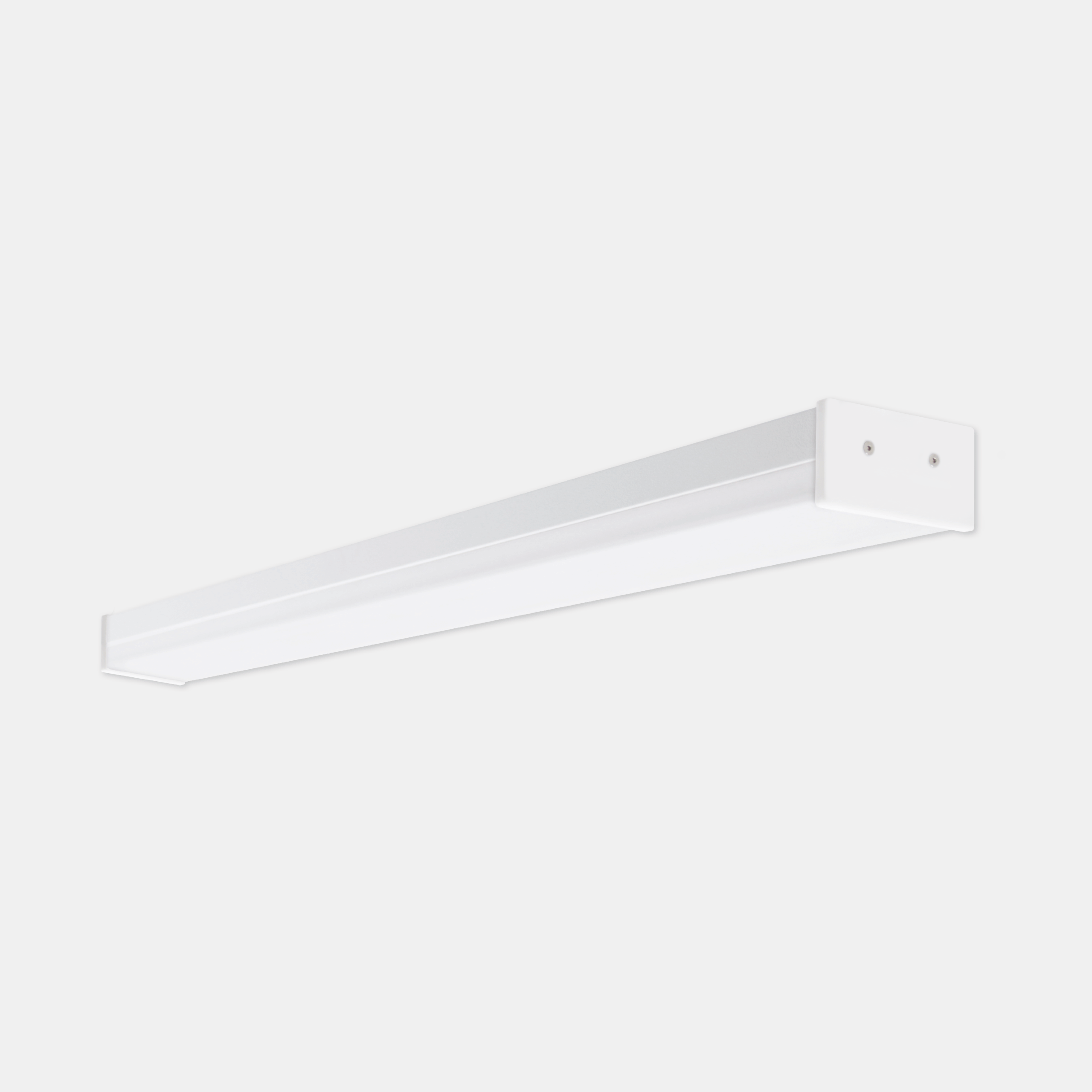

Led DIRECT BACKLIGHT fixture with diffused light to increase the luminosity of vertical surfaces, suitable for ceiling or suspended installation. Steel sheet body painted with white anti-yellowing epoxy-polyester powders with a fine embossed finish. Diffuser built in extruded self-extinguishing V2 polycarbonate, component holder reflector in white pre-painted sheet metal, closing caps in satin finish polycarbonate. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Office, art. 2046 Dafne

Models: 378

Color: Matt white

Catalogue abstract

Installation instructions

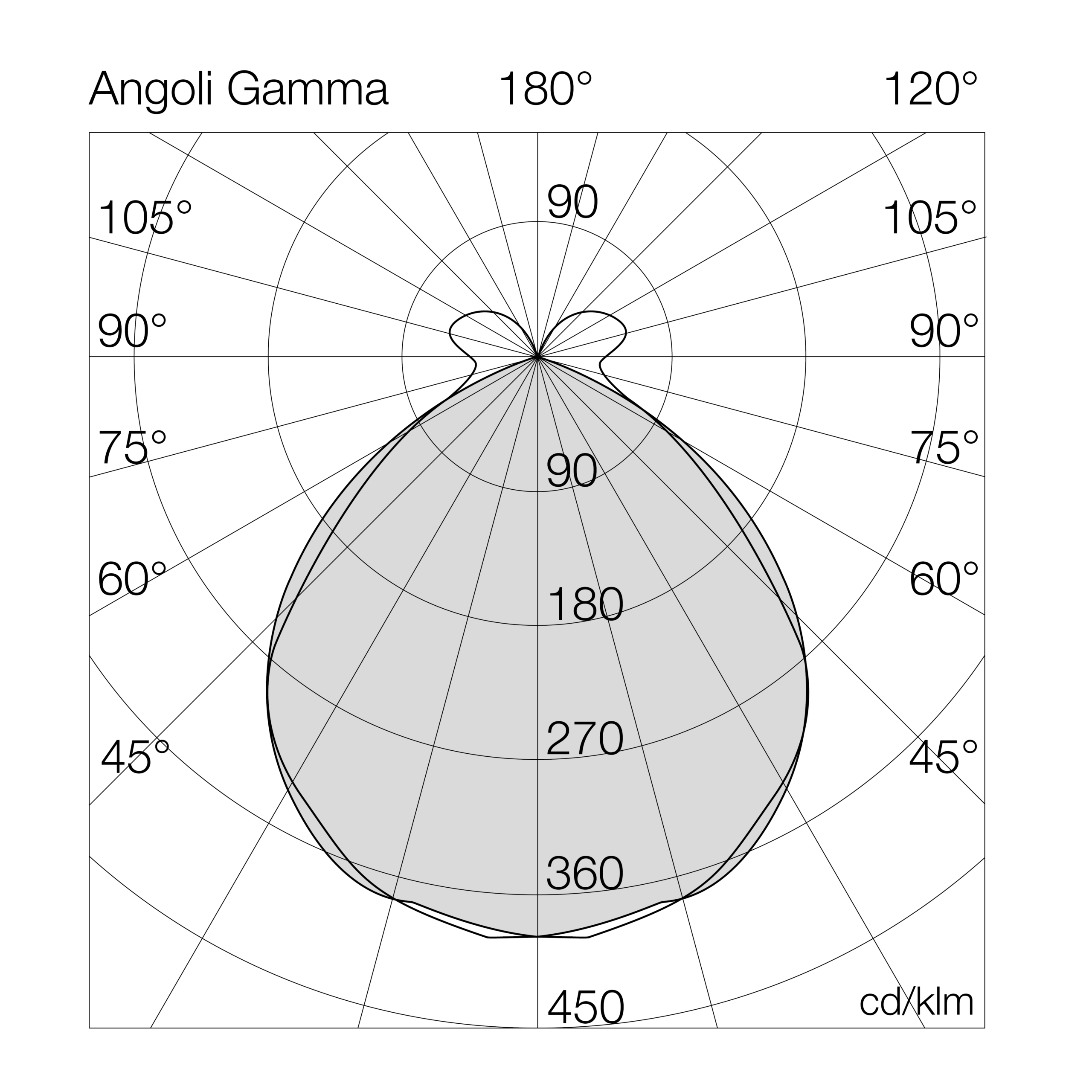

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
2046	LD	30	= 3000°K (CRI >80)	12	38	EL	= on/off
		40	= 4000°K (CRI >80)	16	39	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	19	40	D1	= dali 2 + em.1h
				20	46	E1	= em. 1h
				23	49	E3	= em. 3h
				28	50	FC	= continuous row
				29	54	CS	= casambi
				32	57
				36	60

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
2046LD4012EL	12	4000°K - CRI>80	on/off	1766	147	111	600	65	1.7
2046LD4016EL	16	4000°K - CRI>80	on/off	2508	157	111	600	65	1.7
2046LD4019EL	19	4000°K - CRI>80	on/off	2846	150	111	600	65	1.7
2046LD4020EL	20	4000°K - CRI>80	on/off	3014	151	111	1160	65	2.3
2046LD4023EL	23	4000°K - CRI>80	on/off	3533	154	111	1160	65	2.3
2046LD4028EL	28	4000°K - CRI>80	on/off	4188	150	111	1160	65	2.3
2046LD4029EL	29	4000°K - CRI>80	on/off	4606	159	111	1440	65	2.6
2046LD4032EL	32	4000°K - CRI>80	on/off	5017	157	111	1160	65	2.3
2046LD4036EL	36	4000°K - CRI>80	on/off	5424	151	111	1160	65	2.3
2046LD4038EL	38	4000°K - CRI>80	on/off	5843	154	111	1440	65	2.6
2046LD4039EL	39	4000°K - CRI>80	on/off	6013	154	111	1160	65	2.3
2046LD4040EL	40	4000°K - CRI>80	on/off	6475	162	111	1440	65	2.6
2046LD4046EL	46	4000°K - CRI>80	on/off	7115	155	111	1440	65	2.6
2046LD4049EL	49	4000°K - CRI>80	on/off	7517	153	111	1440	65	2.6
2046LD4050EL	50	4000°K - CRI>80	on/off	7659	153	111	1160	65	2.3
2046LD4054EL	54	4000°K - CRI>80	on/off	7948	147	111	1440	65	2.6
2046LD4057EL	57	4000°K - CRI>80	on/off	8941	157	111	1440	65	2.6
2046LD4060EL	60	4000°K - CRI>80	on/off	8767	146	111	1440	65	2.6
2046LD4012LD	12	4000°K - CRI>80	dali 2 / dali 2 push	1766	147	111	600	65	1.7
2046LD4016LD	16	4000°K - CRI>80	dali 2 / dali 2 push	2508	157	111	600	65	1.7
