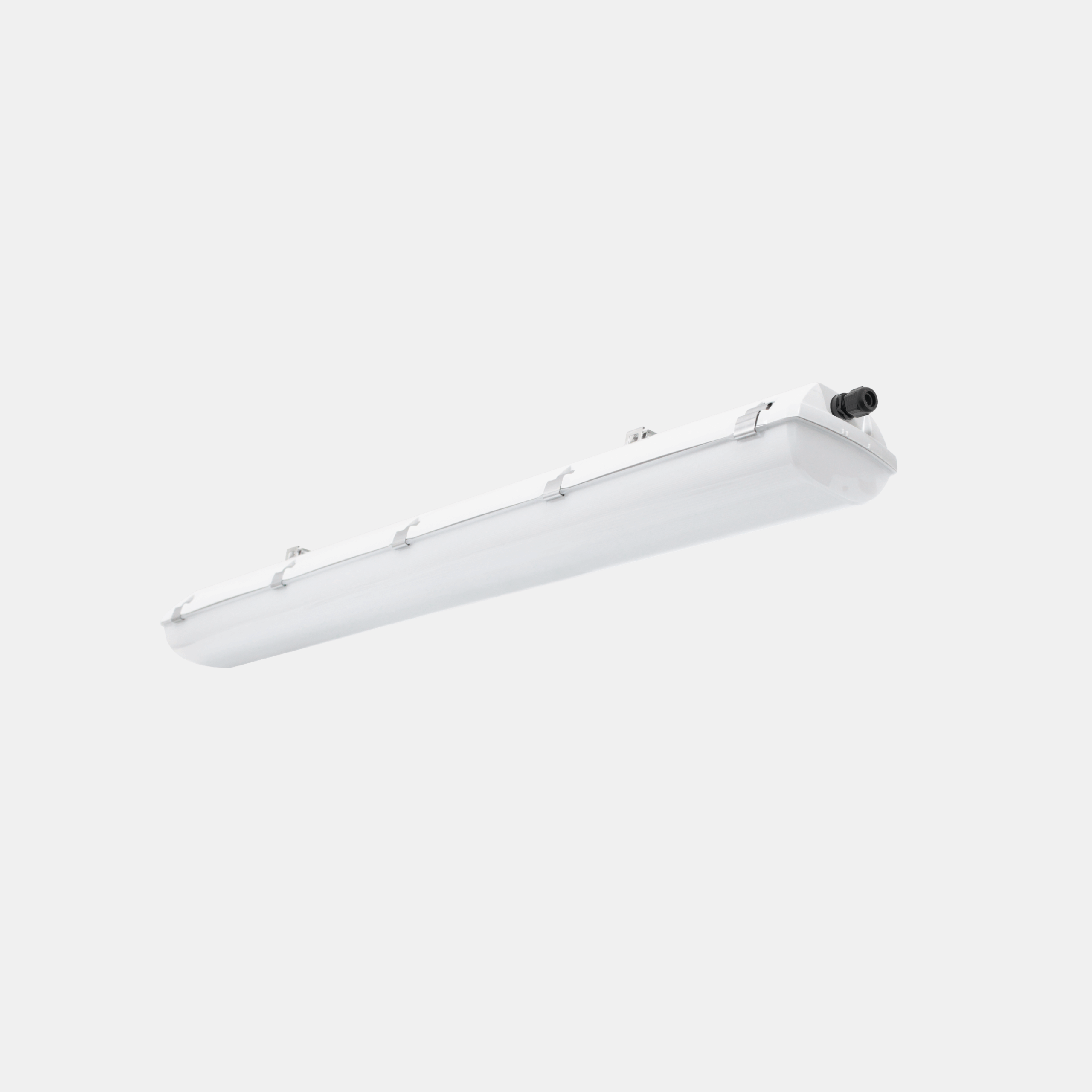

UNICA HT – Mod. LC

(30° focusing optics)

IP66 ceiling or wall mounted or suspended surface fixture. V2 autoextinguishing polycarbonate body, injection moulded, reflector with led support in prepainted white steel, stainless steel locking clips, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, UNICA HT - 2049, Industrial, UNICA HT

Models: 150

Color: Grey

Catalogue abstract

Installation instructions

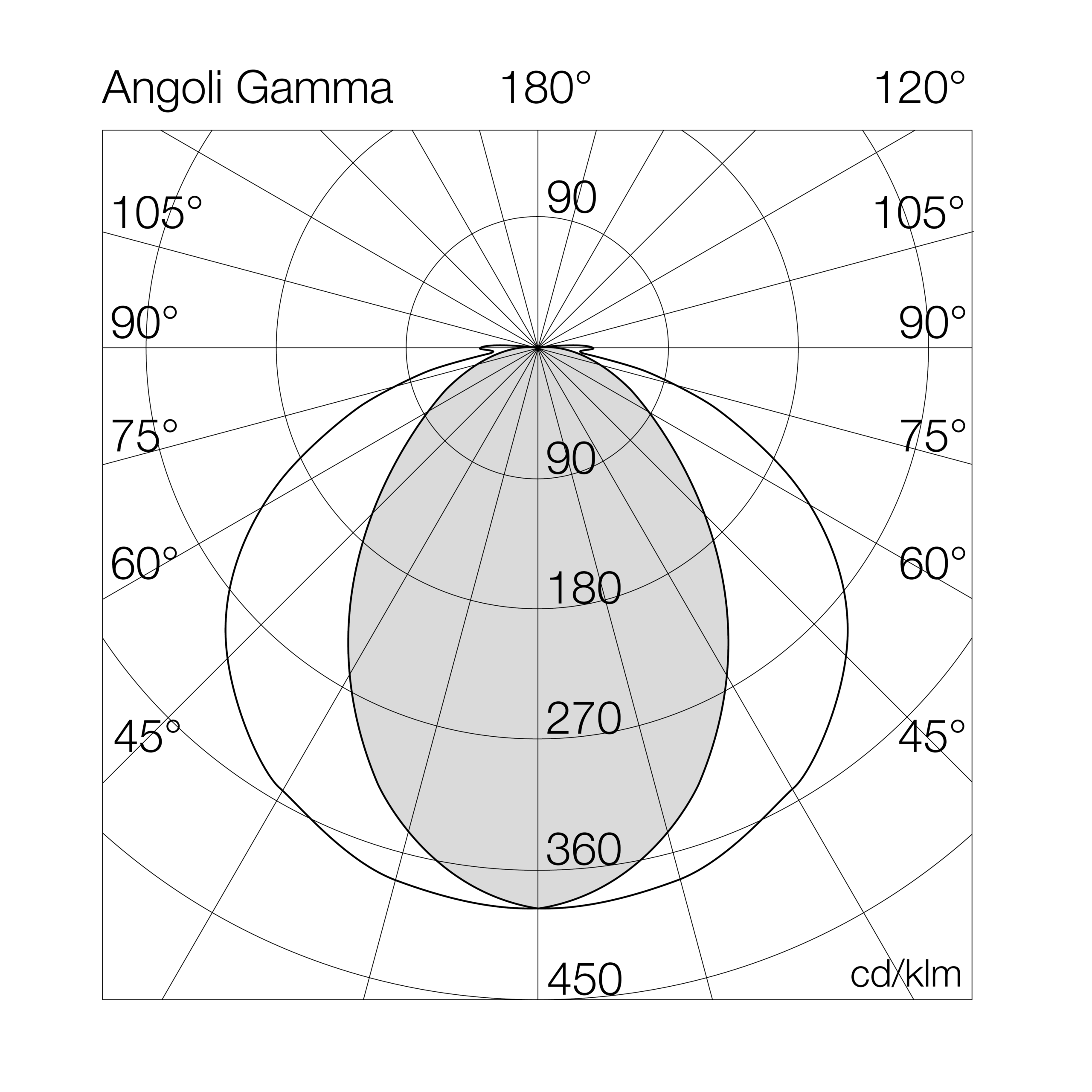

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2049	LC	30	= 3000°K (CRI >80)	31	EL	= on/off
		40	= 4000°K (CRI >80)	36	LD	= dali 2 / dali 2 push
		50	= 5000°K (CRI >80)	42	FC	= continuous row
		65	= 6500°K (CRI >80)	50	AB	= on/off (ABS+PMMA)
		49	= 4000°K (CRI >90)	55	AD	= dali 2 (ABS+PMMA)
				64

Models

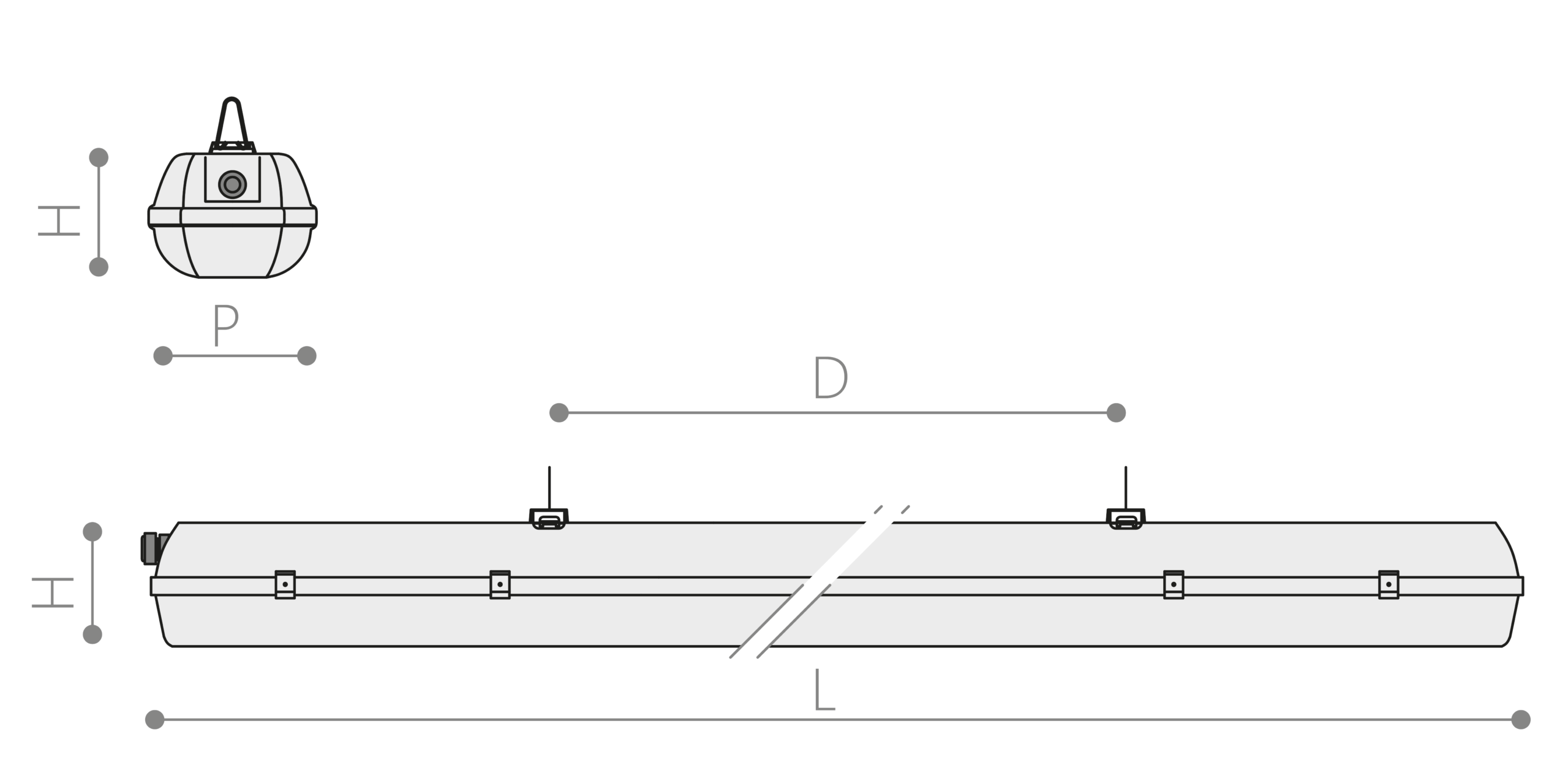

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2049LC4031EL	31	-	4000°K - CRI>80	on/off	4987	161	145	1272	100	700	2.2
2049LC4036EL	36	-	4000°K - CRI>80	on/off	5529	154	145	1272	100	700	2.2
2049LC4042EL	42	-	4000°K - CRI>80	on/off	7027	167	145	1272	100	700	2.2
2049LC4050EL	50	-	4000°K - CRI>80	on/off	7662	153	145	1272	100	700	2.2
2049LC4055EL	55	-	4000°K - CRI>80	on/off	7770	141	145	1572	100	940	2.8
2049LC4064EL	64	-	4000°K - CRI>80	on/off	8993	141	145	1572	100	940	2.8
2049LC4031LD	31	-	4000°K - CRI>80	dali 2 / dali 2 push	4987	161	145	1272	100	700	2.2
2049LC4036LD	36	-	4000°K - CRI>80	dali 2 / dali 2 push	5529	154	145	1272	100	700	2.2
2049LC4042LD	42	-	4000°K - CRI>80	dali 2 / dali 2 push	7027	167	145	1272	100	700	2.2
2049LC4050LD	50	-	4000°K - CRI>80	dali 2 / dali 2 push	7662	153	145	1272	100	700	2.2
2049LC4055LD	55	-	4000°K - CRI>80	dali 2 / dali 2 push	7770	141	145	1572	100	940	2.8
2049LC4064LD	64	-	4000°K - CRI>80	dali 2 / dali 2 push	8993	141	145	1572	100	940	2.8
2049LC4031FC	31	-	4000°K - CRI>80	through wiring	4987	161	145	1272	100	700	2.2
2049LC4036FC	36	-	4000°K - CRI>80	through wiring	5529	154	145	1272	100	700	2.2
2049LC4042FC	42	-	4000°K - CRI>80	through wiring	7027	167	145	1272	100	700	2.2
2049LC4050FC	50	-	4000°K - CRI>80	through wiring	7662	153	145	1272	100	700	2.2
2049LC4055FC	55	-	4000°K - CRI>80	through wiring	7770	141	145	1572	100	940	2.8
2049LC4064FC	64	-	4000°K - CRI>80	through wiring	8993	141	145	1572	100	940	2.8
2049LC4031AB	31	-	4000°K - CRI>80	on/off (ABS+PMMA)	4987	161	145	1272	100	700	2.2
2049LC4036AB	36	-	4000°K - CRI>80	on/off (ABS+PMMA)	5529	154	145	1272	100	700	2.2
