UNICA HT – Mod. LD

(120° diffusing optics)

IP66 ceiling or wall mounted or suspended surface fixture. V2 autoextinguishing polycarbonate body, injection moulded, reflector with led support in prepainted white steel, stainless steel locking clips, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, UNICA HT - 2049, Industrial, UNICA HT

Models: 150

Color: Grey

Catalogue abstract

Installation instructions

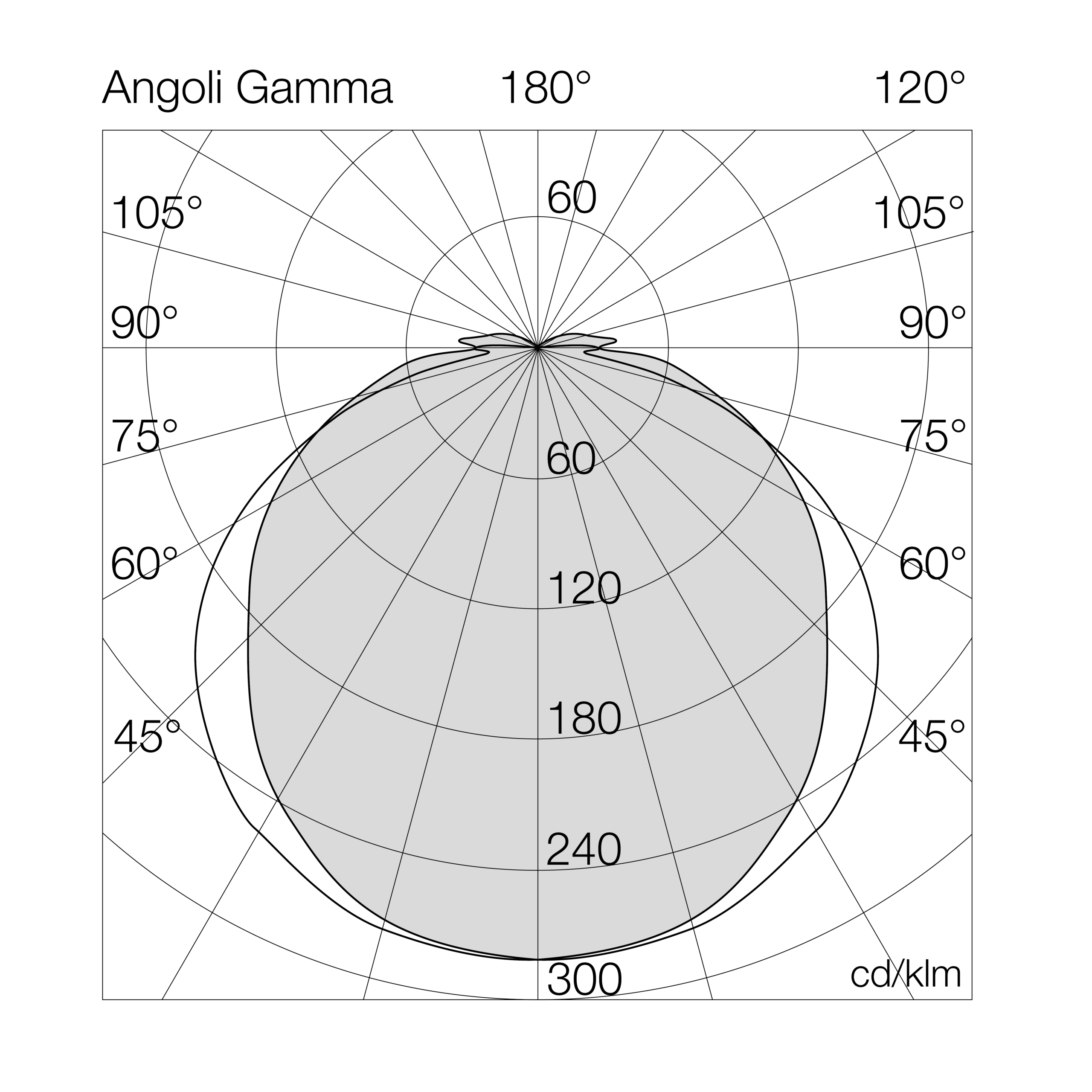

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2049	LD	30	= 3000°K (CRI >80)	31	EL	= on/off
		40	= 4000°K (CRI >80)	36	LD	= dali 2 / dali 2 push
		50	= 5000°K (CRI >80)	42	FC	= continuous row
		65	= 6500°K (CRI >80)	50	AB	= on/off (ABS+PMMA)
		49	= 4000°K (CRI >90)	55	AD	= dali 2 (ABS+PMMA)
				64

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2049LD4031EL	31	-	4000°K - CRI>80	on/off	5019	162	145	1272	100	700	2.3
2049LD4036EL	36	-	4000°K - CRI>80	on/off	5564	155	145	1272	100	700	2.3
2049LD4042EL	42	-	4000°K - CRI>80	on/off	7072	157	145	1272	100	700	2.3
2049LD4050EL	50	-	4000°K - CRI>80	on/off	7711	154	145	1272	100	700	2.3
2049LD4055EL	55	-	4000°K - CRI>80	on/off	7820	142	145	1572	100	940	2.8
2049LD4064EL	64	-	4000°K - CRI>80	on/off	9051	141	145	1572	100	940	2.8
2049LD4031LD	31	-	4000°K - CRI>80	dali 2 / dali 2 push	5019	162	145	1272	100	700	2.3
2049LD4036LD	36	-	4000°K - CRI>80	dali 2 / dali 2 push	5564	155	145	1272	100	700	2.3
2049LD4042LD	42	-	4000°K - CRI>80	dali 2 / dali 2 push	7072	157	145	1272	100	700	2.3
2049LD4050LD	50	-	4000°K - CRI>80	dali 2 / dali 2 push	7711	154	145	1272	100	700	2.3
2049LD4055LD	55	-	4000°K - CRI>80	dali 2 / dali 2 push	7820	142	145	1572	100	940	2.8
2049LD4064LD	64	-	4000°K - CRI>80	dali 2 / dali 2 push	9051	141	145	1572	100	940	2.8
2049LD4031FC	31	-	4000°K - CRI>80	through wiring	5019	162	145	1272	100	700	2.3
2049LD4036FC	36	-	4000°K - CRI>80	through wiring	5564	155	145	1272	100	700	2.3
2049LD4042FC	42	-	4000°K - CRI>80	through wiring	7072	157	145	1272	100	700	2.3
2049LD4050FC	50	-	4000°K - CRI>80	through wiring	7711	154	145	1272	100	700	2.3
2049LD4055FC	55	-	4000°K - CRI>80	through wiring	7820	142	145	1572	100	940	2.8
2049LD4064FC	64	-	4000°K - CRI>80	through wiring	9051	141	145	1572	100	940	2.8
2049LD4031AB	31	-	4000°K - CRI>80	on/off (ABS+PMMA)	5019	162	145	1272	100	700	2.3
2049LD4036AB	36	-	4000°K - CRI>80	on/off (ABS+PMMA)	5564	155	145	1272	100	700	2.3
