MINERVA – Mod. D5

(90° diffusing optics - UGR<25)

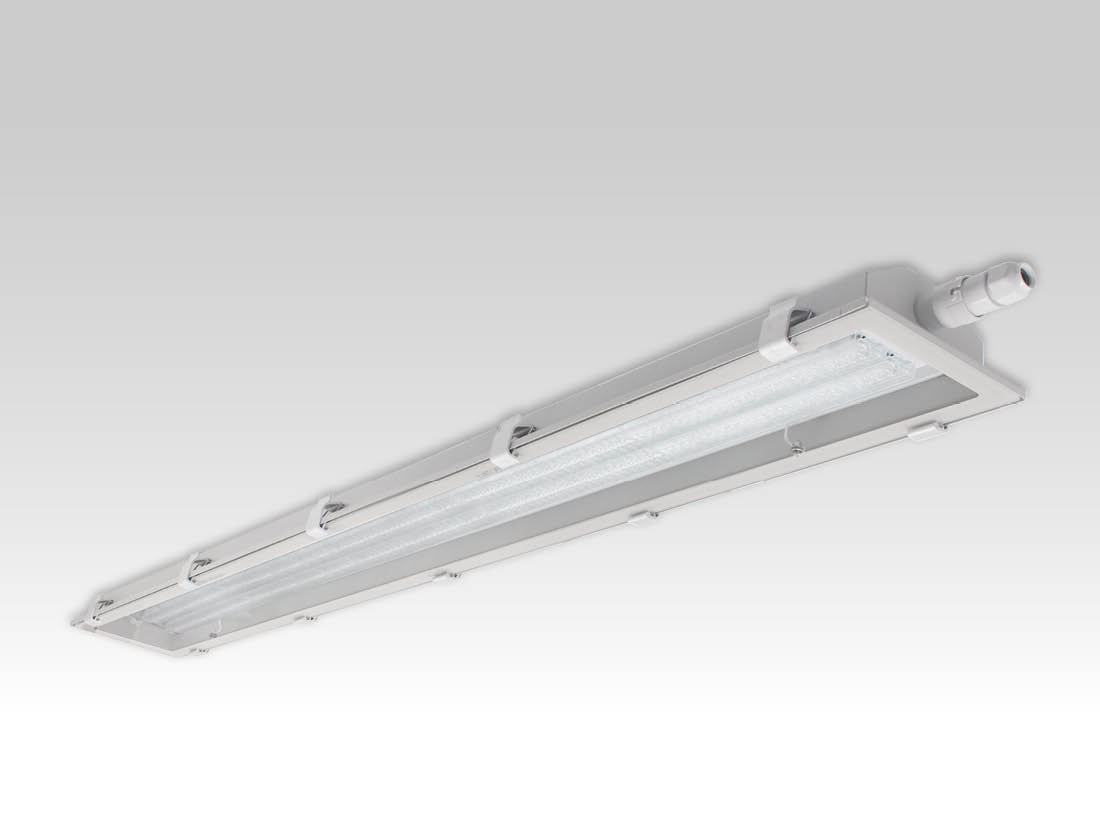

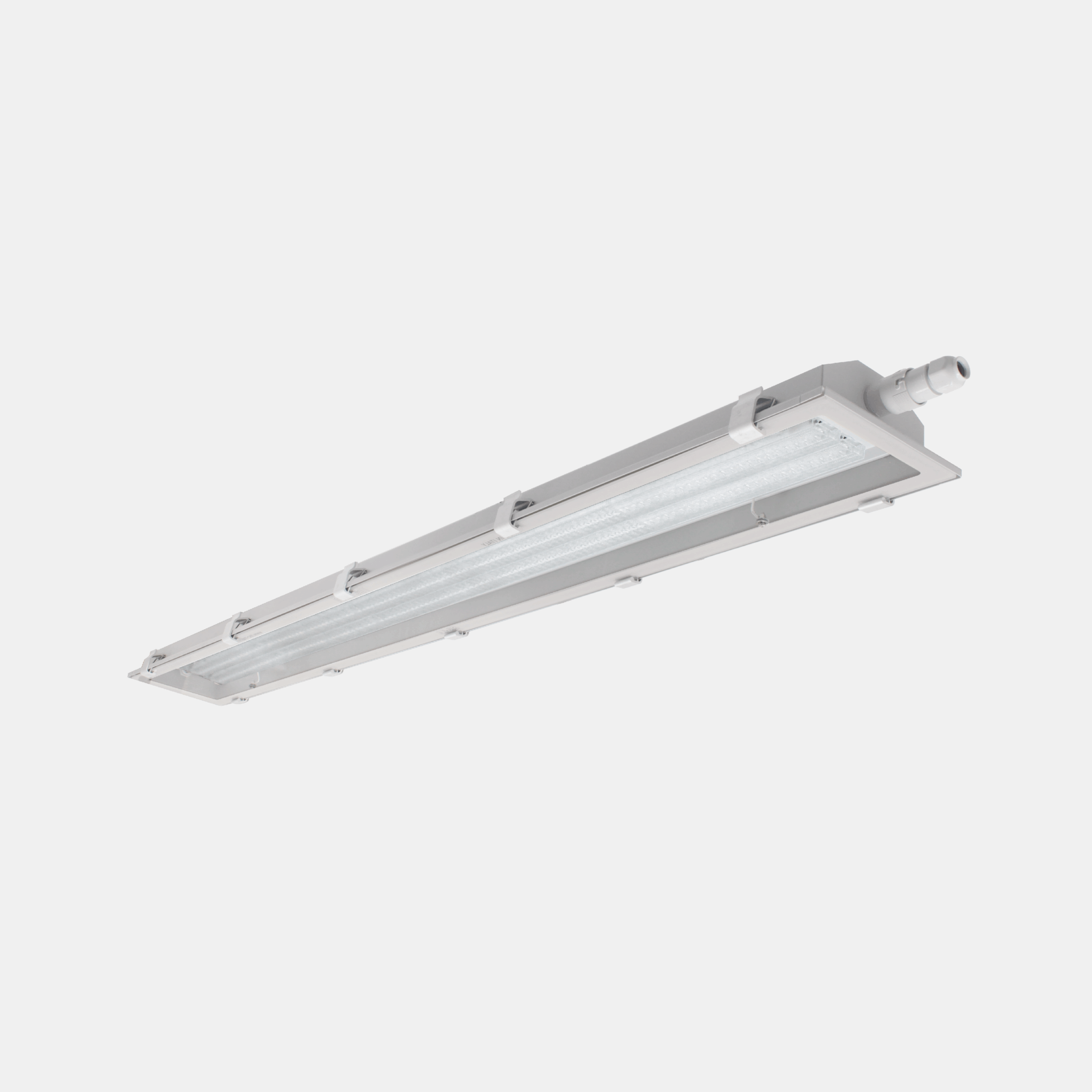

Led IP66 ceiling mounted or suspended fixture. Steel body, painted with epoxypolyester powders silver color, with phosphate and degreasing pretreatment, extruded aluminium locking clips, tempered protection glass, impacts and thermal shocks resistant, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, MINERVA, Industrial, MINERVA

Models: 930

Color: Silver

Catalogue abstract

Installation instructions

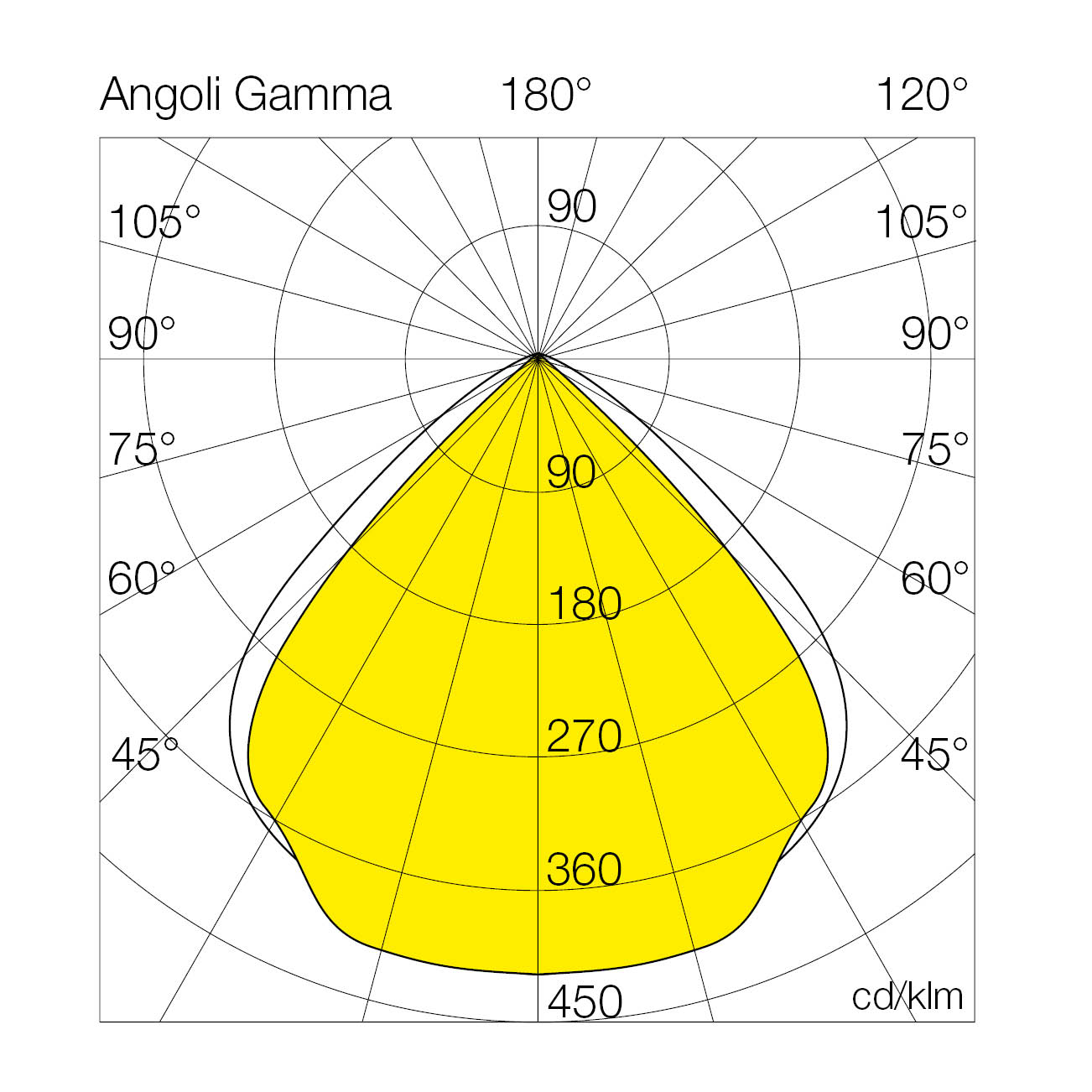

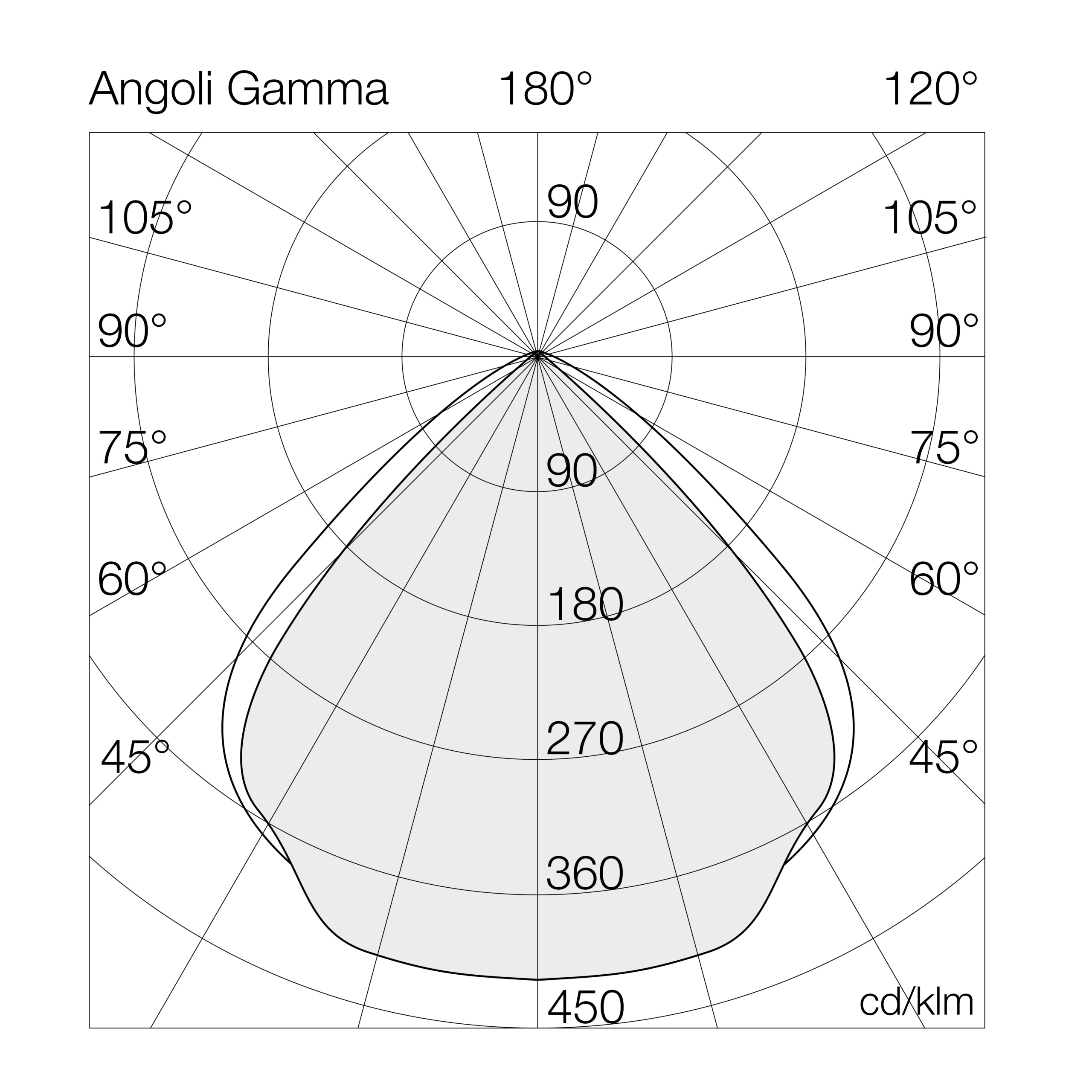

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.			Options
2058	D5	3	= 3000°K (CRI >80)	009	034	056	EL	= on/off
		4	= 4000°K (CRI >80)	011	035	059	LD	= dali 2 / dali 2 push
		5	= 5000°K (CRI >80)	013	036	064	D1	= dali 2 + em. 1h
		6	= 6500°K (CRI >80)	019	037	070	E1	= em. 1h
		9	= 4000°K (CRI >90)	020	039	080	E3	= em. 3h
				023	042	092	FC	= continuous row
				025	043	102
				028	044	112
				029	048	120
				030	049
				033	052

Models

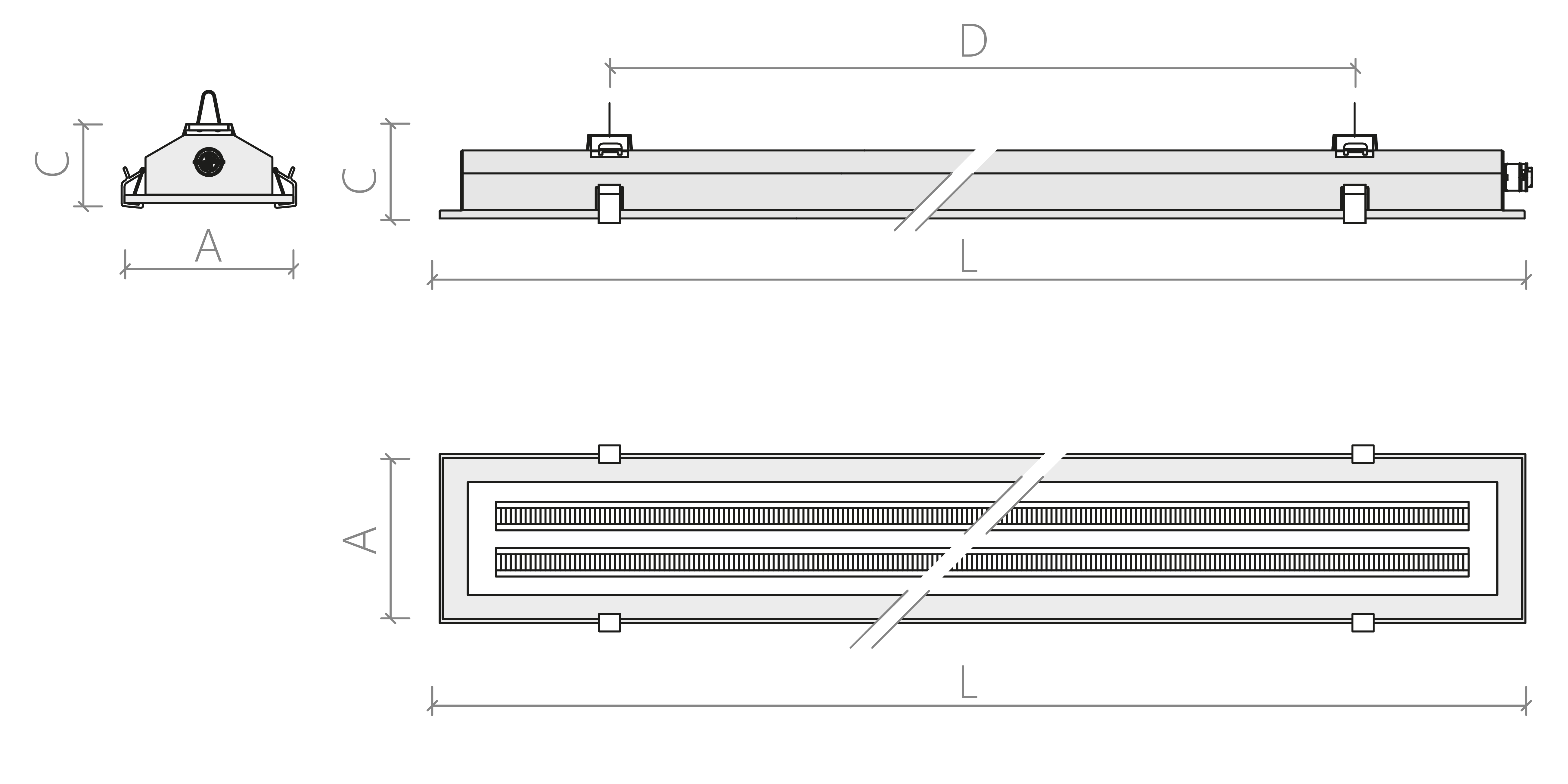

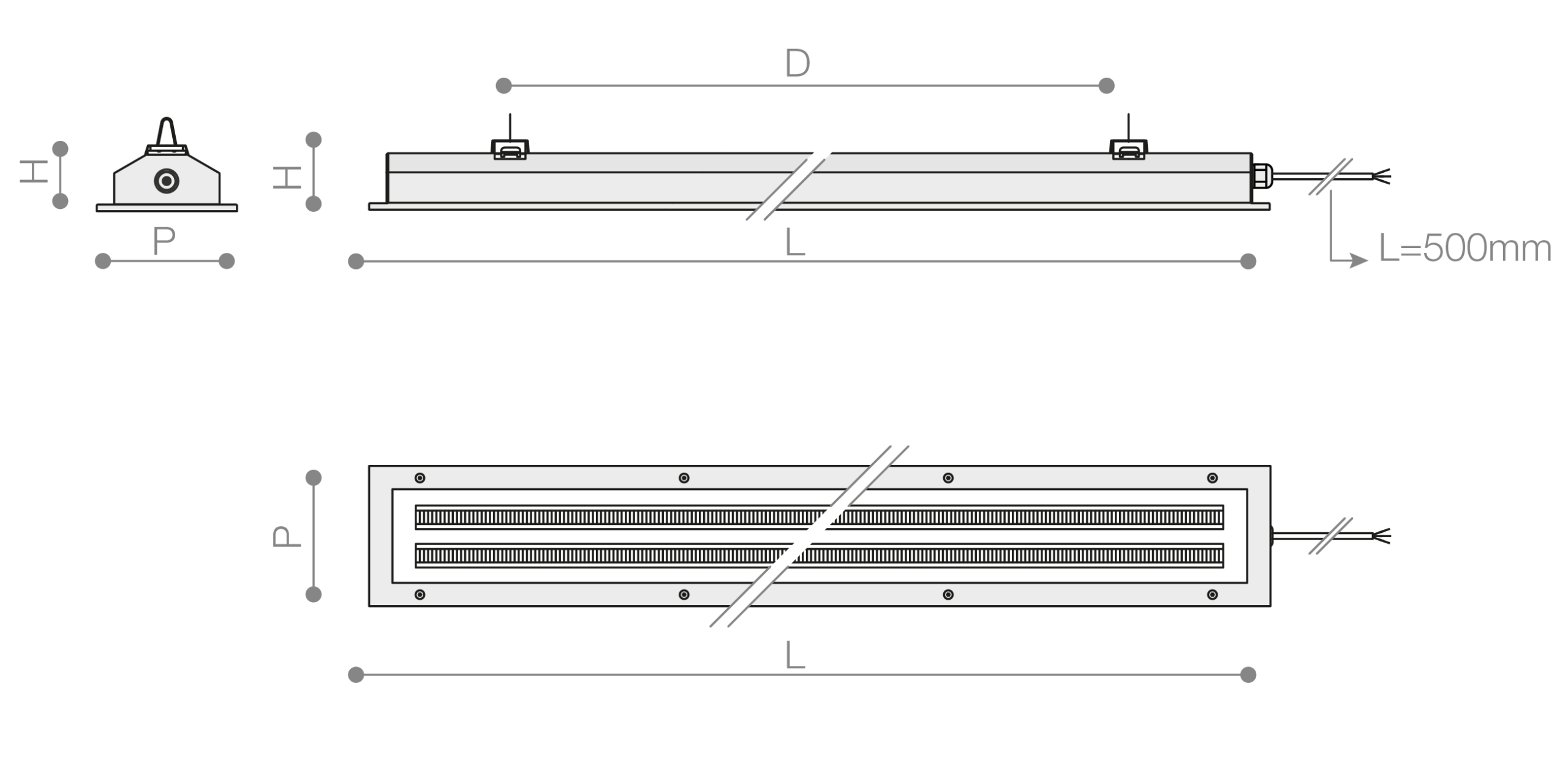

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2058D54009EL	9	-	4000°K - CRI ≥80	on/off	1420	158	185	660	75	414	4.3
2058D54011EL	11	-	4000°K - CRI ≥80	on/off	1720	156	185	660	75	414	4.3
2058D54013EL	13	-	4000°K - CRI ≥80	on/off	2169	167	185	660	75	414	4.3
2058D54019EL	19	-	4000°K - CRI ≥80	on/off	3211	169	185	660	75	414	4.3
2058D54020EL	20	-	4000°K - CRI ≥80	on/off	3439	172	185	1270	75	874	7.2
2058D54023EL	23	-	4000°K - CRI ≥80	on/off	3799	165	185	1270	75	874	7.2
2058D54025EL	25	-	4000°K - CRI ≥80	on/off	4218	169	185	1570	75	1154	8.7
2058D54028EL	28	-	4000°K - CRI ≥80	on/off	4637	166	185	1270	75	874	7.2
2058D54029EL	29	-	4000°K - CRI ≥80	on/off	4678	161	185	660	75	414	4.3
2058D54030EL	30	-	4000°K - CRI ≥80	on/off	4749	158	185	1570	75	1154	8.7
2058D54033EL	33	-	4000°K - CRI ≥80	on/off	5496	167	185	1570	75	1154	8.7
2058D54034EL	34	-	4000°K - CRI ≥80	on/off	5352	157	185	1570	75	1154	8.7
2058D54035EL	35	-	4000°K - CRI ≥80	on/off	5796	166	185	1570	75	1154	8.7
2058D54036EL	36	-	4000°K - CRI ≥80	on/off	5829	162	185	1270	75	874	7.2
2058D54037EL	37	-	4000°K - CRI ≥80	on/off	6095	165	185	1570	75	1154	8.7
2058D54039EL	39	-	4000°K - CRI ≥80	on/off	6303	162	185	1270	75	874	7.2
2058D54042EL	42	-	4000°K - CRI ≥80	on/off	7286	173	185	1570	75	1154	8.7
2058D54043EL	43	-	4000°K - CRI ≥80	on/off	6916	161	185	660	75	414	4.3
2058D54044EL	44	-	4000°K - CRI ≥80	on/off	7249	165	185	1270	75	874	7.2
2058D54048EL	48	-	4000°K - CRI ≥80	on/off	8471	176	185	1570	75	1154	8.7
