MINERVA – Mod. DP

(90° diffusing optics - UGR<25)

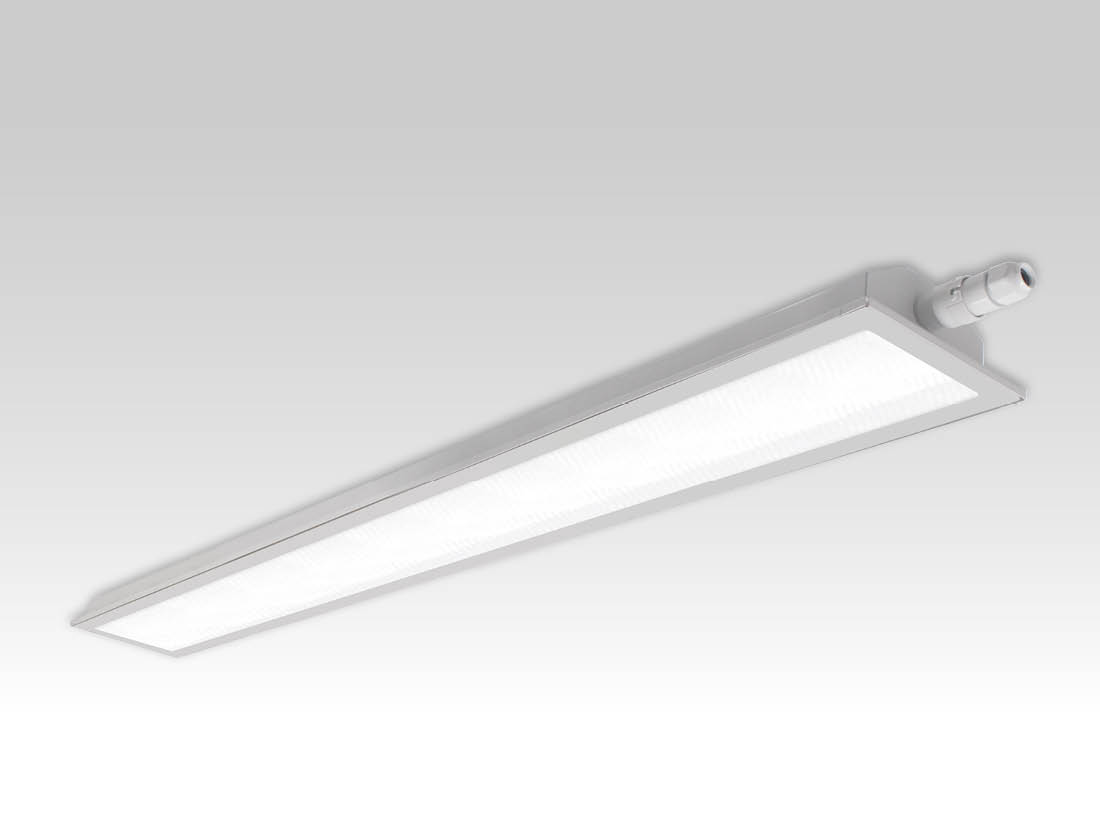

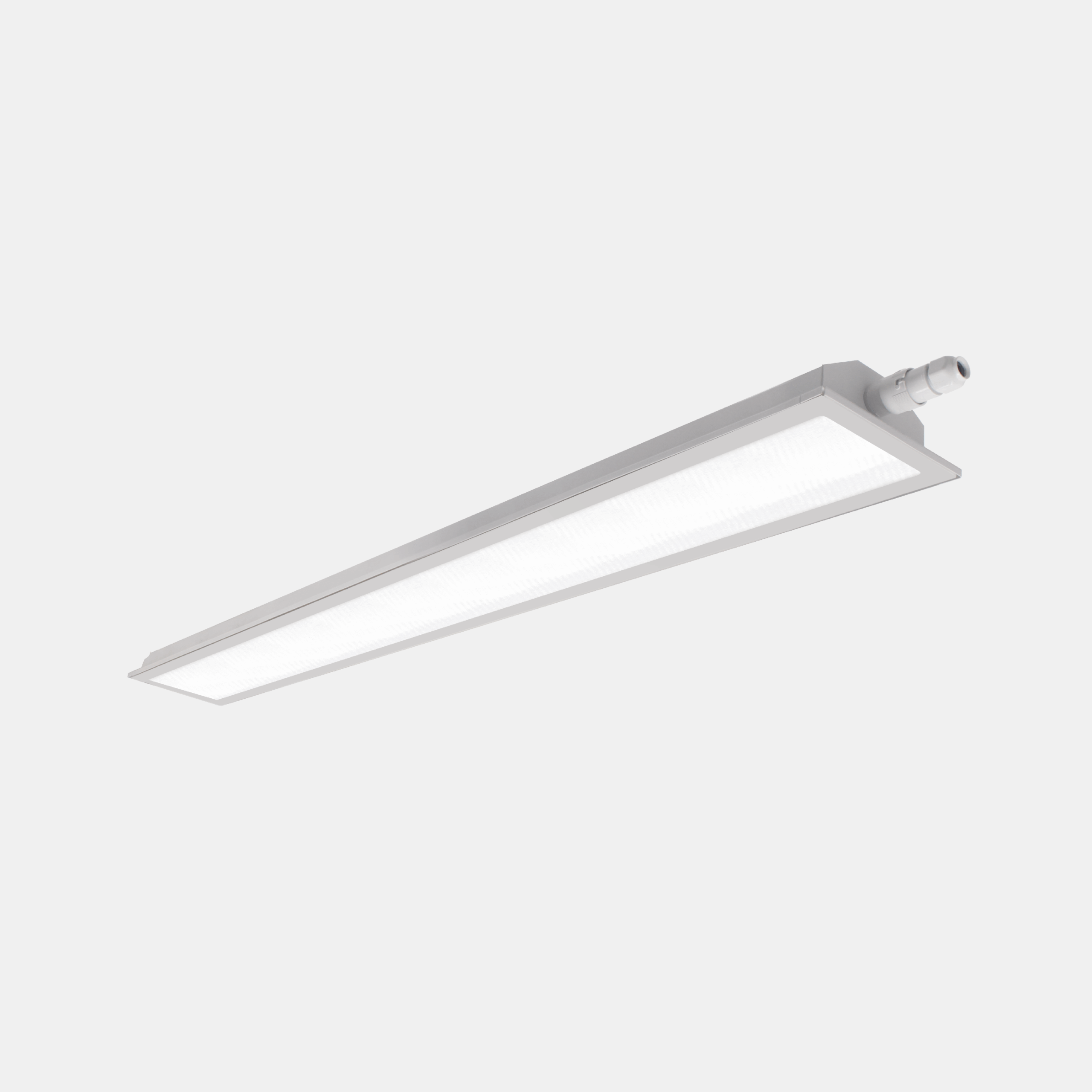

Led IP66 ceiling mounted or suspended fixture. Steel body, painted with epoxypolyester powders silver color, with phosphate and degreasing pretreatment, extruded aluminium locking clips, anti-glare and anti-reflection microprismatic polycarbonate diffuser, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, MINERVA, Industrial, MINERVA

Models: 930

Color: Silver

Catalogue abstract

Installation instructions

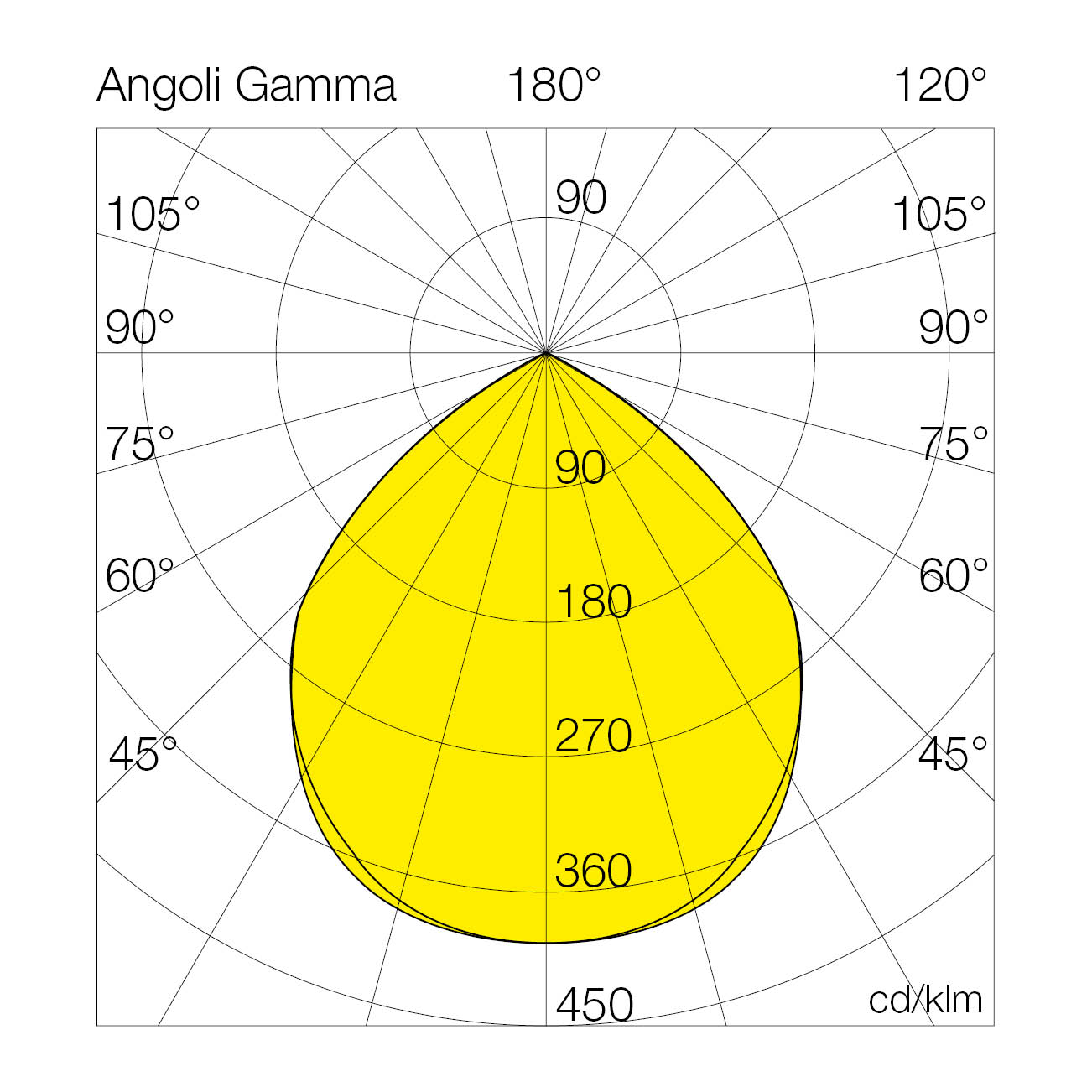

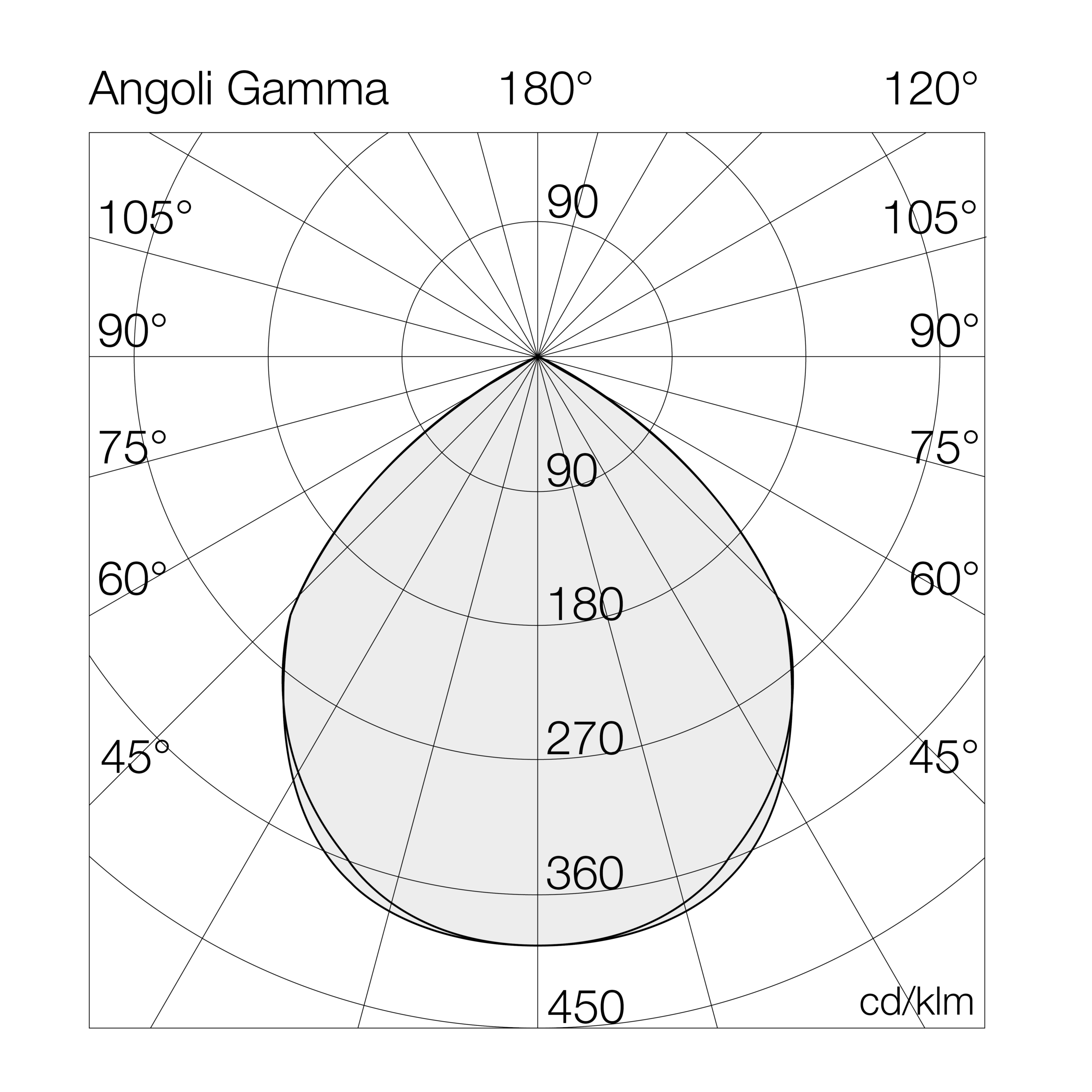

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.			Options
2058	DP	3	= 3000°K (CRI >80)	009	034	056	EL	= on/off
		4	= 4000°K (CRI >80)	011	035	059	LD	= dali 2 / dali 2 push
		5	= 5000°K (CRI >80)	013	036	064	D1	= dali 2 + em. 1h
		6	= 6500°K (CRI >80)	019	037	070	E1	= em. 1h
		9	= 4000°K (CRI >90)	020	039	080	E3	= em. 3h
				023	042	092	FC	= continuous row
				025	043	102
				028	044	112
				029	048	120
				030	049
				033	052

Models

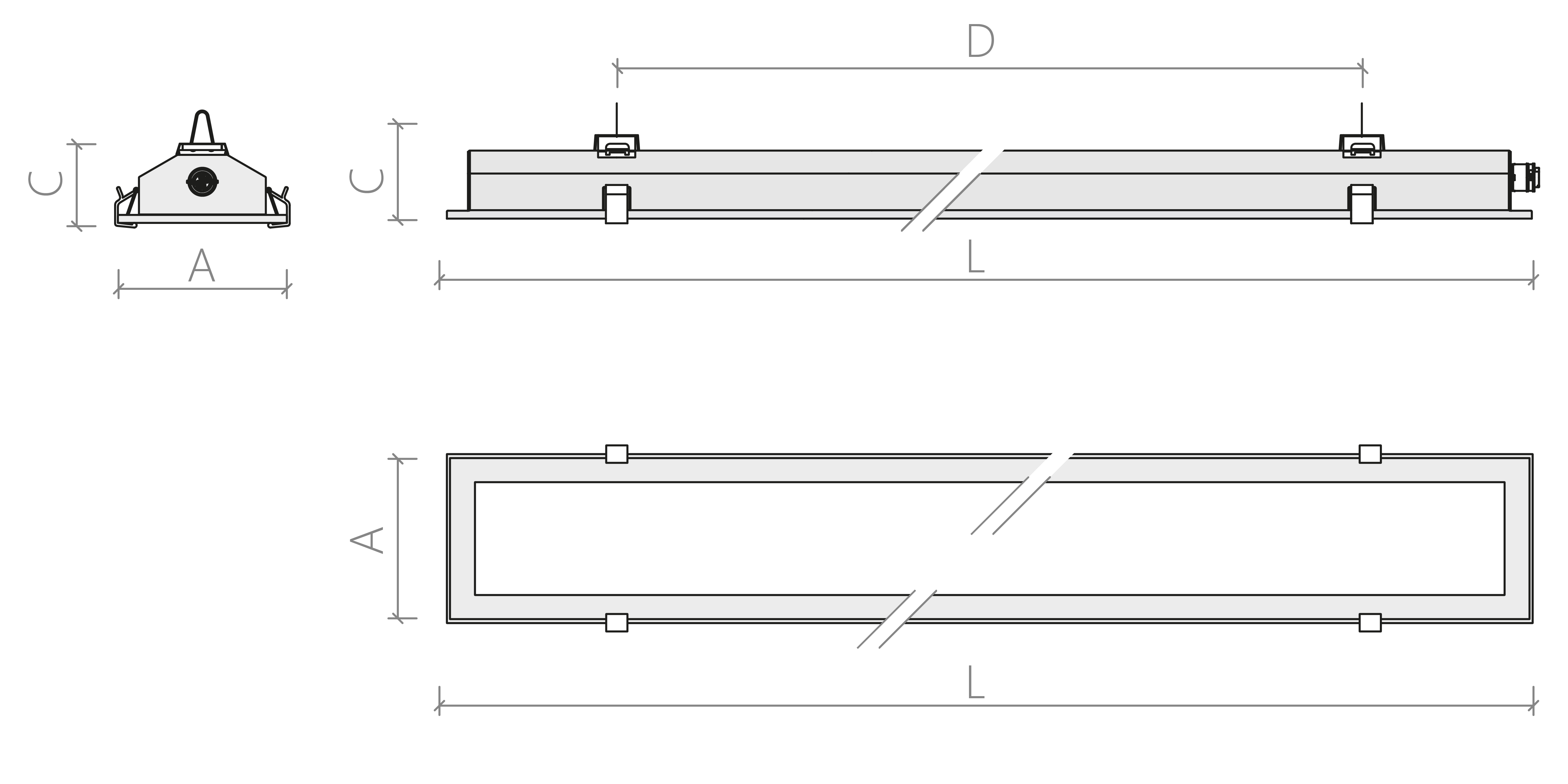

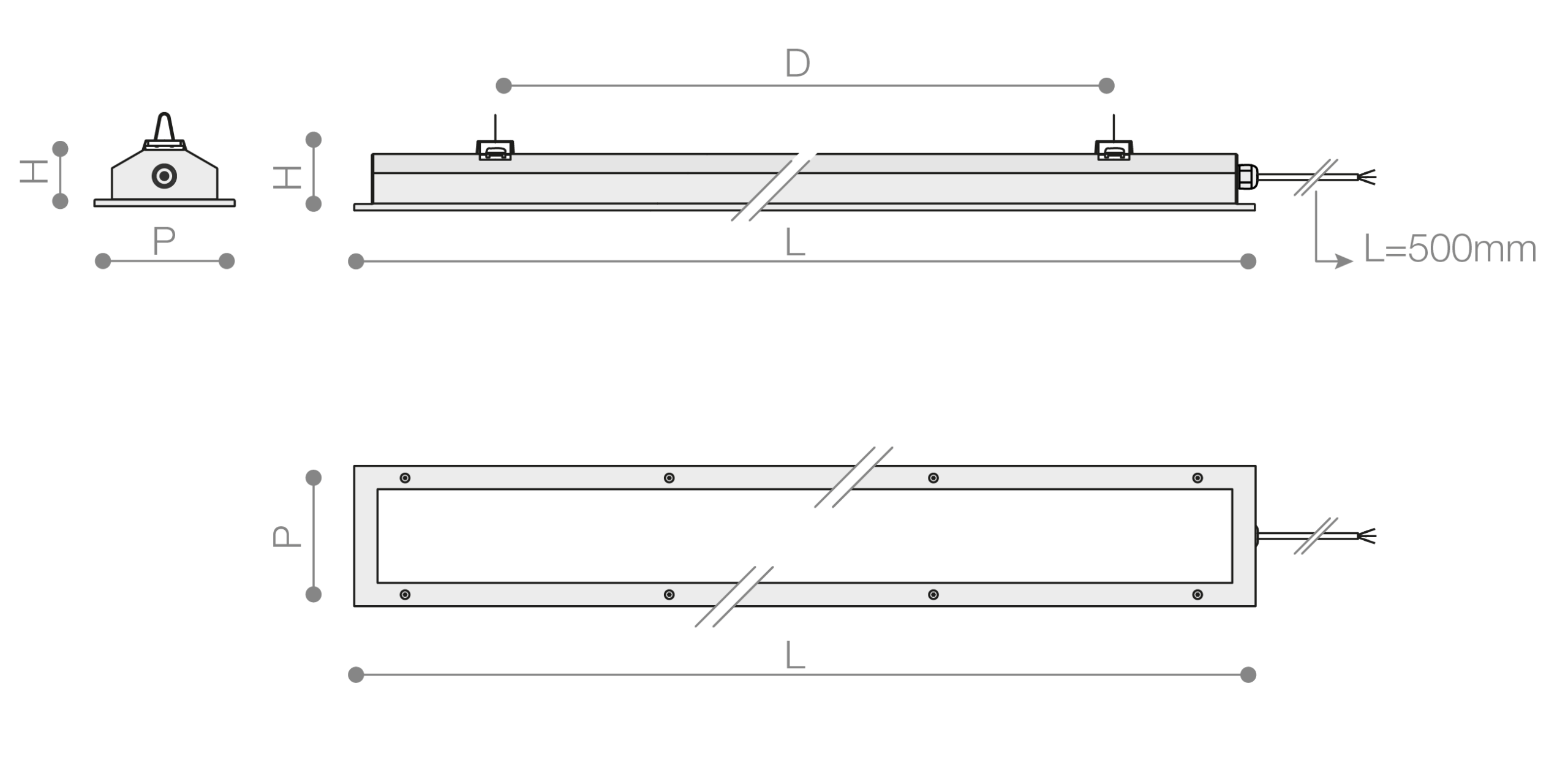

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2058DP4009EL	9	-	4000°K - CRI ≥80	on/off	1348	150	185	660	75	414	4.3
2058DP4011EL	11	-	4000°K - CRI ≥80	on/off	1633	148	185	660	75	414	4.3
2058DP4013EL	13	-	4000°K - CRI ≥80	on/off	2059	158	185	660	75	414	4.3
2058DP4019EL	19	-	4000°K - CRI ≥80	on/off	3048	160	185	660	75	414	4.3
2058DP4020EL	20	-	4000°K - CRI ≥80	on/off	3265	163	185	1270	75	874	7.2
2058DP4023EL	23	-	4000°K - CRI ≥80	on/off	3607	157	185	1270	75	874	7.2
2058DP4025EL	25	-	4000°K - CRI ≥80	on/off	4004	160	185	1570	75	1154	8.7
2058DP4028EL	28	-	4000°K - CRI ≥80	on/off	4402	157	185	1270	75	874	7.2
2058DP4029EL	29	-	4000°K - CRI ≥80	on/off	4442	153	185	660	75	414	4.3
2058DP4030EL	30	-	4000°K - CRI ≥80	on/off	4508	150	185	1570	75	1154	8.7
2058DP4033EL	33	-	4000°K - CRI ≥80	on/off	5218	158	185	1570	75	1154	8.7
2058DP4034EL	34	-	4000°K - CRI ≥80	on/off	5081	149	185	1570	75	1154	8.7
2058DP4035EL	35	-	4000°K - CRI ≥80	on/off	5502	157	185	1570	75	1154	8.7
2058DP4036EL	36	-	4000°K - CRI ≥80	on/off	5533	154	185	1270	75	874	7.2
2058DP4037EL	37	-	4000°K - CRI ≥80	on/off	5786	156	185	1570	75	1154	8.7
2058DP4039EL	39	-	4000°K - CRI ≥80	on/off	5984	153	185	1270	75	874	7.2
2058DP4042EL	42	-	4000°K - CRI ≥80	on/off	6917	165	185	1570	75	1154	8.7
2058DP4043EL	43	-	4000°K - CRI ≥80	on/off	6566	153	185	660	75	414	4.3
2058DP4044EL	44	-	4000°K - CRI ≥80	on/off	6882	156	185	1270	75	874	7.2
2058DP4048EL	48	-	4000°K - CRI ≥80	on/off	8042	168	185	1570	75	1154	8.7
