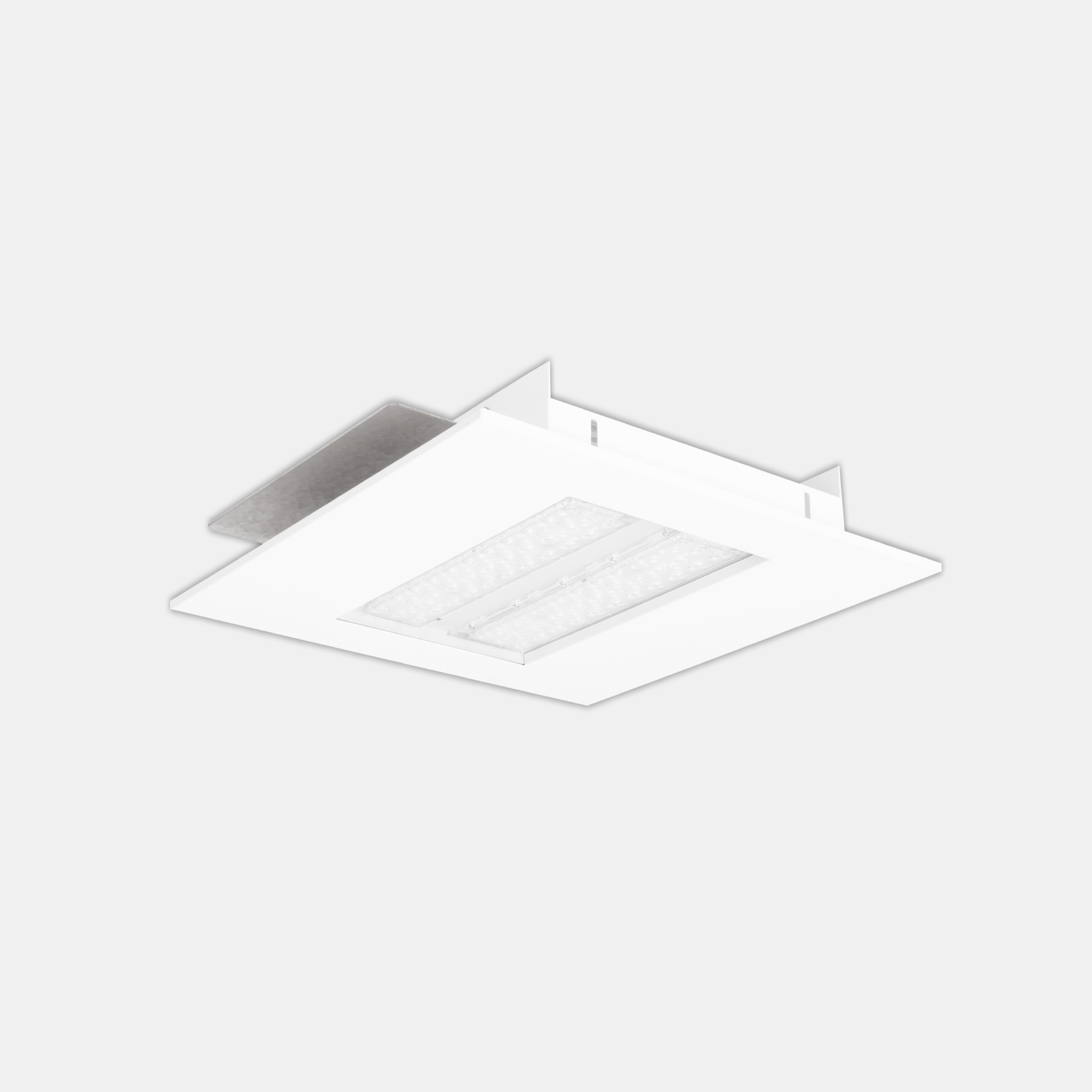

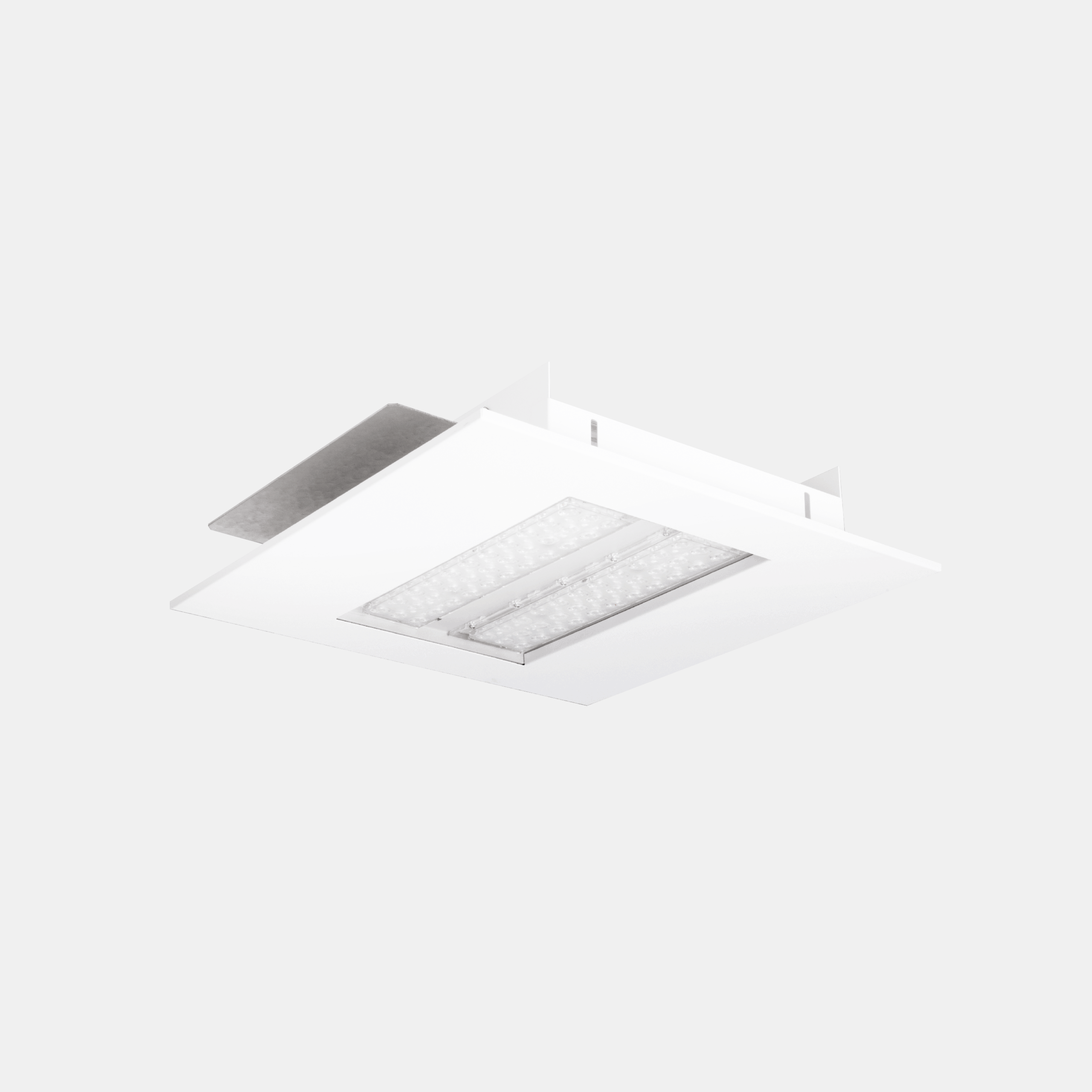

BOTERO – Mod. S2

(90° diffusing optics - UGR<25)

Outdoor and indoor led reflector suitable for recessed installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders silver color, silicone gasket. Recessed flange made of sheet steel painted with polyester thermosetting powders white color, with anticorrosion treatment conforming to class C4 according to ISO 12944. Mounting brackets included. IP65 90° diffusing optics with anti-glare, high flux efficiency, anti-glare and anti-reflection polycarbonate lenses.
Categories: Led, BOTERO - 2083, Retail, BOTERO
Models: 54
Color: Matt white
Catalogue abstract
Installation instructions

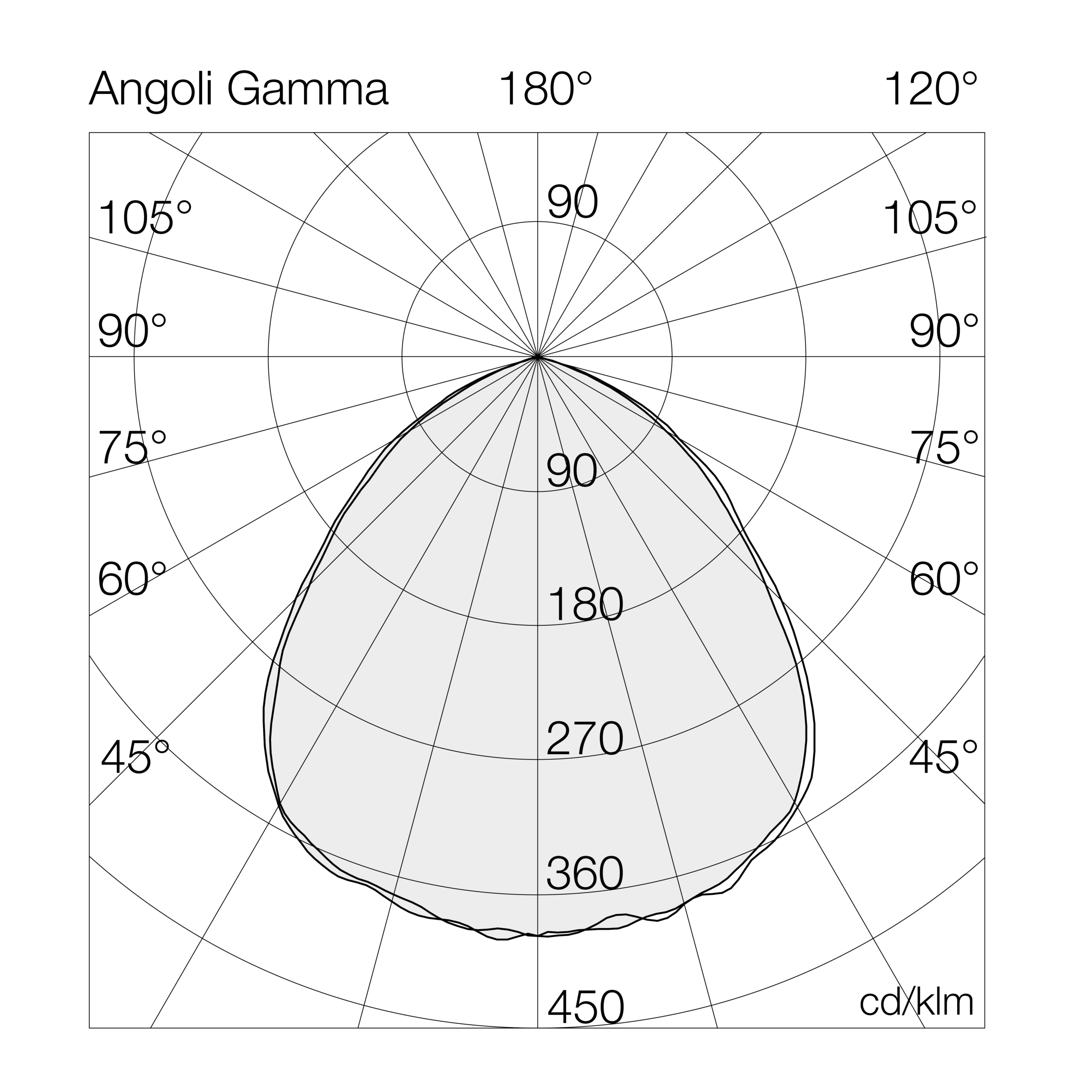

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2083S24= 4000°K (CRI >80)048EL= on/off
5= 5000°K (CRI >80)056LD= dali
7= 5700°K (CRI >80)068
075
092
100
110
137
158

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2083S24048EL48-4000°K - CRI>80on/off7560158455455120-6.8
2083S24056EL56-4000°K - CRI>80on/off8681155455455120-6.8
2083S24068EL68-4000°K - CRI>80on/off10343152455455120-6.8
2083S24075EL75-4000°K - CRI>80on/off11978160455455120-6.8
2083S24092EL92-4000°K - CRI>80on/off14119153455455120-6.8
2083S24100EL100-4000°K - CRI>80on/off15172152455455120-6.8
2083S24110EL110-4000°K - CRI>80on/off16214147455455120-6.8
2083S24137EL137-4000°K - CRI>80on/off19265141455455120-6.8
2083S24158EL158-4000°K - CRI>80on/off21726138455455120-6.8
2083S24048LD48-4000°K - CRI>80dali 27560158455455120-6.8
2083S24056LD56-4000°K - CRI>80dali 28681155455455120-6.8
2083S24068LD68-4000°K - CRI>80dali 210343152455455120-6.8
2083S24075LD75-4000°K - CRI>80dali 211978160455455120-6.8
2083S24092LD92-4000°K - CRI>80dali 214119153455455120-6.8
2083S24100LD100-4000°K - CRI>80dali 215172152455455120-6.8
2083S24110LD110-4000°K - CRI>80dali 216214147455455120-6.8
2083S24137LD137-4000°K - CRI>80dali 219265141455455120-6.8
2083S24158LD158-4000°K - CRI>80dali 221726138455455120-6.8
2083S25048EL48-5000°K - CRI>80on/off7598158455455120-6.8
2083S25056EL56-5000°K - CRI>80on/off8724156455455120-6.8

Accessories
