art.-2084-dante-su

DANTE/SU

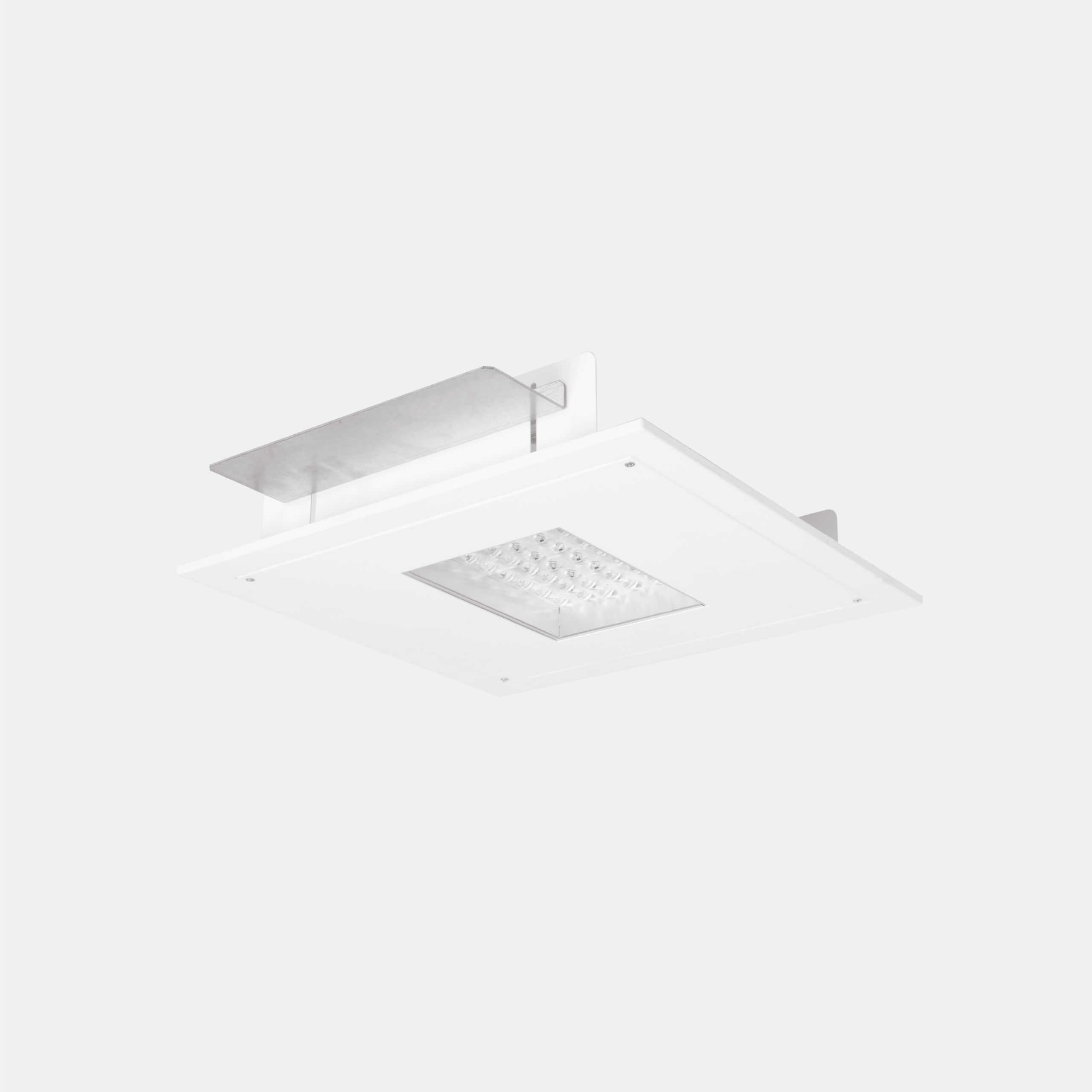

Canopy led fitting. Die cast alluminium body, coated with polyester anticorrosion powder silver color, 4 mm thick tempered transparent glass, silicon gasket. External frame in white anti-corrosion powder coated steel sheet. Brackets installation (included in the packaging), electronic driver 220-240V 50/60Hz. Manufactured in accordance with the EN / IEC 60598-1:2008 rules.
Categories: Led, DANTE - 2084, Retail, art. 2084 Dante
Models: 32
Color: Matt white
Catalogue abstract
Installation instructions

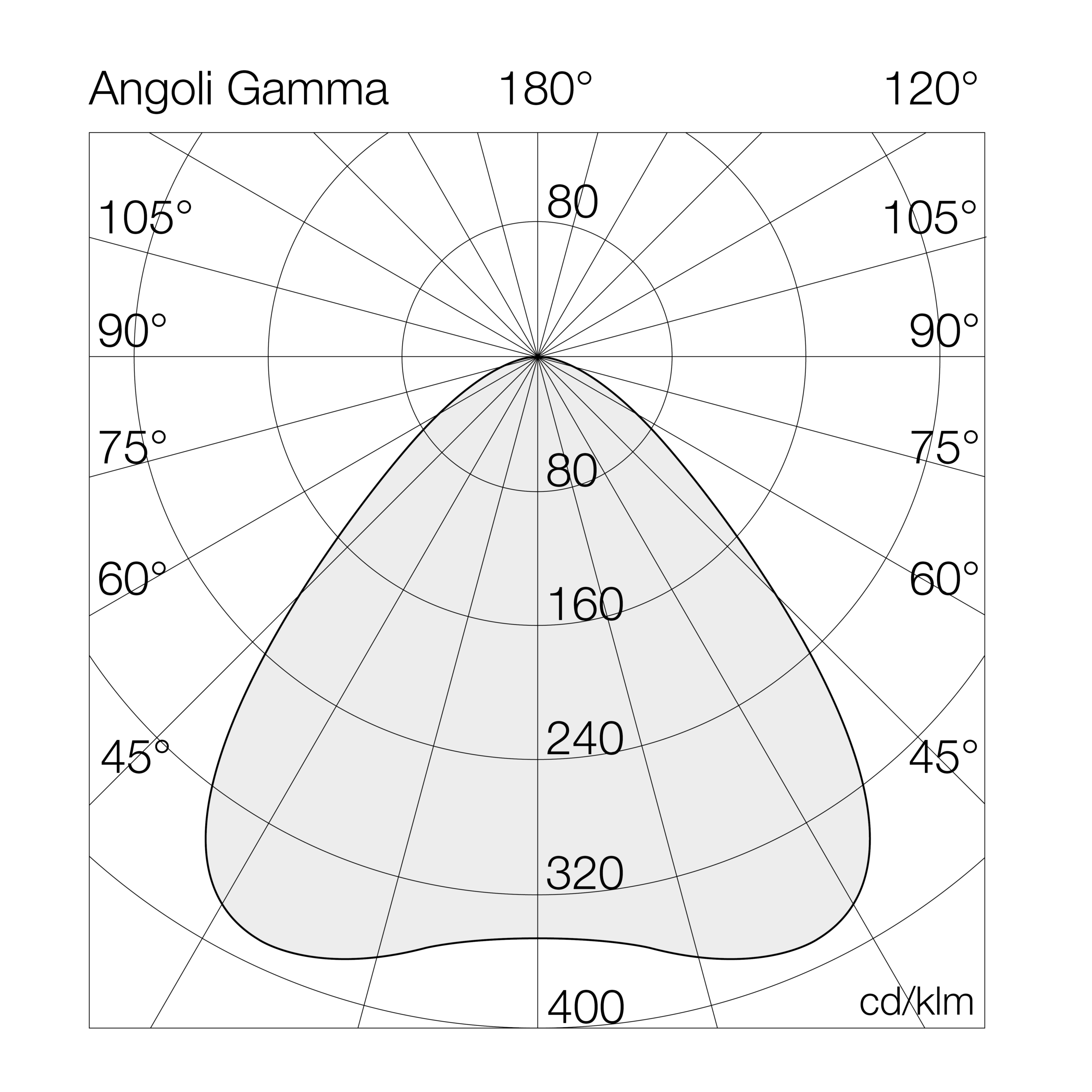

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2084SU4= 4000°K (CRI >80)054EL= on/off
5= 5000°K (CRI >80)068LD= dali
080
092
100
110
120
150

Models

W tot.
°K - CRI
Options

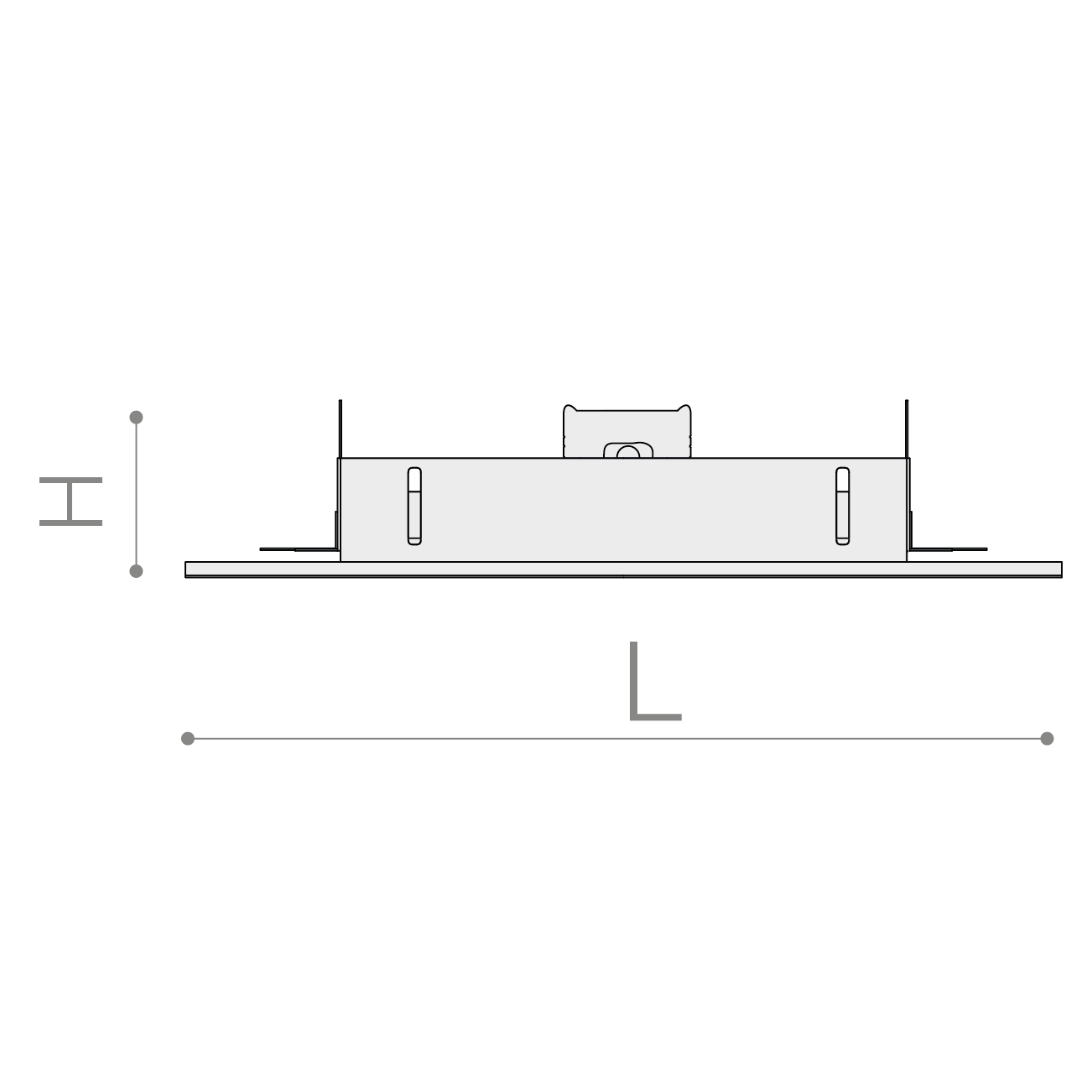

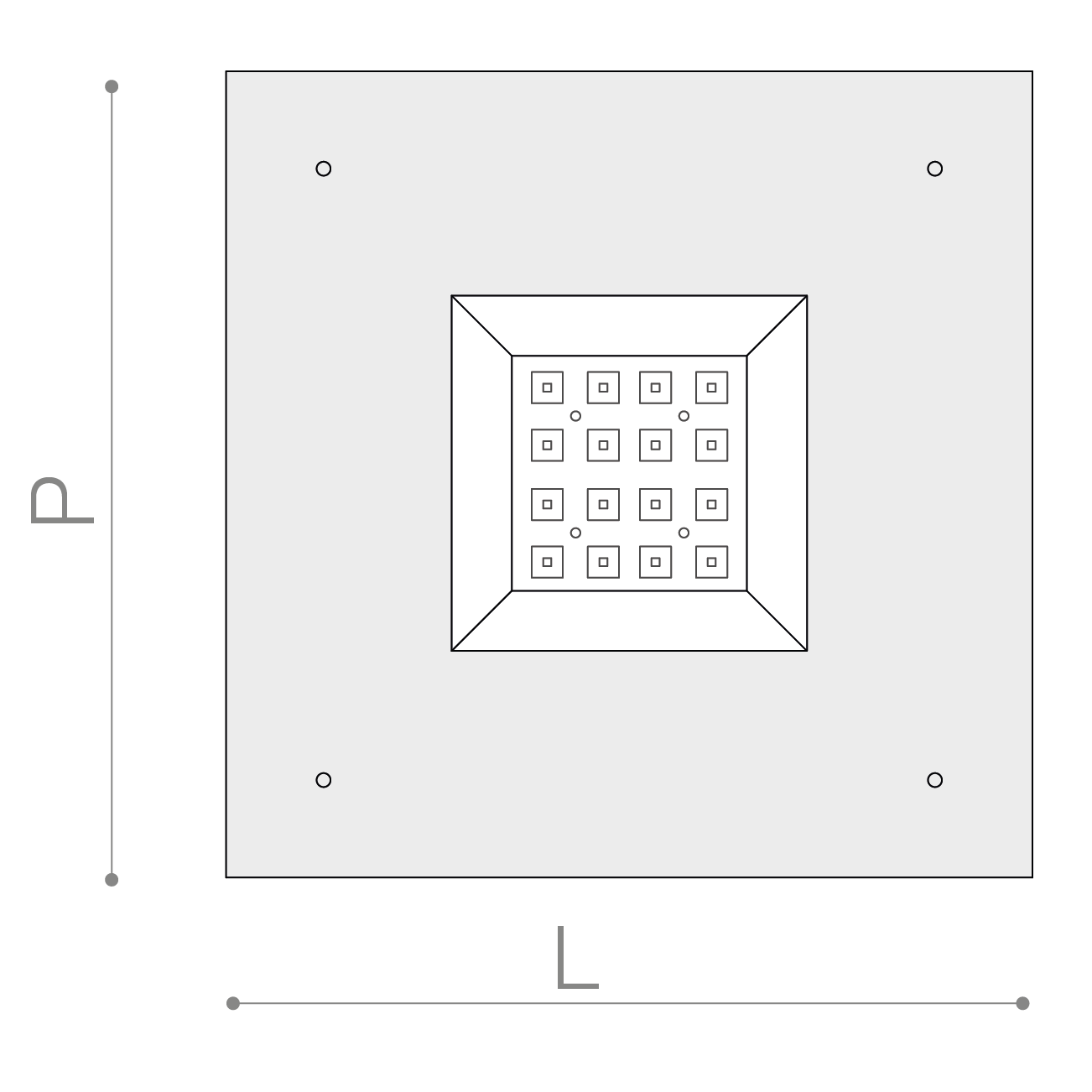

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
2084SU4054EL54-4000°K - CRI>80on/off7092131455455120-7.5
2084SU4068EL68-4000°K - CRI>80on/off9315137455455120-7.5
2084SU4080EL80-4000°K - CRI>80on/off10639133455455120-7.5
2084SU4092EL92-4000°K - CRI>80on/off12871140455455120-7.5
2084SU4100EL100-4000°K - CRI>80on/off13972140455455120-7.5
2084SU4110EL110-4000°K - CRI>80on/off15044137455455120-7.5
2084SU4120EL120-4000°K - CRI>80on/off15959133455455120-7.5
2084SU4150EL150-4000°K - CRI>80on/off20410136455455120-7.5
2084SU4054LD54-4000°K - CRI>80dali7092131455455120-7.5
2084SU4068LD68-4000°K - CRI>80dali9315137455455120-7.5
2084SU4080LD80-4000°K - CRI>80dali10639133455455120-7.5
2084SU4092LD92-4000°K - CRI>80dali12871140455455120-7.5
2084SU4100LD100-4000°K - CRI>80dali13972140455455120-7.5
2084SU4110LD110-4000°K - CRI>80dali15044137455455120-7.5
2084SU4120LD120-4000°K - CRI>80dali15959133455455120-7.5
2084SU4150LD150-4000°K - CRI>80dali20410136455455120-7.5
2084SU5054EL54-5000°K - CRI>80on/off7335136455455120-7.5
2084SU5068EL68-5000°K - CRI>80on/off9635142455455120-7.5
2084SU5080EL80-5000°K - CRI>80on/off11004138455455120-7.5
2084SU5092EL92-5000°K - CRI>80on/off13312145455455120-7.5

Accessories
