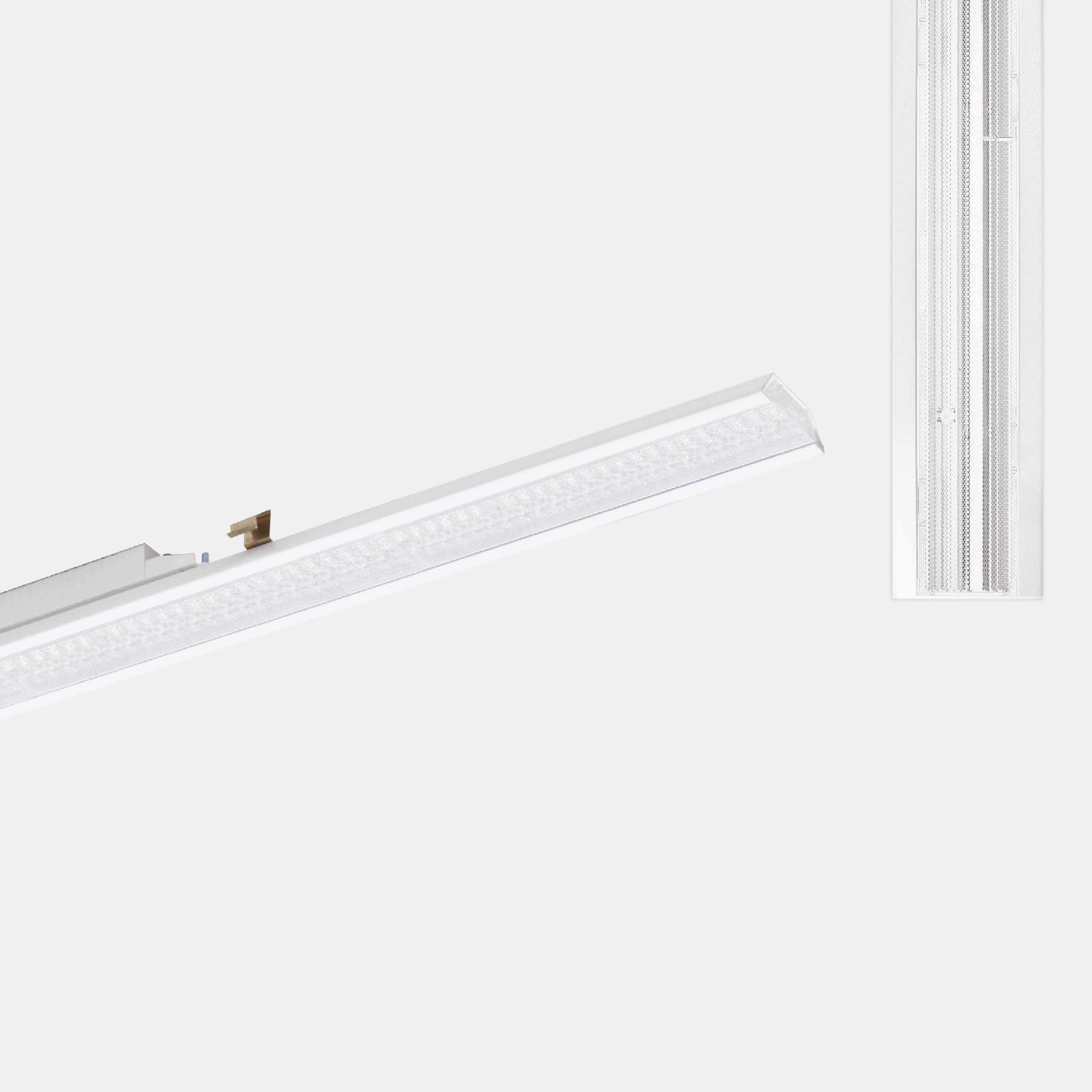

DENVER – Mod. AD

(Asymmetrical optics 30° to the right)

Linear LED fixture suitable for continuous row ceiling or suspension installation for lighting commercial and industrial environments. Sheet steel body, painted with white polyester powder coating, fixing brackets included. The fixture consists of an electrified channel with 5-, 7- or 9-pole feed-through wiring and LED module available with asymmetrical optics 30° to the right.

Categories: Led, DENVER - 2098, Retail, DENVER

Models: 200

Color: Matt white

Catalogue abstract

Installation instructions

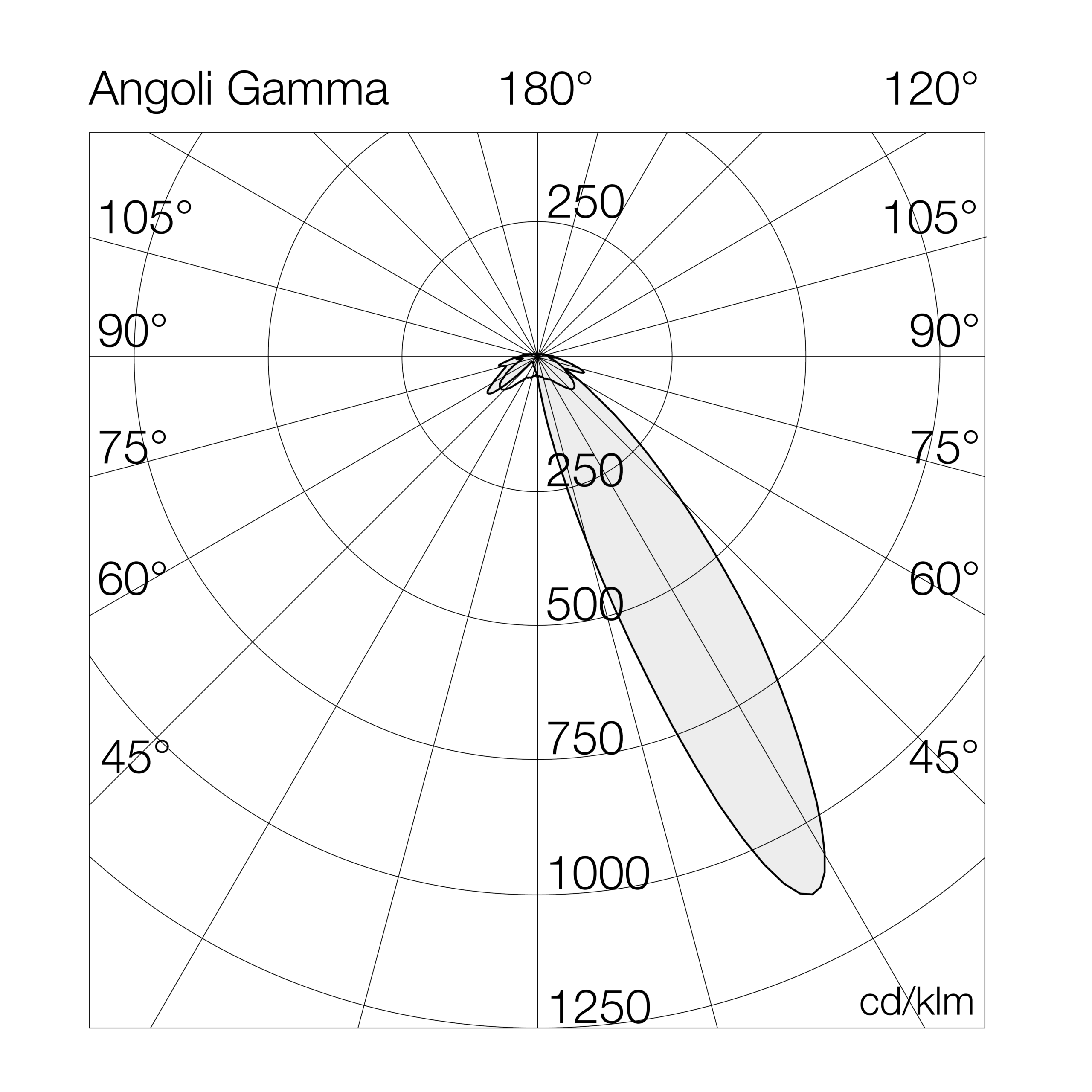

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
2098	AD	40	= 4000°K (CRI >80)	11	40	EL	= on/off
		94	= 4000°K (CRI >90)	16	42	LD	= dali 2 / dali 2 push
				17	44	D1	= dali 2 + em. 1h
				18	47	E1	= em. 1h
				21	48	E3	= em. 3h
				23	49
				24	53
				28	54
				32	56
				34	60
				35	63
				37	72

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2098AD4011EL	11	250	4000°K - CRI>80	on/off	1615	147	61	564	45	-	0.50
2098AD4023EL	23	250	4000°K - CRI>80	on/off	3232	141	61	1124	45	-	1.0
2098AD4028EL	28	250	4000°K - CRI>80	on/off	4039	144	61	1404	45	-	1.2
2098AD4034EL	34	250	4000°K - CRI>80	on/off	4847	143	61	1684	45	-	1.4
2098AD4016EL	16	350	4000°K - CRI>80	on/off	2217	139	61	564	45	-	0.50
2098AD4032EL	32	350	4000°K - CRI>80	on/off	4434	139	61	1124	45	-	1.0
2098AD4040EL	40	350	4000°K - CRI>80	on/off	5543	139	61	1404	45	-	1.2
2098AD4049EL	49	350	4000°K - CRI>80	on/off	6615	135	61	1684	45	-	1.4
2098AD4018EL	18	400	4000°K - CRI>80	on/off	2691	150	61	564	45	-	0.50
2098AD4037EL	37	400	4000°K - CRI>80	on/off	5382	145	61	1124	45	-	1.0
2098AD4047EL	47	400	4000°K - CRI>80	on/off	6728	143	61	1404	45	-	1.2
2098AD4056EL	56	400	4000°K - CRI>80	on/off	8067	144	61	1684	45	-	1.4
2098AD4021EL	21	450	4000°K - CRI>80	on/off	3047	145	61	564	45	-	0.50
2098AD4042EL	42	450	4000°K - CRI>80	on/off	6095	145	61	1124	45	-	1.0
2098AD4053EL	53	450	4000°K - CRI>80	on/off	7619	144	61	1404	45	-	1.2
2098AD4063EL	63	400	4000°K - CRI>80	on/off	9018	143	61	1684	45	-	1.4
2098AD4024EL	24	500	4000°K - CRI>80	on/off	3316	138	61	564	45	-	0.50
2098AD4048EL	48	500	4000°K - CRI>80	on/off	6632	138	61	1124	45	-	1.0
2098AD4060EL	60	500	4000°K - CRI>80	on/off	8289	138	61	1404	45	-	1.2
2098AD4072EL	72	500	4000°K - CRI>80	on/off	9947	138	61	1684	45	-	1.4
