DENVER – Mod. C1

(15° spot optics)

Linear LED fixture suitable for continuous row ceiling or suspension installation for lighting commercial and industrial environments. Sheet steel body, painted with white polyester powder coating, fixing brackets included. The fixture consists of an electrified channel with 5-, 7- or 9-pole feed-through wiring and LED module available with 15° spot optics.

Categories: Led, DENVER - 2098, Retail, DENVER

Models: 16

Color: Matt white

Catalogue abstract

Installation instructions

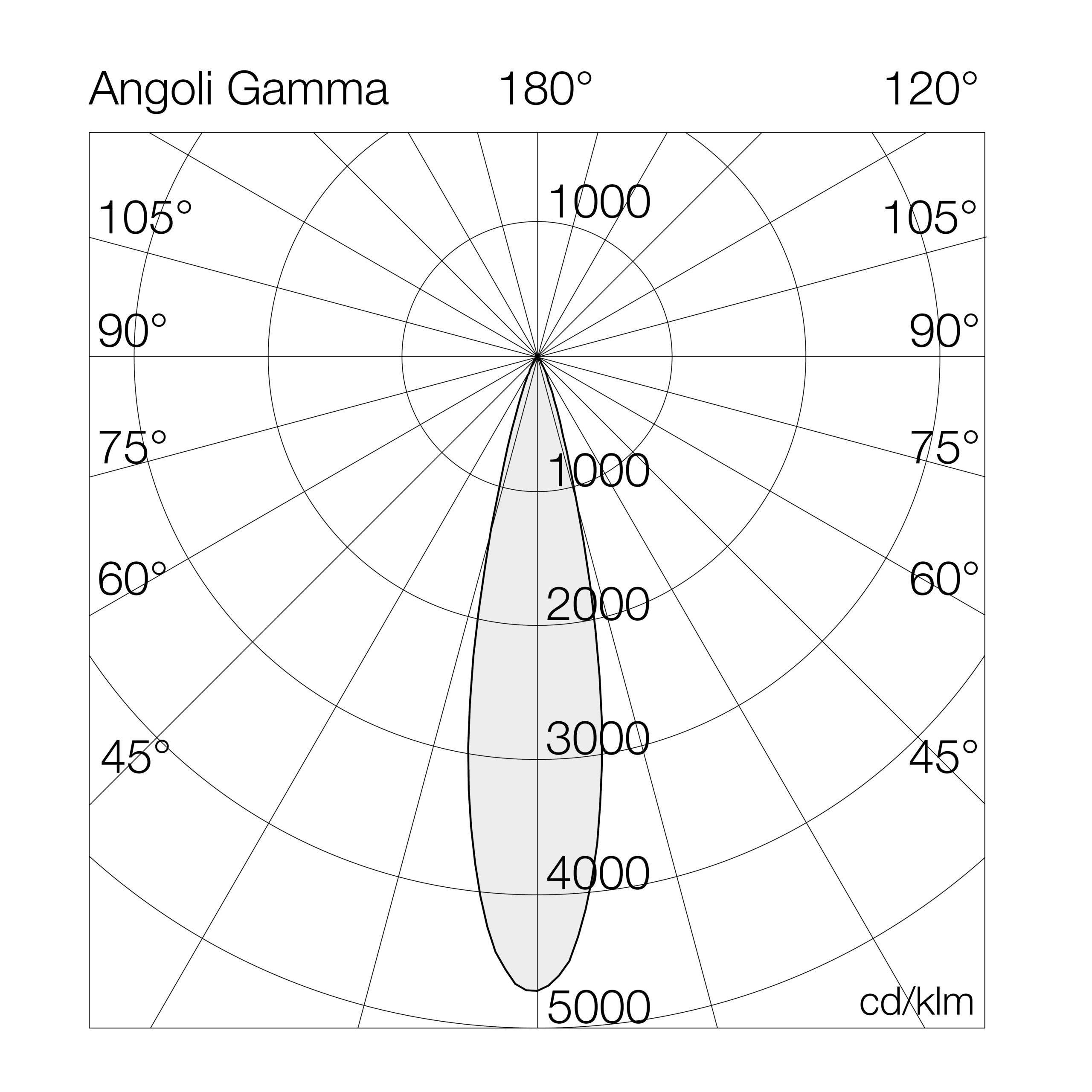

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2098	C1	40	= 4000°K (CRI >80)	26	EL	= on/off
		94	= 4000°K (CRI >90)	32	LD	= dali 2 / dali 2 push
					D1	= dali 2 + em. 1h
					E1	= em. 1h
					E3	= em. 3h

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2098C14026EL	26	700	4000°K - CRI>80	on/off	3410	131	65	564	130	-	1.0
2098C14032EL	32	850	4000°K - CRI>80	on/off	4056	127	65	564	130	-	1.0
2098C14036EL	36	950	4000°K - CRI>80	on/off	4471	124	65	564	130	-	1.0
2098C14040EL	40	1050	4000°K - CRI>80	on/off	4874	122	65	564	130	-	1.0
2098C14026LD	26	700	4000°K - CRI>80	dali 2 / dali 2 push	3410	131	65	564	130	-	1.0
2098C14032LD	32	850	4000°K - CRI>80	dali 2 / dali 2 push	4056	127	65	564	130	-	1.0
2098C14036LD	36	950	4000°K - CRI>80	dali 2 / dali 2 push	4471	124	65	564	130	-	1.0
2098C14040LD	40	1050	4000°K - CRI>80	dali 2 / dali 2 push	4874	122	65	564	130	-	1.0
2098C19426EL	26	700	4000°K - CRI>90	on/off	2896	111	65	564	130	-	1.0
2098C19432EL	32	850	4000°K - CRI>90	on/off	3444	108	65	564	130	-	1.0
2098C19436EL	36	950	4000°K - CRI>90	on/off	3797	105	65	564	130	-	1.0
2098C19440EL	40	1050	4000°K - CRI>90	on/off	4139	103	65	564	130	-	1.0
2098C19426LD	26	700	4000°K - CRI>90	dali 2 / dali 2 push	2896	111	65	564	130	-	1.0
2098C19432LD	32	850	4000°K - CRI>90	dali 2 / dali 2 push	3444	108	65	564	130	-	1.0
2098C19436LD	36	950	4000°K - CRI>90	dali 2 / dali 2 push	3797	105	65	564	130	-	1.0
2098C19440LD	40	1050	4000°K - CRI>90	dali 2 / dali 2 push	4139	103	65	564	130	-	1.0
