DENVER – Mod. C3

(Medium optics 36°)

Linear LED fixture suitable for continuous row ceiling or suspension installation for lighting commercial and industrial environments. Sheet steel body, painted with white polyester powder coating, fixing brackets included. The fixture consists of an electrified channel with 5-, 7- or 9-pole feed-through wiring and LED module available with medium optics 36°.

Categories: Led, DENVER - 2098, Retail, DENVER

Models: 16

Color: Matt white

Catalogue abstract

Installation instructions

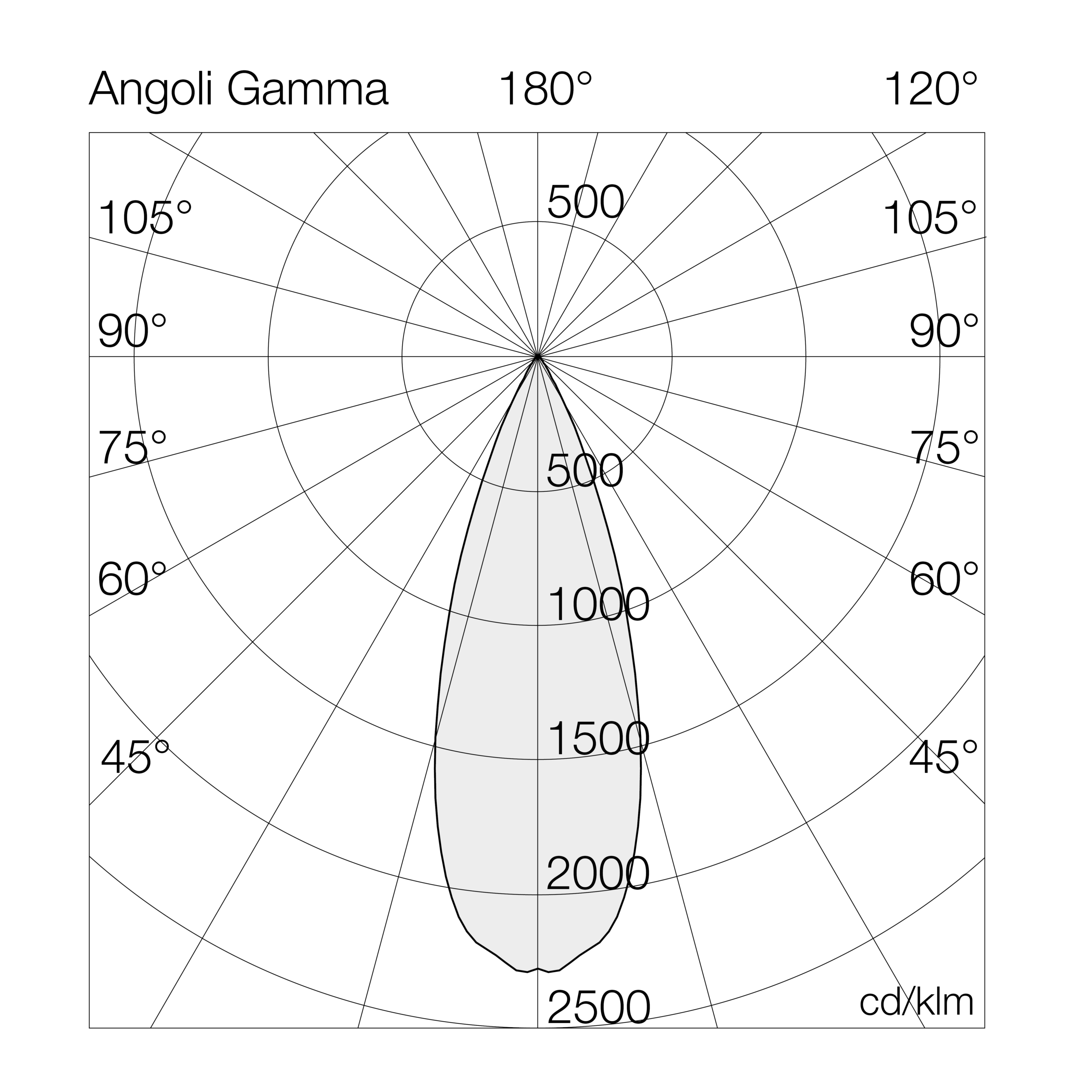

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2098	C3	40	= 4000°K (CRI >80)	26	EL	= on/off
		94	= 4000°K (CRI >90)	32	LD	= dali 2 / dali 2 push
					D1	= dali 2 + em. 1h
					E1	= em. 1h
					E3	= em. 3h

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2098C34026EL	26	700	4000°K - CRI>80	on/off	3247	125	65	564	130	-	1.0
2098C34032EL	32	850	4000°K - CRI>80	on/off	3863	121	65	564	130	-	1.0
2098C34036EL	36	950	4000°K - CRI>80	on/off	4258	118	65	564	130	-	1.0
2098C34040EL	40	1050	4000°K - CRI>80	on/off	4642	116	65	564	130	-	1.0
2098C34026LD	26	700	4000°K - CRI>80	dali 2 / dali 2 push	3247	125	65	564	130	-	1.0
2098C34032LD	32	850	4000°K - CRI>80	dali 2 / dali 2 push	3863	121	65	564	130	-	1.0
2098C34036LD	36	950	4000°K - CRI>80	dali 2 / dali 2 push	4258	118	65	564	130	-	1.0
2098C34040LD	40	1050	4000°K - CRI>80	dali 2 / dali 2 push	4642	116	65	564	130	-	1.0
2098C39426EL	26	700	4000°K - CRI>90	on/off	2757	106	65	564	130	-	1.0
2098C39432EL	32	850	4000°K - CRI>90	on/off	3280	103	65	564	130	-	1.0
2098C39436EL	36	950	4000°K - CRI>90	on/off	3616	100	65	564	130	-	1.0
2098C39440EL	40	1050	4000°K - CRI>90	on/off	3942	99	65	564	130	-	1.0
2098C39426LD	26	700	4000°K - CRI>90	dali 2 / dali 2 push	2757	106	65	564	130	-	1.0
2098C39432LD	32	850	4000°K - CRI>90	dali 2 / dali 2 push	3280	103	65	564	130	-	1.0
2098C39436LD	36	950	4000°K - CRI>90	dali 2 / dali 2 push	3616	100	65	564	130	-	1.0
2098C39440LD	40	1050	4000°K - CRI>90	dali 2 / dali 2 push	3942	99	65	564	130	-	1.0
