DENVER – Mod. C6

(60° medium diffusing optics)

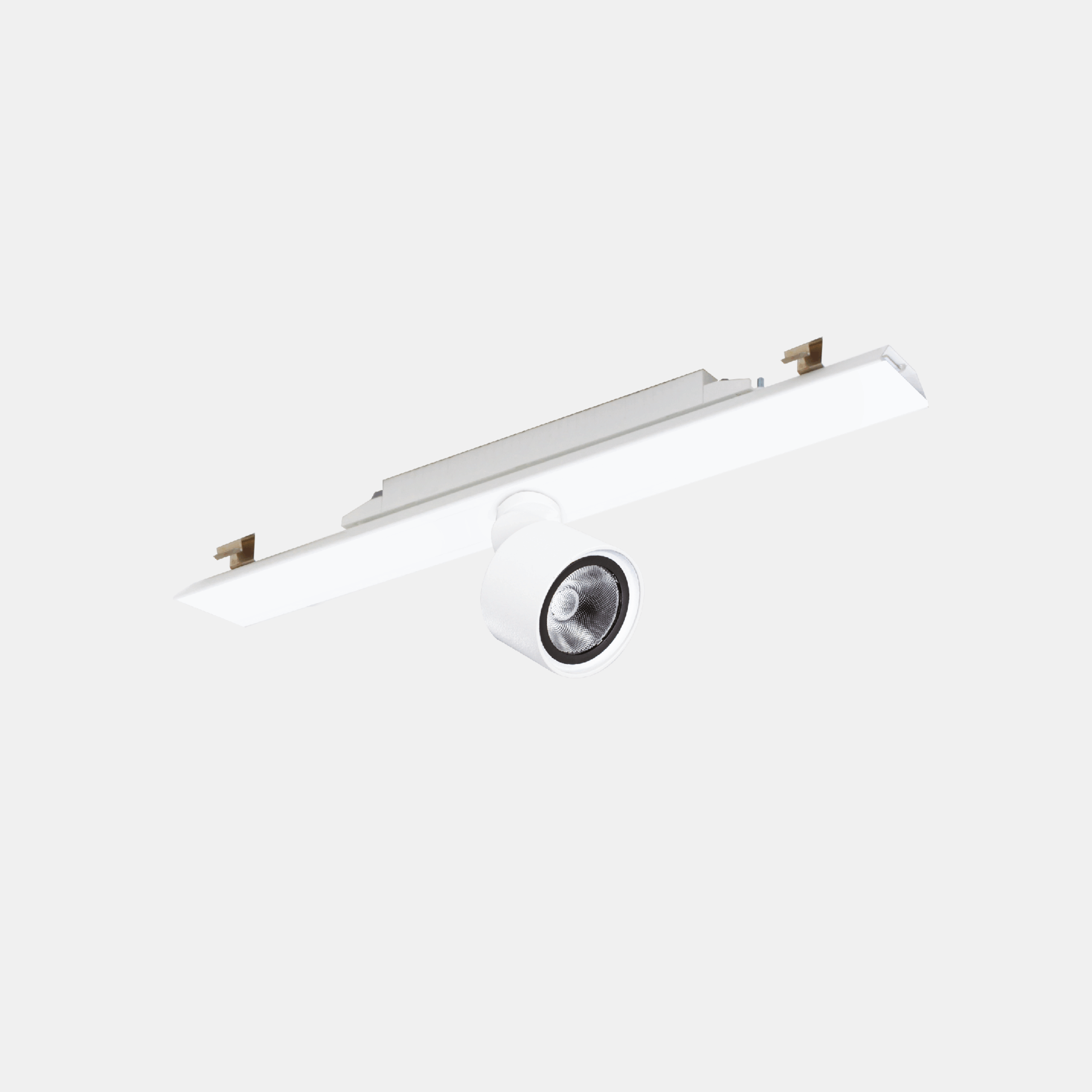

Linear LED fixture suitable for continuous row ceiling or suspension installation for lighting commercial and industrial environments. Sheet steel body, painted with white polyester powder coating, fixing brackets included. The fixture consists of an electrified channel with 5-, 7- or 9-pole feed-through wiring and LED module available with 60° medium diffusing optics.

Categories: Led, DENVER - 2098, Retail, DENVER

Models: 16

Color: Matt white

Catalogue abstract

Installation instructions

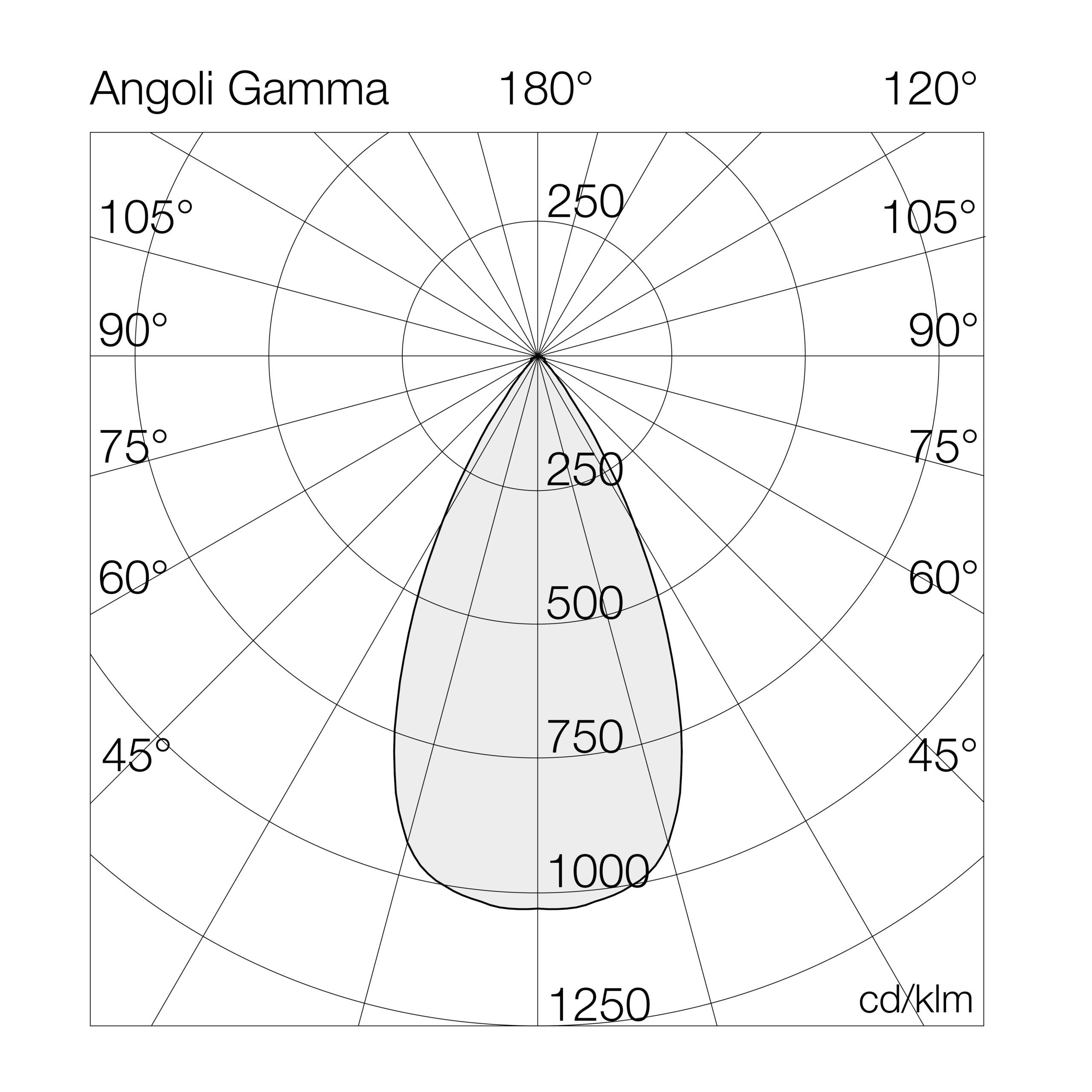

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2098	C6	40	= 4000°K (CRI >80)	26	EL	= on/off
		94	= 4000°K (CRI >90)	32	LD	= dali 2 / dali 2 push
					D1	= dali 2 + em. 1h
					E1	= em. 1h
					E3	= em. 3h

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2098C64026EL	26	700	4000°K - CRI>80	on/off	3207	123	65	564	130	-	1.0
2098C64032EL	32	850	4000°K - CRI>80	on/off	3815	119	65	564	130	-	1.0
2098C64036EL	36	950	4000°K - CRI>80	on/off	4205	117	65	564	130	-	1.0
2098C64040EL	40	1050	4000°K - CRI>80	on/off	4584	115	65	564	130	-	1.0
2098C64026LD	26	700	4000°K - CRI>80	dali 2 / dali 2 push	3207	123	65	564	130	-	1.0
2098C64032LD	32	850	4000°K - CRI>80	dali 2 / dali 2 push	3815	119	65	564	130	-	1.0
2098C64036LD	36	950	4000°K - CRI>80	dali 2 / dali 2 push	4205	117	65	564	130	-	1.0
2098C64040LD	40	1050	4000°K - CRI>80	dali 2 / dali 2 push	4584	115	65	564	130	-	1.0
2098C69426EL	26	700	4000°K - CRI>90	on/off	2723	105	65	564	130	-	1.0
2098C69432EL	32	850	4000°K - CRI>90	on/off	3240	101	65	564	130	-	1.0
2098C69436EL	36	950	4000°K - CRI>90	on/off	3571	99	65	564	130	-	1.0
2098C69440EL	40	1050	4000°K - CRI>90	on/off	3893	97	65	564	130	-	1.0
2098C69426LD	26	700	4000°K - CRI>90	dali 2 / dali 2 push	2723	105	65	564	130	-	1.0
2098C69432LD	32	850	4000°K - CRI>90	dali 2 / dali 2 push	3240	101	65	564	130	-	1.0
2098C69436LD	36	950	4000°K - CRI>90	dali 2 / dali 2 push	3571	99	65	564	130	-	1.0
2098C69440LD	40	1050	4000°K - CRI>90	dali 2 / dali 2 push	3893	97	65	564	130	-	1.0
