DENVER – Mod. P9

(90° diffusing optics - UGR<25)

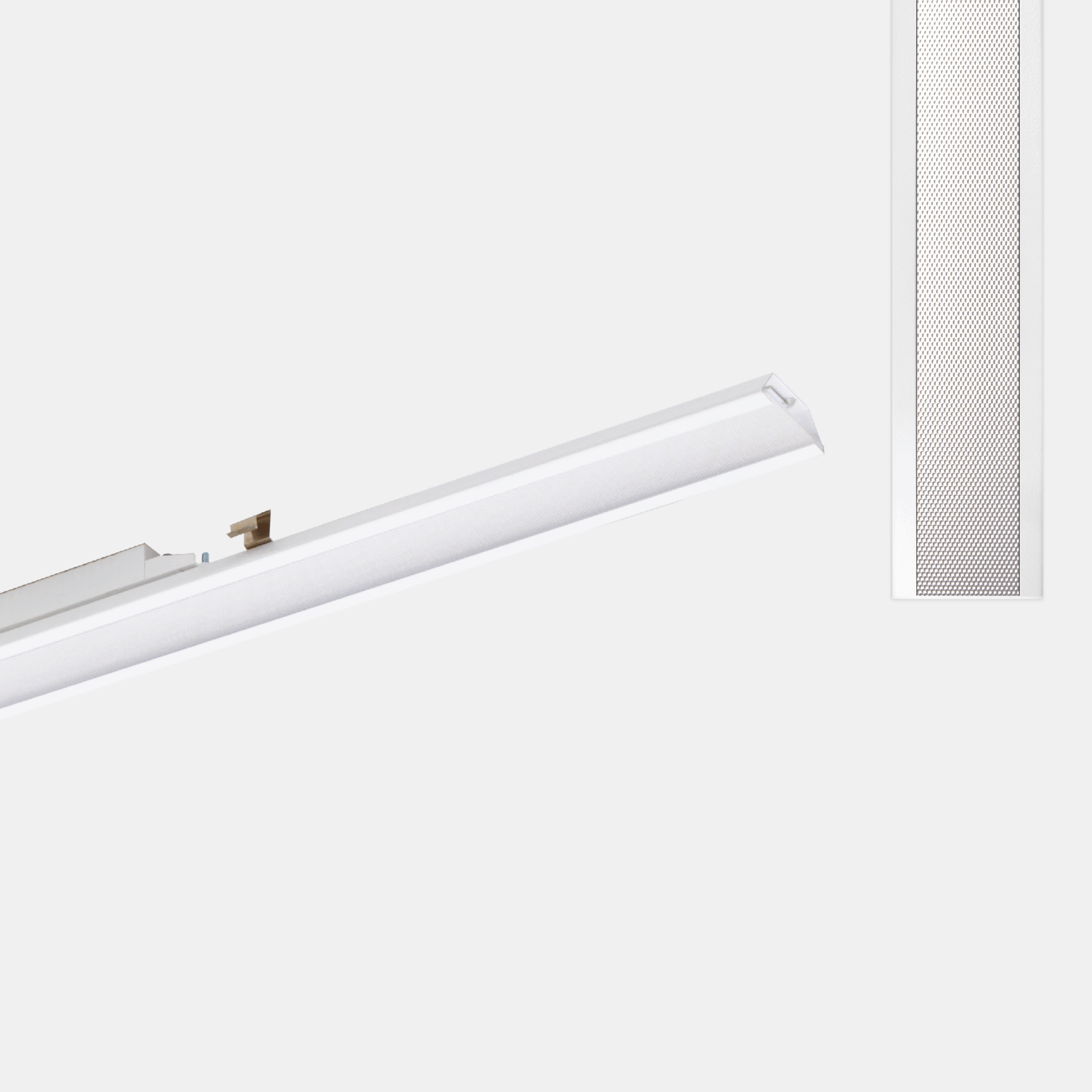

Linear LED fixture suitable for continuous row ceiling or suspension installation for lighting commercial and industrial environments. Sheet steel body, painted with white polyester powder coating, fixing brackets included. The fixture consists of an electrified channel with 5-, 7- or 9-pole feed-through wiring and LED module available with 90° diffusing optics - UGR<25.

Categories: Led, DENVER - 2098, Retail, DENVER

Models: 240

Color: Matt white

Catalogue abstract

Installation instructions

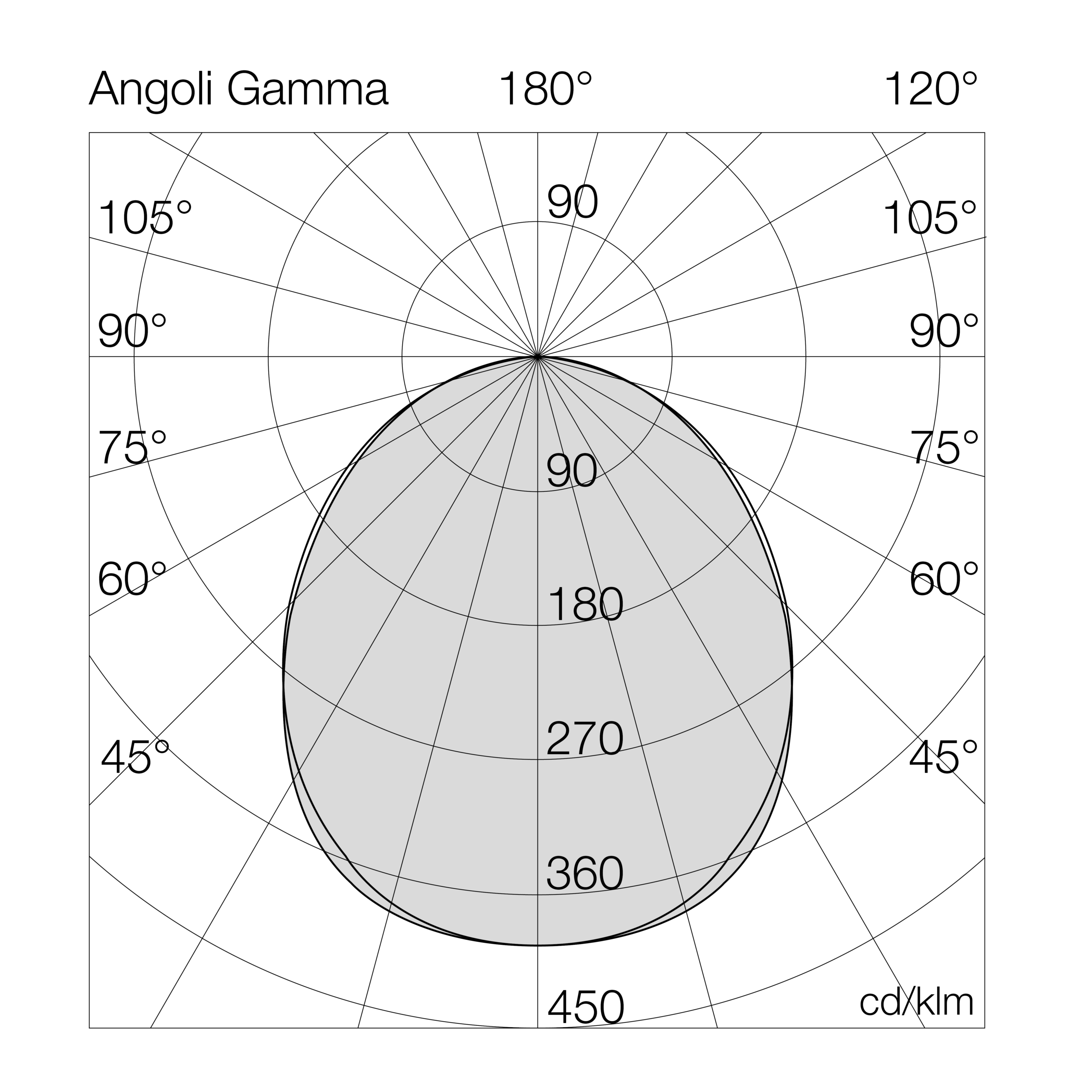

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
2098	P9	40	= 4000°K (CRI >80)	11	40	EL	= on/off
		94	= 4000°K (CRI >90)	16	42	LD	= dali 2 / dali 2 push
				17	44	D1	= dali 2 + em. 1h
				18	47	E1	= em. 1h
				21	48	E3	= em. 3h
				23	49
				24	53
				28	54
				32	56
				34	60
				35	63
				37	72

Models

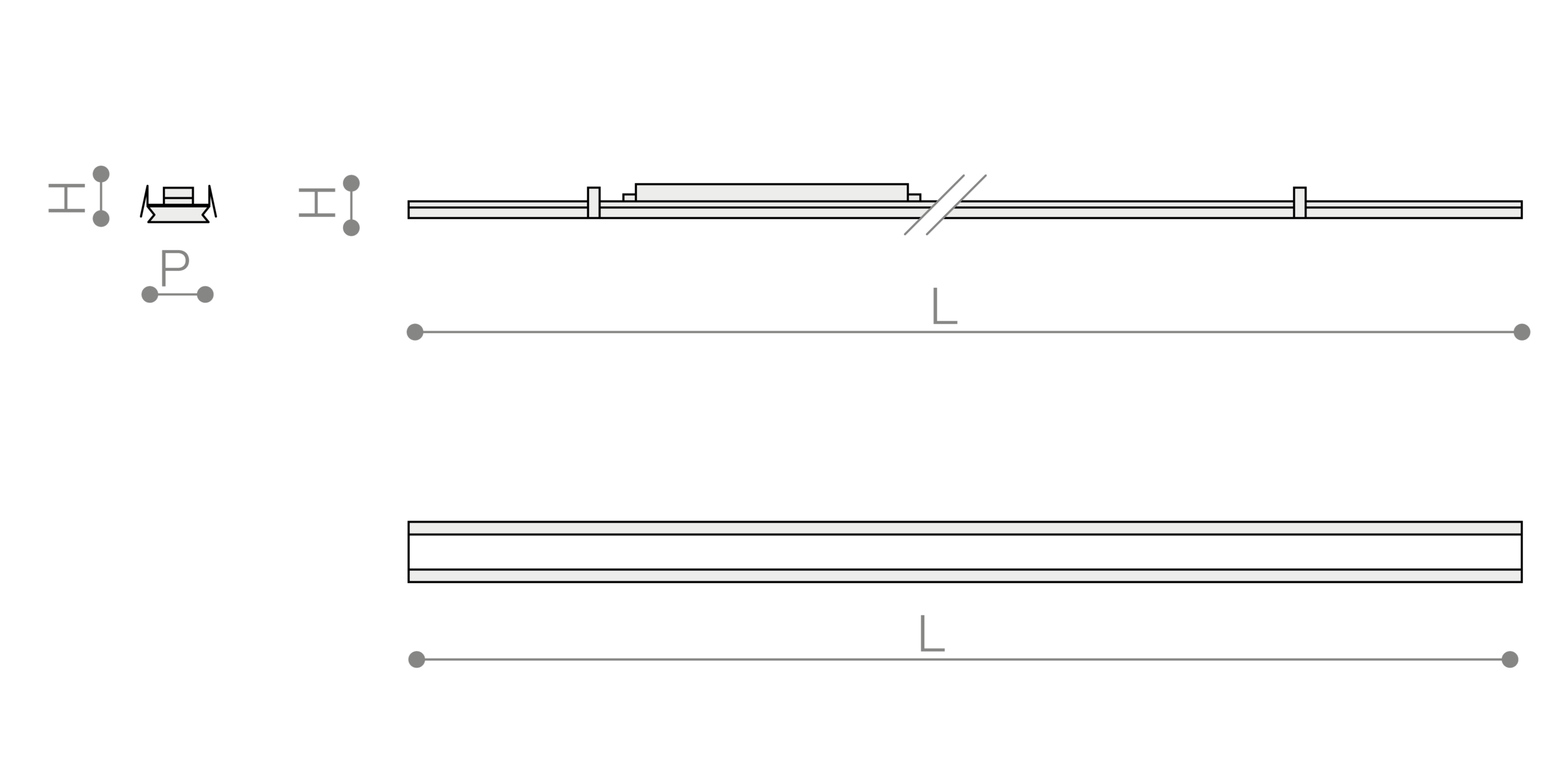

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2098P94011EL	11	250	4000°K - CRI>80	on/off	1553	141	61	564	45	-	0.50
2098P94023EL	23	250	4000°K - CRI>80	on/off	3107	135	61	1124	45	-	1.0
2098P94028EL	28	250	4000°K - CRI>80	on/off	3884	139	61	1404	45	-	1.2
2098P94034EL	34	250	4000°K - CRI>80	on/off	4661	137	61	1684	45	-	1.4
2098P94016EL	16	350	4000°K - CRI>80	on/off	2132	133	61	564	45	-	0.50
2098P94032EL	32	350	4000°K - CRI>80	on/off	4264	133	61	1124	45	-	1.0
2098P94040EL	40	350	4000°K - CRI>80	on/off	5330	133	61	1404	45	-	1.2
2098P94049EL	49	350	4000°K - CRI>80	on/off	6361	130	61	1684	45	-	1.4
2098P94017EL	17	150	4000°K - CRI>80	on/off	2658	156	61	564	45	-	0.50
2098P94018EL	18	400	4000°K - CRI>80	on/off	2588	144	61	564	45	-	0.50
2098P94035EL	35	150	4000°K - CRI>80	on/off	5316	152	61	1124	45	-	1.0
2098P94037EL	37	400	4000°K - CRI>80	on/off	5175	140	61	1124	45	-	1.0
2098P94044EL	44	150	4000°K - CRI>80	on/off	6644	151	61	1404	45	-	1.2
2098P94047EL	47	400	4000°K - CRI>80	on/off	6469	138	61	1404	45	-	1.2
2098P94054EL	54	150	4000°K - CRI>80	on/off	7973	148	61	1684	45	-	1.4
2098P94056EL	56	400	4000°K - CRI>80	on/off	7757	139	61	1684	45	-	1.4
2098P94021EL	21	450	4000°K - CRI>80	on/off	2930	140	61	564	45	-	0.50
2098P94042EL	42	450	4000°K - CRI>80	on/off	5861	140	61	1124	45	-	1.0
2098P94053EL	53	450	4000°K - CRI>80	on/off	7326	138	61	1404	45	-	1.2
2098P94063EL	63	400	4000°K - CRI>80	on/off	8671	138	61	1684	45	-	1.4
