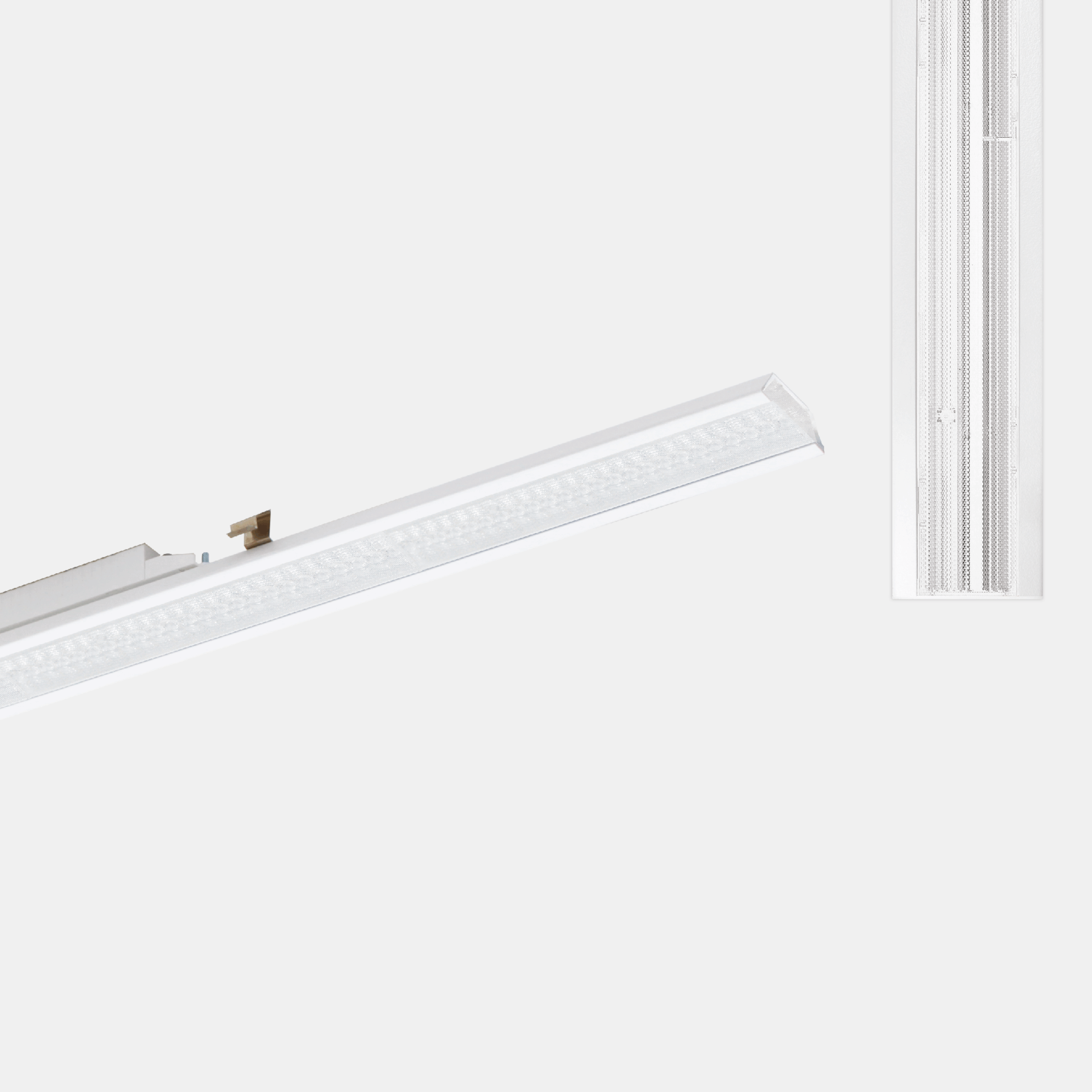

DENVER/RT

Led track light, suitable for retail and large retail shops, malls and industrial areas. Galvanized steel body, painted white polyester powder, complete with suspension brackets, electronic driver 220V-240V 50/60Hz, up to 9 poles terminal block with automatic connection for continuous line wiring. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, DENVER - 2098, Retail, art. 2098 Denver

Models: 200

Color: Matt white

Catalogue abstract

Installation instructions

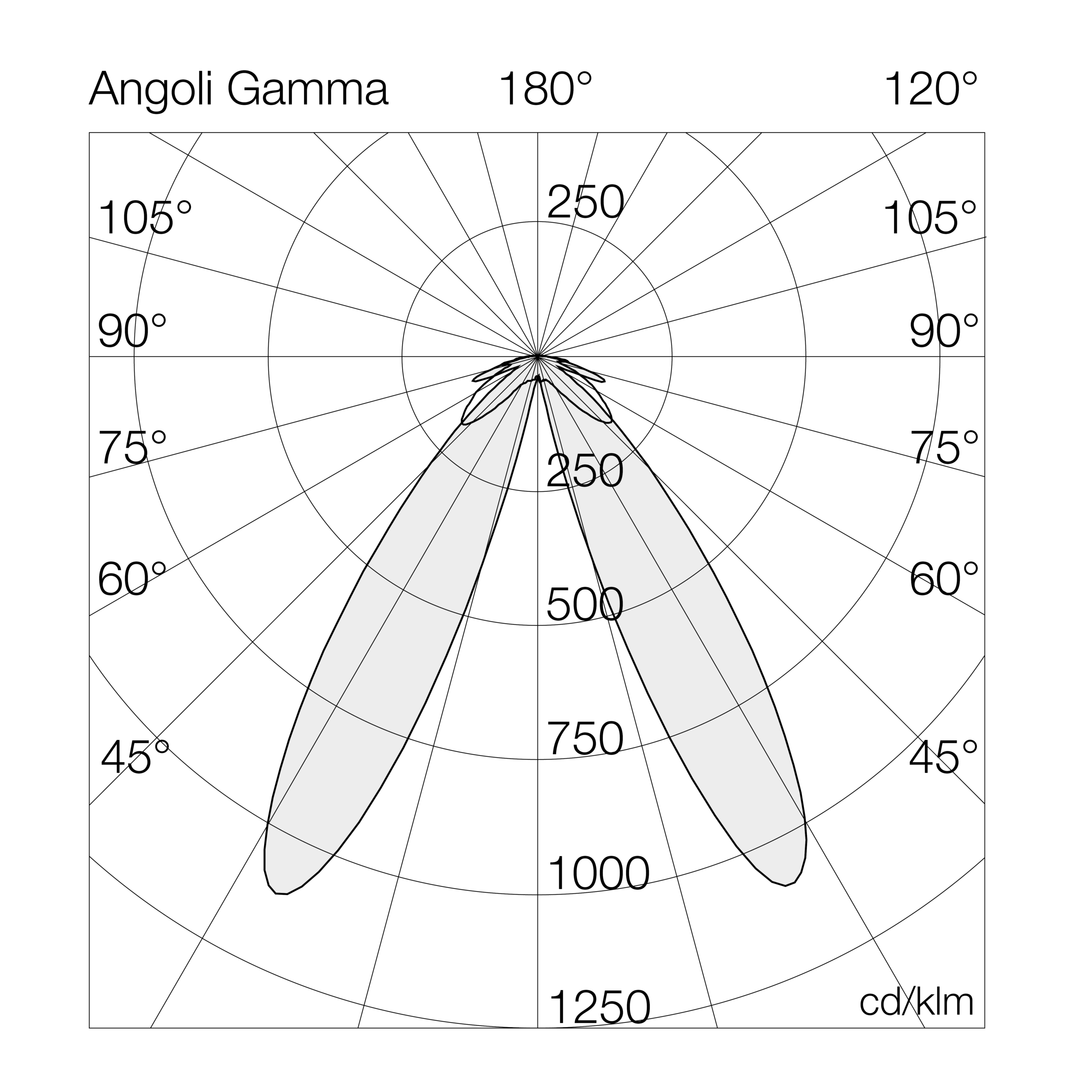

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
2098	RT	40	= 4000°K (CRI >80)	11	40	EL	= on/off
		94	= 4000°K (CRI >90)	16	42	LD	= dali 2 / dali 2 push
				17	44	D1	= dali 2 + em. 1h
				18	47	E1	= em. 1h
				21	48	E3	= em. 3h
				23	49
				24	53
				28	54
				32	56
				34	60
				35	63
				37	72

Models

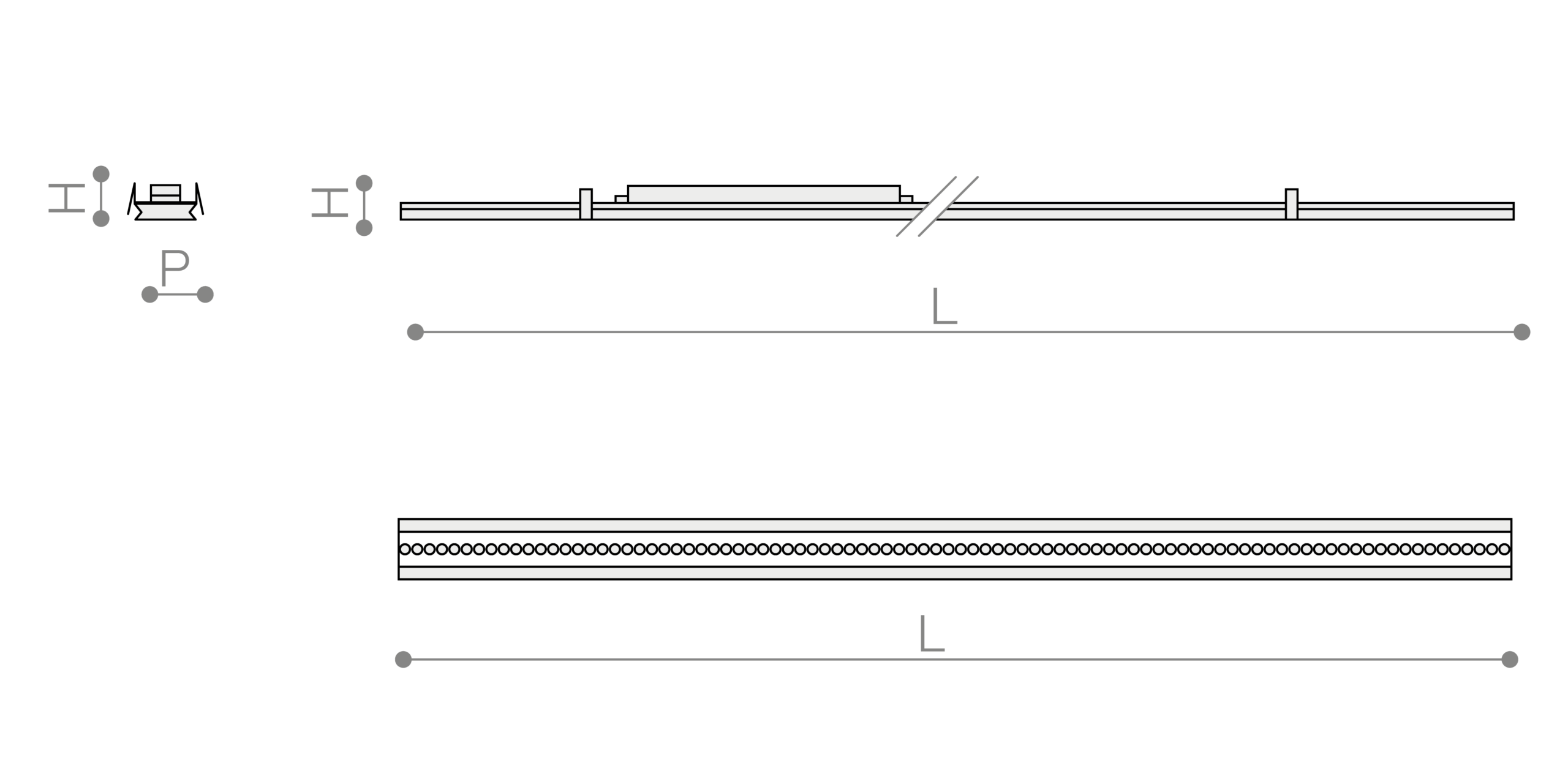

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
2098RT4011EL	11	250	4000°K - CRI>80	on/off	1657	151	61	564	45	-	0.50
2098RT4023EL	23	250	4000°K - CRI>80	on/off	3314	144	61	1124	45	-	1.0
2098RT4028EL	28	250	4000°K - CRI>80	on/off	4142	148	61	1404	45	-	1.2
2098RT4034EL	34	250	4000°K - CRI>80	on/off	4971	146	61	1684	45	-	1.4
2098RT4016EL	16	350	4000°K - CRI>80	on/off	2274	142	61	564	45	-	0.50
2098RT4032EL	32	350	4000°K - CRI>80	on/off	4548	142	61	1124	45	-	1.0
2098RT4040EL	40	350	4000°K - CRI>80	on/off	5685	142	61	1404	45	-	1.2
2098RT4049EL	49	350	4000°K - CRI>80	on/off	6785	138	61	1684	45	-	1.4
2098RT4018EL	18	400	4000°K - CRI>80	on/off	2760	153	61	564	45	-	0.50
2098RT4037EL	37	400	4000°K - CRI>80	on/off	5520	149	61	1124	45	-	1.0
2098RT4047EL	47	400	4000°K - CRI>80	on/off	6900	147	61	1404	45	-	1.2
2098RT4056EL	56	400	4000°K - CRI>80	on/off	8274	148	61	1684	45	-	1.4
2098RT4021EL	21	450	4000°K - CRI>80	on/off	3126	149	61	564	45	-	0.50
2098RT4042EL	42	450	4000°K - CRI>80	on/off	6251	149	61	1124	45	-	1.0
2098RT4053EL	53	450	4000°K - CRI>80	on/off	7814	147	61	1404	45	-	1.2
2098RT4063EL	63	400	4000°K - CRI>80	on/off	9249	147	61	1684	45	-	1.4
2098RT4024EL	24	500	4000°K - CRI>80	on/off	3401	142	61	564	45	-	0.50
2098RT4048EL	48	500	4000°K - CRI>80	on/off	6802	142	61	1124	45	-	1.0
2098RT4060EL	60	500	4000°K - CRI>80	on/off	8502	142	61	1404	45	-	1.2
2098RT4072EL	72	500	4000°K - CRI>80	on/off	10202	142	61	1684	45	-	1.4
