art.-2100-2101-2103-eva-eva hp-eva hp2-ld

EVA – Mod. LD

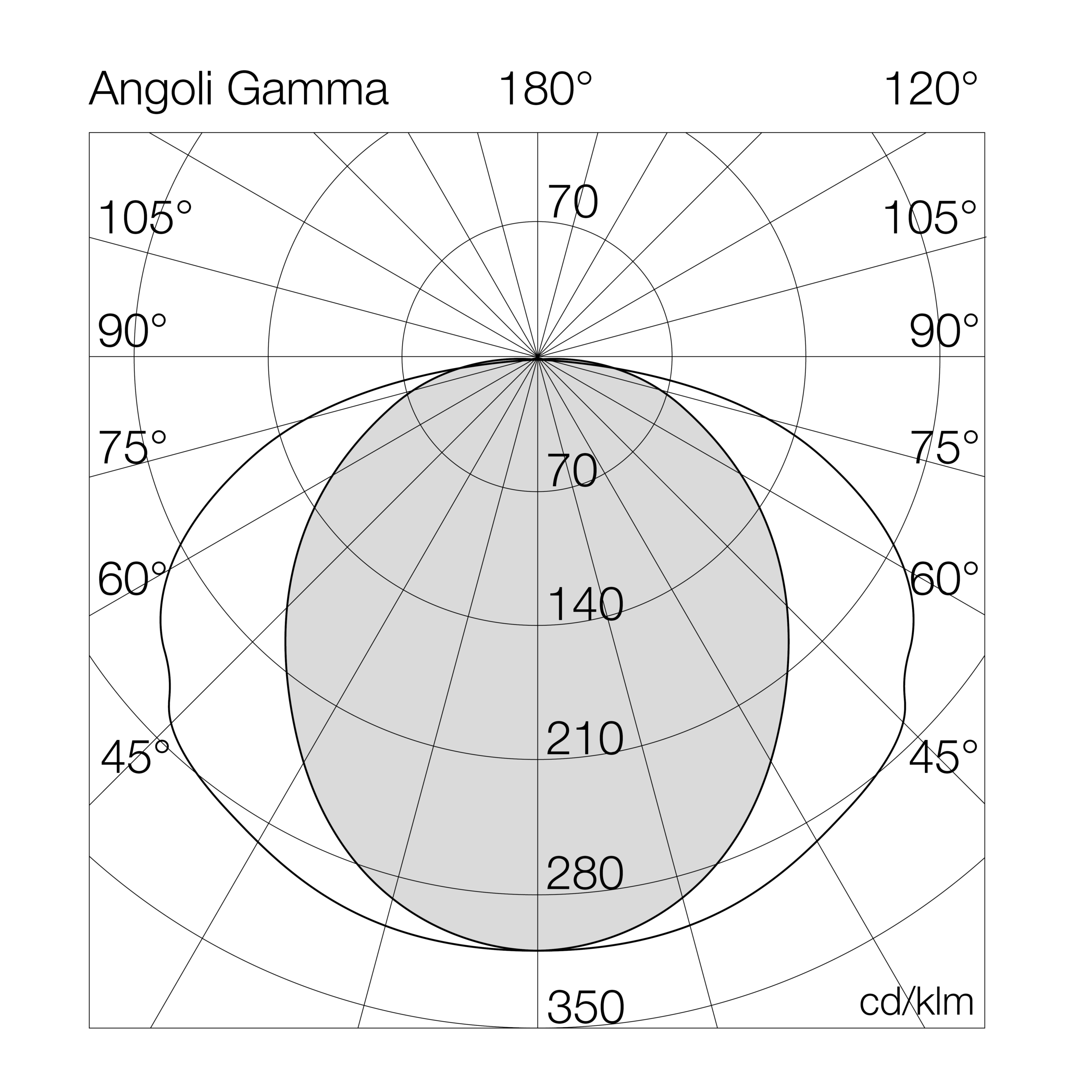

(120° diffusing optics)

Available for 72h Express Delivery

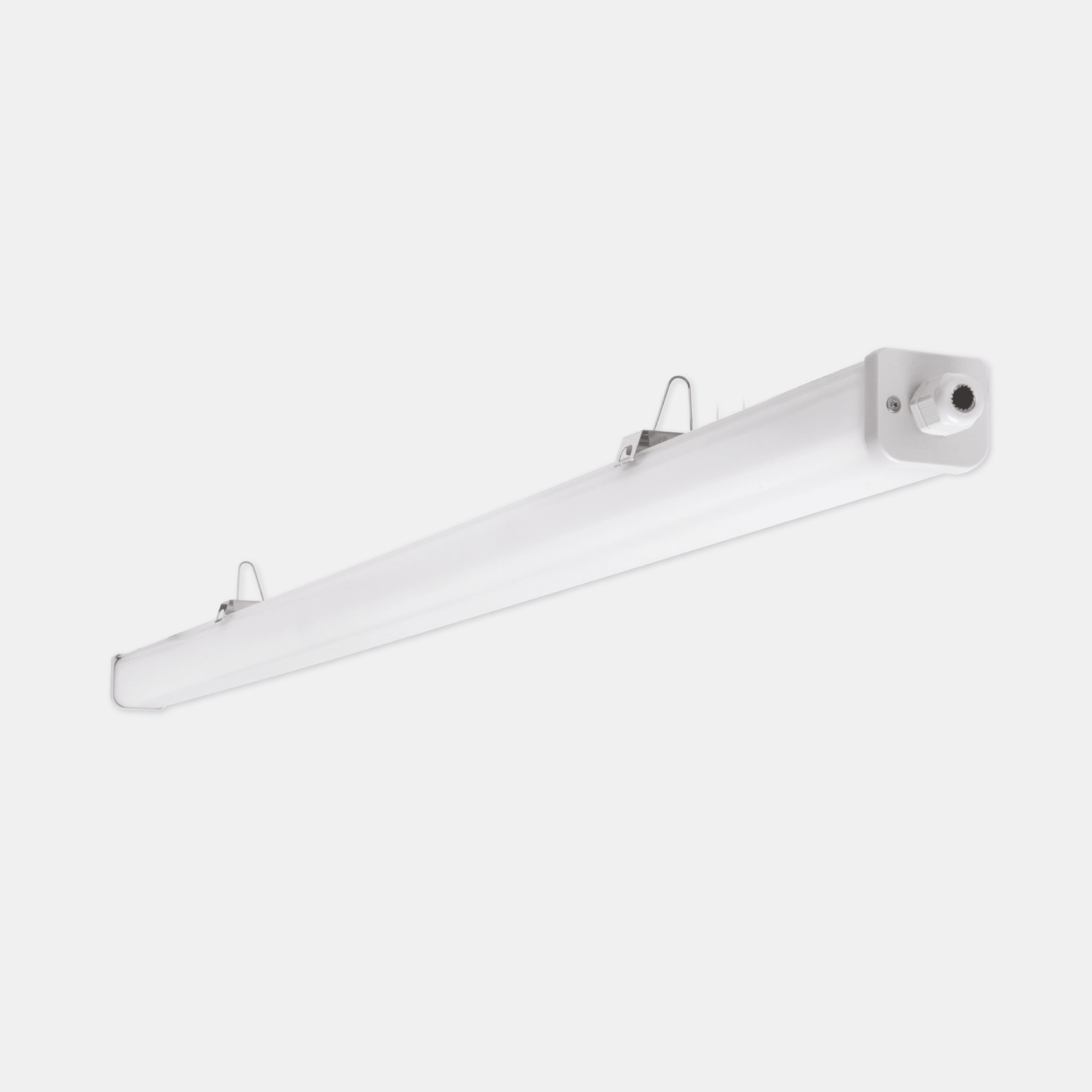

LED linear watertight fixture, suitable for ceiling, wall, blind and pendant installation. Extruded satin-finish opal polycarbonate diffuser. Self-extinguishing V2 extruded satin opal polycarbonate body, component holder reflector made of white prepainted sheet metal, injection-molded polycarbonate end caps, color gray, with silicone gasket. Extruded satin-finish opal polycarbonate diffuser. 120° diffusing reflector made of prepainted steel sheet, white color. Stainless steel hardware and fixing brackets.
Categories: Led, 72h Express Delivery
Models: 5
Color: Grey
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2100LD40= 4000°K (CRI >80)36EL= on/off
54
72

Models

W tot.
°K - CRI
Options

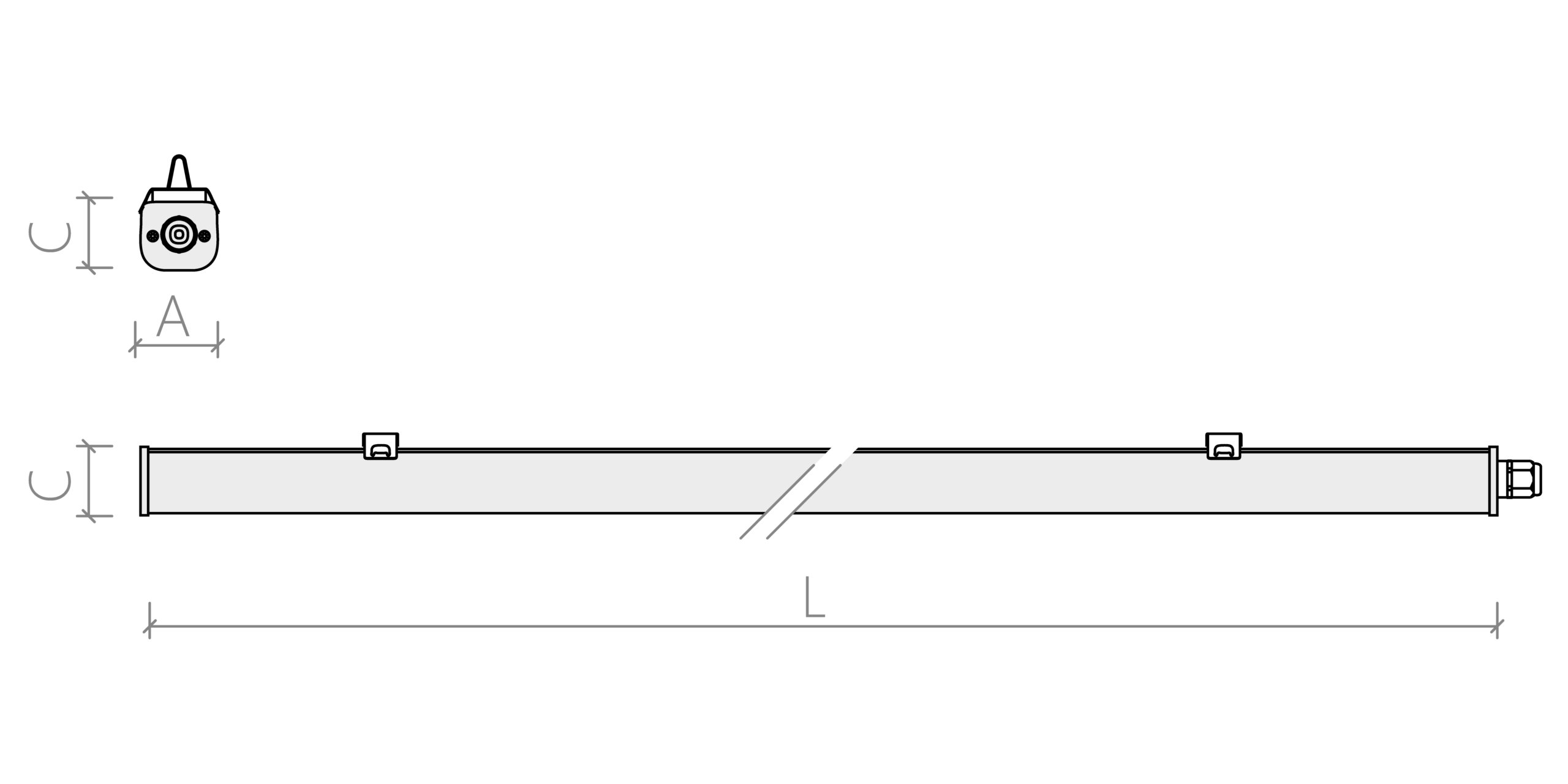

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2100LD4019EL19-4000°K - CRI>80on/off (DIP-switch)23781256259562-0.80
2100LD4036EL36-4000°K - CRI>80on/off (DIP-switch)485113562115562-1.3
2100LD4054EL54-4000°K - CRI>80on/off (DIP-switch)740213762143562-1.5
2100LD4060EL60-4000°K - CRI>80on/off (DIP-switch)803213462143562-1.5
2100LD4072EL72-4000°K - CRI>80on/off985213762143562-1.5
