EVA SE – Mod. SES

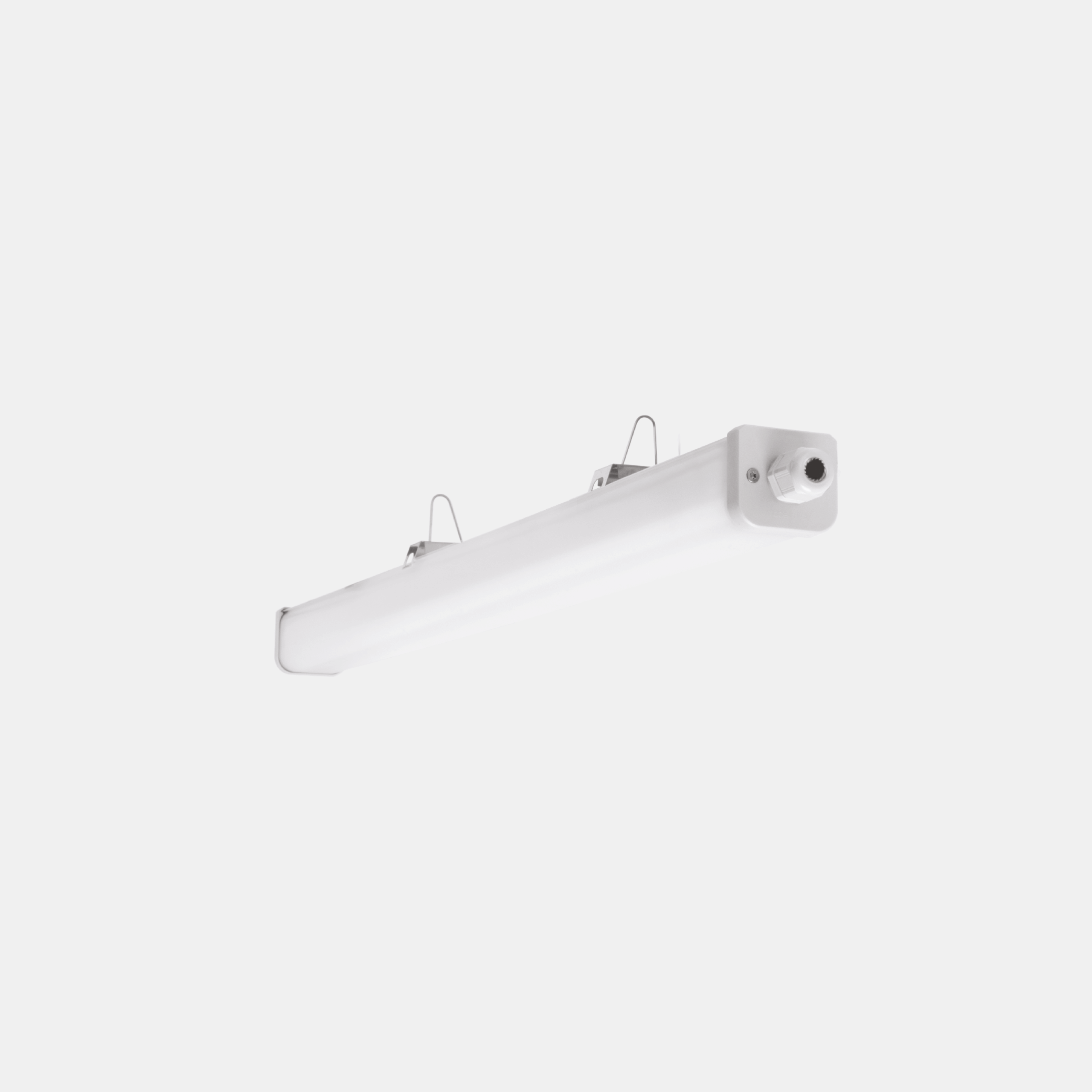

Emergency and safaty IP66 led luminaire for permanent or non-permanent functioning with a duration of 1 and 3 hours and IP66 protection degree. Extruded V2 auto-extinguishing polycarbonate body, with component support reflector in prepainted white steel and polycarbonate caps with silicone gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, EVA SE, Emergency, EVA SE

Models: 8

Color: Grey

Catalogue abstract

Installation instructions

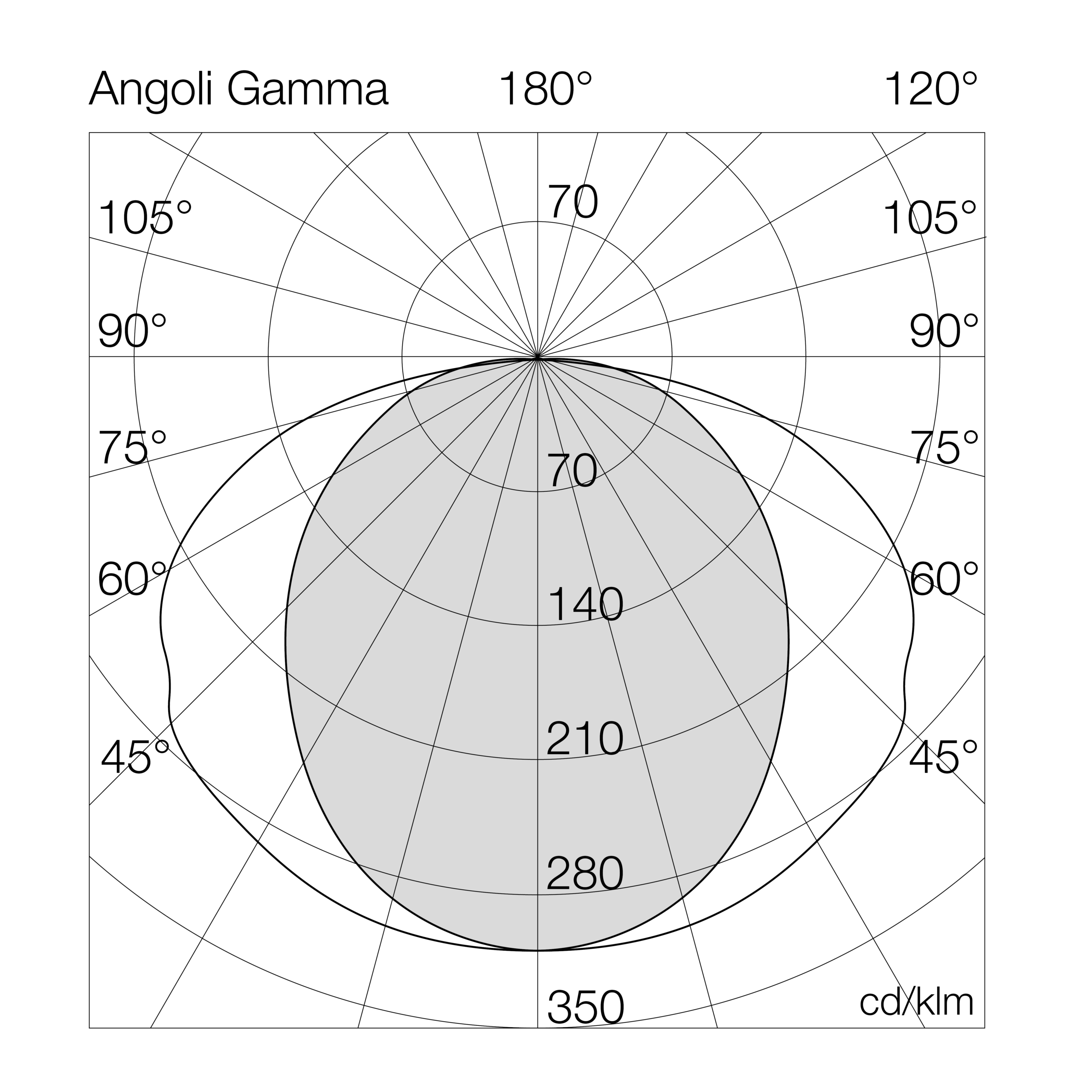

Photometric data

Legenda

Art.	+	Mod.	+	°K (CRI)		+	Dimension	+	H	+	Options
2100		SES		4	= 4000°K (CRI >80)		4		1		EL	= on/off
							6		3		CR	= narrow beam optic

Models

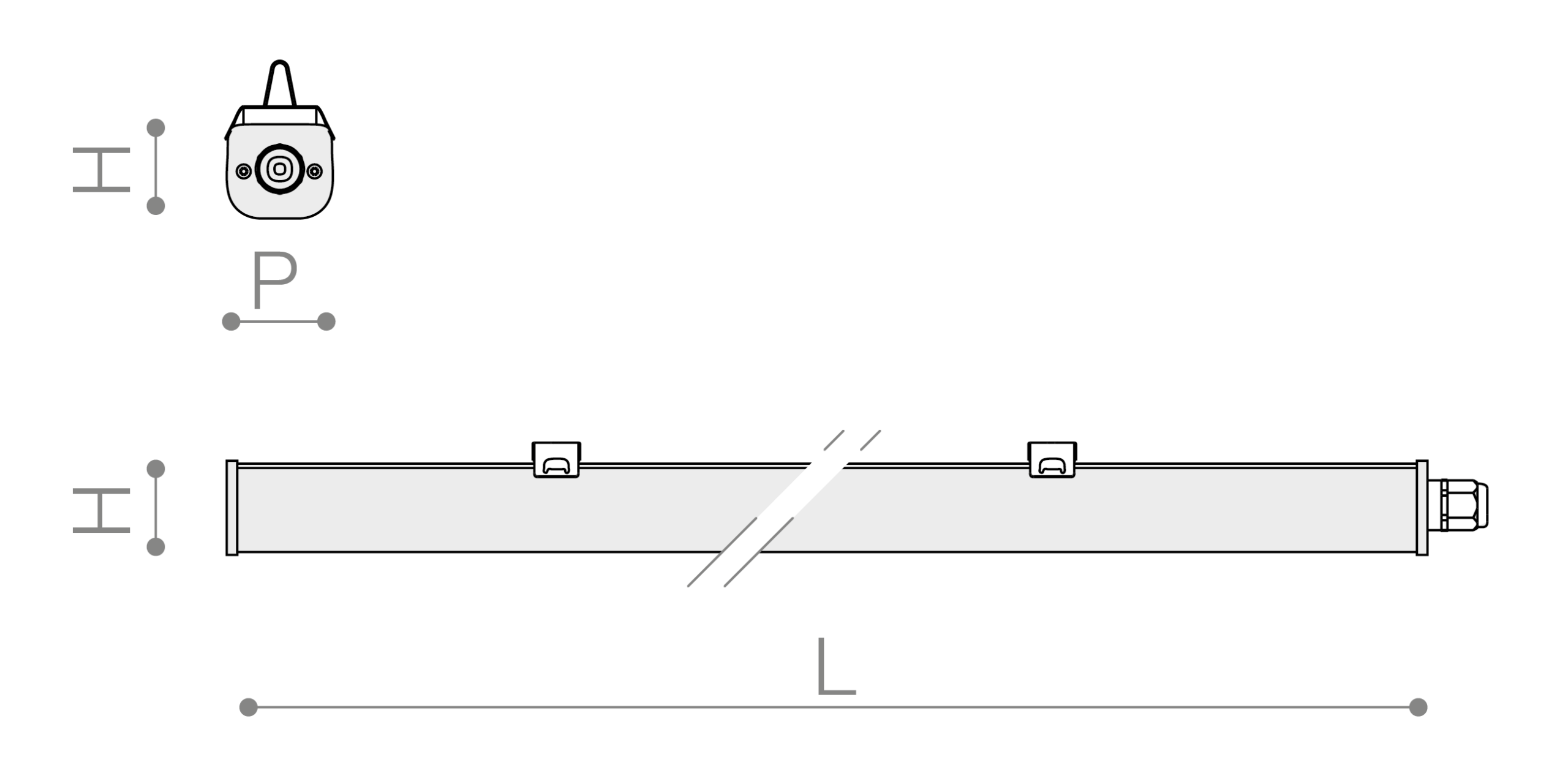

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2100SES441EL	4	700	4000°K - CRI ≥80	on/off	571	-	62	410	62	-	0.60
2100SES443EL	4	700	4000°K - CRI ≥80	on/off	571	-	62	410	62	-	0.60
2100SES461EL	4	700	4000°K - CRI ≥80	on/off	605	-	62	600	62	-	0.80
2100SES463EL	4	700	4000°K - CRI ≥80	on/off	605	-	62	600	62	-	0.80
2100SES441CR	4	700	4000°K - CRI ≥80	narrow beam optic	571	-	62	410	62	-	0.60
2100SES443CR	4	700	4000°K - CRI ≥80	narrow beam optic	571	-	62	410	62	-	0.60
2100SES461CR	4	700	4000°K - CRI ≥80	narrow beam optic	605	-	62	600	62	-	0.80
2100SES463CR	4	700	4000°K - CRI ≥80	narrow beam optic	605	-	62	600	62	-	0.80
