| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2102 | AR | 40 | = 4000°K (CRI >80) | 09 | 30 | EL | = on/off (DIP-switch) | ||||
| 50 | = 5000°K (CRI >80) | 11 | 32 | ES | = on/off (CPSS) | ||||||
| 65 | = 6500°K (CRI >80) | 13 | 36 | LD | = dali 2 / dali 2 push | ||||||
| 16 | 37 | D1 | = dali 2 + em. 1h | ||||||||
| 18 | 40 | E1 | = em. 1h (DIP-switch) | ||||||||
| 19 | 46 | E3 | = em. 3h (DIP-switch) | ||||||||
| 21 | 47 | FC | = through wiring (DIP-switch) | ||||||||
| 23 | 49 | ||||||||||
| 24 | 59 | ||||||||||
| 26 | 62 | ||||||||||
| 27 | 64 | ||||||||||
| 29 | 70 |

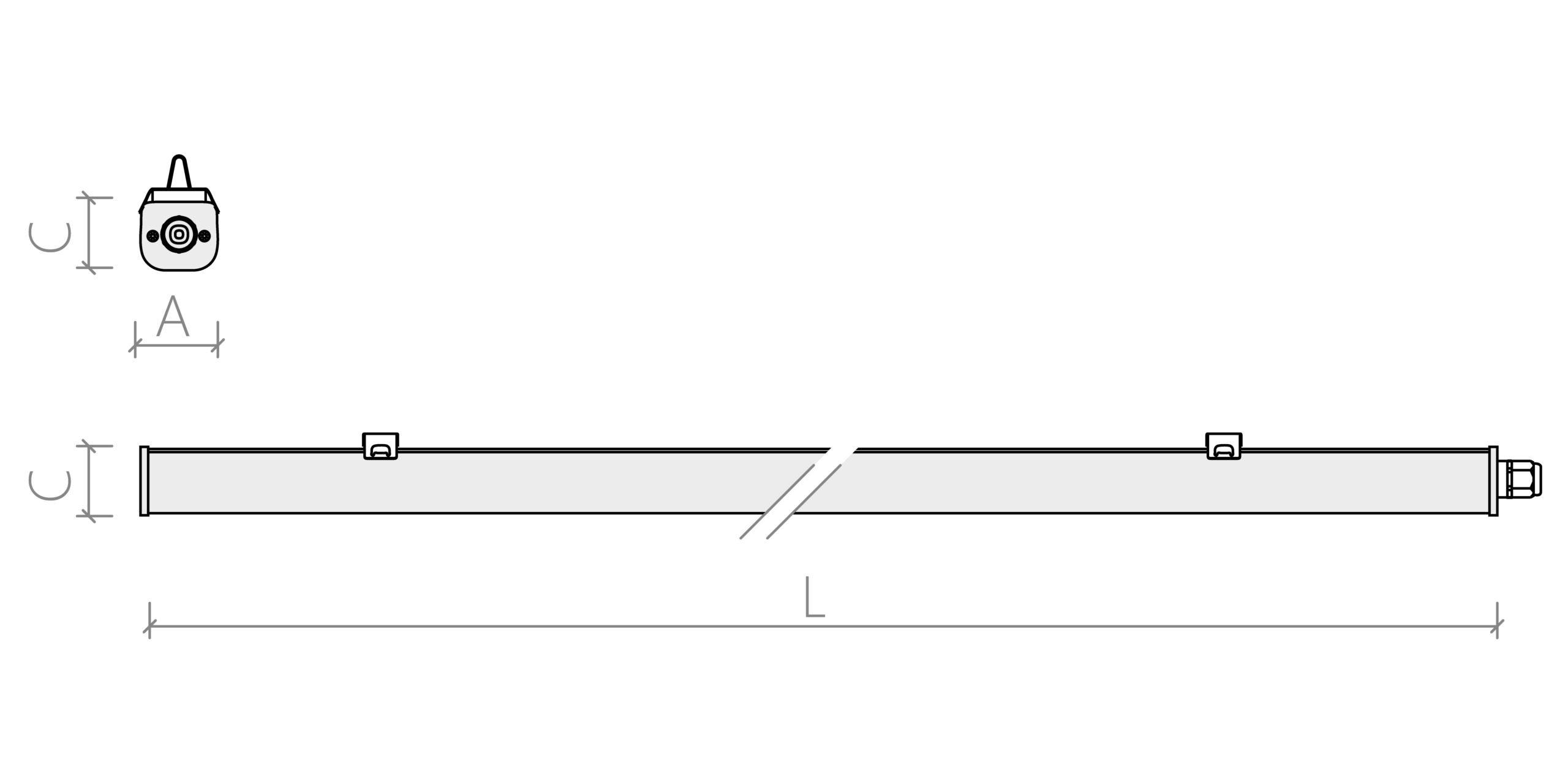

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2102AR4009EL | 9 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 1348 | 150 | 62 | 595 | 62 | - | 0.8 | |
| 2102AR4011EL | 11 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 1697 | 154 | 62 | 595 | 62 | - | 0.8 | |
| 2102AR4013EL | 13 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 2044 | 157 | 62 | 595 | 62 | - | 0.8 | |
| 2102AR4016EL | 16 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 2361 | 148 | 62 | 595 | 62 | - | 0.8 | |
| 2102AR4018EL | 18 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 2822 | 157 | 62 | 1155 | 62 | - | 1.3 | |
| 2102AR4019EL | 19 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 2859 | 150 | 62 | 595 | 62 | - | 0.8 | |
| 2102AR4021EL | 21 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 3350 | 160 | 62 | 595 | 62 | - | 0.8 | |
| 2102AR4023EL | 23 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 3553 | 154 | 62 | 1155 | 62 | - | 1.3 | |
| 2102AR4024EL | 24 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 3527 | 147 | 62 | 1435 | 62 | - | 1.5 | |
| 2102AR4026EL | 26 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 3657 | 141 | 62 | 595 | 62 | - | 0.8 | |
| 2102AR4027EL | 27 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 4169 | 154 | 62 | 1155 | 62 | - | 1.3 | |
| 2102AR4029EL | 29 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 4133 | 143 | 62 | 595 | 62 | - | 0.8 | |
| 2102AR4030EL | 30 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 4441 | 148 | 62 | 1435 | 62 | - | 1.5 | |
| 2102AR4032EL | 32 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 4941 | 154 | 62 | 1155 | 62 | - | 1.3 | |
| 2102AR4036EL | 36 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 5712 | 159 | 62 | 1155 | 62 | - | 1.3 | |
| 2102AR4037EL | 37 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 5346 | 144 | 62 | 1435 | 62 | - | 1.5 | |
| 2102AR4040EL | 40 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 6175 | 154 | 62 | 1435 | 62 | - | 1.5 | |
| 2102AR4046EL | 46 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 7010 | 152 | 62 | 1155 | 62 | - | 1.3 | |
| 2102AR4047EL | 47 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 7838 | 167 | 62 | 1435 | 62 | - | 1.5 | |
| 2102AR4049EL | 49 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 8105 | 165 | 62 | 1155 | 62 | - | 1.3 |
