EVA HP2 – Mod. LD

(120° diffusing optics)

LED linear watertight fixture, suitable for ceiling, wall, blind and pendant installation. Extruded satin-finish opal polycarbonate diffuser. Self-extinguishing V2 extruded satin opal polycarbonate body, component holder reflector made of white prepainted sheet metal, injection-molded polycarbonate end caps, color gray, with silicone gasket. Extruded satin-finish opal polycarbonate diffuser. 120° diffusing reflector made of prepainted steel sheet, white color. Stainless steel hardware and fixing brackets.

Categories: Led, EVA HP2, EVA HP2, Industrial, EVA HP2

Models: 504

Color: Grey

Catalogue abstract

Installation instructions

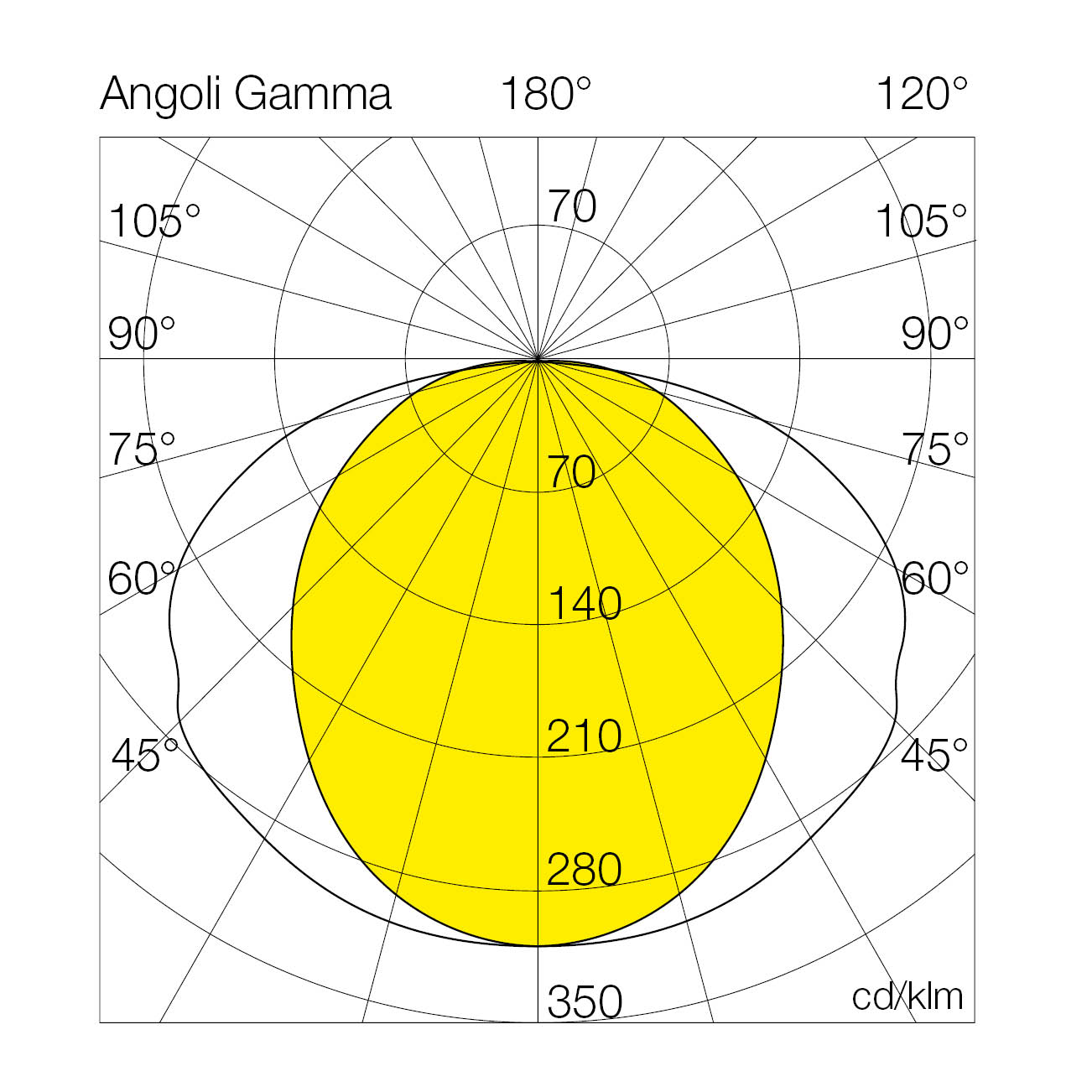

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	+	Options
2103	LD	40	= 4000°K (CRI >80)	09	30	EL	= on/off
		50	= 5000°K (CRI >80)	11	32	ES	= on/off (CPSS)
		65	= 6500°K (CRI >80)	13	36	LD	= dali 2 / dali 2 push
				16	37	D1	= dali 2 + em. 1h
				18	40	E1	= em. 1h
				19	46	E3	= em. 3h
				21	47	FC	= through wiring
				23	49
				24	59
				26	62
				27	64
				29	70

Models

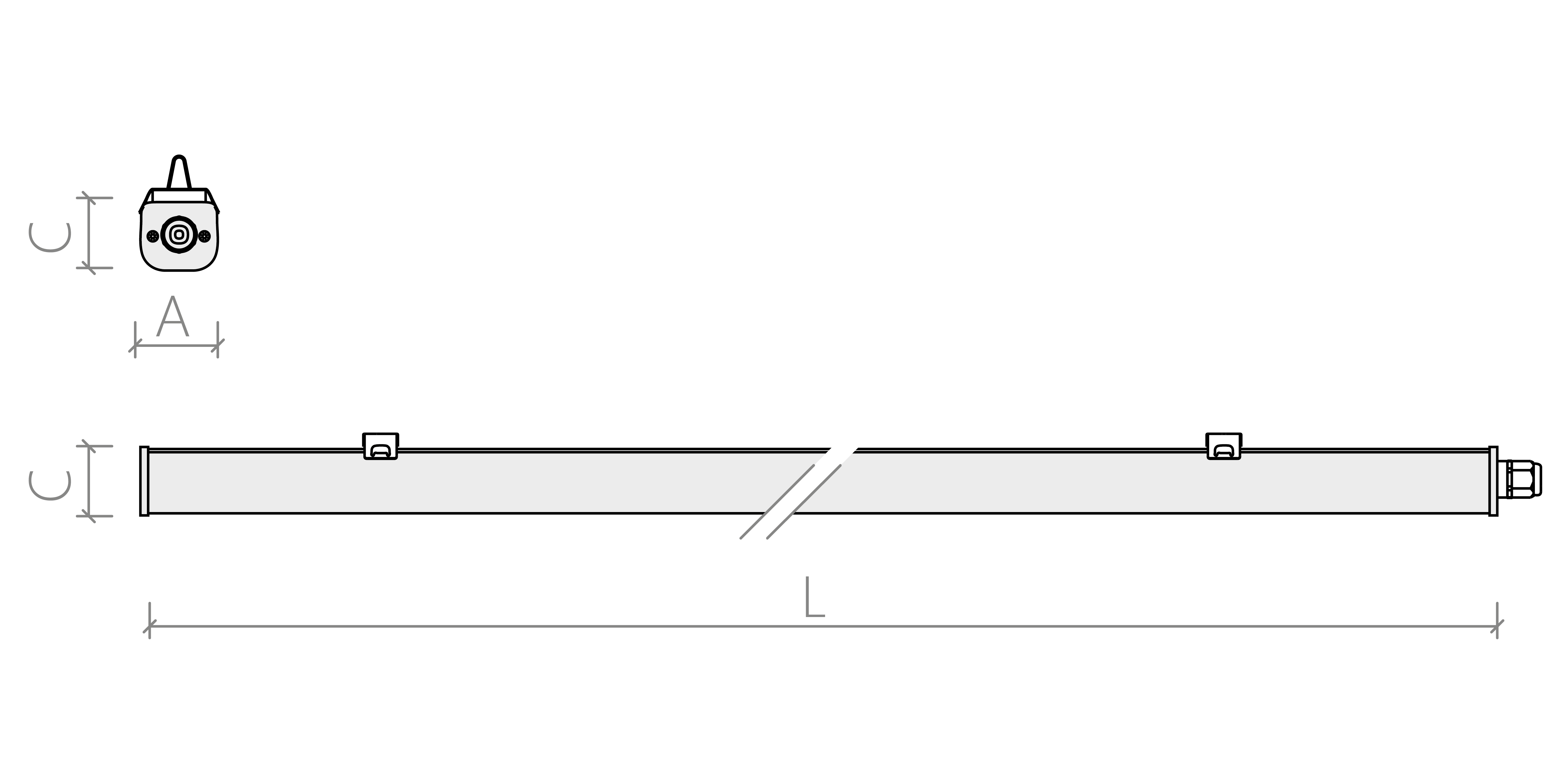

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2103LD4009EL	9	-	4000°K - CRI ≥80	on/off (DIP switch)	1547	172	62	595	62	-	0.8
2103LD4011EL	11	-	4000°K - CRI ≥80	on/off (DIP switch)	1925	175	62	595	62	-	0.8
2103LD4013EL	13	-	4000°K - CRI ≥80	on/off (DIP switch)	2361	182	62	595	62	-	0.8
2103LD4016EL	16	-	4000°K - CRI ≥80	on/off (DIP switch)	2732	171	62	595	62	-	0.8
2103LD4018EL	18	-	4000°K - CRI ≥80	on/off (DIP switch)	3234	180	62	1155	62	-	1.3
2103LD4019EL	19	-	4000°K - CRI ≥80	on/off (DIP switch)	3239	170	62	595	62	-	0.8
2103LD4021EL	21	-	4000°K - CRI ≥80	on/off (DIP switch)	3885	185	62	595	62	-	0.8
2103LD4023EL	23	-	4000°K - CRI ≥80	on/off (DIP switch)	4023	175	62	1155	62	-	1.3
2103LD4024EL	24	-	4000°K - CRI ≥80	on/off (DIP switch)	4235	176	62	1435	62	-	1.5
2103LD4026EL	26	-	4000°K - CRI ≥80	on/off (DIP switch)	4243	163	62	595	62	-	0.8
2103LD4027EL	27	-	4000°K - CRI ≥80	on/off (DIP switch)	4814	178	62	1155	62	-	1.3
2103LD4029EL	29	-	4000°K - CRI ≥80	on/off (DIP switch)	4788	165	62	595	62	-	0.8
2103LD4030EL	30	-	4000°K - CRI ≥80	on/off (DIP switch)	5268	176	62	1435	62	-	1.5
2103LD4032EL	32	-	4000°K - CRI ≥80	on/off (DIP switch)	5709	178	62	1155	62	-	1.3
2103LD4036EL	36	-	4000°K - CRI ≥80	on/off (DIP switch)	6477	180	62	1155	62	-	1.3
2103LD4037EL	37	-	4000°K - CRI ≥80	on/off (DIP switch)	6462	175	62	1435	62	-	1.5
2103LD4040EL	40	-	4000°K - CRI ≥80	on/off (DIP switch)	7476	187	62	1435	62	-	1.5
2103LD4046EL	46	-	4000°K - CRI ≥80	on/off (DIP switch)	8119	176	62	1155	62	-	1.3
2103LD4047EL	47	-	4000°K - CRI ≥80	on/off (DIP switch)	8482	180	62	1435	62	-	1.5
2103LD4049EL	49	-	4000°K - CRI ≥80	on/off (DIP switch)	9362	191	62	1155	62	-	1.3
