art.-2110-lea-ld

LEA – Mod. LD

(120° diffusing optics)

Available for 72h Express Delivery

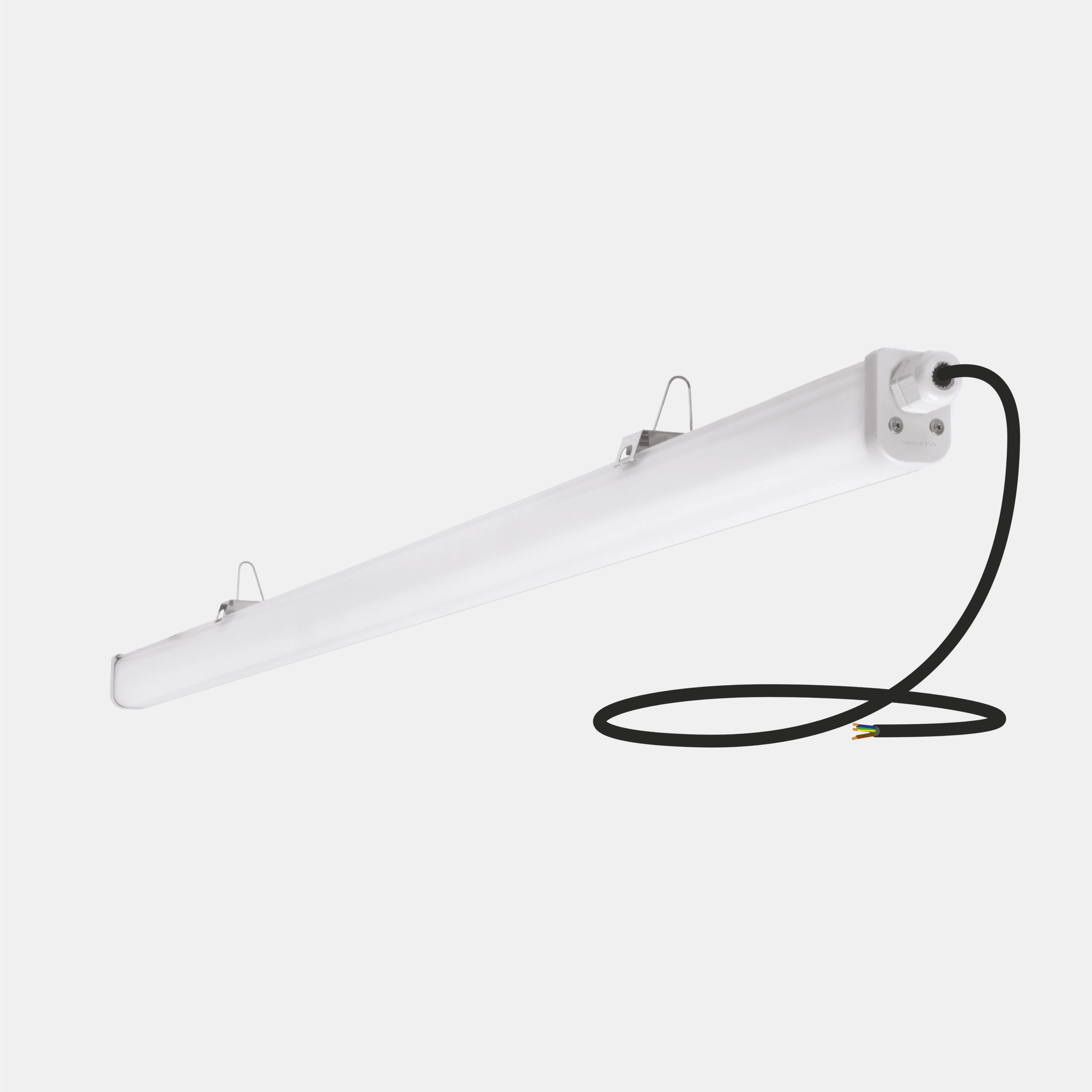

LED linear watertight fixture, suitable for ceiling, wall, blind and pendant installation. Body made of extruded satin-finish opal polycarbonate, self-extinguishing V2, component holder reflector made of white prepainted sheet steel, injection-molded polycarbonate end caps, color gray with silicone gasket. Extruded satin-finish opal polycarbonate diffuser. 120° diffusing reflector made of prepainted steel sheet in white color. Stainless steel hardware and brackets.
Categories: Led, 72h Express Delivery
Models: 3
Color: Grey
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2110LD40= 4000°K (CRI >80)36EL= on/off
54
66

Models

W tot.
°K - CRI
Options

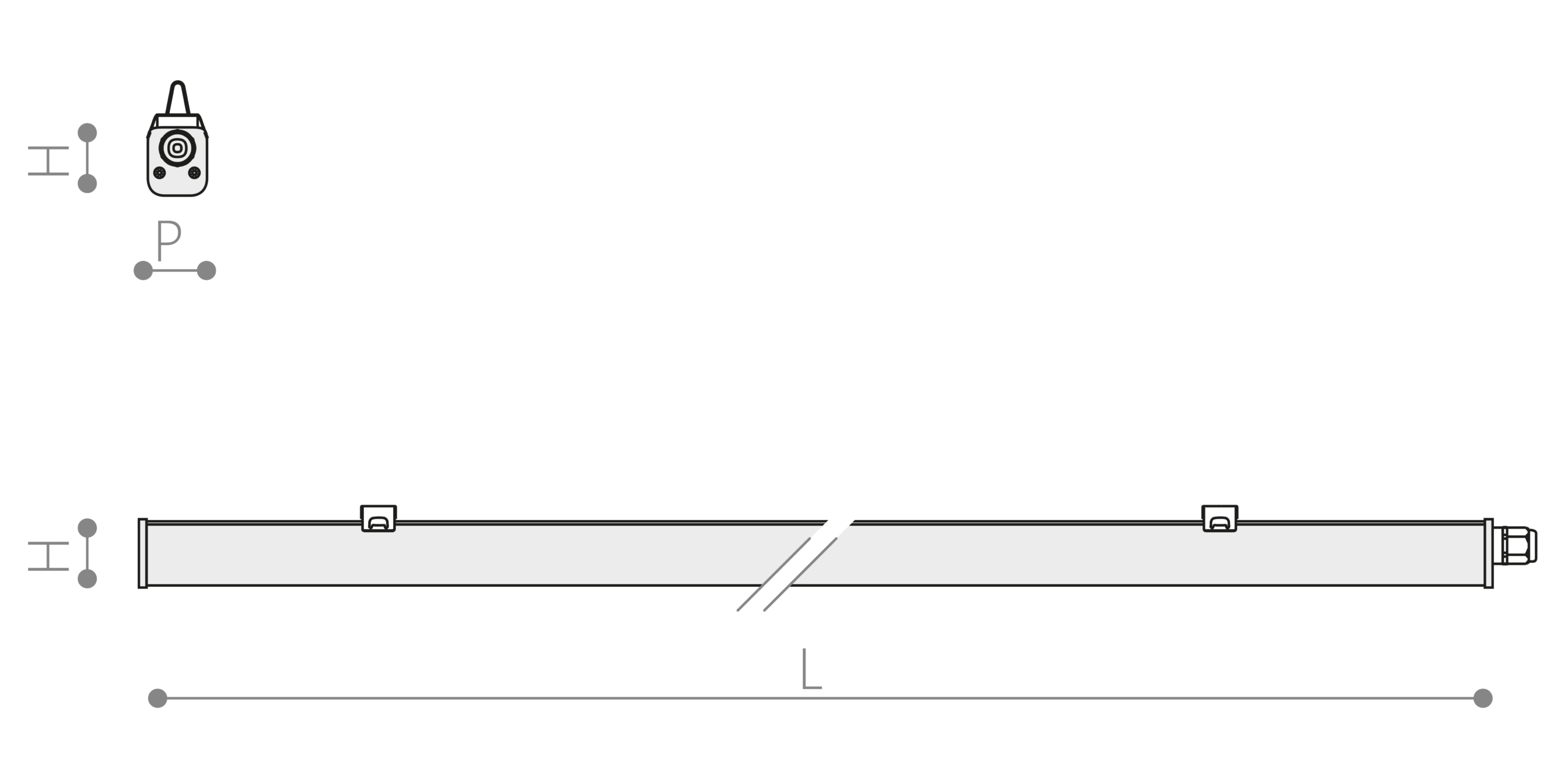

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2110LD4036EL36-4000°K - CRI>80on/off485113542115555-1.2
2110LD4054EL54-4000°K - CRI>80on/off740213742143555-1.4
2110LD4066EL66-4000°K - CRI>80on/off967914742143555-1.4

Accessories
