RIO LD

RIO – Mod. LD

120° diffusing optics

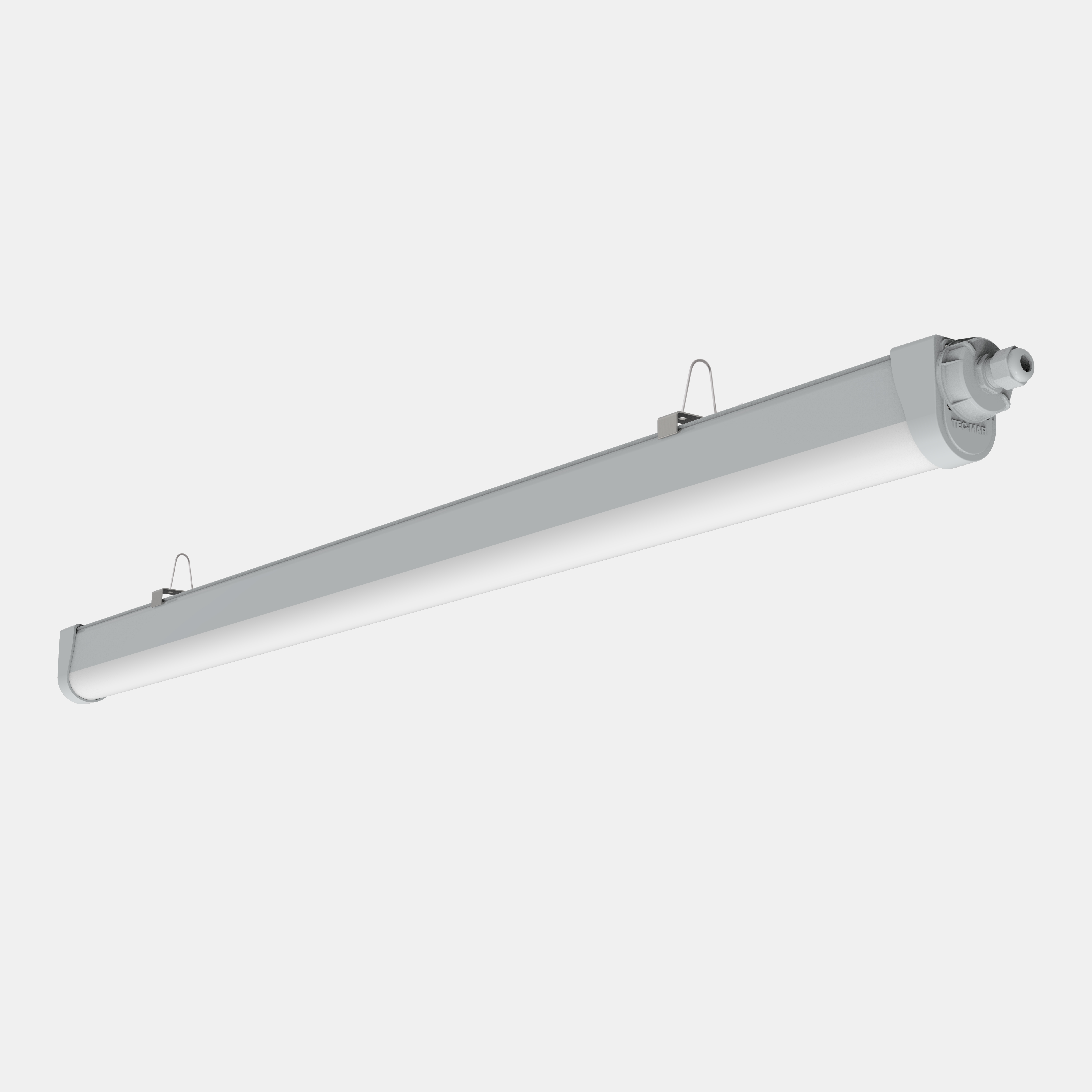

LED linear watertight fixture, suitable for ceiling, wall, blind and pendant installation. Selfextinguishing V2 extruded satin opal polycarbonate body, component holder reflector made of white prepainted sheet metal, injection-molded polycarbonate end caps, color gray, with silicone gasket. Co-extruded satin-finish opal polycarbonate diffuser. 120° diffusing reflector made of prepainted steel sheet, white color. Stainless steel hardware and fixing brackets.
Categories: Led, RIO, RIO, Industrial, RIO
Models: 6
Color: Grey
Catalogue abstract
Installation instructions

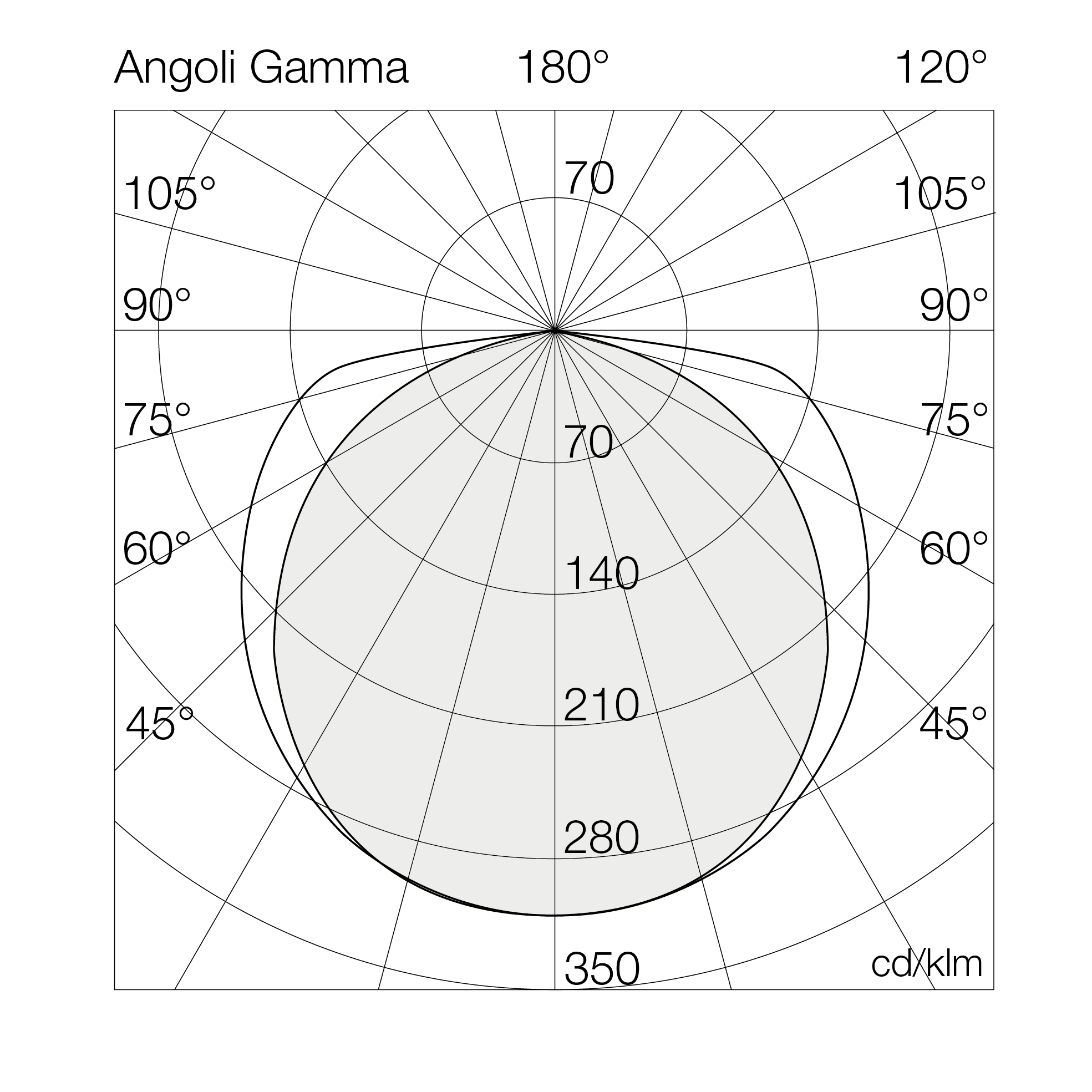

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2120LD40= 4000°K (CRI >80)18EL= on/off
36E1= em. 1h
58

Models

W tot.
°K - CRI
Options

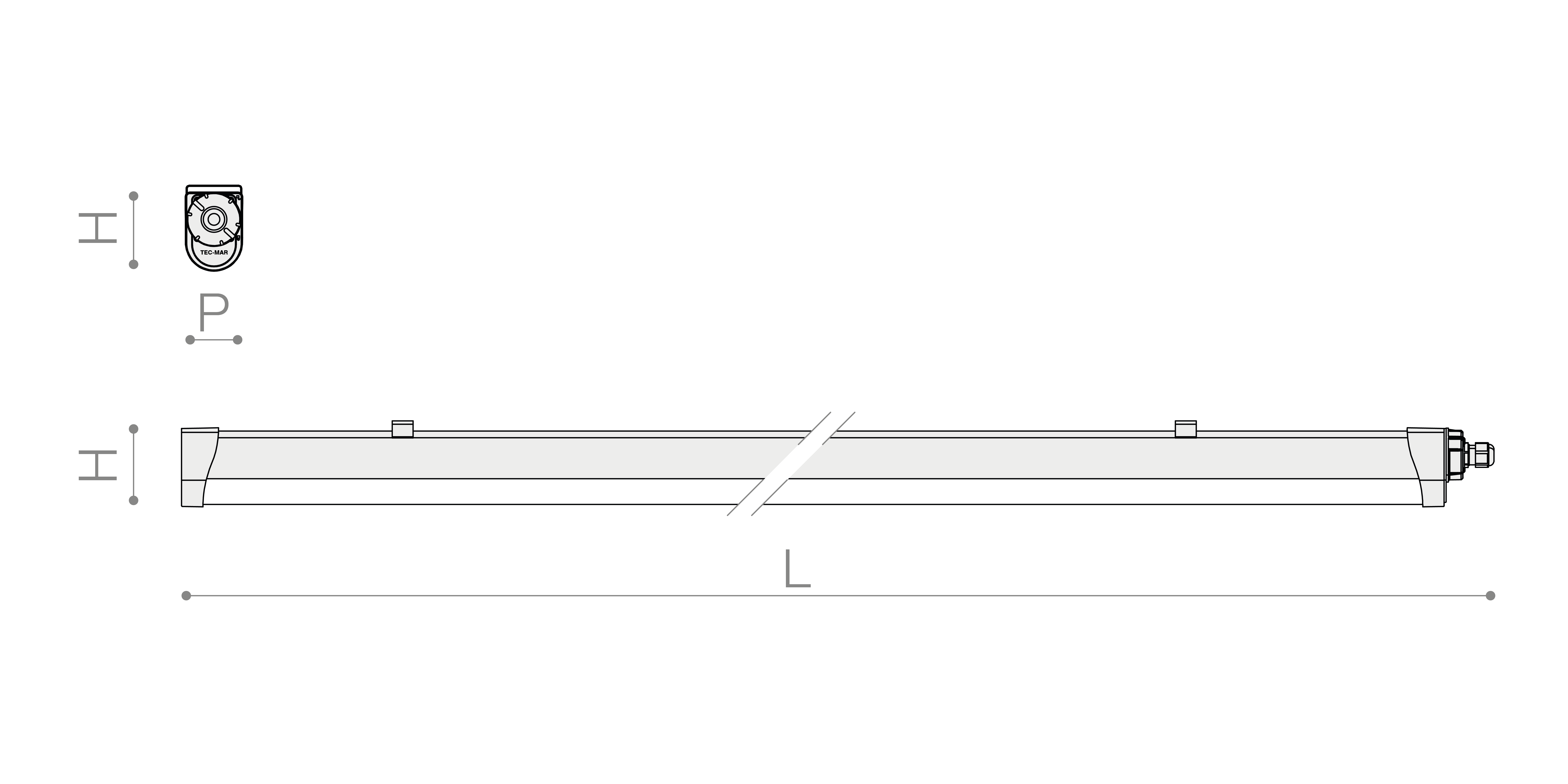

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2120LD4018EL18-4000°K - CRI ≥80on/off24151345065072-0.6
2120LD4036EL36-4000°K - CRI ≥80on/off480113350125072-0.9
2120LD4058EL58-4000°K - CRI ≥80on/off770713350150072-1.25
2120LD4018E118-4000°K - CRI ≥80em. 1h24151345065072-0.6
2120LD4036E136-4000°K - CRI ≥80em. 1h480113350125072-0.9
2120LD4058E158-4000°K - CRI ≥80em. 1h770713350150072-1.25

Accessories
