art.-2151-iside-s5-el

ISIDE – Mod. S5

(90° diffusing optics - UGR<25)

LED linear watertight fixture, suitable for ceiling, wall, blind, pole and suspension installations. One-piece deep-drawn AISI 304 stainless steel body of high mechanical strength, 4 mm thick flat tempered glass diffuser resistant to impact and thermal shock, stainless steel locking hooks, hardware and fixing brackets. 90° diffusing optics (UGR<25).
Categories: Led, ISIDE - 2151, Industrial, ISIDE
Models: 525
Color: Stainless steel AISI 304
Catalogue abstract
Installation instructions

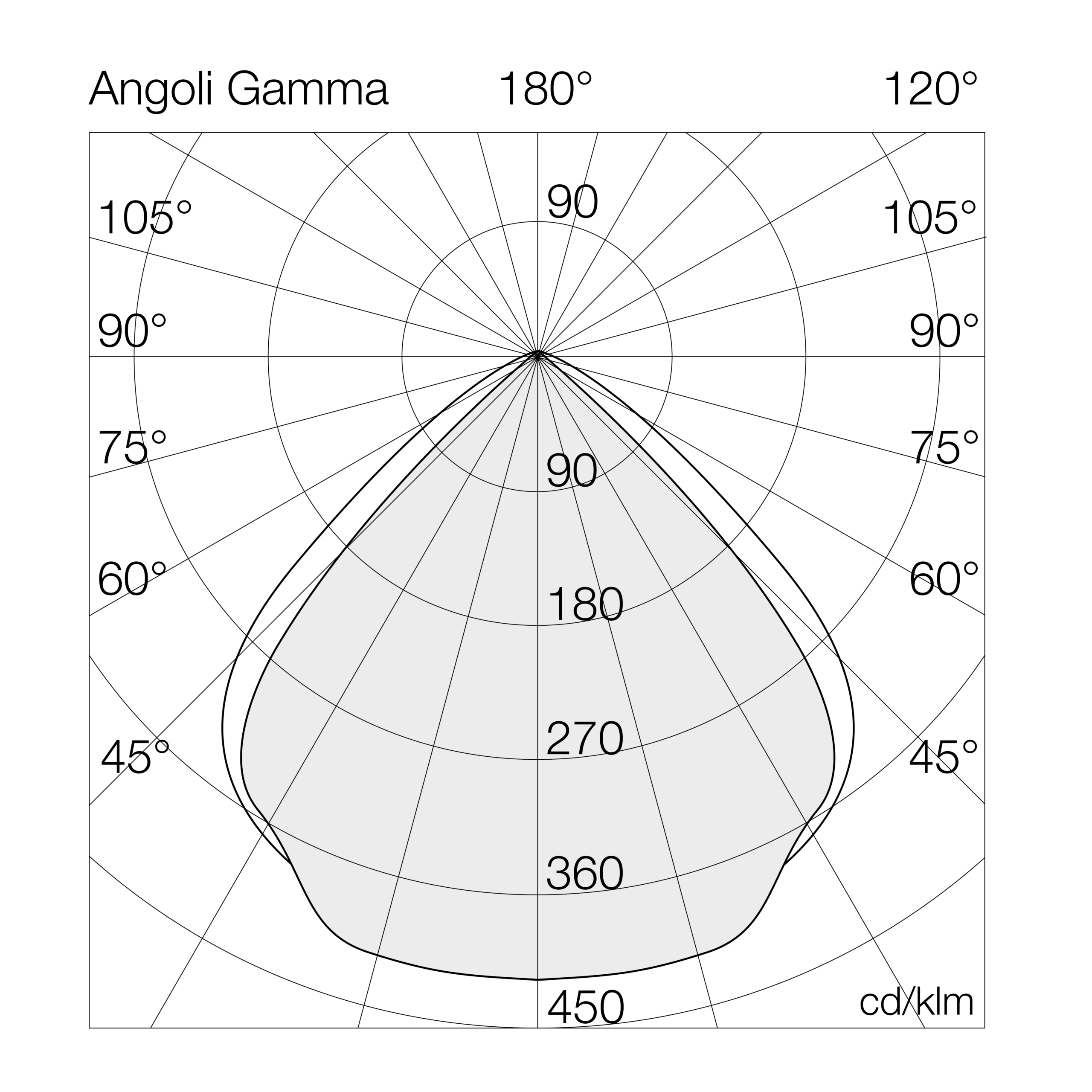

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2151S540= 4000°K (CRI >80)0941EL= on/off
50= 5000°K (CRI >80)1242ES= on/off (CPSS)
65= 6500°K (CRI >80)1845LD= dali 2 / dali 2 push
1950D1= dali 2 + em. 1h
2051E1= em. 1h
2154E3= em. 3h
2355FC= through wiring
2456
2960
3066
3370
3572
36

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2151S54009EL9-4000°K - CRI>80on/off1393155120680673602.4
2151S54012EL12-4000°K - CRI>80on/off1947162120680673602.4
2151S54018EL18-4000°K - CRI>80on/off27861551201290678504.3
2151S54019EL19-4000°K - CRI>80on/off2899153120680673602.4
2151S54020EL20-4000°K - CRI>80on/off30651531201290678504.3
2151S54021EL21-4000°K - CRI>80on/off3221153120680673602.4
2151S54023EL23-4000°K - CRI>80on/off36181571201290678504.3
2151S54024EL24-4000°K - CRI>80on/off383116012016006710505.3
2151S54029EL29-4000°K - CRI>80on/off452215612016006710505.3
2151S54030EL30-4000°K - CRI>80on/off4079136120680678504.3
2151S54033EL33-4000°K - CRI>80on/off49871511201290678504.3
2151S54035EL35-4000°K - CRI>80on/off4769136120680678504.3
2151S54036EL36-4000°K - CRI>80on/off55291541201290678504.3
2151S54041EL41-4000°K - CRI>80on/off61741511201290678504.3
2151S54042EL42-4000°K - CRI>80on/off623314812016006710505.3
2151S54045EL45-4000°K - CRI>80on/off691015412016006710505.3
2151S54050EL50-4000°K - CRI>80on/off75571511201290678504.3
2151S54051EL51-4000°K - CRI>80on/off758314912016006710505.3
2151S54054EL54-4000°K - CRI>80on/off791914712016006710505.3
2151S54055EL55-4000°K - CRI>80on/off818714912012906710505.3

Accessories
