ISIDE – Mod. VS

(120° diffusing optics)

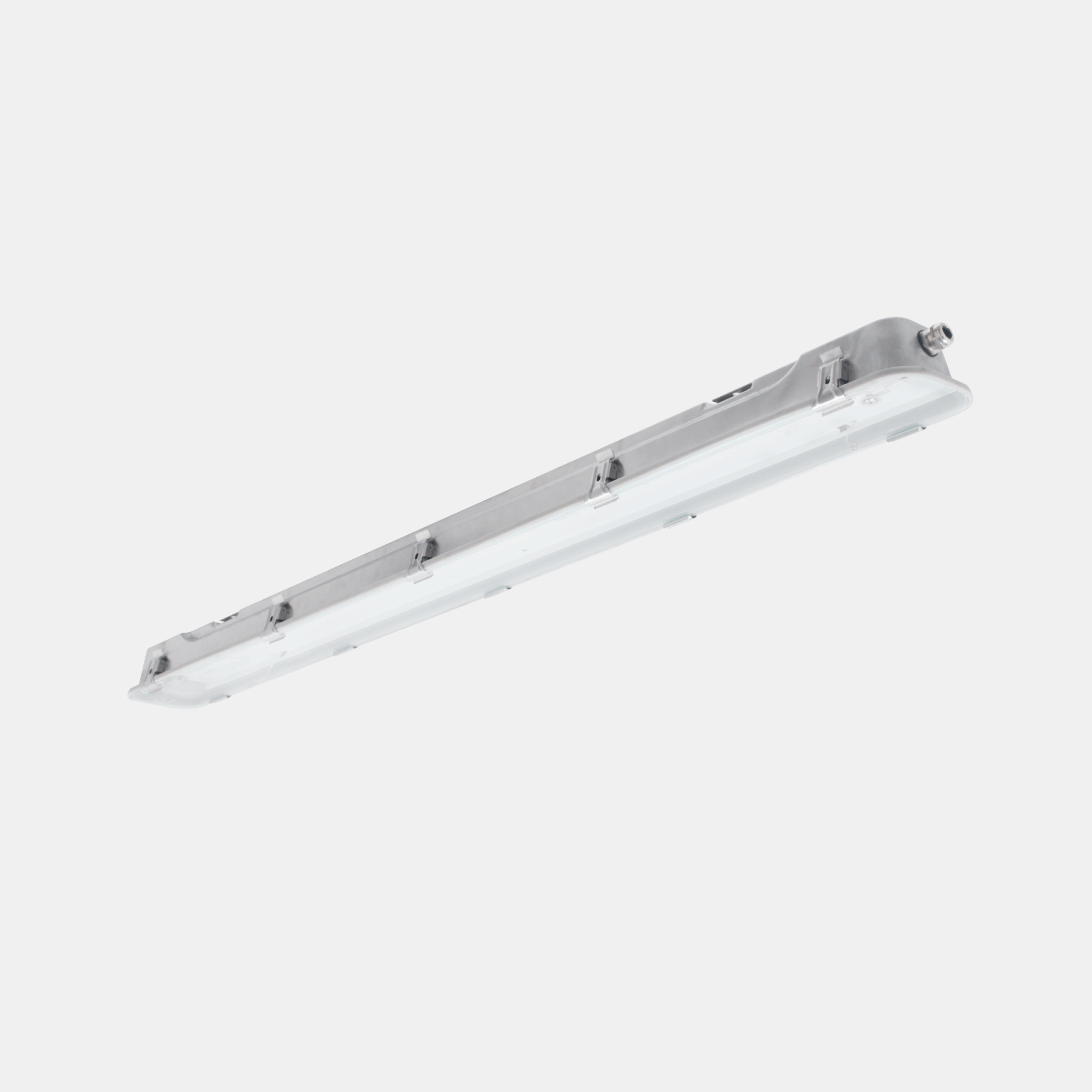

LED linear watertight fixture, suitable for ceiling, wall, blind, pole and suspension installations. One-piece deep-drawn AISI 304 stainless steel body of high mechanical strength, 4 mm thick flat tempered glass diffuser resistant to impact and thermal shock, stainless steel locking hooks, hardware and fixing brackets. 120° diffusing optics ( with anti-glare etched tempered flat glass diffuser).

Categories: Led, ISIDE - 2151, Industrial, ISIDE

Models: 525

Color: Stainless steel AISI 304

Catalogue abstract

Installation instructions

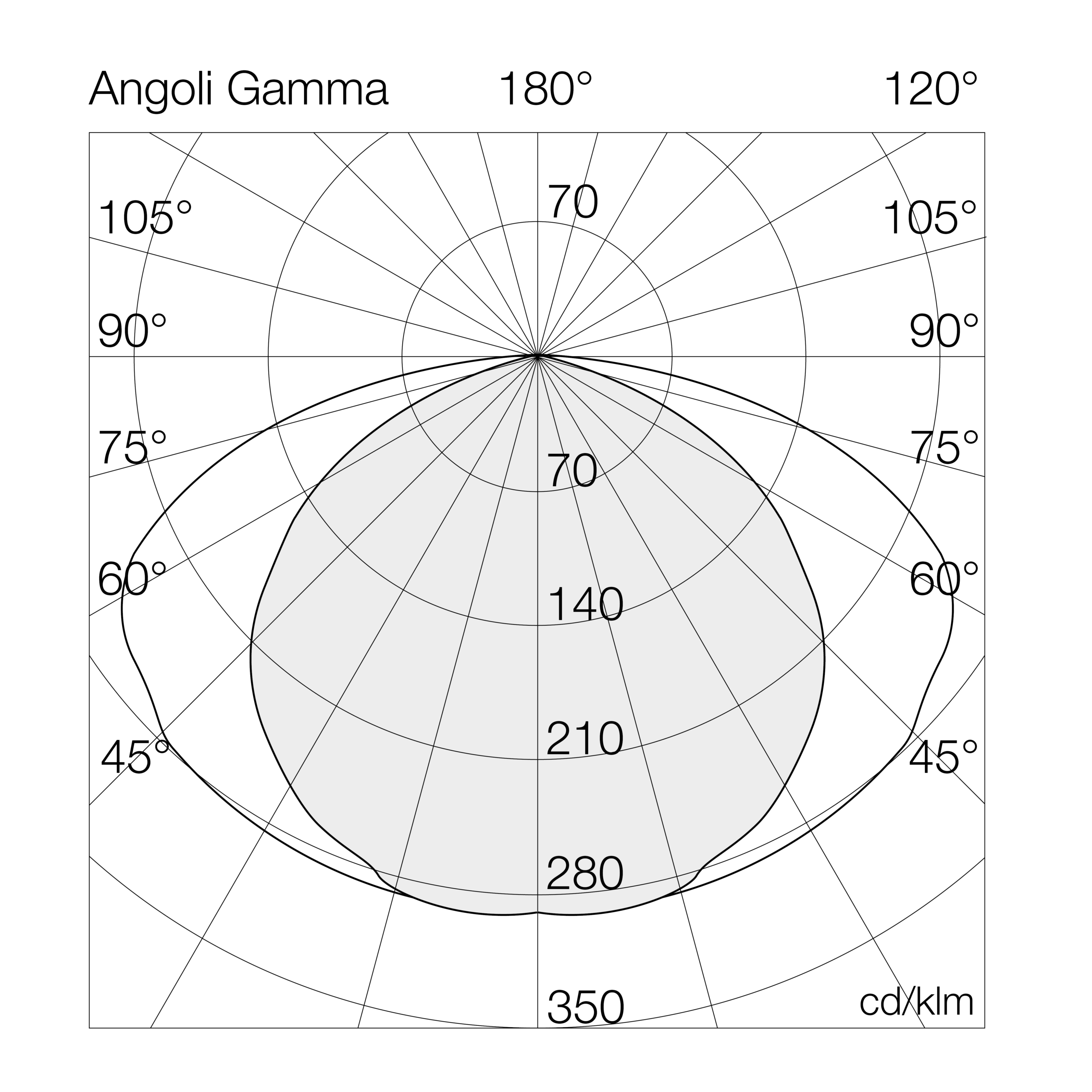

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
2151	VS	40	= 4000°K (CRI >80)	09	41	EL	= on/off
		50	= 5000°K (CRI >80)	12	42	ES	= on/off (CPSS)
		65	= 6500°K (CRI >80)	18	45	LD	= dali 2 / dali 2 push
				19	50	D1	= dali 2 + em. 1h
				20	51	E1	= em. 1h
				21	54	E3	= em. 3h
				23	55	FC	= through wiring
				24	56
				29	60
				30	66
				33	70
				35	72
				36

Models

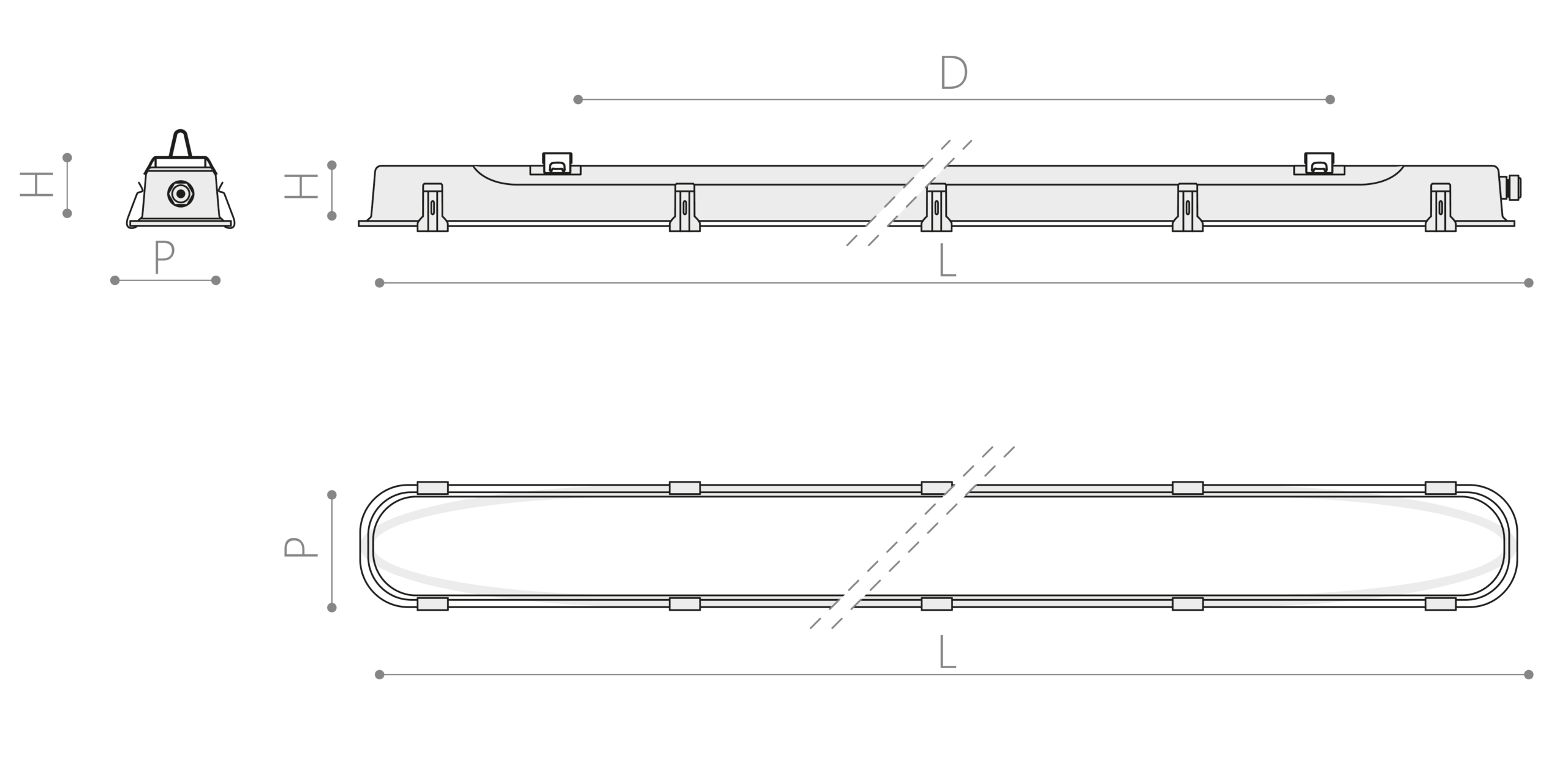

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2151VS4009EL	9	-	4000°K - CRI>80	on/off	1214	135	120	680	67	360	2.4
2151VS4012EL	12	-	4000°K - CRI>80	on/off	1697	141	120	680	67	360	2.4
2151VS4018EL	18	-	4000°K - CRI>80	on/off	2429	135	120	1290	67	850	4.3
2151VS4019EL	19	-	4000°K - CRI>80	on/off	2528	133	120	680	67	360	2.4
2151VS4020EL	20	-	4000°K - CRI>80	on/off	2672	134	120	1290	67	850	4.3
2151VS4021EL	21	-	4000°K - CRI>80	on/off	2808	134	120	680	67	360	2.4
2151VS4023EL	23	-	4000°K - CRI>80	on/off	3154	137	120	1290	67	850	4.3
2151VS4024EL	24	-	4000°K - CRI>80	on/off	3339	139	120	1600	67	1050	5.3
2151VS4029EL	29	-	4000°K - CRI>80	on/off	3943	136	120	1600	67	1050	5.3
2151VS4030EL	30	-	4000°K - CRI>80	on/off	3556	119	120	680	67	850	4.3
2151VS4033EL	33	-	4000°K - CRI>80	on/off	4347	132	120	1290	67	850	4.3
2151VS4035EL	35	-	4000°K - CRI>80	on/off	4158	119	120	680	67	850	4.3
2151VS4036EL	36	-	4000°K - CRI>80	on/off	4820	134	120	1290	67	850	4.3
2151VS4041EL	41	-	4000°K - CRI>80	on/off	5382	131	120	1290	67	850	4.3
2151VS4042EL	42	-	4000°K - CRI>80	on/off	5434	129	120	1600	67	1050	5.3
2151VS4045EL	45	-	4000°K - CRI>80	on/off	6024	134	120	1600	67	1050	5.3
2151VS4050EL	50	-	4000°K - CRI>80	on/off	6588	132	120	1290	67	850	4.3
2151VS4051EL	51	-	4000°K - CRI>80	on/off	6611	130	120	1600	67	1050	5.3
2151VS4054EL	54	-	4000°K - CRI>80	on/off	6903	128	120	1600	67	1050	5.3
2151VS4055EL	55	-	4000°K - CRI>80	on/off	7137	130	120	1290	67	1050	5.3
