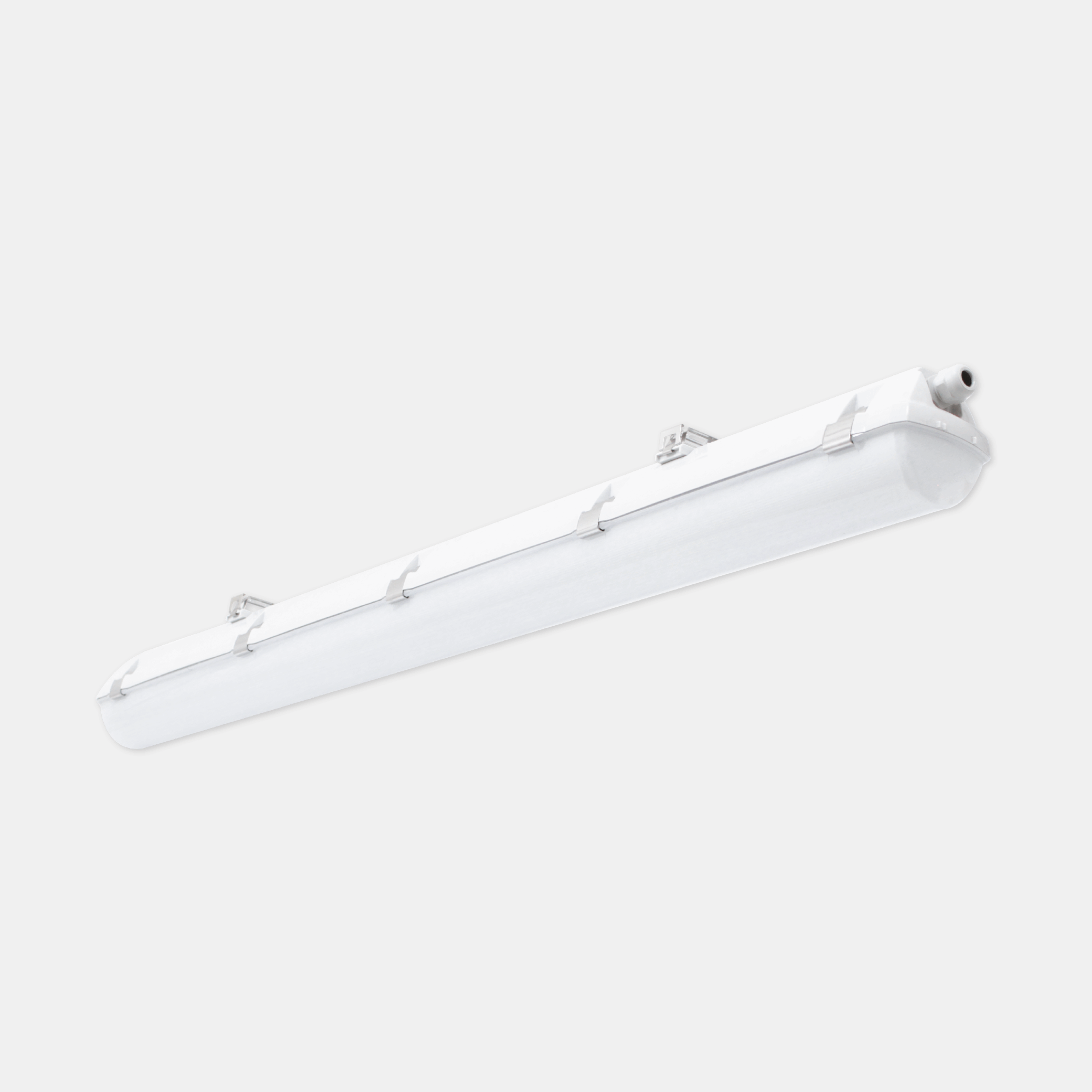

UNICA HCR – Mod. LD

(120° diffusing optics)

Watertight linear LED assembly, chemical resistant, suitable for ceiling, wall, blind and suspension installation. Constructed of self-extinguishing, injection-molded ABS, component holder reflector made of white prepainted sheet metal, locking hooks, hardware and mounting brackets made of stainless steel. Translucent, UV-stabilized, impact-resistant opal PMMA cup diffuser. 120° diffusing reflector made of white prepainted steel sheet.

Categories: Led, UNICA HCR, Industrial, UNICA HCR

Models: 315

Color: Grey

Catalogue abstract

Installation instructions

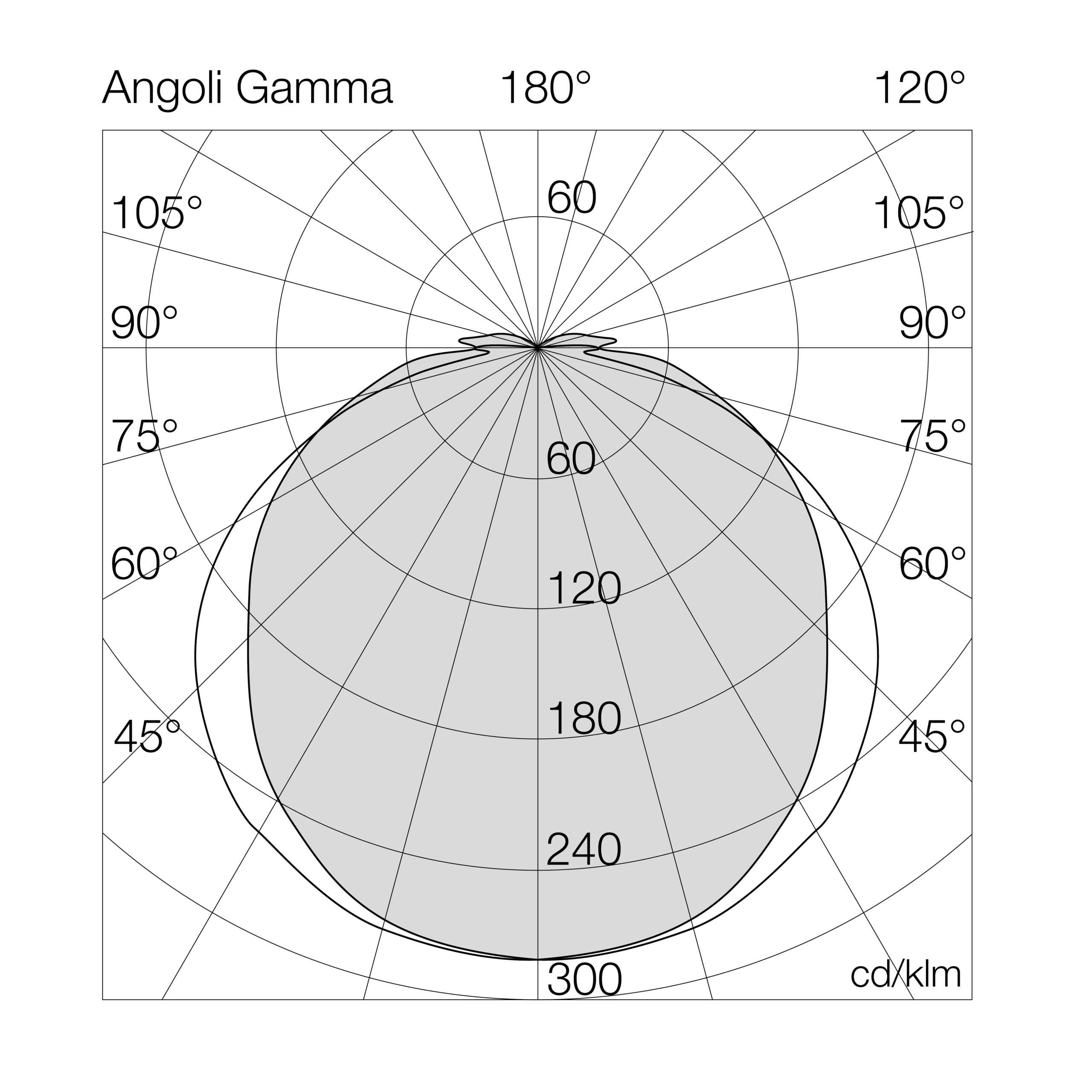

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	+	Options
2153	LD	40	= 4000°K (CRI >80)	09	38	EL	= on/off
		50	= 5000°K (CRI >80)	12	41	ES	= on/off (CPSS)
		65	= 6500°K (CRI >80)	18	45	LM	= 1-10v
				19	49	LD	= dali 2 / dali 2 push
				22	51	FC	= through wiring
				23	53
				28	54
				29	60
				30	66
				33	72
				36

Models

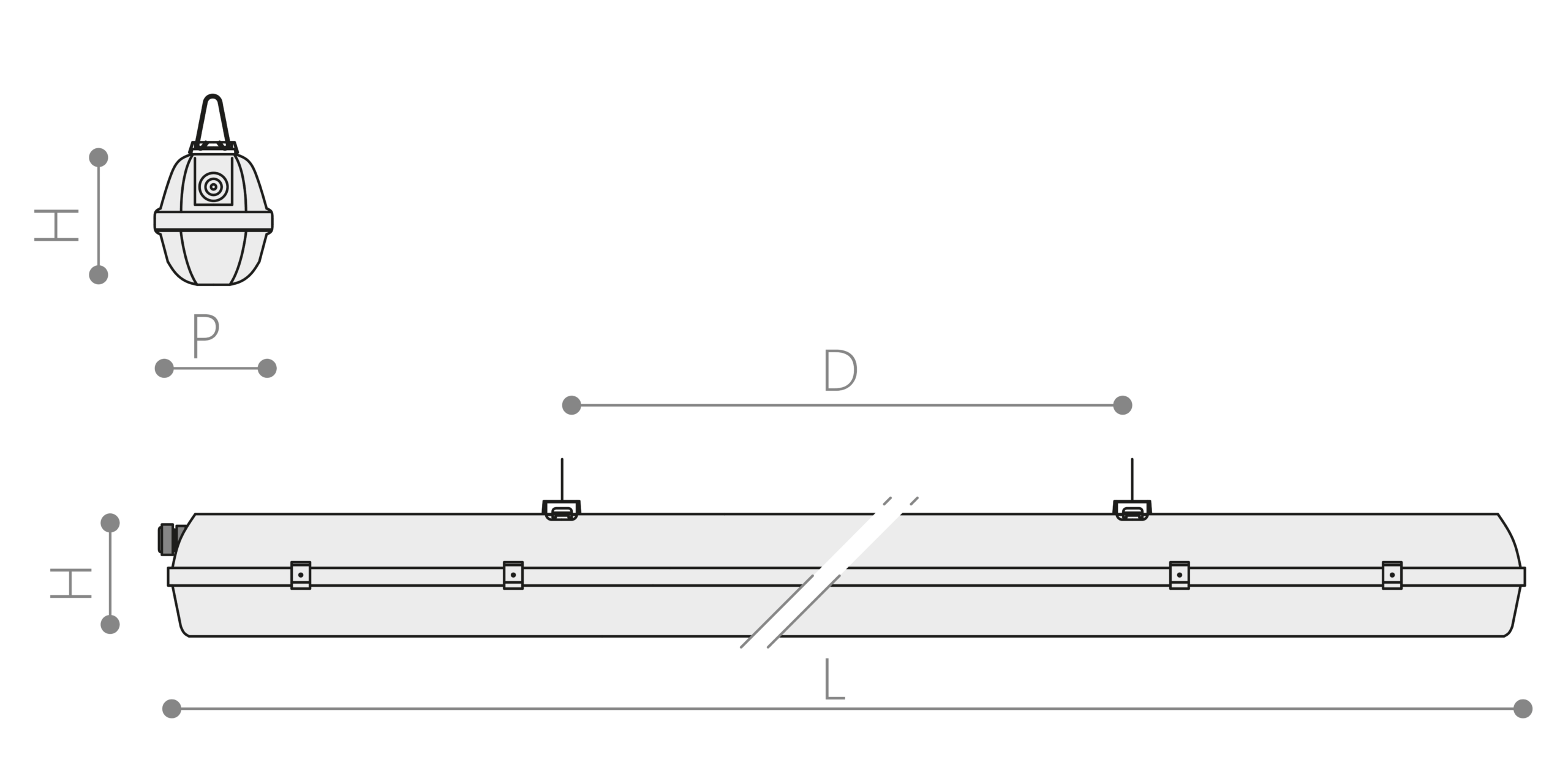

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2153LD4009EL	9	-	4000°K - CRI ≥80	on/off (dip-switch)	1418	158	95	662	100	350	1.1
2153LD4012EL	12	-	4000°K - CRI ≥80	on/off (dip-switch)	1761	147	95	662	100	350	1.1
2153LD4019EL	19	-	4000°K - CRI ≥80	on/off (dip-switch)	2432	128	95	662	100	350	1.1
2153LD4023EL	23	-	4000°K - CRI ≥80	on/off (dip-switch)	3295	143	95	1272	100	700	1.9
2153LD4030EL	30	-	4000°K - CRI ≥80	on/off (dip-switch)	4362	145	95	1272	100	700	1.9
2153LD4036EL	36	-	4000°K - CRI ≥80	on/off (dip-switch)	4824	134	95	1272	100	700	1.9
2153LD4041EL	41	-	4000°K - CRI ≥80	on/off (dip-switch)	5526	135	95	1272	100	700	1.9
2153LD4029EL	29	-	4000°K - CRI ≥80	on/off (dip-switch)	4119	142	95	1572	100	940	2.4
2153LD4038EL	38	-	4000°K - CRI ≥80	on/off (dip-switch)	5425	143	95	1572	100	940	2.4
2153LD4045EL	45	-	4000°K - CRI ≥80	on/off (dip-switch)	6081	135	95	1572	100	940	2.4
2153LD4054EL	54	-	4000°K - CRI ≥80	on/off (dip-switch)	6907	128	95	1572	100	940	2.4
2153LD4018EL	18	-	4000°K - CRI ≥80	on/off (dip-switch)	2835	158	95	1272	100	700	1.9
2153LD4022EL	22	-	4000°K - CRI ≥80	on/off (dip-switch)	3522	160	95	1272	100	700	1.9
2153LD4028EL	28	-	4000°K - CRI ≥80	on/off (dip-switch)	4198	150	95	1272	100	700	1.9
2153LD4033EL	33	-	4000°K - CRI ≥80	on/off (dip-switch)	4865	147	95	1272	100	700	1.9
2153LD4049EL	49	-	4000°K - CRI ≥80	on/off (dip-switch)	6802	139	95	1272	100	700	1.9
2153LD4053EL	53	-	4000°K - CRI ≥80	on/off (dip-switch)	7427	140	95	1272	100	700	1.9
2153LD4051EL	51	-	4000°K - CRI ≥80	on/off (dip-switch)	6900	135	95	1572	100	940	2.4
2153LD4060EL	60	-	4000°K - CRI ≥80	on/off (dip-switch)	8502	142	95	1572	100	940	2.4
2153LD4066EL	66	-	4000°K - CRI ≥80	on/off (dip-switch)	9253	140	95	1572	100	940	2.4
