| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2154 | LC | 40 | = 4000°K (CRI >80) | 09 | 38 | EL | = on/off (DIP-switch) | ||||
| 50 | = 5000°K (CRI >80) | 12 | 41 | ES | = on/off (CPSS) | ||||||
| 65 | = 6500°K (CRI >80) | 18 | 45 | LD | = dali 2 / dali 2 push | ||||||
| 19 | 49 | D1 | = dali 2 + em. 1h | ||||||||
| 22 | 50 | E1 | = em. 1h (DIP-switch) | ||||||||
| 23 | 51 | E3 | = em. 3h (DIP-switch) | ||||||||
| 28 | 54 | FC | = through wiring (DIP-switch) | ||||||||
| 29 | 60 | ||||||||||
| 30 | 66 | ||||||||||
| 33 | 72 | ||||||||||
| 36 |

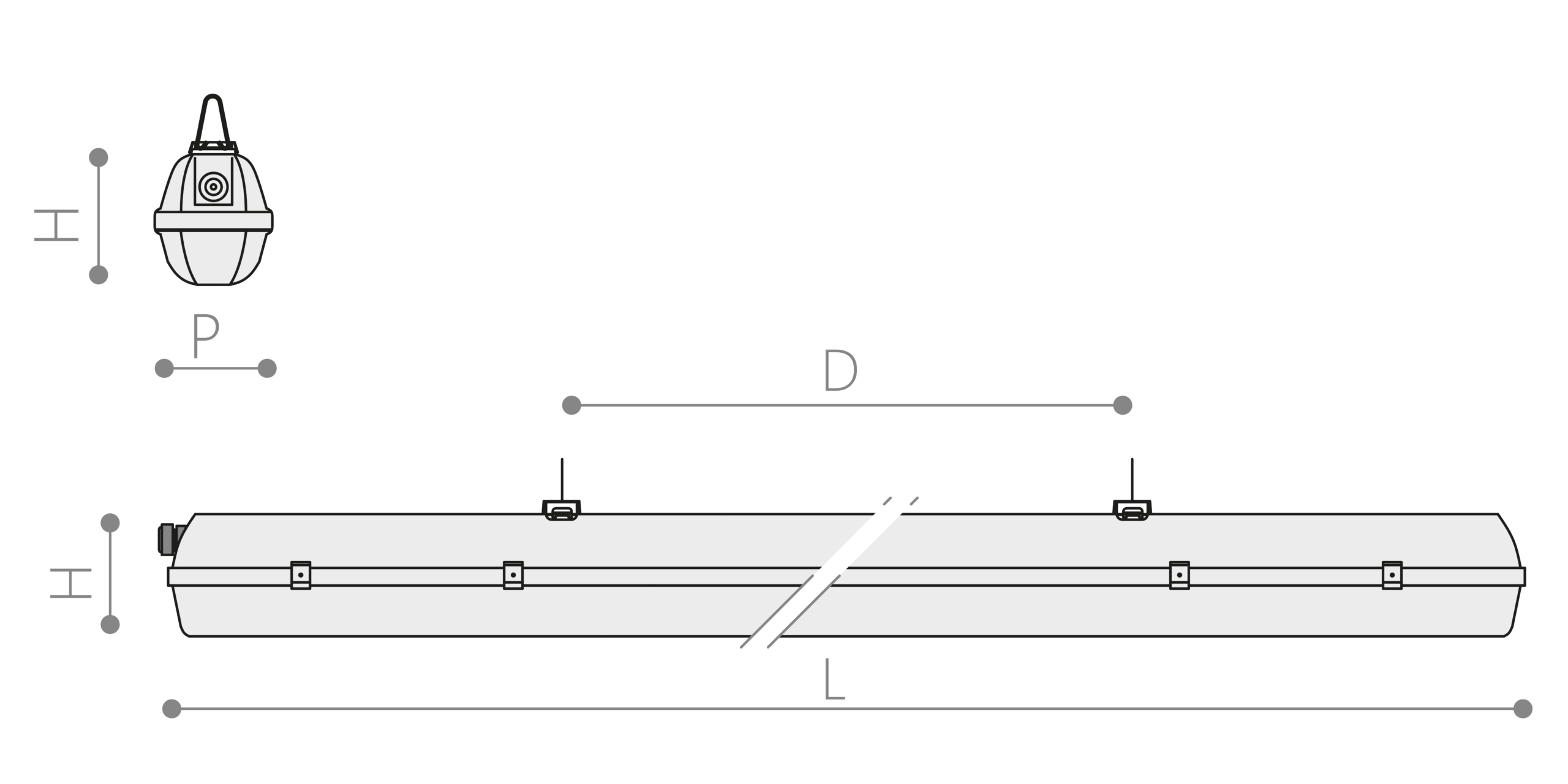

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2154LC4009EL | 9 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 1414 | 157 | 95 | 662 | 100 | 350 | 1.1 | |
| 2154LC4012EL | 12 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 1756 | 146 | 95 | 662 | 100 | 350 | 1.1 | |
| 2154LC4018EL | 18 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 2828 | 157 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4019EL | 19 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 2426 | 128 | 95 | 662 | 100 | 350 | 1.1 | |
| 2154LC4022EL | 22 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 3514 | 160 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4023EL | 23 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 3287 | 143 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4028EL | 28 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 4188 | 150 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4029EL | 29 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 4109 | 142 | 95 | 1572 | 100 | 940 | 2.4 | |
| 2154LC4030EL | 30 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 4351 | 145 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4033EL | 33 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 4853 | 147 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4036EL | 36 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 4812 | 134 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4038EL | 38 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 5438 | 143 | 95 | 1572 | 100 | 940 | 2.4 | |
| 2154LC4041EL | 41 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 5512 | 134 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4045EL | 45 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 6066 | 135 | 95 | 1572 | 100 | 940 | 2.4 | |
| 2154LC4049EL | 49 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 6785 | 138 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4051EL | 51 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 6883 | 135 | 95 | 1572 | 100 | 940 | 2.4 | |
| 2154LC4053EL | 53 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 7409 | 140 | 95 | 1272 | 100 | 700 | 1.9 | |
| 2154LC4054EL | 54 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 6890 | 128 | 95 | 1572 | 100 | 940 | 2.4 | |
| 2154LC4060EL | 60 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 8480 | 141 | 95 | 1572 | 100 | 940 | 2.4 | |
| 2154LC4066EL | 66 | - | 4000°K - CRI>80 | on/off (DIP-switch) | 9230 | 140 | 95 | 1572 | 100 | 940 | 2.4 |
