UNICA – Mod. LD

(120° diffusing optics)

LED linear watertight fixture, suitable for ceiling, wall, blind and suspension installation. Body made of self-extinguishing V2 injection-molded polycarbonate, component holder reflector made of white prepainted sheet metal, locking hooks, hardware and fixing brackets made of stainless steel. Translucent, UV-stabilized, impact-resistant opal polycarbonate cup diffuser. 120° diffusing optics.

Categories: Led, UNICA - 2155, Industrial, UNICA

Models: 651

Color: Grey

Catalogue abstract

Installation instructions

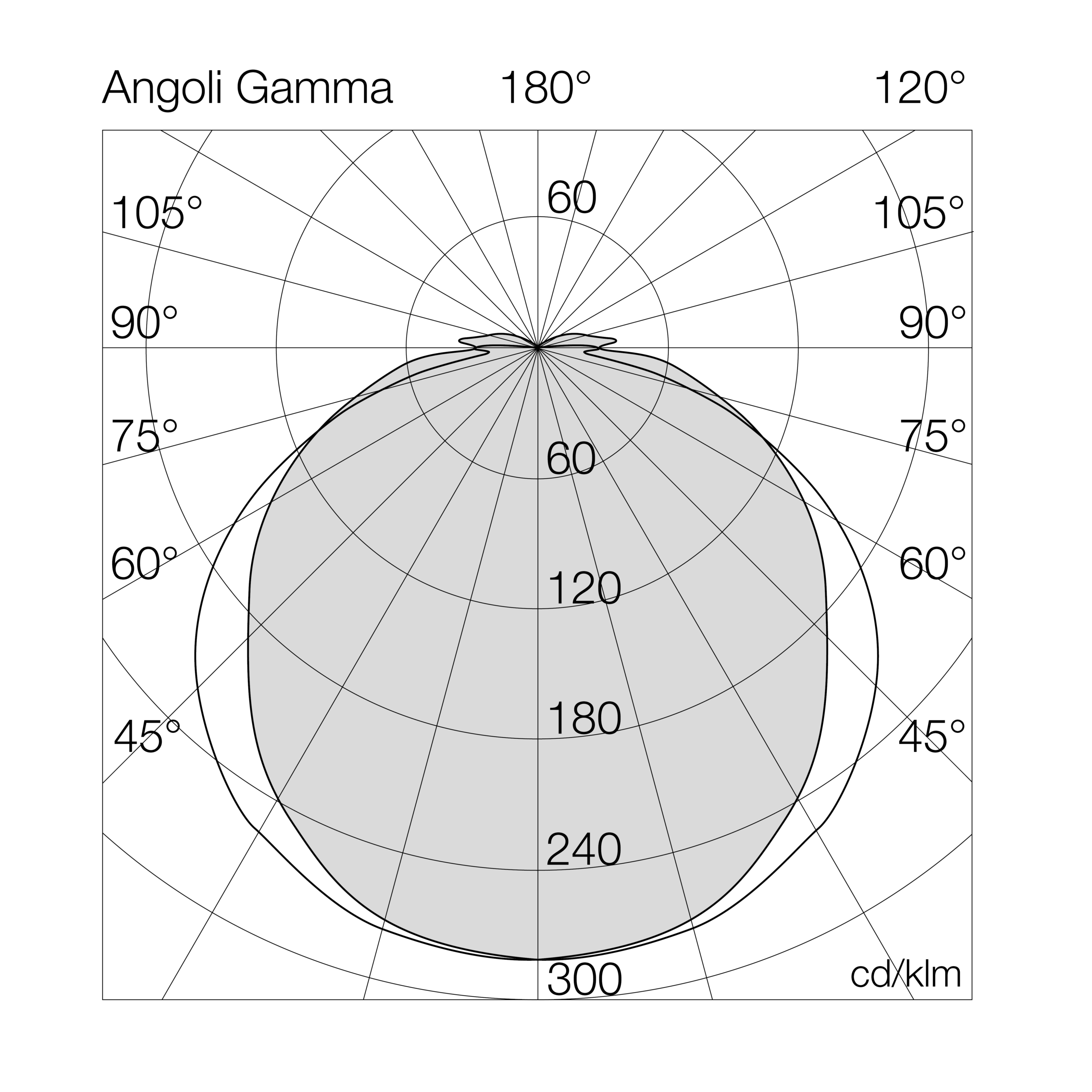

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
2155	LD	40	= 4000°K (CRI >80)	09	37	EL	= on/off
		50	= 5000°K (CRI >80)	11	39	ES	= on/off (CPSS)
		65	= 6500°K (CRI >80)	13	42	LD	= dali 2 / dali 2 push
				19	44	D1	= dali 2 + em. 1h
				20	45	E1	= em. 1h
				21	47	E3	= em. 3h
				23	48	FC	= through wiring
				24	49
				25	52
				28	54
				29	56
				30	59
				33	64
				34	69
				35	70
				36

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2155LD4009EL	9	-	4000°K - CRI>80	on/off	1362	151	145	662	100	350	1.3
2155LD4011EL	11	-	4000°K - CRI>80	on/off	1630	148	145	662	100	350	1.3
2155LD4013EL	13	-	4000°K - CRI>80	on/off	2109	162	145	662	100	350	1.3
2155LD4019EL	19	-	4000°K - CRI>80	on/off	2895	152	145	662	100	350	1.3
2155LD4020EL	20	-	4000°K - CRI>80	on/off	3386	169	145	1272	100	700	2.2
2155LD4021EL	21	-	4000°K - CRI>80	on/off	3303	157	145	662	100	350	1.3
2155LD4023EL	23	-	4000°K - CRI>80	on/off	3414	148	145	1272	100	700	2.2
2155LD4024EL	24	-	4000°K - CRI>80	on/off	3539	147	145	1572	100	940	2.7
2155LD4025EL	25	-	4000°K - CRI>80	on/off	4213	169	145	1572	100	940	2.7
2155LD4028EL	28	-	4000°K - CRI>80	on/off	4305	154	145	1272	100	700	2.2
2155LD4029EL	29	-	4000°K - CRI>80	on/off	4183	144	145	662	100	350	1.3
2155LD4030EL	30	-	4000°K - CRI>80	on/off	4410	147	145	1572	100	940	2.7
2155LD4033EL	33	-	4000°K - CRI>80	on/off	5315	161	145	1572	100	940	2.7
2155LD4034EL	34	-	4000°K - CRI>80	on/off	5337	157	145	1272	100	700	2.2
2155LD4035EL	35	-	4000°K - CRI>80	on/off	5694	163	145	1572	100	940	2.7
2155LD4036EL	36	-	4000°K - CRI>80	on/off	5840	162	145	1272	100	700	2.2
2155LD4037EL	37	-	4000°K - CRI>80	on/off	5182	140	145	1572	100	940	2.7
2155LD4039EL	39	-	4000°K - CRI>80	on/off	6222	160	145	1272	100	700	2.2
2155LD4042EL	42	-	4000°K - CRI>80	on/off	6671	159	145	1572	100	940	2.7
2155LD4044EL	44	-	4000°K - CRI>80	on/off	6771	154	145	1272	100	700	2.2
