art.-2300-soleil-0s-grigio

SOLEIL/0S

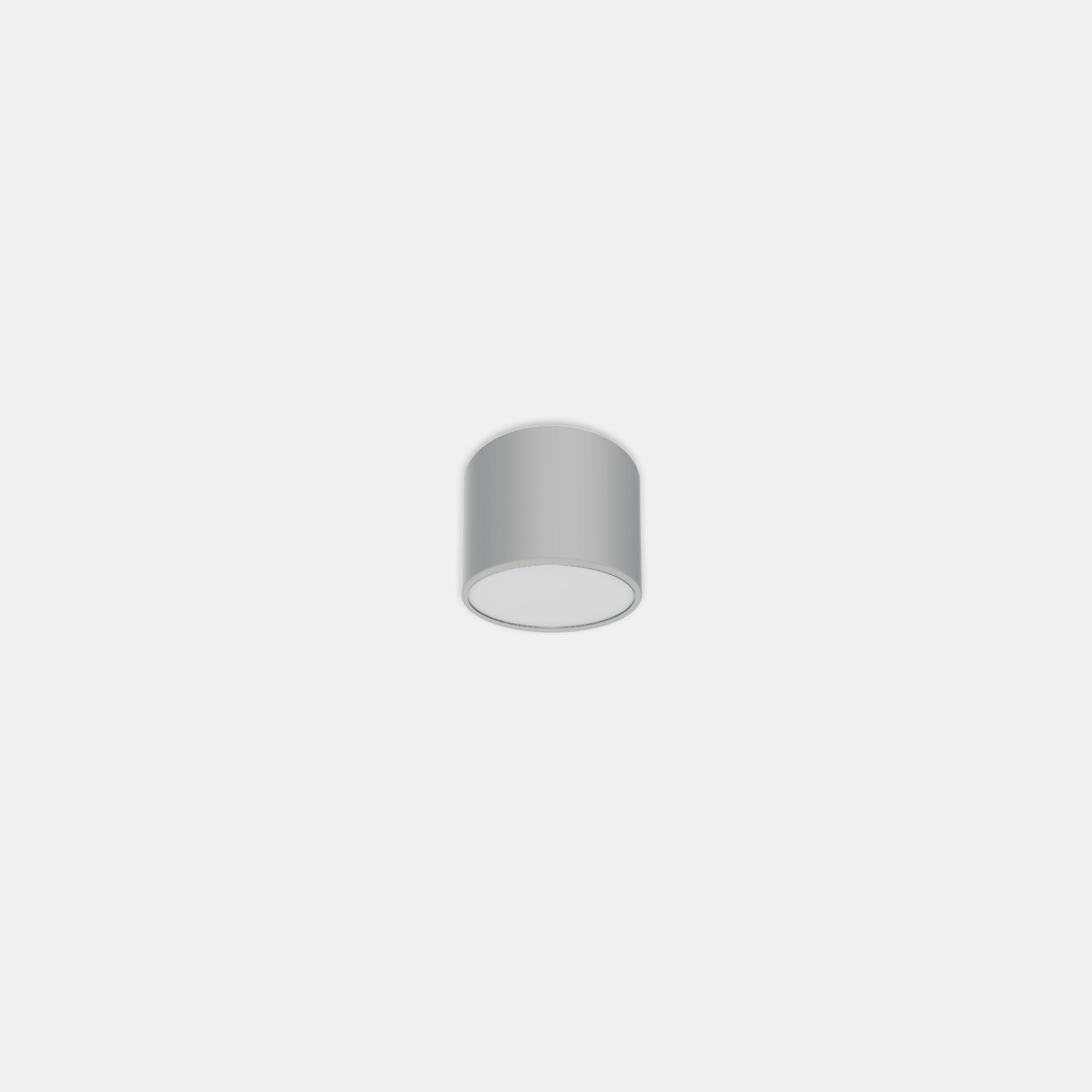

Led indoor light for ceiling installation. Steel sheet body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in three color variants.

Categories: Led, SOLEIL - 2300, Architectural Indoor, art. 2300 Soleil

Models: 5

Color: Matt grey

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	+	Mod.	+	°K (CRI)		+	W tot.	+	Options
2300		0S		27	= 2700°K (CRI >80)		07		GL	= on/off
				30	= 3000°K (CRI >80)				GD	= dali 2 / dali 2 push
				40	= 4000°K (CRI >80)
				93	= 3000°K (CRI >90)
				94	= 4000°K (CRI >90)

Models

	Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
	23000S4007GL	7	-	4000°K - CRI>80	on/off	861	123	100	-	78	-	0.50
	23000S3007GL	7	-	3000°K - CRI>80	on/off	817	117	100	-	78	-	0.50
	23000S2707GL	7	-	2700°K - CRI>80	on/off	791	113	100	-	78	-	0.50
	23000S9307GL	7	-	3000°K - CRI>90	on/off	718	103	100	-	78	-	0.50
	23000S9407GL	7	-	4000°K - CRI>90	on/off	731	104	100	-	78	-	0.50

TEC-MAR is aimed at constant research and development of new technologies, quality materials, enhanced production processes, in accordance with latest trends in design and technology.
