| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 2300 | 4S | 27 | = 2700°K (CRI >80) | 16 | NL | = on/off | ||||
| 30 | = 3000°K (CRI >80) | 24 | ND | = dali 2 / dali 2 push | ||||||
| 40 | = 4000°K (CRI >80) | |||||||||
| 93 | = 3000°K (CRI >90) | |||||||||
| 94 | = 4000°K (CRI >90) |

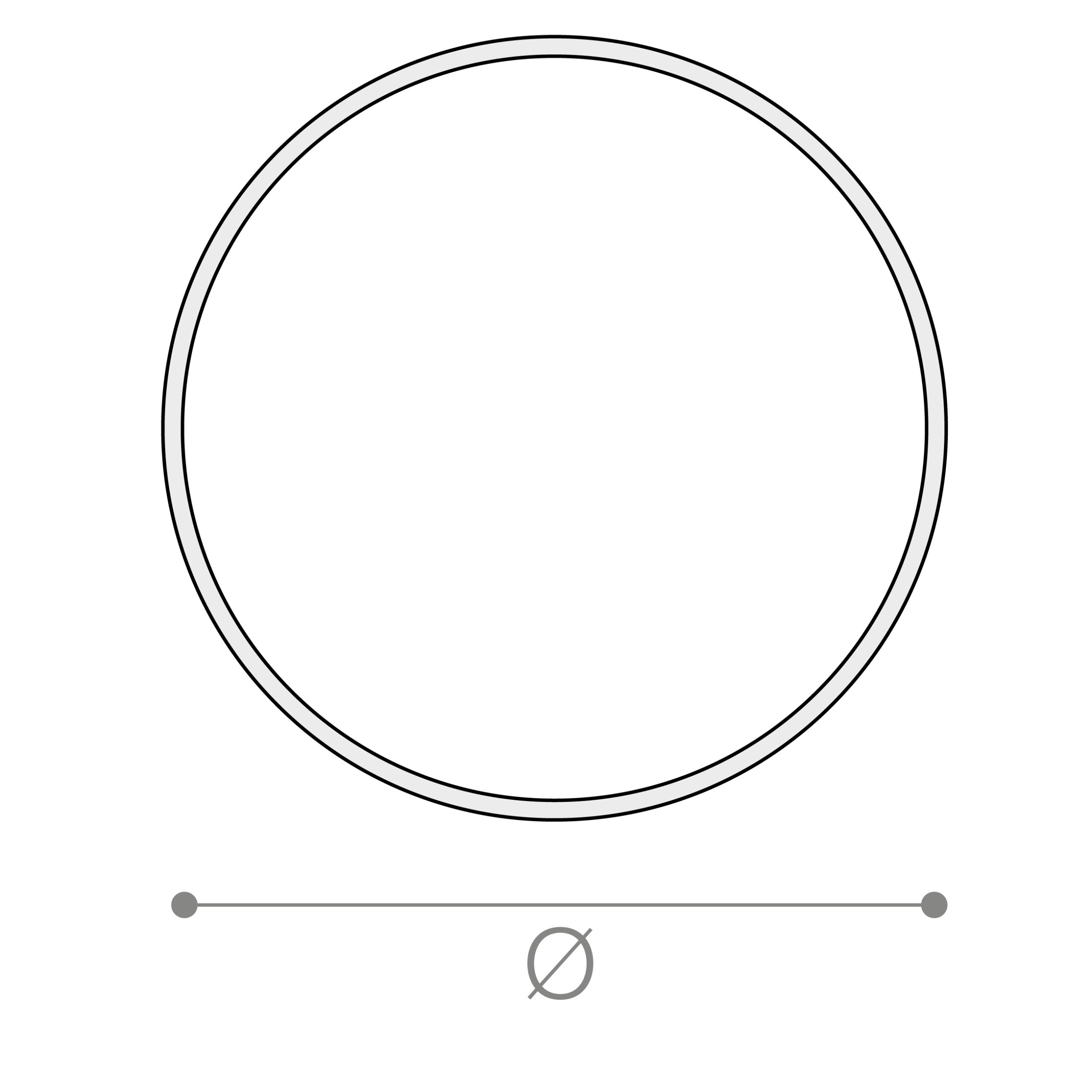

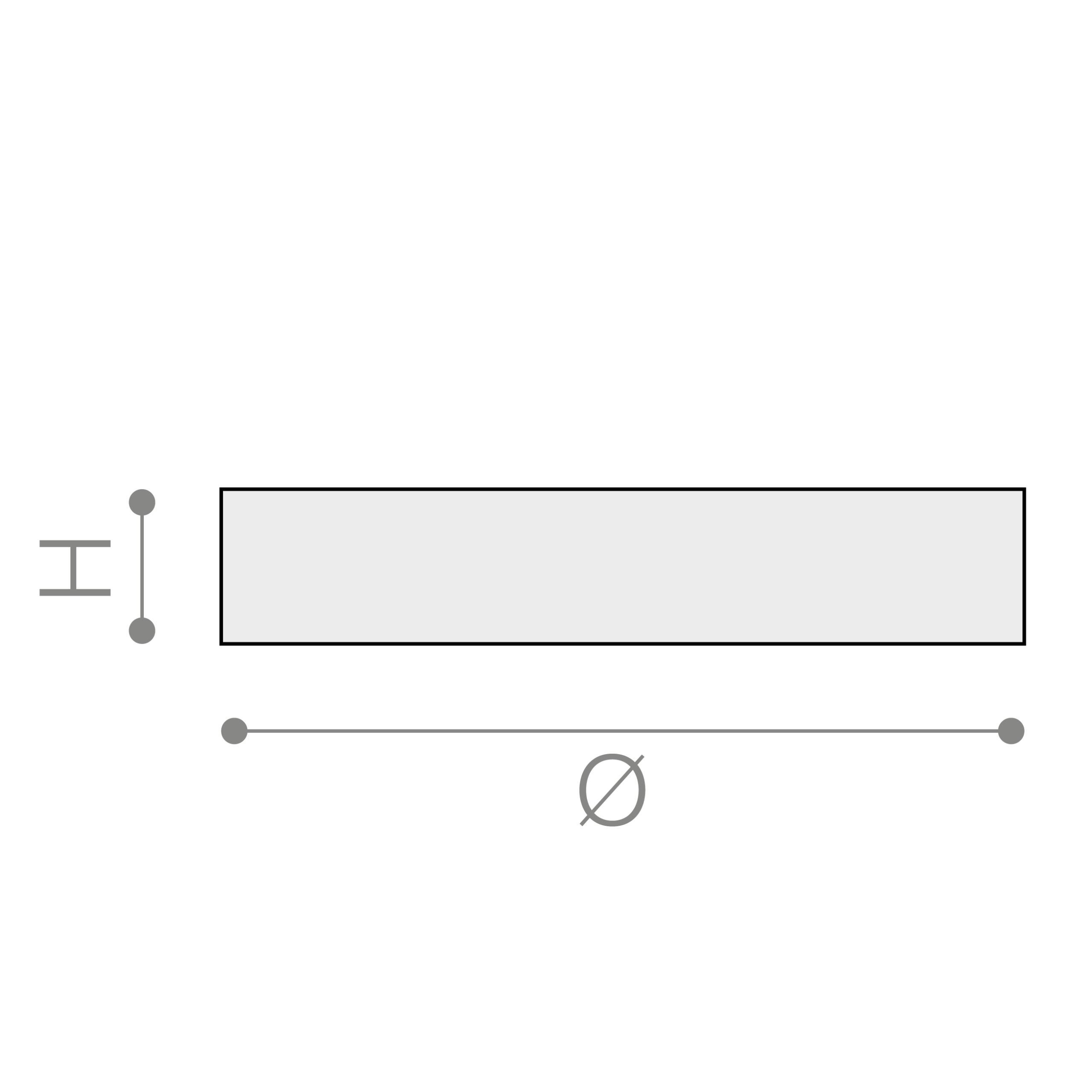

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 23004S4016NL | 16 | - | 4000°K - CRI>80 | on/off | 1953 | 122 | 400 | - | 78 | - | 3.7 | |
| 23004S4016ND | 16 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 1953 | 122 | 400 | - | 78 | - | 3.7 | |
| 23004S4024NL | 24 | - | 4000°K - CRI>80 | on/off | 2743 | 114 | 400 | - | 78 | - | 3.7 | |
| 23004S4024ND | 24 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 2743 | 114 | 400 | - | 78 | - | 3.7 | |
| 23004S3016NL | 16 | - | 3000°K - CRI>80 | on/off | 1852 | 116 | 400 | - | 78 | - | 3.7 | |
| 23004S3016ND | 16 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 1852 | 116 | 400 | - | 78 | - | 3.7 | |
| 23004S3024NL | 24 | - | 3000°K - CRI>80 | on/off | 2602 | 108 | 400 | - | 78 | - | 3.7 | |
| 23004S3024ND | 24 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 2602 | 108 | 400 | - | 78 | - | 3.7 | |
| 23004S2716NL | 16 | - | 2700°K - CRI>80 | on/off | 1795 | 112 | 400 | - | 78 | - | 3.7 | |
| 23004S2716ND | 16 | - | 2700°K - CRI>80 | dali 2 / dali 2 push | 1795 | 112 | 400 | - | 78 | - | 3.7 | |
| 23004S2724NL | 24 | - | 2700°K - CRI>80 | on/off | 2521 | 105 | 400 | - | 78 | - | 3.7 | |
| 23004S2724ND | 24 | - | 2700°K - CRI>80 | dali 2 / dali 2 push | 2521 | 105 | 400 | - | 78 | - | 3.7 | |
| 23004S9316NL | 16 | - | 3000°K - CRI>90 | on/off | 1629 | 102 | 400 | - | 78 | - | 3.7 | |
| 23004S9316ND | 16 | - | 3000°K - CRI>90 | dali 2 / dali 2 push | 1629 | 102 | 400 | - | 78 | - | 3.7 | |
| 23004S9324NL | 24 | - | 3000°K - CRI>90 | on/off | 2288 | 95 | 400 | - | 78 | - | 3.7 | |
| 23004S9324ND | 24 | - | 3000°K - CRI>90 | dali 2 / dali 2 push | 2288 | 95 | 400 | - | 78 | - | 3.7 | |
| 23004S9416NL | 16 | - | 4000°K - CRI>90 | on/off | 1658 | 104 | 400 | - | 78 | - | 3.7 | |
| 23004S9416ND | 16 | - | 4000°K - CRI>90 | dali 2 / dali 2 push | 1658 | 104 | 400 | - | 78 | - | 3.7 | |
| 23004S9424NL | 24 | - | 4000°K - CRI>90 | on/off | 2329 | 97 | 400 | - | 78 | - | 3.7 | |
| 23004S9424ND | 24 | - | 4000°K - CRI>90 | dali 2 / dali 2 push | 2329 | 97 | 400 | - | 78 | - | 3.7 |
