art.-2301-area-st-fd-wf-grigio

AREA/FD

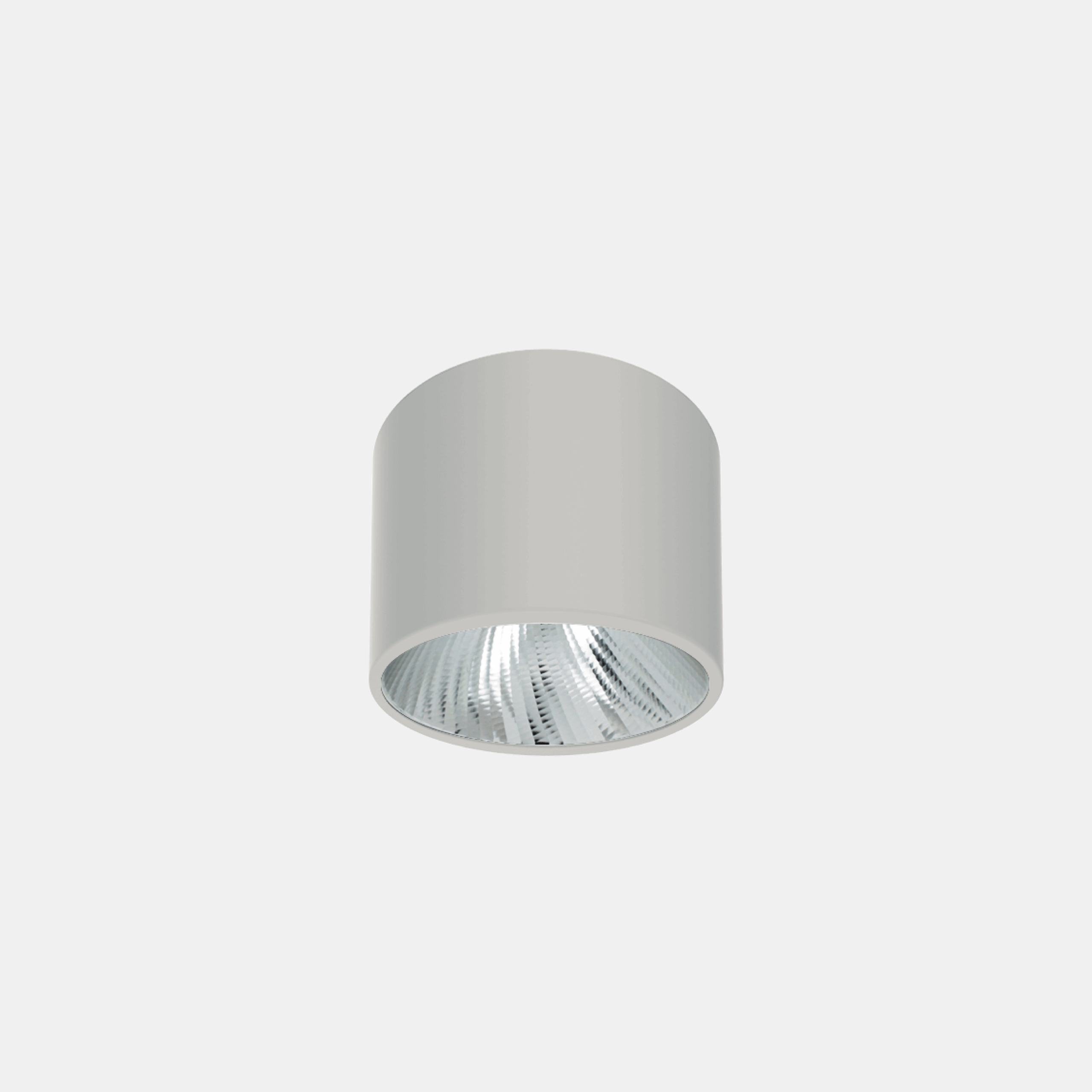

Indoor ceiling light for ceiling installation. Steel sheet body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pretreatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in three color variants.
Categories: Led, AREA - 2301, Architectural Indoor, art. 2301 Area
Models: 12
Color: Matt grey
Catalogue abstract
Installation instructions

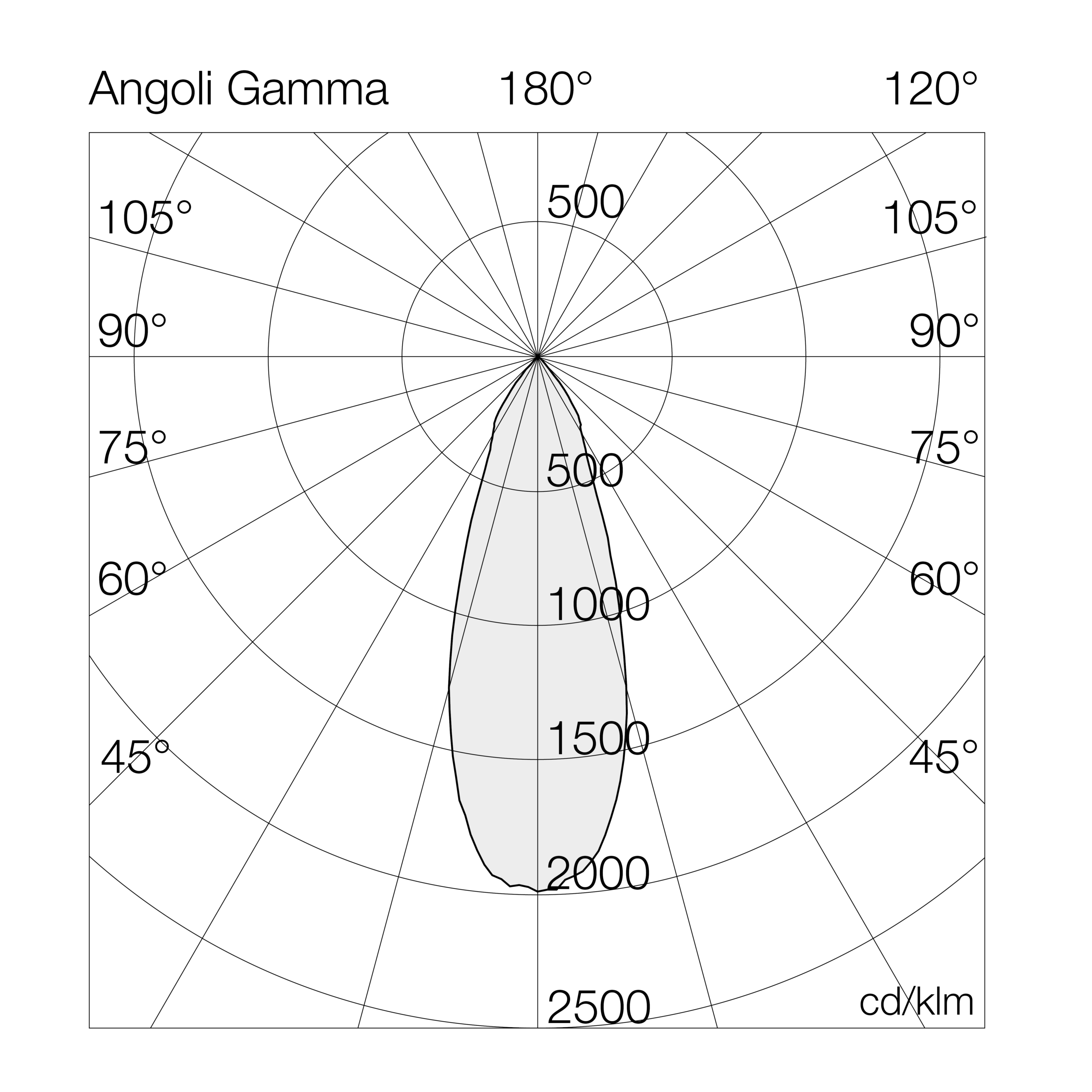

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2301FD27= 2700°K (CRI >80)06GL= on/off
30= 3000°K (CRI >80)14
40= 4000°K (CRI >80)
97= 2700°K (CRI >90)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
2301FD4006GL6-4000°K - CRI>80on/off788131120-110-0.70
2301FD3006GL6-3000°K - CRI>80on/off764127120-110-0.70
2301FD2706GL6-2700°K - CRI>80on/off728121120-110-0.70
2301FD9306GL6-3000°K - CRI>90on/off644107120-110-0.70
2301FD9706GL6-2700°K - CRI>90on/off611102120-110-0.70
2301FD9406GL6-4000°K - CRI>90on/off675113120-110-0.70
2301FD4014GL14-4000°K - CRI>80on/off1822130120-110-0.70
2301FD3014GL14-3000°K - CRI>80on/off1767126120-110-0.70
2301FD2714GL14-2700°K - CRI>80on/off1683120120-110-0.70
2301FD9314GL14-3000°K - CRI>90on/off1489106120-110-0.70
2301FD9714GL14-2700°K - CRI>90on/off1413101120-110-0.70
2301FD9414GL14-4000°K - CRI>90on/off1561112120-110-0.70
