art.-2301-area-st-fd-wf-nero

AREA/ST

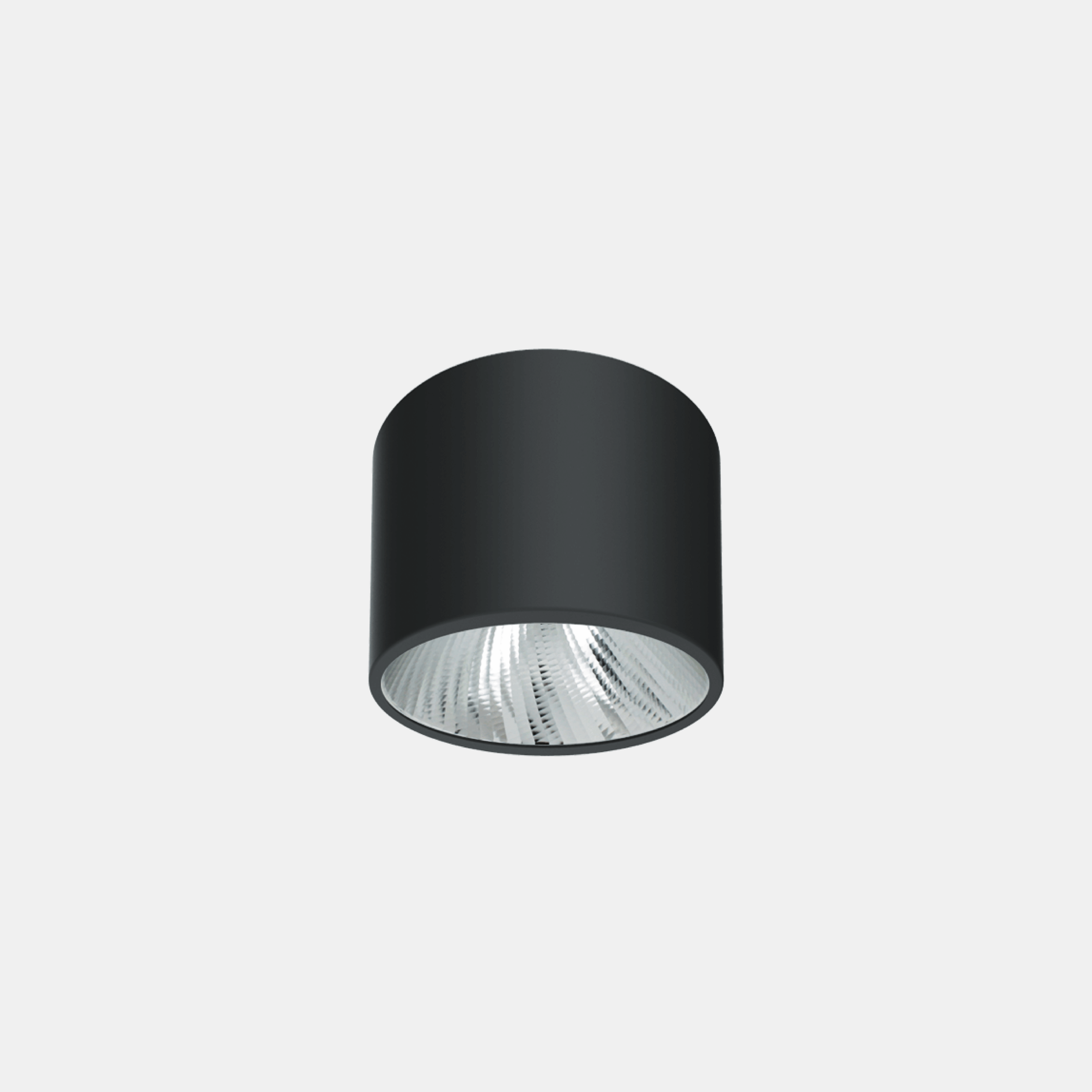

Indoor ceiling light for ceiling installation. Steel sheet body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pretreatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in three color variants.
Categories: Led, AREA - 2301, Architectural Indoor, art. 2301 Area
Models: 12
Color: Matt black
Catalogue abstract
Installation instructions

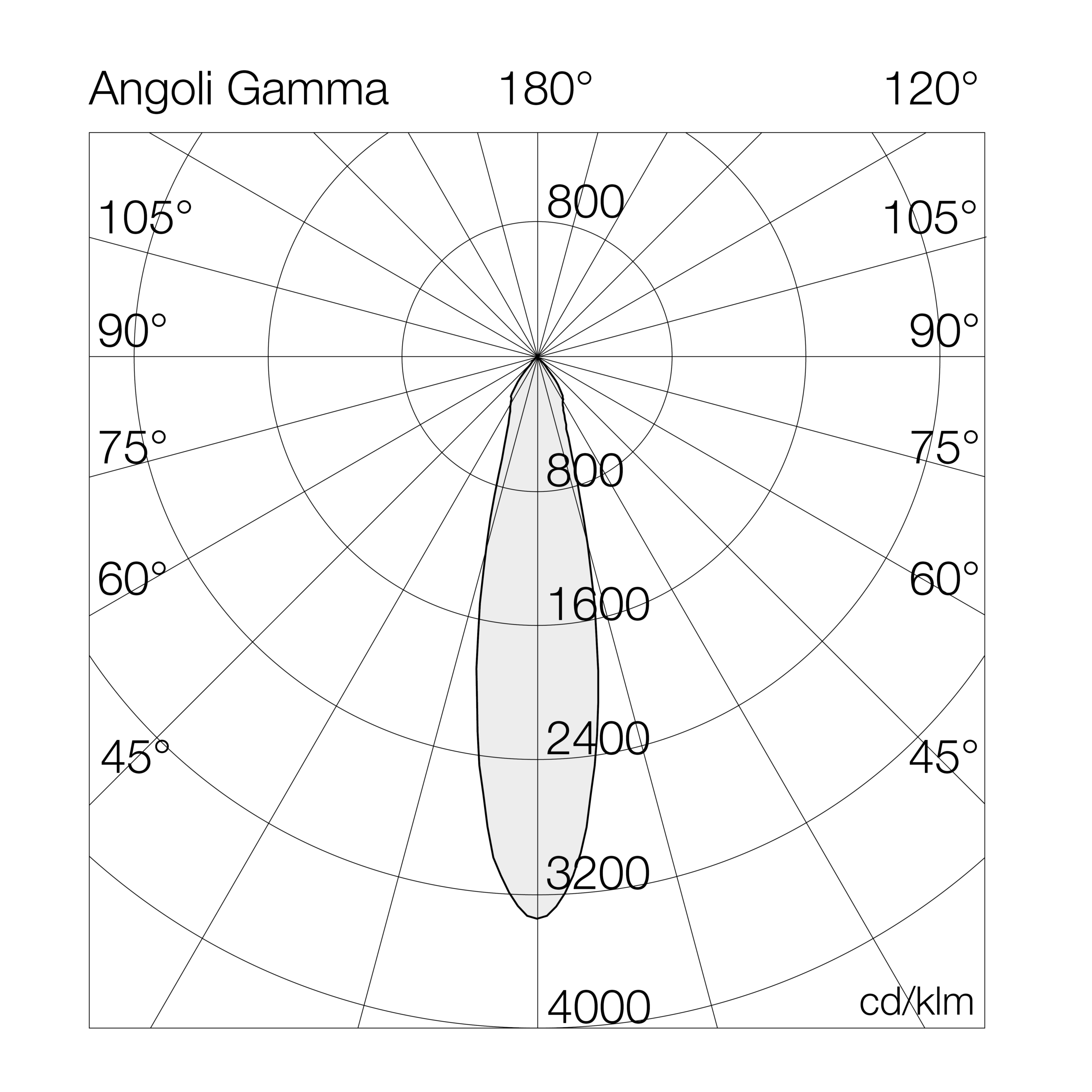

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2301ST27= 2700°K (CRI >80)06NL= on/off
30= 3000°K (CRI >80)14
40= 4000°K (CRI >80)
97= 2700°K (CRI >90)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

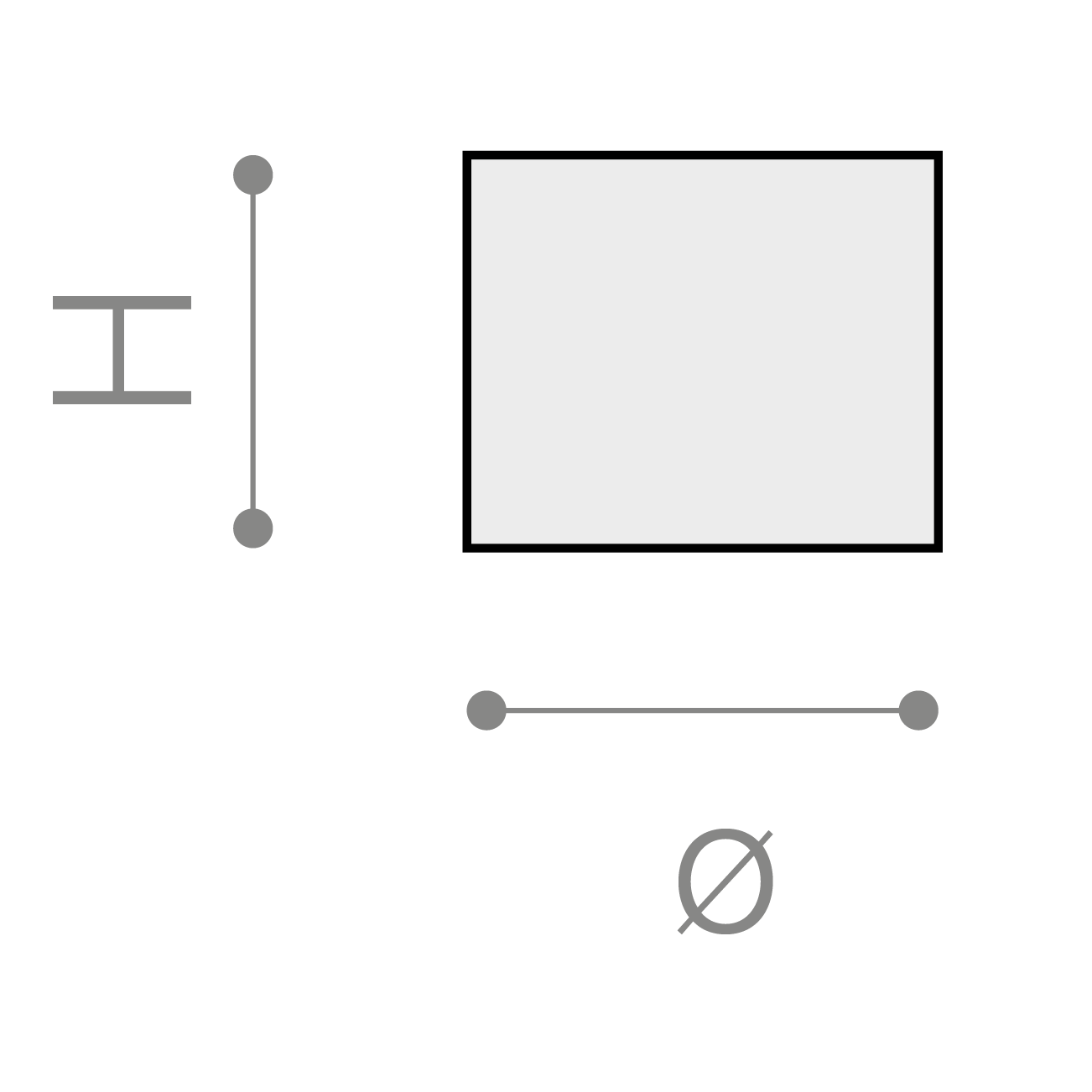

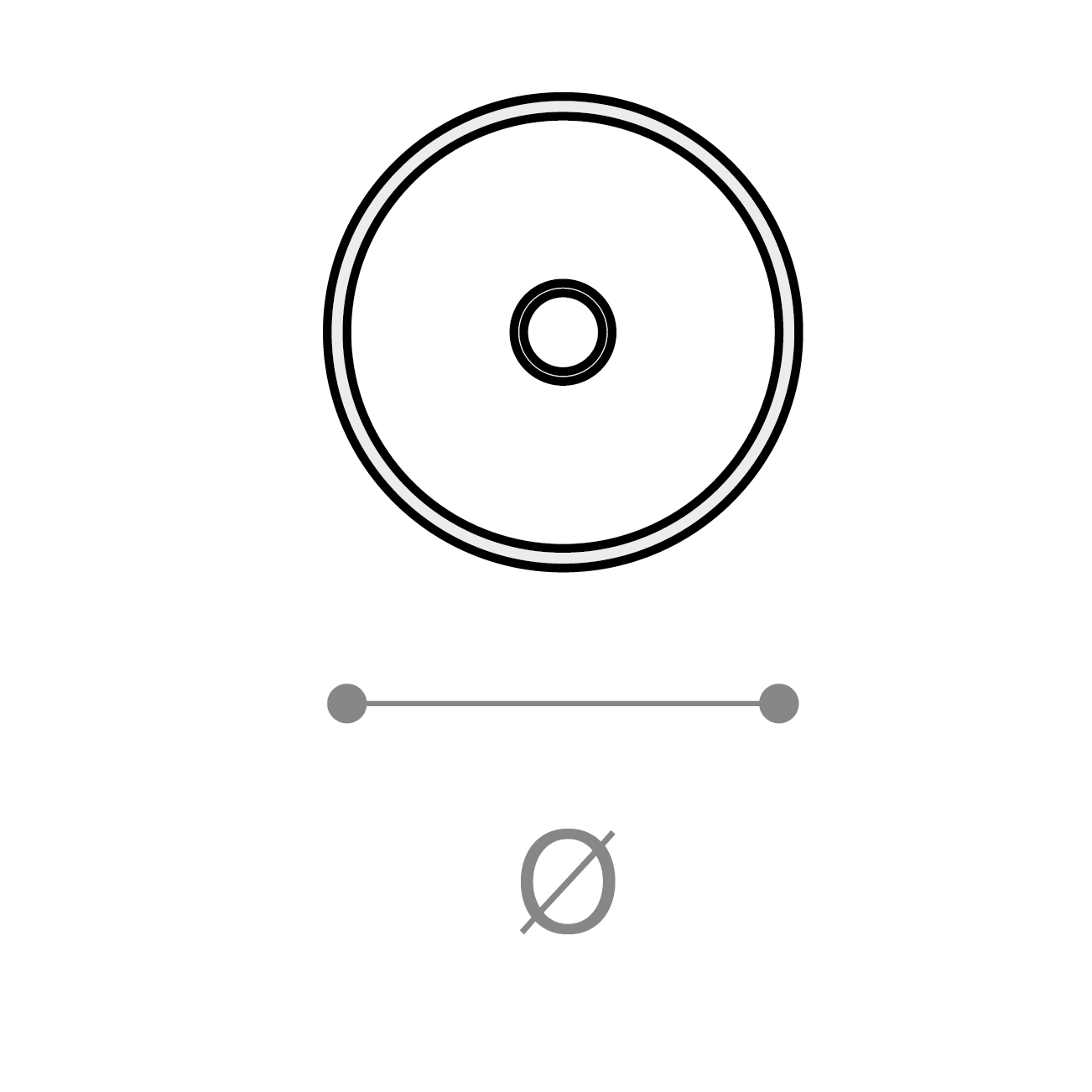

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
2301ST4006NL6-4000°K - CRI>80on/off797133120-110-0.70
2301ST3006NL6-3000°K - CRI>80on/off773129120-110-0.70
2301ST2706NL6-2700°K - CRI>80on/off736123120-110-0.70
2301ST9306NL6-3000°K - CRI>90on/off652109120-110-0.70
2301ST9706NL6-2700°K - CRI>90on/off618103120-110-0.70
2301ST9406NL6-4000°K - CRI>90on/off683114120-110-0.70
2301ST4014NL14-4000°K - CRI>80on/off1844132120-110-0.70
2301ST3014NL14-3000°K - CRI>80on/off1788128120-110-0.70
2301ST2714NL14-2700°K - CRI>80on/off1703122120-110-0.70
2301ST9314NL14-3000°K - CRI>90on/off1507108120-110-0.70
2301ST9714NL14-2700°K - CRI>90on/off1430102120-110-0.70
2301ST9414NL14-4000°K - CRI>90on/off1580113120-110-0.70
