DELIA – Mod. L1

(Single-emission optics)

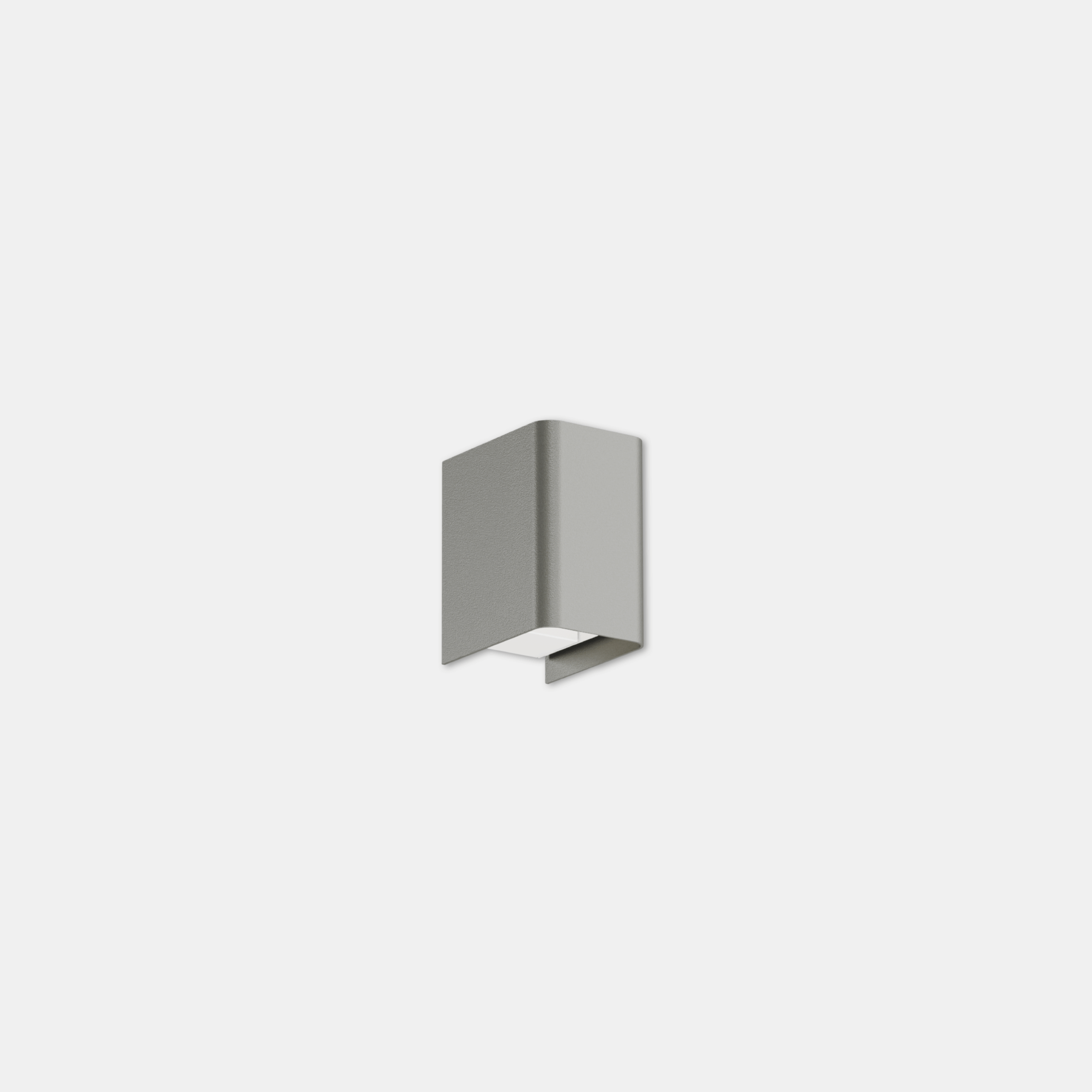

Indoor LED fixture suitable for wall installation. Body constructed of sheet steel, epoxy-polyester powder coated with fine embossed finish and phosphating and degreasing pretreatment, color gray. Reflector made of white painted sheet steel with high flux efficiency, anti-glare and anti-reflection. Single-emission optics.
Categories: Led, DELIA - 2310, Architectural Indoor, DELIA
Models: 15
Color: Matt grey
Catalogue abstract
Installation instructions

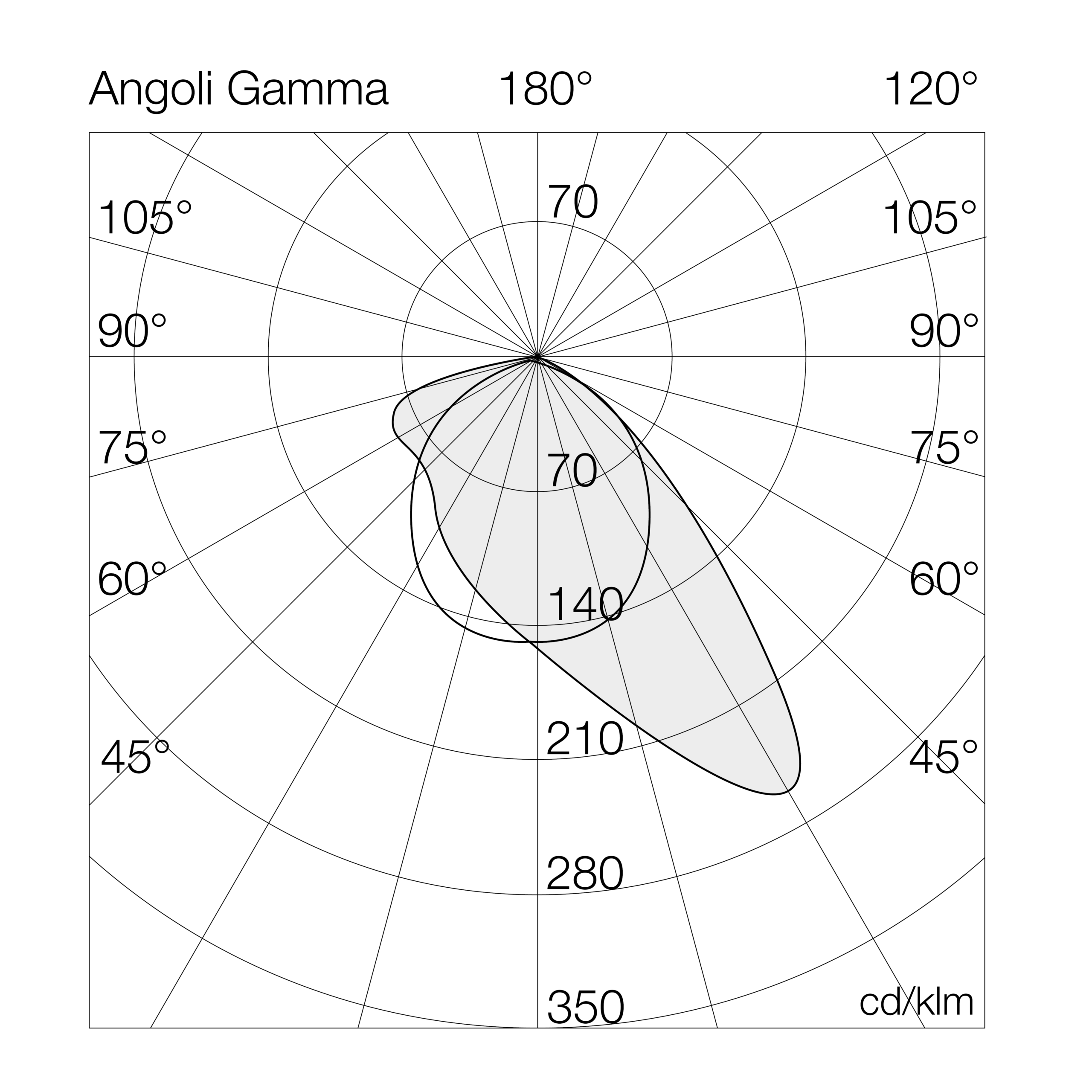

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2310L127= 2700°K (CRI >80)13GL= on/off
30= 3000°K (CRI >80)
40= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

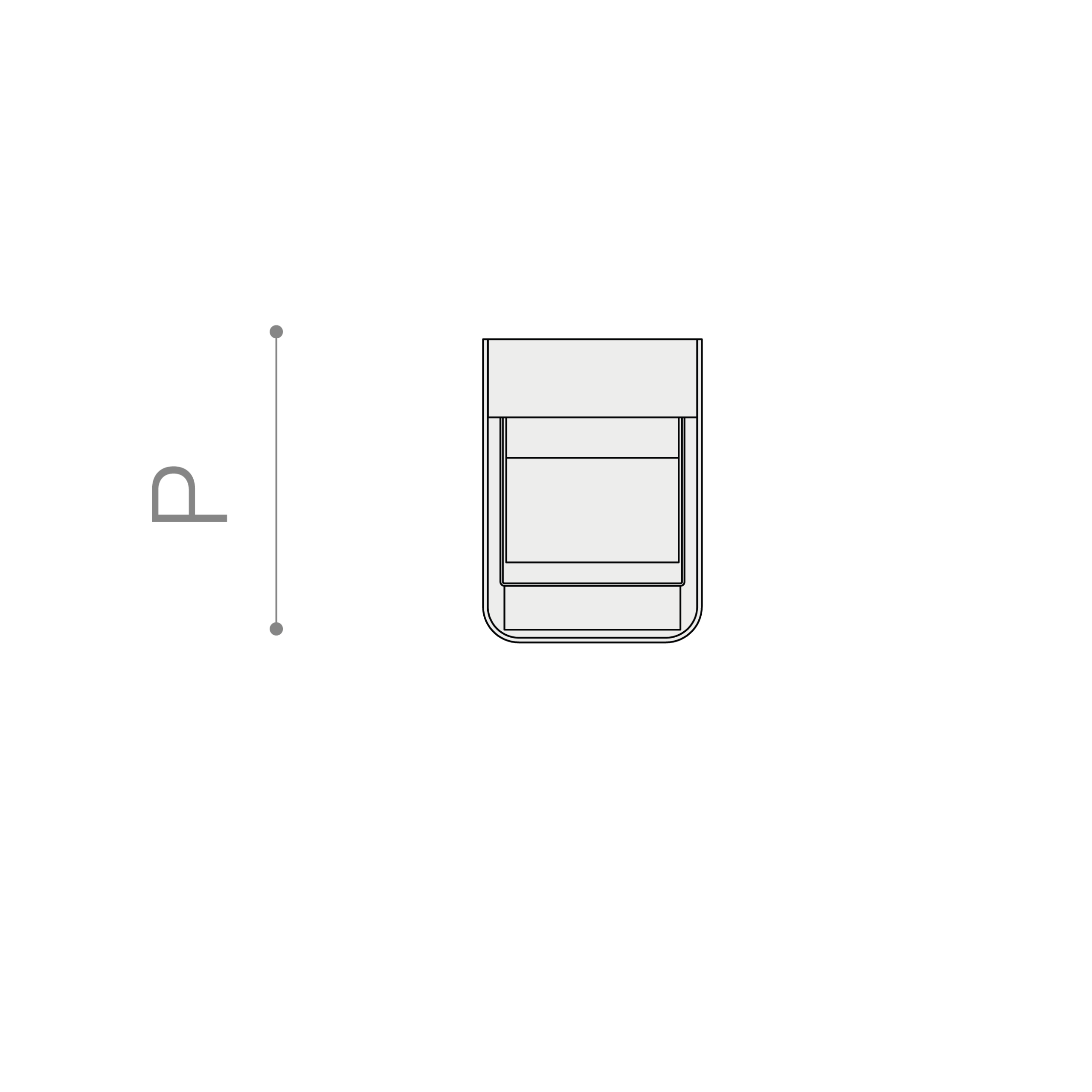

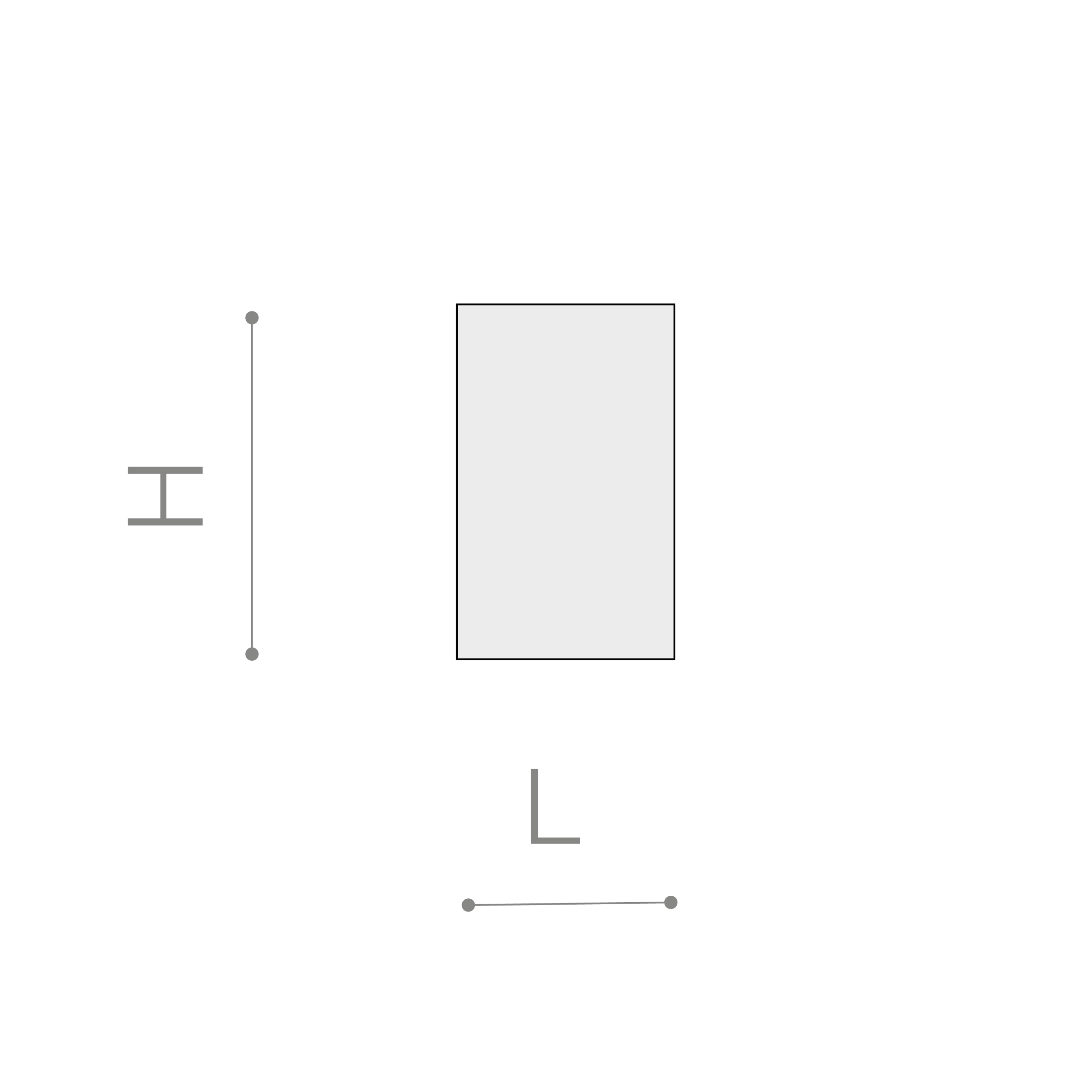

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2310L14013GL13-4000°K - CRI>80on/off14411117096115-0.85
2310L14014GL14-4000°K - CRI>80on/off171212213696115-1.2
2310L14027GL27-4000°K - CRI>80on/off26729913696115-1.2
2310L13013GL13-3000°K - CRI>80on/off13671057096115-0.85
2310L13014GL14-3000°K - CRI>80on/off162411613696115-1.2
2310L13027GL27-3000°K - CRI>80on/off25349413696115-1.2
2310L19413GL13-4000°K - CRI>90on/off1224947096115-0.85
2310L19414GL14-4000°K - CRI>90on/off145410413696115-1.2
2310L19427GL27-4000°K - CRI>90on/off22698413696115-1.2
2310L19313GL13-3000°K - CRI>90on/off1202927096115-0.85
2310L19314GL14-3000°K - CRI>90on/off142810213696115-1.2
2310L19327GL27-3000°K - CRI>90on/off22298313696115-1.2
2310L12713GL13-2700°K - CRI>80on/off13241027096115-0.85
2310L12714GL14-2700°K - CRI>80on/off157311213696115-1.2
2310L12727GL27-2700°K - CRI>80on/off24569113696115-1.2
