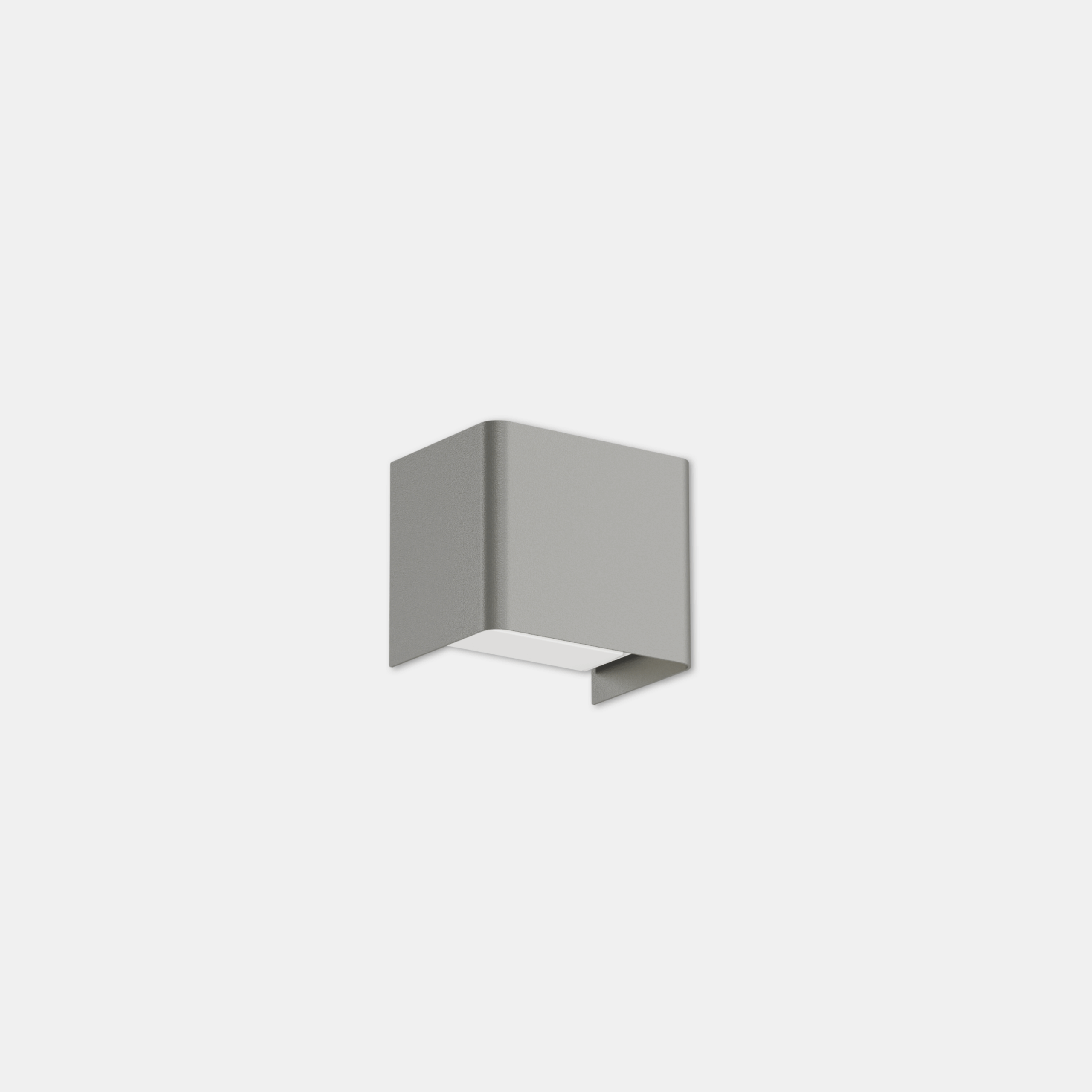

DELIA – Mod. L2

(Double emission optics)

Indoor LED fixture suitable for wall installation. Body constructed of sheet steel, epoxy-polyester powder coated with fine embossed finish and phosphating and degreasing pretreatment, color gray. Reflector made of white painted sheet steel with high flux efficiency, anti-glare and anti-reflection. Double emission optics.
Categories: Led, DELIA - 2310, Architectural Indoor, DELIA
Models: 25
Color: Matt grey
Catalogue abstract
Installation instructions

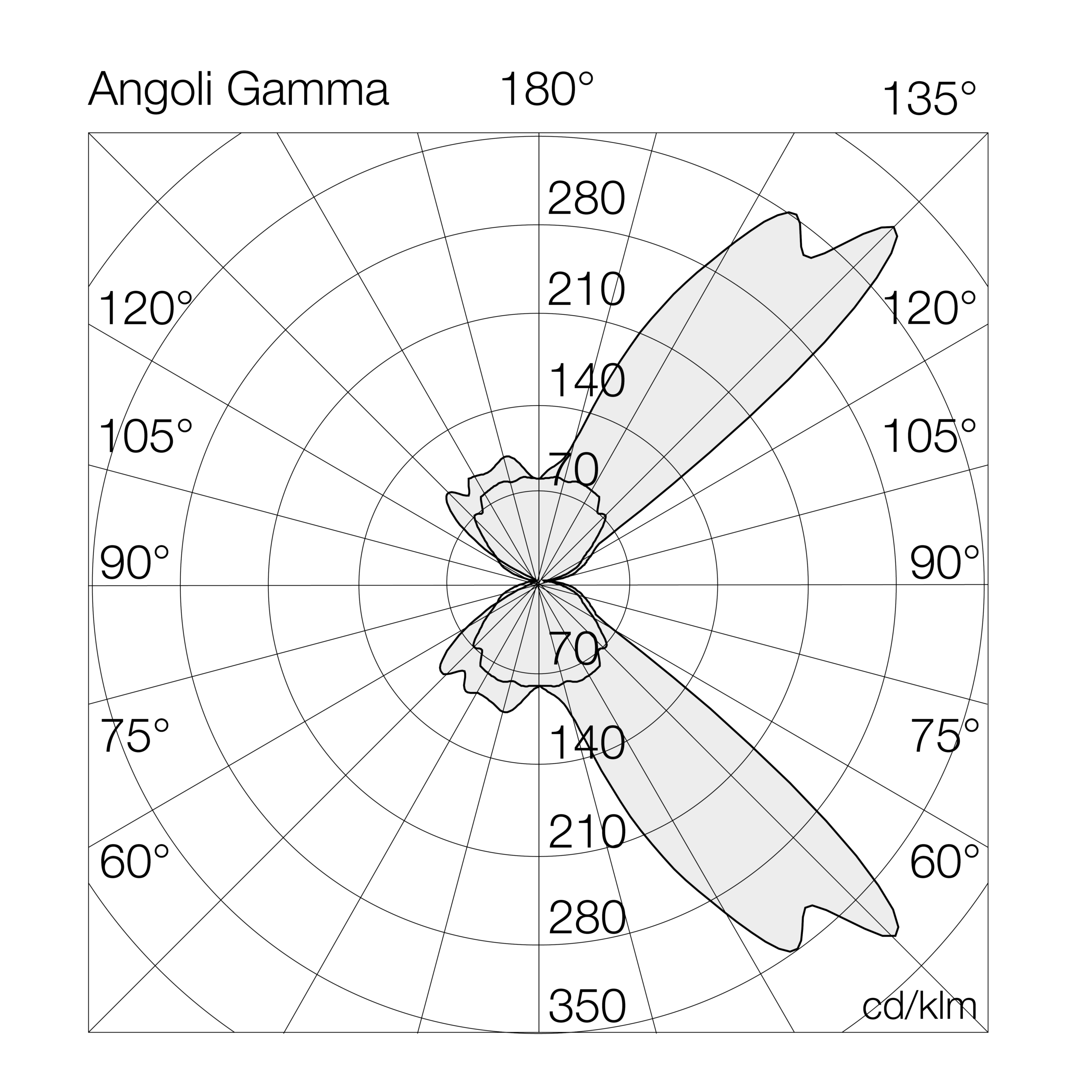

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2310L227= 2700°K (CRI >80)14GL= on/off
30= 3000°K (CRI >80)27GD= dali 2 / dali 2 push
40= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

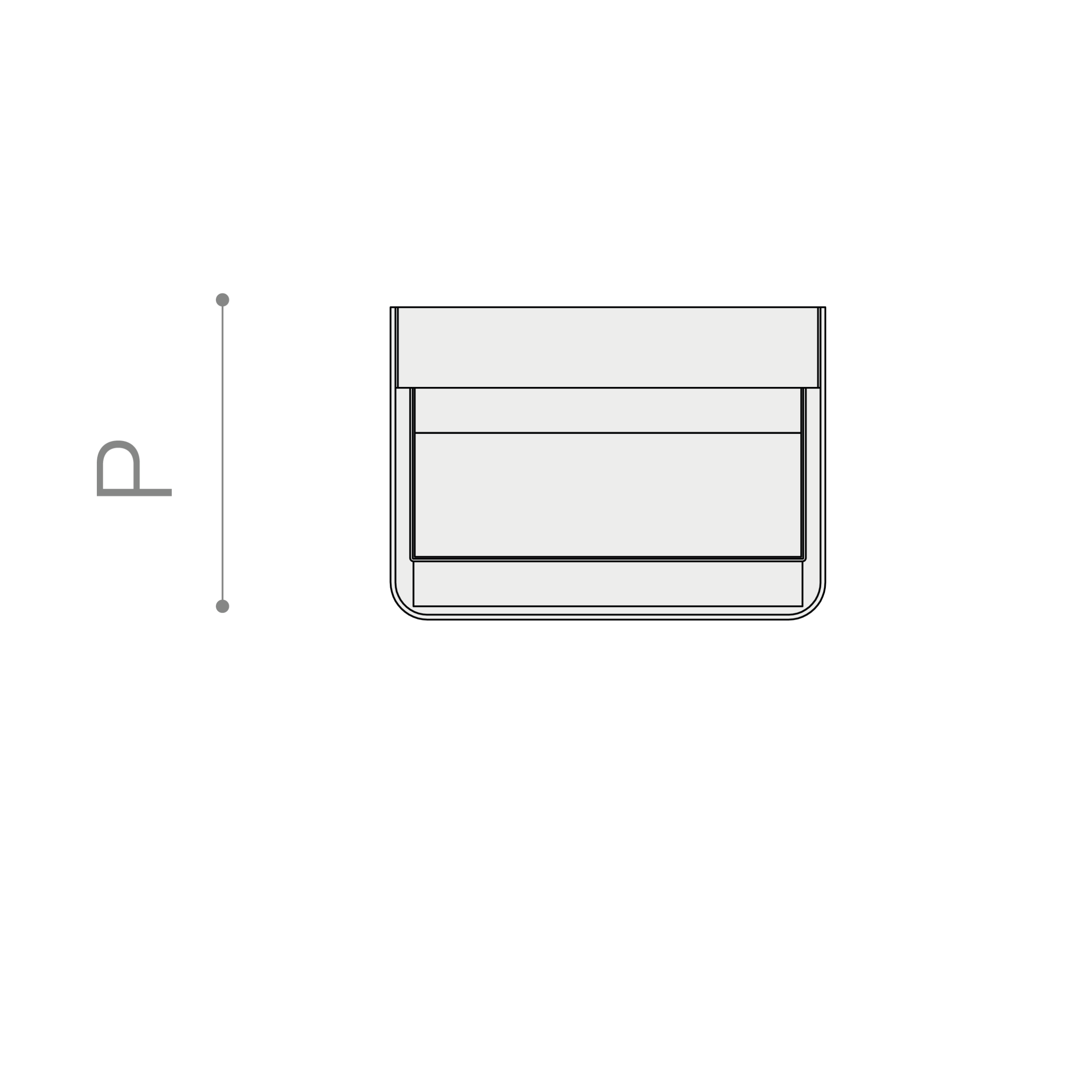

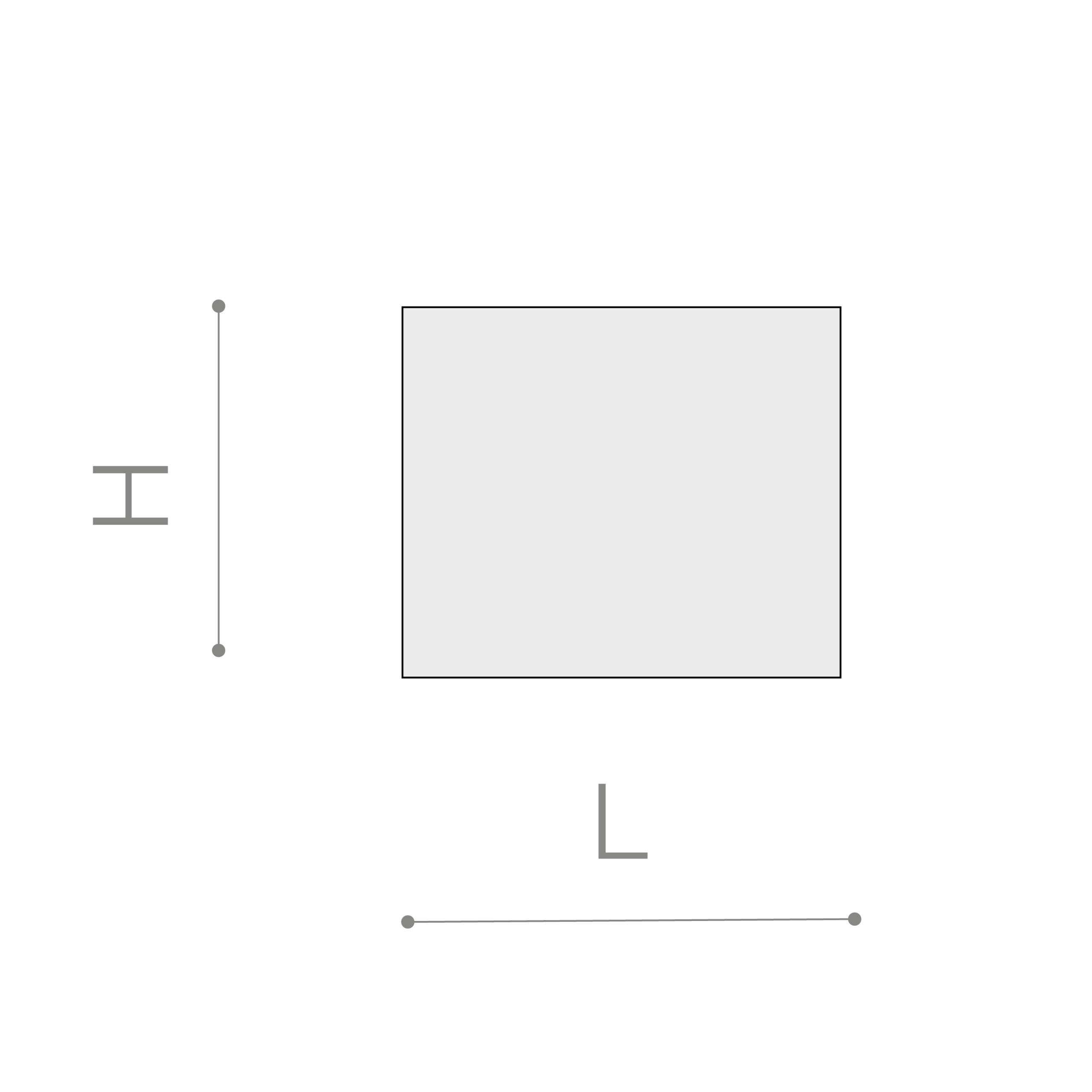

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2310L24013GL13-4000°K - CRI>80on/off1071827096115-0.85
2310L24014GL14-4000°K - CRI>80on/off12719113696115-1.2
2310L24027GL27-4000°K - CRI>80on/off19857413696115-1.2
2310L24014GD14-4000°K - CRI>80dali 2 / dali 2 push12719113696115-1.2
2310L24027GD27-4000°K - CRI>80dali 2 / dali 2 push19857413696115-1.2
2310L23013GL13-3000°K - CRI>80on/off1016787096115-0.85
2310L23014GL14-3000°K - CRI>80on/off12068613696115-1.2
2310L23027GL27-3000°K - CRI>80on/off18837013696115-1.2
2310L23014GD14-3000°K - CRI>80dali 2 / dali 2 push12068613696115-1.2
2310L23027GD27-3000°K - CRI>80dali 2 / dali 2 push18837013696115-1.2
2310L29413GL13-4000°K - CRI>90on/off909707096115-0.85
2310L29414GL14-4000°K - CRI>90on/off10797713696115-1.2
2310L29427GL27-4000°K - CRI>90on/off16866213696115-1.2
2310L29414GD14-4000°K - CRI>90dali 2 / dali 2 push10797713696115-1.2
2310L29427GD27-4000°K - CRI>90dali 2 / dali 2 push16866213696115-1.2
2310L29313GL13-3000°K - CRI>90on/off894697096115-0.85
2310L29314GL14-3000°K - CRI>90on/off10607613696115-1.2
2310L29327GL27-3000°K - CRI>90on/off16566113696115-1.2
2310L29314GD14-3000°K - CRI>90dali 2 / dali 2 push10607613696115-1.2
2310L29327GD27-3000°K - CRI>90dali 2 / dali 2 push16566113696115-1.2
