DELIA/L3

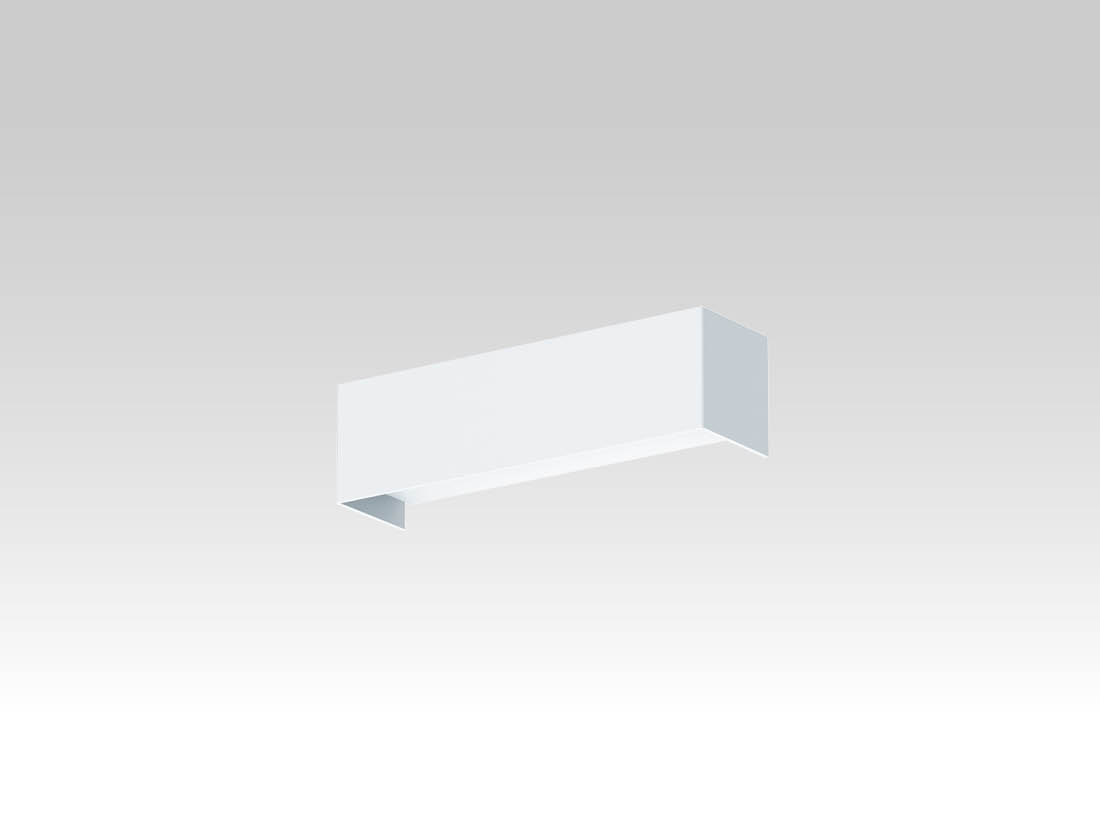

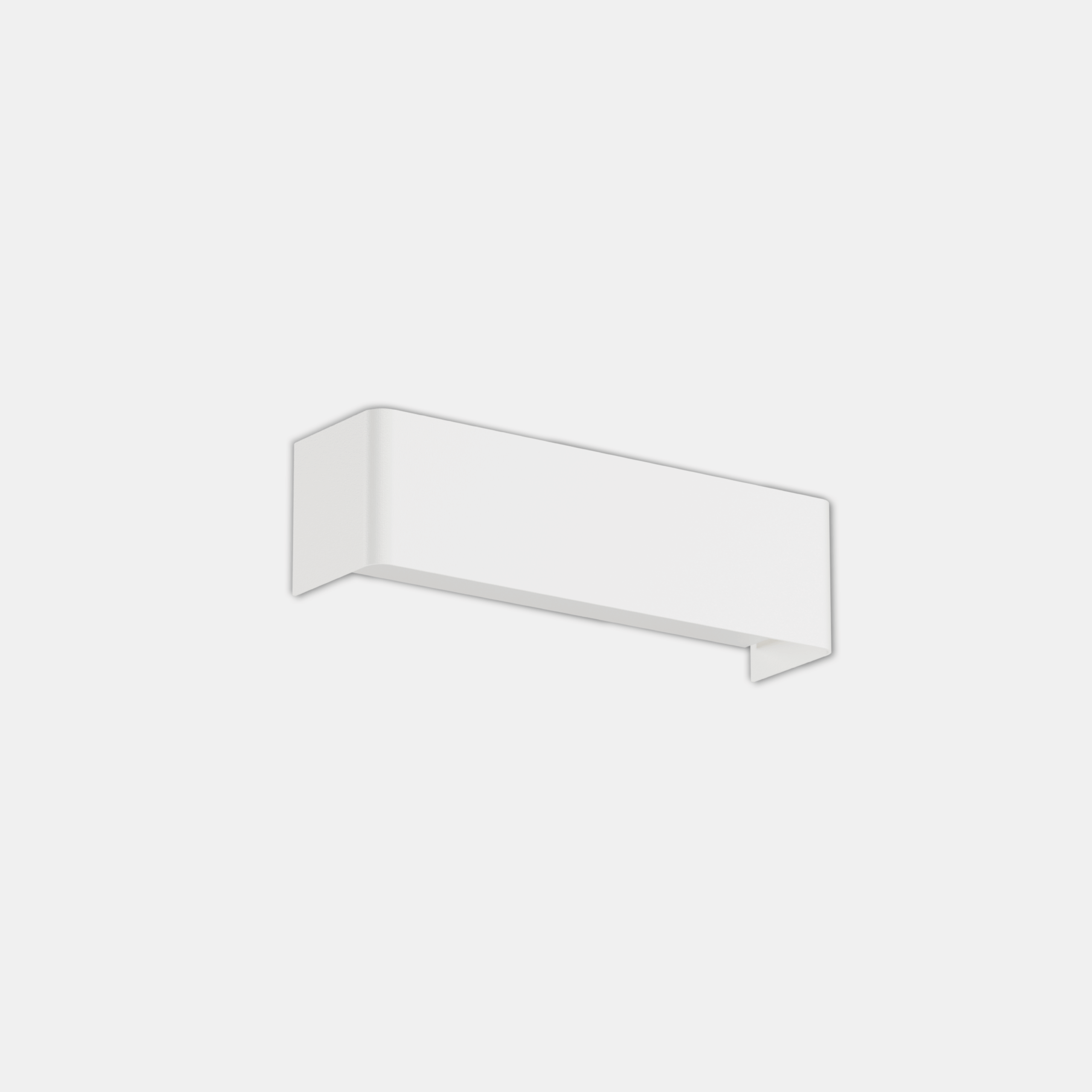

Led indoor light for wall installation. Steel sheet body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pretreatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in four color variants.
Categories: Led, DELIA - 2310, Architectural Indoor, art. 2310 Delia
Models: 10
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2310L327= 2700°K (CRI >80)14BL= on/off
30= 3000°K (CRI >80)BD= dali 2 / dali 2 push
40= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
2310L34014BL14-4000°K - CRI>80on/off16331173008085-1.3
2310L34014BD14-4000°K - CRI>80dali 2 / dali 2 push16331173008085-1.3
2310L33014BL14-3000°K - CRI>80on/off15491113008085-1.3
2310L33014BD14-3000°K - CRI>80dali 2 / dali 2 push15491113008085-1.3
2310L39414BL14-4000°K - CRI>90on/off1387993008085-1.3
2310L39414BD14-4000°K - CRI>90dali 2 / dali 2 push1387993008085-1.3
2310L39314BL14-3000°K - CRI>90on/off1362973008085-1.3
2310L39314BD14-3000°K - CRI>90dali 2 / dali 2 push1362973008085-1.3
2310L32714BL14-2700°K - CRI>80on/off15011073008085-1.3
2310L32714BD14-2700°K - CRI>80dali 2 / dali 2 push15011073008085-1.3
