art.-2310-delia-l3-corten

DELIA – Mod. L3

(Double emission optics)

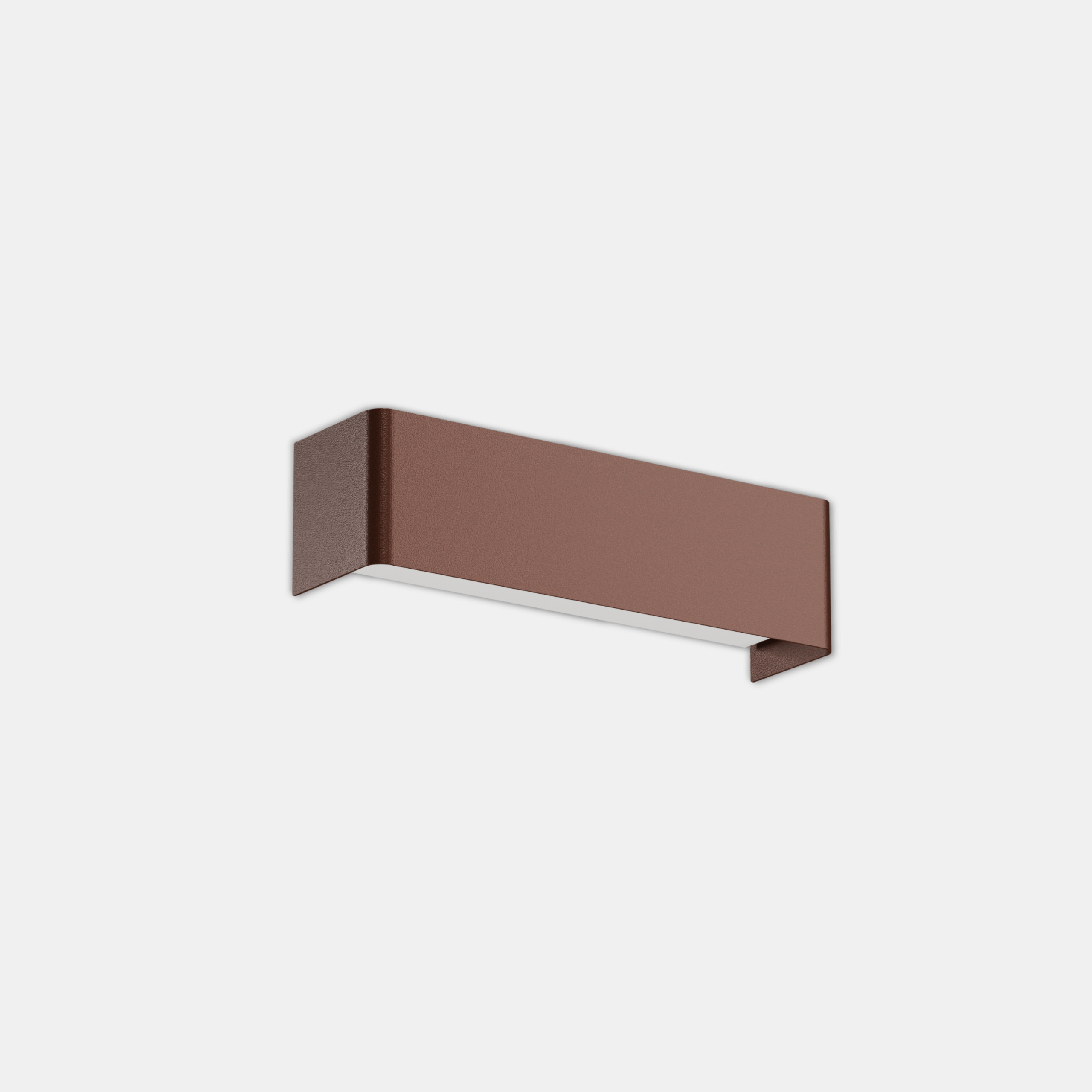

Indoor LED fixture suitable for wall installation. Body constructed of sheet steel, epoxy-polyester powder coated with fine embossed finish and phosphating and degreasing pretreatment, color corten. Reflector made of white painted sheet steel with high flux efficiency, anti-glare and anti-reflection. Double emission optics.
Categories: Led, DELIA - 2310, Architectural Indoor, DELIA
Models: 10
Color: Corten
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2310L327= 2700°K (CRI >80)14CL= on/off
30= 3000°K (CRI >80)CD= dali 2 / dali 2 push
40= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2310L34014CL14-4000°K - CRI>80on/off16331173008085-1.3
2310L34014CD14-4000°K - CRI>80dali 2 / dali 2 push16331173008085-1.3
2310L33014CL14-3000°K - CRI>80on/off15491113008085-1.3
2310L33014CD14-3000°K - CRI>80dali 2 / dali 2 push15491113008085-1.3
2310L39414CL14-4000°K - CRI>90on/off1387993008085-1.3
2310L39414CD14-4000°K - CRI>90dali 2 / dali 2 push1387993008085-1.3
2310L39314CL14-3000°K - CRI>90on/off1362973008085-1.3
2310L39314CD14-3000°K - CRI>90dali 2 / dali 2 push1362973008085-1.3
2310L32714CL14-2700°K - CRI>80on/off15011073008085-1.3
2310L32714CD14-2700°K - CRI>80dali 2 / dali 2 push15011073008085-1.3
