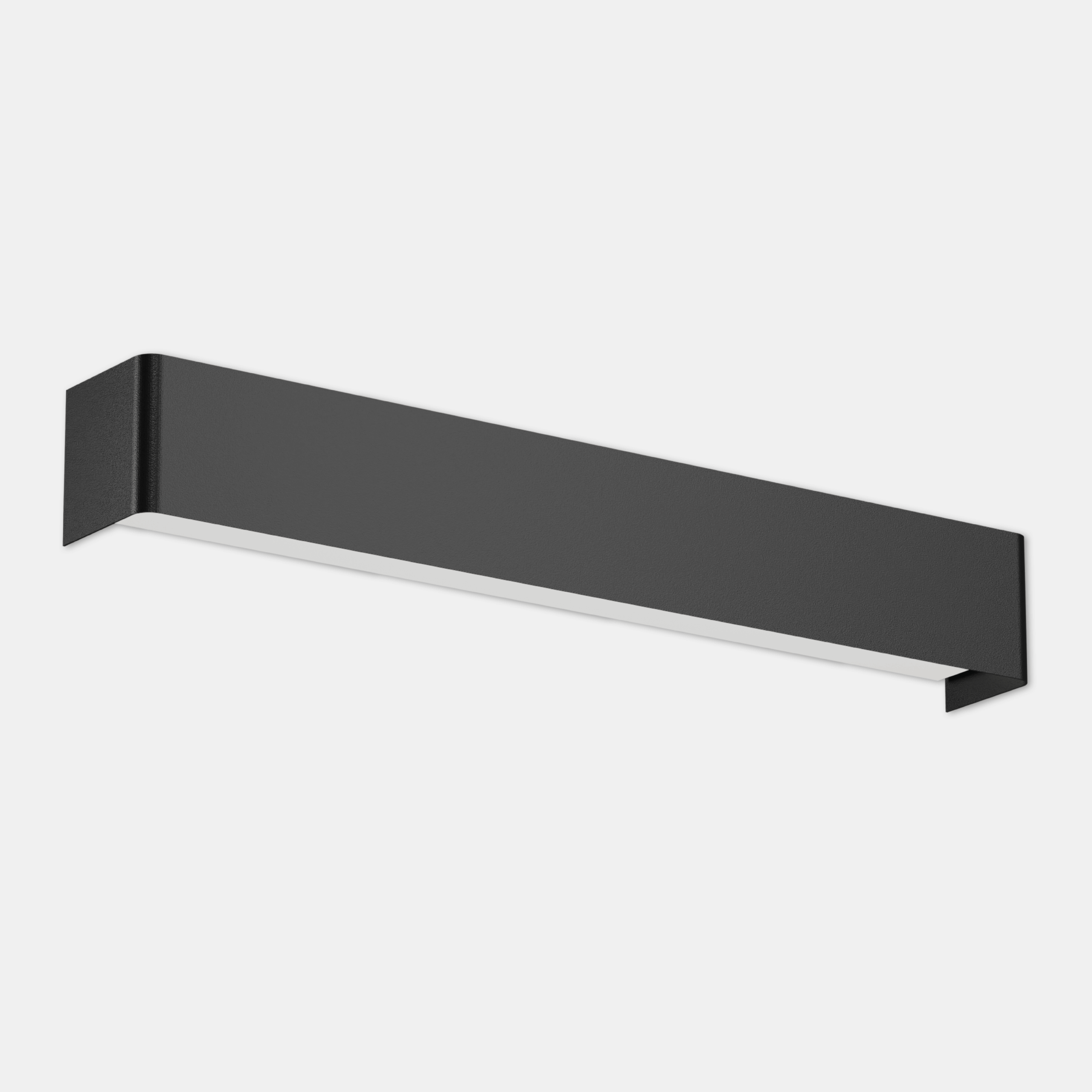

DELIA – Mod. L6

(Double emission optics)

Indoor LED fixture suitable for wall installation. Body constructed of sheet steel, epoxy-polyester powder coated with fine embossed finish and phosphating and degreasing pretreatment, color black. Reflector made of white painted sheet steel with high flux efficiency, anti-glare and anti-reflection. Double emission optics.
Categories: Led, DELIA - 2310, Architectural Indoor, DELIA
Models: 10
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2310L627= 2700°K (CRI >80)28NL= on/off
30= 3000°K (CRI >80)ND= dali 2 / dali 2 push
40= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2310L64028NL28-4000°K - CRI>80on/off32671175808085-2.5
2310L64028ND28-4000°K - CRI>80dali 2 / dali 2 push32671175808085-2.5
2310L63028NL28-3000°K - CRI>80on/off30991115808085-2.5
2310L63028ND28-3000°K - CRI>80dali 2 / dali 2 push30991115808085-2.5
2310L69428NL28-4000°K - CRI>90on/off2774995808085-2.5
2310L69428ND28-4000°K - CRI>90dali 2 / dali 2 push2774995808085-2.5
2310L69328NL28-3000°K - CRI>90on/off2726975808085-2.5
2310L69328ND28-3000°K - CRI>90dali 2 / dali 2 push2726975808085-2.5
2310L62728NL28-2700°K - CRI>80on/off30021075808085-2.5
2310L62728ND28-2700°K - CRI>80dali 2 / dali 2 push30021075808085-2.5
