GIOTTO – Mod. E1

(Elliptical optics 40°x13°)

Outdoor led wallwasher. Silver extruded oxidate aluminium body, die cast aluminium caps, coated with polyester anticorrosion powder, silver color, 5 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, GIOTTO - 3001, Architectural Outdoor, GIOTTO
Models: 300
Color: Silver
Catalogue abstract
Installation instructions

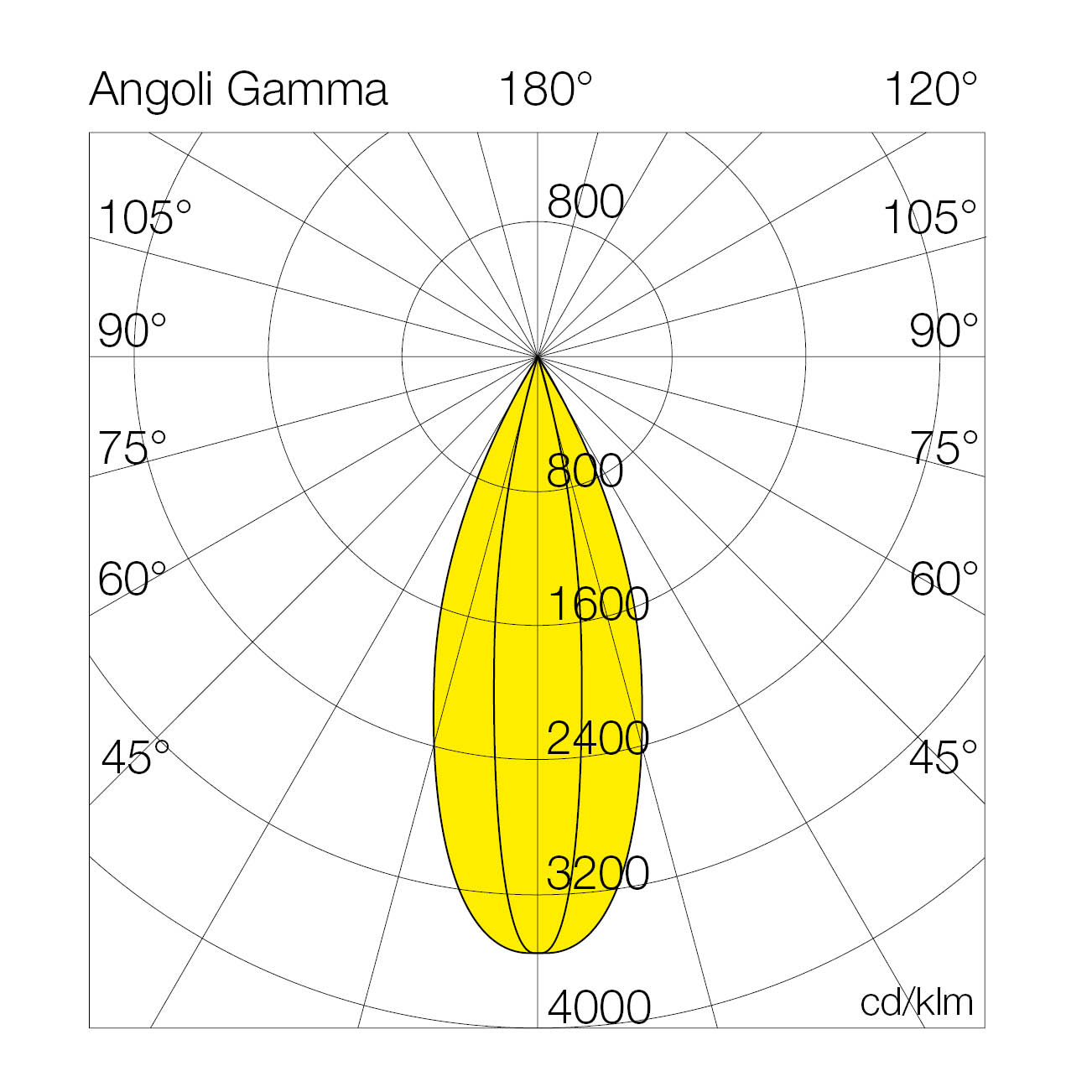

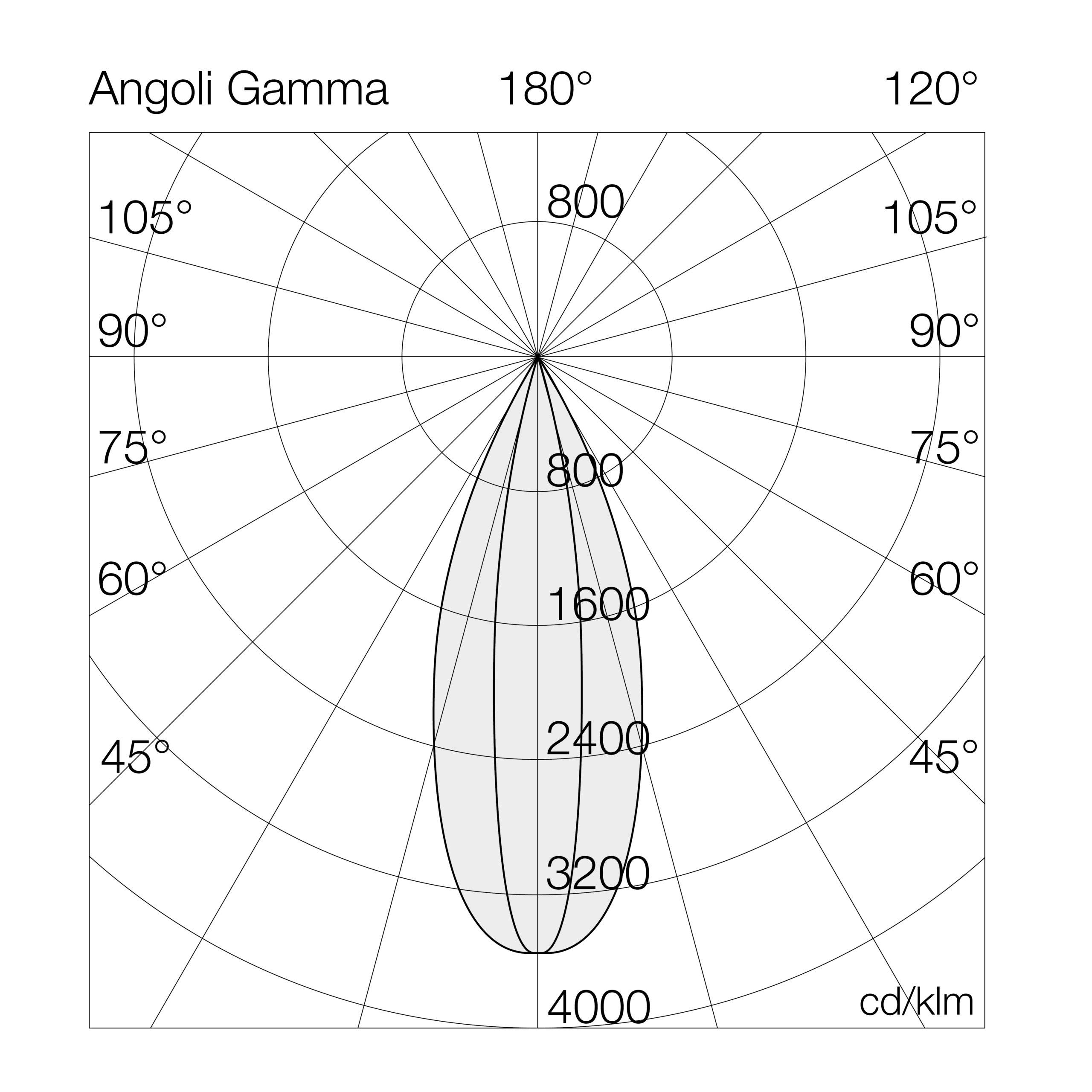

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001E127= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
40= 4000°K (CRI >80)1649FC= fila continua
93= 3000°K (CRI >90)1752FD= fila continua + dali 2
94= 4000°K (CRI >90)2461
2670
3288
35

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3001E14008GL8-4000°K - CRI>80on/off100612611070400-2.2
3001E14012GL12-4000°K - CRI>80on/off138311511070400-2.2
3001E14017GL17-4000°K - CRI>80on/off184510911070400-2.2
3001E14016GL16-4000°K - CRI>80on/off201212611070680-3.2
3001E14024GL24-4000°K - CRI>80on/off276711511070680-3.2
3001E14035GL35-4000°K - CRI>80on/off369010511070680-3.2
3001E14026GL26-4000°K - CRI>80on/off321212411070960-4.2
3001E14036GL36-4000°K - CRI>80on/off415111511070960-4.2
3001E14052GL52-4000°K - CRI>80on/off553510611070960-4.2
3001E14032GL32-4000°K - CRI>80on/off4024126110701240-5.2
3001E14049GL49-4000°K - CRI>80on/off5535113110701240-5.2
3001E14070GL70-4000°K - CRI>80on/off7380105110701240-5.2
3001E14042GL42-4000°K - CRI>80on/off5030120110701520-5.9
3001E14061GL61-4000°K - CRI>80on/off6918113110701520-5.9
3001E14088GL88-4000°K - CRI>80on/off9225105110701520-5.9
3001E14008GD8-4000°K - CRI>80dali100612611070400-2.2
3001E14012GD12-4000°K - CRI>80dali138311511070400-2.2
3001E14017GD17-4000°K - CRI>80dali184510911070400-2.2
3001E14016GD16-4000°K - CRI>80dali201212611070680-3.2
3001E14024GD24-4000°K - CRI>80dali276711511070680-3.2
