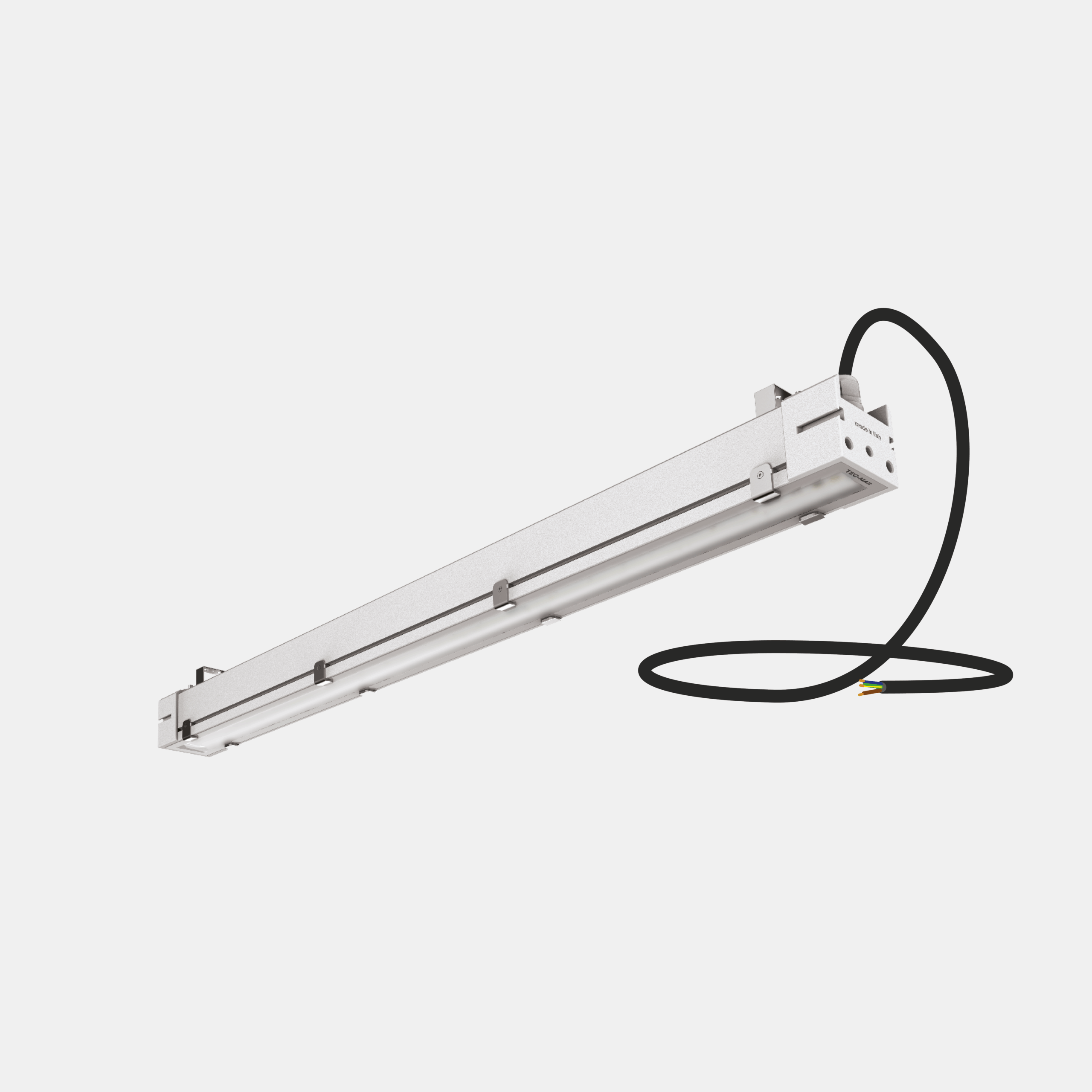

GIOTTO HP/VA

LED linear watertight assembly, suitable for ceiling, wall, blind, pole and suspension installation. Drawn aluminum body painted with epoxy-polyester powders in silver color with fine embossed finish, with phosphating and degreasing pretreatment, stainless steel closing clips, screws and fixing brackets. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. Available in four types of optics with white prepainted steel sheet reflector with high-performance PMMA lenses: 120° diffusing optics, 120° diffusing optics (acid-etched glass anti-shatter diffuser), 90° diffusing optics (UGR<25) and 30°/90° elliptical optics (UGR<22).
Categories: Led, GIOTTO HP - 3001, Industrial, art. 3001 Giotto HP
Models: 105
Color: Silver
Catalogue abstract
Installation instructions

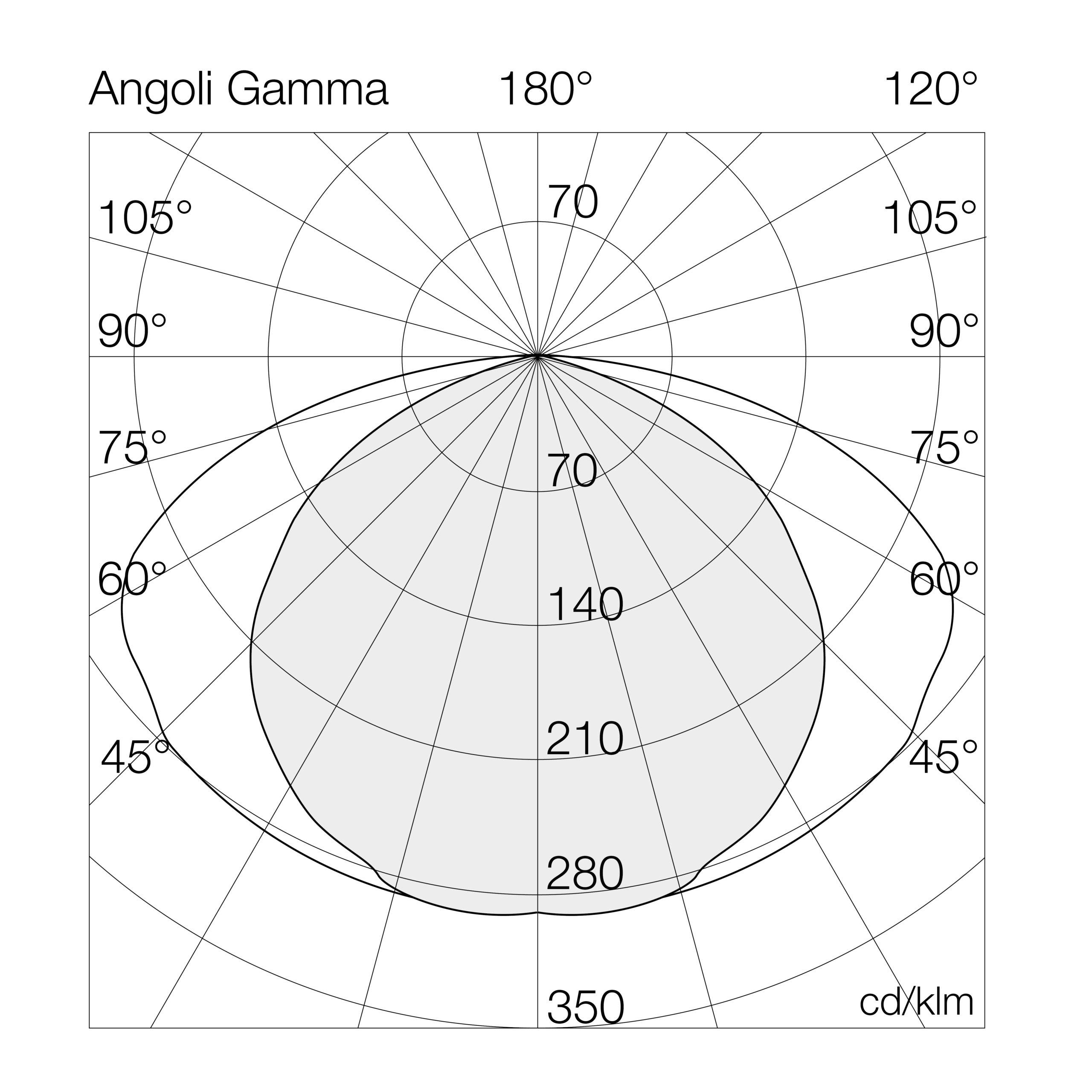

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001VA40= 4000°K (CRI >80)092EL= on/off
50= 5000°K (CRI >80)105GS= on/off (CPSS)
60= 6500°K (CRI >80)120GD= dali 2 / dali 2 push
D1= dali 2 + em. 1h
G1= em. 1h
G3= em. 3h
GC= through wiring

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3001VA4092EL92-4000°K - CRI>80on/off11213122701520110-5.4
3001VA4105EL105-4000°K - CRI>80on/off12524119701520110-5.4
3001VA4120EL120-4000°K - CRI>80on/off13816115701520110-5.4
3001VA4092GD92-4000°K - CRI>80dali 2 / dali 2 push11213122701520110-5.4
3001VA4105GD105-4000°K - CRI>80dali 2 / dali 2 push12524119701520110-5.4
3001VA4120GD120-4000°K - CRI>80dali 2 / dali 2 push13816115701520110-5.4
3001VA4092GS92-4000°K - CRI>80on/off (CPSS)11213122701520110-5.4
3001VA4105GS105-4000°K - CRI>80on/off (CPSS)12524119701520110-5.4
3001VA4120GS120-4000°K - CRI>80on/off (CPSS)13816115701520110-5.4
3001VA4092D192-4000°K - CRI>80dali 2 + em. 1h11213122701520110-5.4
3001VA4105D1105-4000°K - CRI>80dali 2 + em. 1h12524119701520110-5.4
3001VA4120D1120-4000°K - CRI>80dali 2 + em. 1h13816115701520110-5.4
3001VA4092G192-4000°K - CRI>80em. 1h11213122701520110-5.4
3001VA4105G1105-4000°K - CRI>80em. 1h12524119701520110-5.4
3001VA4120G1120-4000°K - CRI>80em. 1h13816115701520110-5.4
3001VA4092G392-4000°K - CRI>80em. 3h11213122701520110-5.4
3001VA4105G3105-4000°K - CRI>80em. 3h12524119701520110-5.4
3001VA4120G3120-4000°K - CRI>80em. 3h13816115701520110-5.4
3001VA4092GC92-4000°K - CRI>80through wiring11213122701520110-5.4
3001VA4105GC105-4000°K - CRI>80through wiring12524119701520110-5.4
