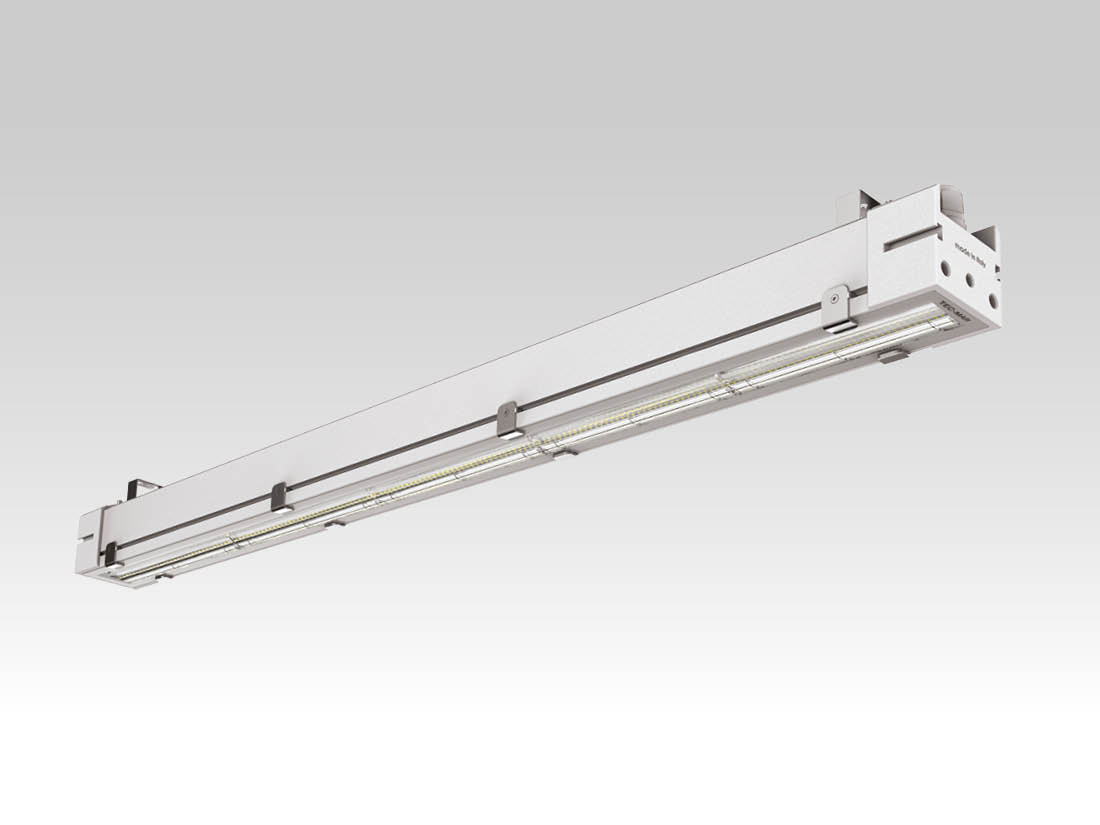

GIOTTO S – Mod. S5

(90° diffusing optics - UGR<25)

Led industrial and retail high-bay. Extruded aluminum body, painted with epoxypolyester powders in silver color with fine embossed finish, with pre-treatment of phosphating and degreasing, stainless steel closing clips, 4 mm thick tempered transparent glass, silicon gasket. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, GIOTTO S - 3001, Industrial, GIOTTO S
Models: 645
Color: Silver
Catalogue abstract
Installation instructions

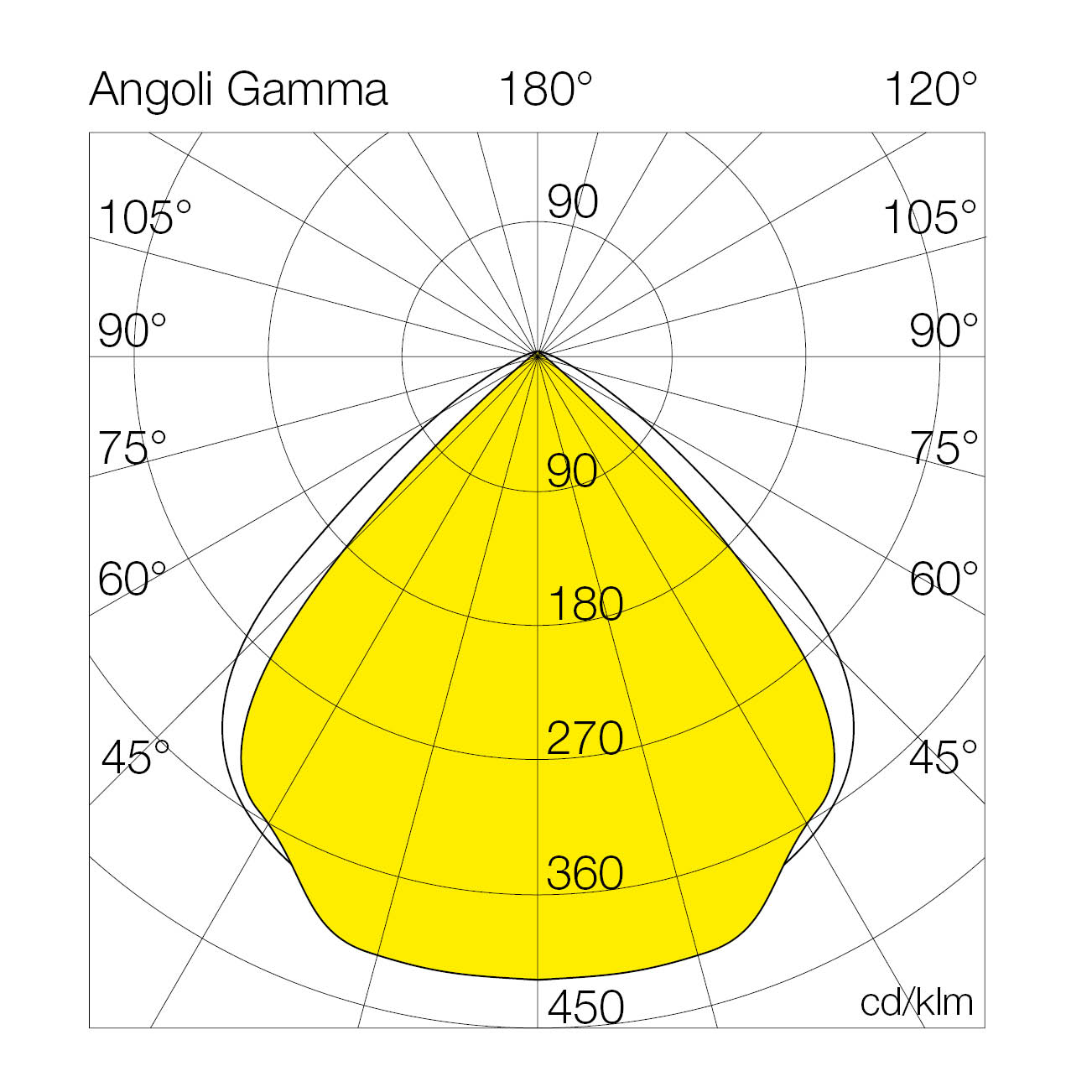

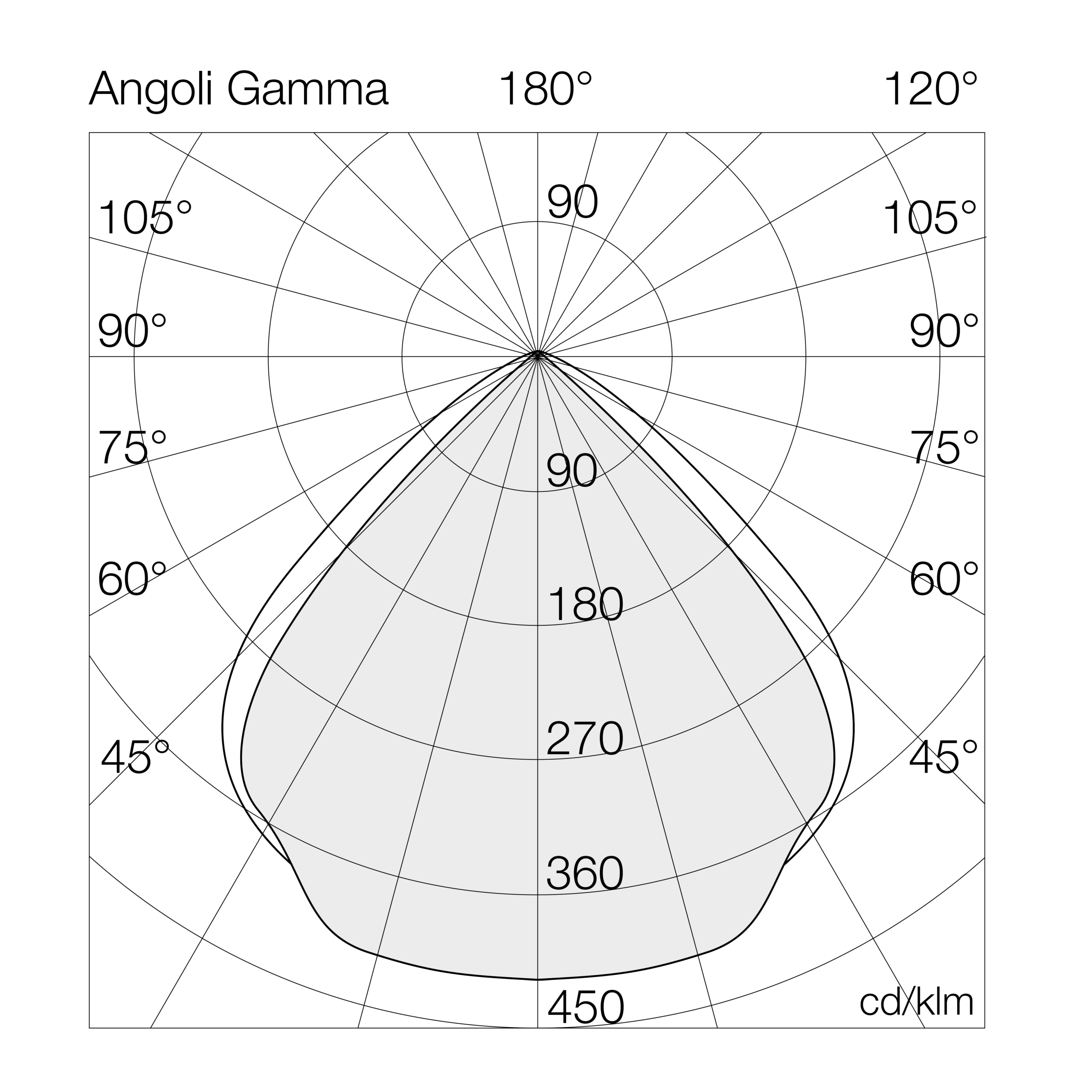

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001S530= 3000°K (CRI >80)0941GL= on/off
40= 4000°K (CRI >80)1242GD= dali 2 / dali 2 push
50= 5000°K (CRI >80)1845D1 = dali 2 + em. 1h
60= 6500°K (CRI >80)1950G1= em. 1h
90= 4000°K (CRI >90)2051G3= em. 3h
2154GC= continuous row
2356
2460
2966
3370
3672

Models

W tot.
°K - CRI
Options

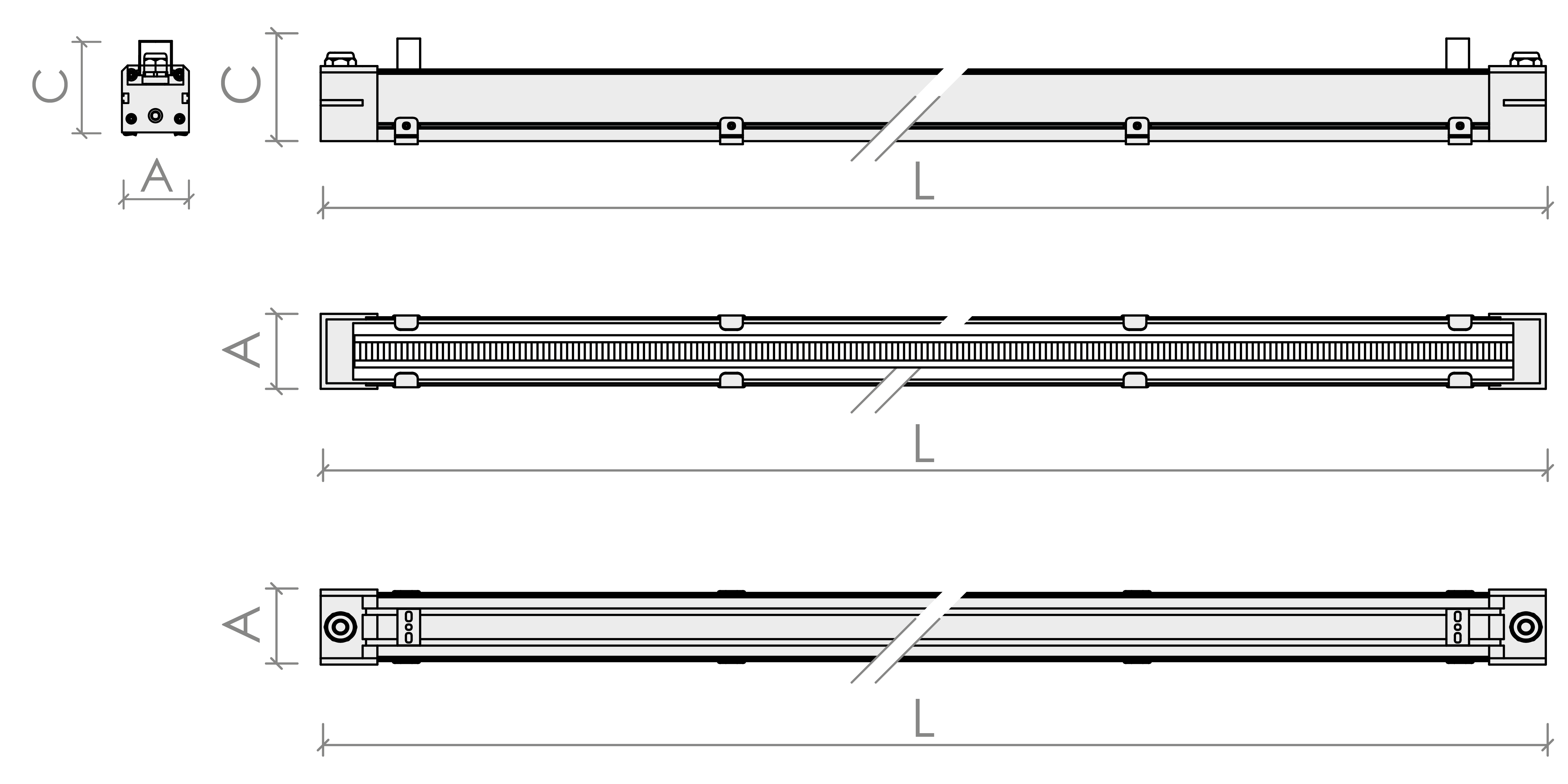

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3001S54009GL9-4000°K - CRI>80on/off139315570680110-2.6
3001S54012GL12-4000°K - CRI>80on/off194716270680110-2.6
3001S54018GL18-4000°K - CRI>80on/off2786155701240110-4.5
3001S54019GL19-4000°K - CRI>80on/off289915370680110-2.6
3001S54020GL20-4000°K - CRI>80on/off3065153701240110-4.5
3001S54021GL21-4000°K - CRI>80on/off322115370680110-2.6
3001S54023GL23-4000°K - CRI>80on/off3618157701240110-4.5
3001S54024GL24-4000°K - CRI>80on/off3831160701520110-5.4
3001S54029GL29-4000°K - CRI>80on/off4522156701520110-5.4
3001S54033GL33-4000°K - CRI>80on/off4987151701240110-4.5
3001S54036GL36-4000°K - CRI>80on/off5529154701240110-4.5
3001S54041GL41-4000°K - CRI>80on/off6174151701240110-4.5
3001S54042GL42-4000°K - CRI>80on/off6233148701520110-5.4
3001S54045GL45-4000°K - CRI>80on/off6910154701520110-5.4
3001S54050GL50-4000°K - CRI>80on/off7557151701240110-4.5
3001S54051GL51-4000°K - CRI>80on/off7583149701520110-5.4
3001S54054GL54-4000°K - CRI>80on/off7919147701520110-5.4
3001S54056GL56-4000°K - CRI>80on/off8518152701520110-5.4
3001S54060GL60-4000°K - CRI>80on/off8917149701520110-5.4
3001S54066GL66-4000°K - CRI>80on/off9906150701520110-5.4

Accessories
