GIOTTO – Mod. W1

(8° spot optics)

Outdoor led wallwasher. Silver extruded oxidate aluminium body, die cast aluminium caps, coated with polyester anticorrosion powder, silver color, 5 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, GIOTTO - 3001, Architectural Outdoor, GIOTTO
Models: 300
Color: Silver
Catalogue abstract
Installation instructions

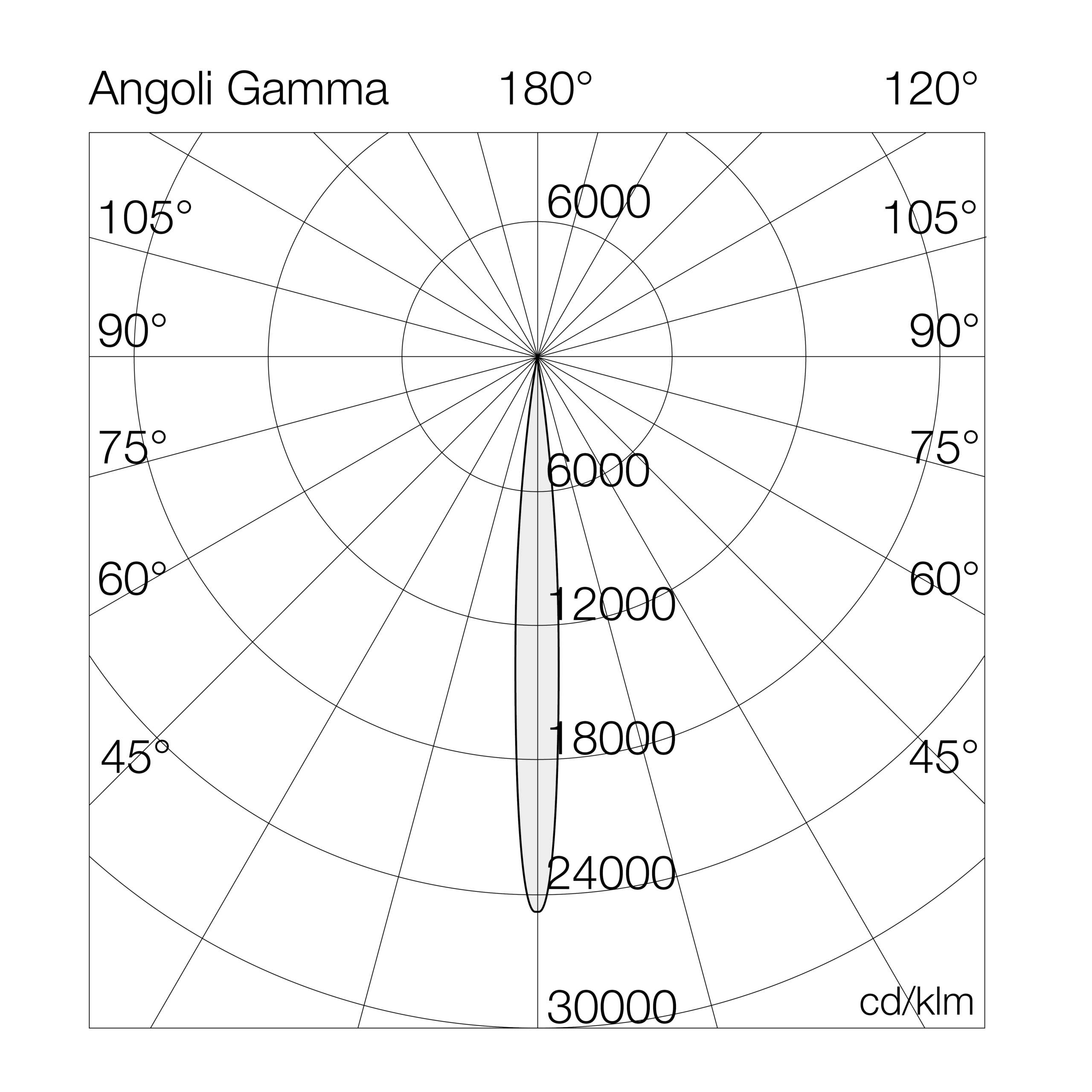

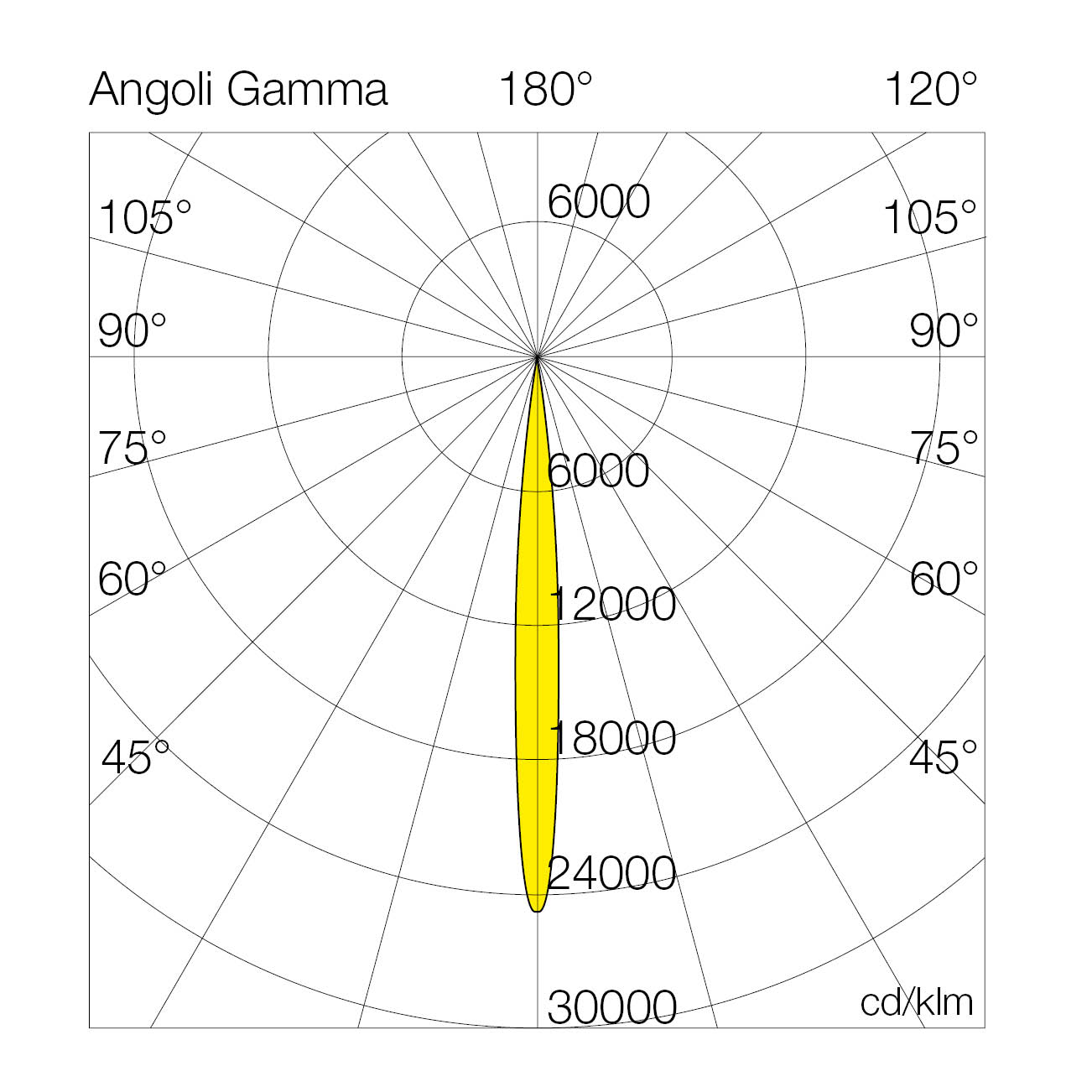

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001W127= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
40= 4000°K (CRI >80)1649FC= fila continua
93= 3000°K (CRI >90)1752FD= fila continua + dali 2
94= 4000°K (CRI >90)2461
2670
3288
35

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3001W14008GL8-4000°K - CRI>80on/off108213511070400-2.2
3001W14012GL12-4000°K - CRI>80on/off148812411070400-2.2
3001W14017GL17-4000°K - CRI>80on/off198511711070400-2.2
3001W14016GL16-4000°K - CRI>80on/off216513511070680-3.2
3001W14024GL24-4000°K - CRI>80on/off297812411070680-3.2
3001W14035GL35-4000°K - CRI>80on/off397011311070680-3.2
3001W14026GL26-4000°K - CRI>80on/off345613311070960-4.2
3001W14036GL36-4000°K - CRI>80on/off446612411070960-4.2
3001W14052GL52-4000°K - CRI>80on/off595511511070960-4.2
3001W14032GL32-4000°K - CRI>80on/off4330135110701240-5.2
3001W14049GL49-4000°K - CRI>80on/off5955122110701240-5.2
3001W14070GL70-4000°K - CRI>80on/off7941113110701240-5.2
3001W14042GL42-4000°K - CRI>80on/off5412129110701520-5.9
3001W14061GL61-4000°K - CRI>80on/off7443122110701520-5.9
3001W14088GL88-4000°K - CRI>80on/off9925113110701520-5.9
3001W14008GD8-4000°K - CRI>80dali108213511070400-2.2
3001W14012GD12-4000°K - CRI>80dali148812411070400-2.2
3001W14017GD17-4000°K - CRI>80dali198511711070400-2.2
3001W14016GD16-4000°K - CRI>80dali216513511070680-3.2
3001W14024GD24-4000°K - CRI>80dali297812411070680-3.2
