GIOTTO – Mod. W3

(13° spot optics)

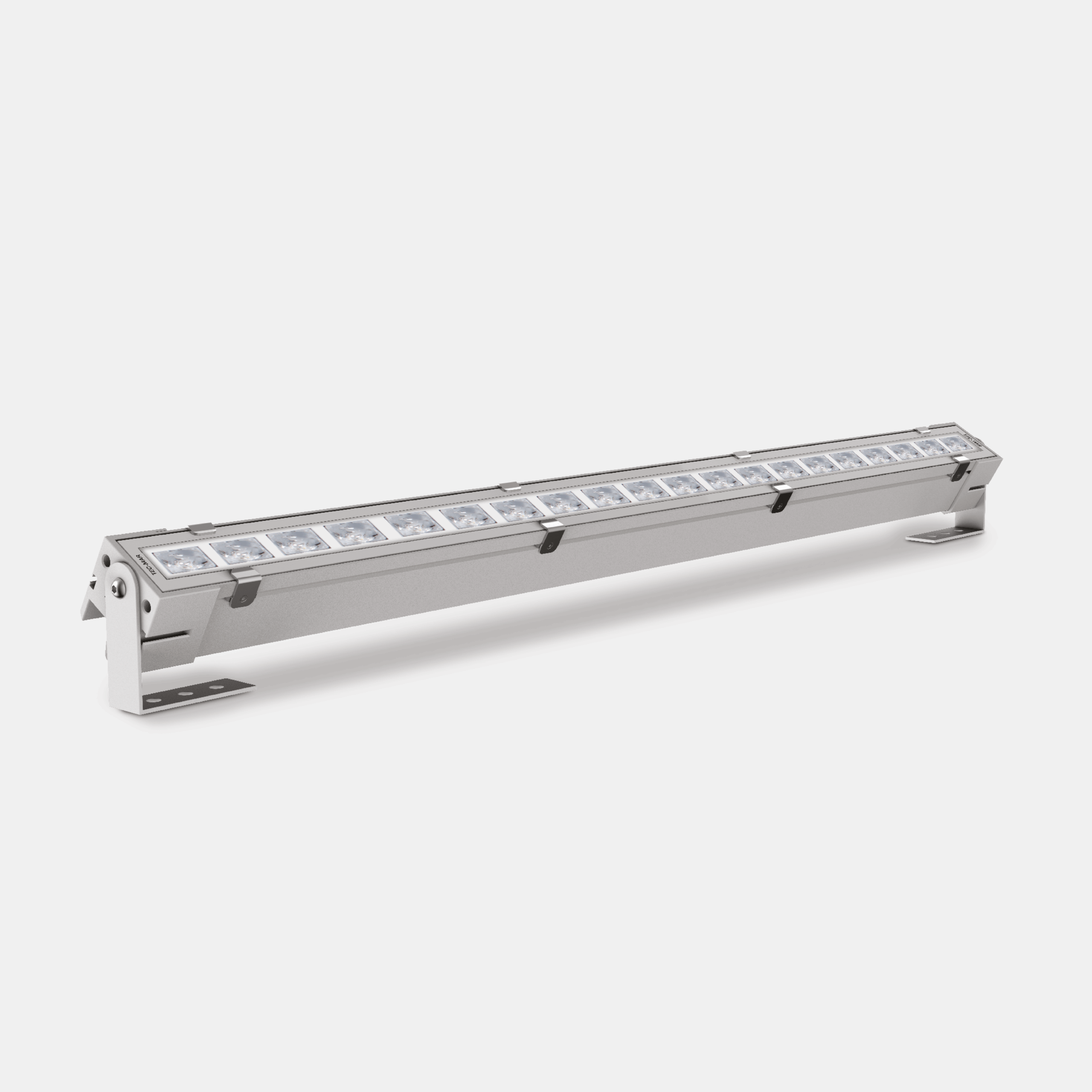

Outdoor led wallwasher. Silver extruded oxidate aluminium body, die cast aluminium caps, coated with polyester anticorrosion powder, silver color, 5 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, GIOTTO - 3001, Architectural Outdoor, GIOTTO
Models: 300
Color: Silver
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001W327= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
40= 4000°K (CRI >80)1649FC= fila continua
93= 3000°K (CRI >90)1752FD= fila continua + dali 2
94= 4000°K (CRI >90)2461
2670
3288
35

Models

W tot.
°K - CRI
Options

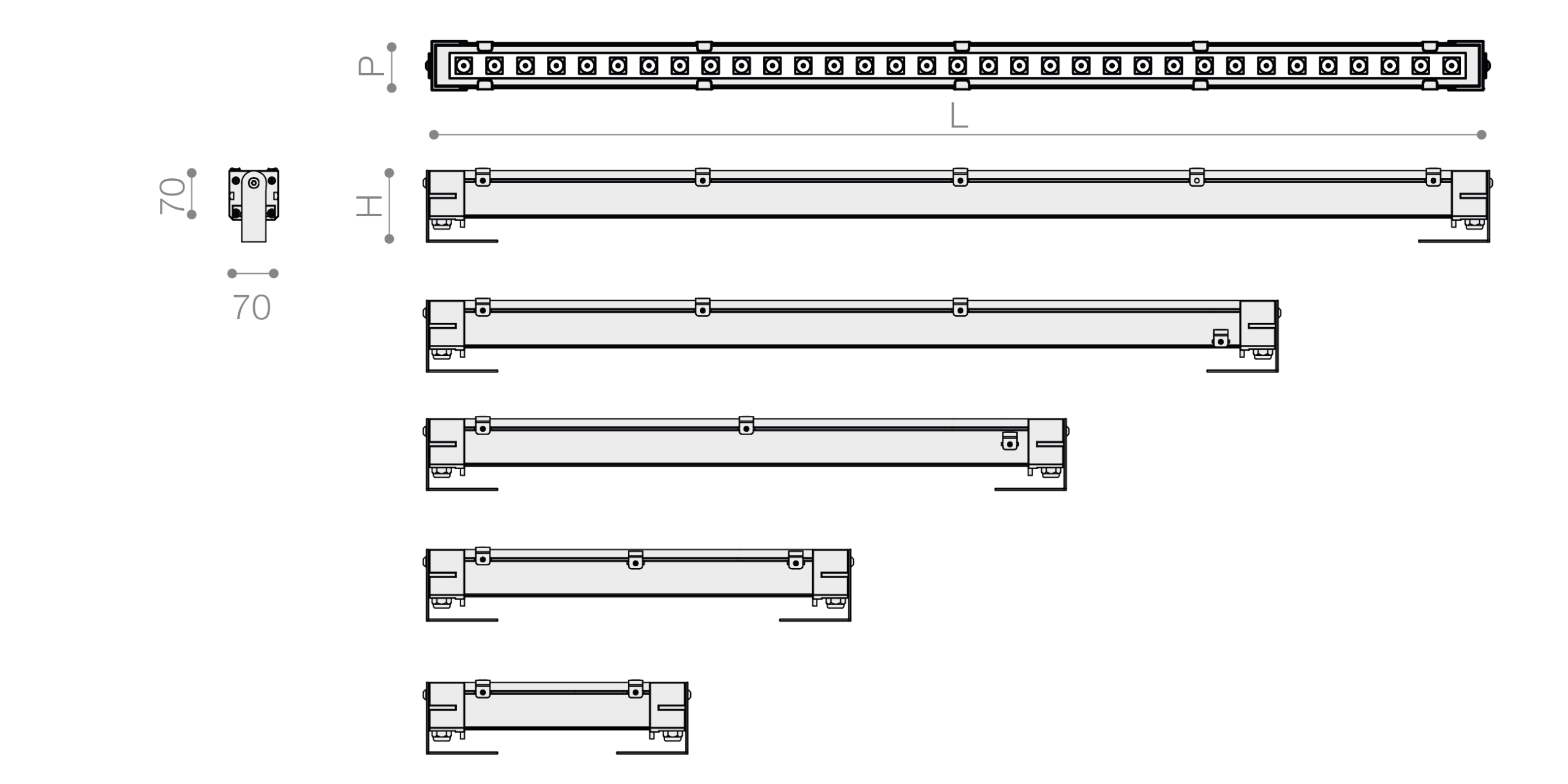

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3001W34008GL8-4000°K - CRI>80on/off105713211070400-2.2
3001W34012GL12-4000°K - CRI>80on/off145312111070400-2.2
3001W34017GL17-4000°K - CRI>80on/off193811411070400-2.2
3001W34016GL16-4000°K - CRI>80on/off211413211070680-3.2
3001W34024GL24-4000°K - CRI>80on/off290712111070680-3.2
3001W34035GL35-4000°K - CRI>80on/off387711111070680-3.2
3001W34026GL26-4000°K - CRI>80on/off337513011070960-4.2
3001W34036GL36-4000°K - CRI>80on/off436112111070960-4.2
3001W34052GL52-4000°K - CRI>80on/off581511211070960-4.2
3001W34032GL32-4000°K - CRI>80on/off4228132110701240-5.2
3001W34049GL49-4000°K - CRI>80on/off5815119110701240-5.2
3001W34070GL70-4000°K - CRI>80on/off7754111110701240-5.2
3001W34042GL42-4000°K - CRI>80on/off5285126110701520-5.9
3001W34061GL61-4000°K - CRI>80on/off7268119110701520-5.9
3001W34088GL88-4000°K - CRI>80on/off9692110110701520-5.9
3001W34008GD8-4000°K - CRI>80dali105713211070400-2.2
3001W34012GD12-4000°K - CRI>80dali145312111070400-2.2
3001W34017GD17-4000°K - CRI>80dali193811411070400-2.2
3001W34016GD16-4000°K - CRI>80dali211413211070680-3.2
3001W34024GD24-4000°K - CRI>80dali290712111070680-3.2
