GIOTTO – Mod. W4

(30° spot optics)

Outdoor led wallwasher. Silver extruded oxidate aluminium body, die cast aluminium caps, coated with polyester anticorrosion powder, silver color, 5 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, GIOTTO - 3001, Architectural Outdoor, GIOTTO
Models: 300
Color: Silver
Catalogue abstract
Installation instructions

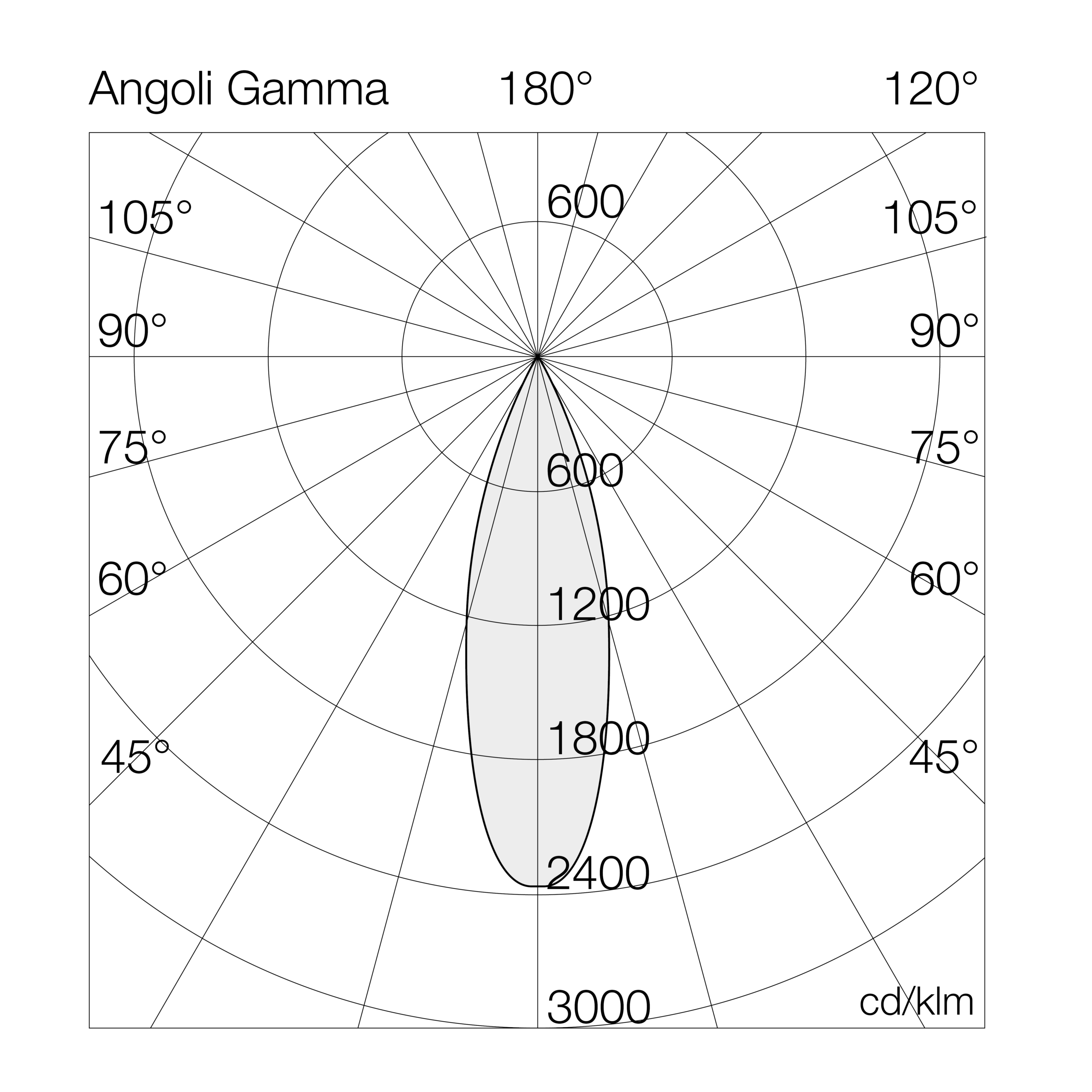

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001W427= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
40= 4000°K (CRI >80)1649FC= fila continua
93= 3000°K (CRI >90)1752FD= fila continua + dali 2
94= 4000°K (CRI >90)2461
2670
3288
35

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3001W44008GL8-4000°K - CRI>80on/off103112911070400-2.2
3001W44012GL12-4000°K - CRI>80on/off141811811070400-2.2
3001W44017GL17-4000°K - CRI>80on/off189111111070400-2.2
3001W44016GL16-4000°K - CRI>80on/off206312911070680-3.2
3001W44024GL24-4000°K - CRI>80on/off283711811070680-3.2
3001W44035GL35-4000°K - CRI>80on/off378410811070680-3.2
3001W44026GL26-4000°K - CRI>80on/off329312711070960-4.2
3001W44036GL36-4000°K - CRI>80on/off425611811070960-4.2
3001W44052GL52-4000°K - CRI>80on/off567510911070960-4.2
3001W44032GL32-4000°K - CRI>80on/off4126129110701240-5.2
3001W44049GL49-4000°K - CRI>80on/off5675116110701240-5.2
3001W44070GL70-4000°K - CRI>80on/off7567108110701240-5.2
3001W44042GL42-4000°K - CRI>80on/off5157123110701520-5.9
3001W44061GL61-4000°K - CRI>80on/off7093116110701520-5.9
3001W44088GL88-4000°K - CRI>80on/off9458107110701520-5.9
3001W44008GD8-4000°K - CRI>80dali103112911070400-2.2
3001W44012GD12-4000°K - CRI>80dali141811811070400-2.2
3001W44017GD17-4000°K - CRI>80dali189111111070400-2.2
3001W44016GD16-4000°K - CRI>80dali206312911070680-3.2
3001W44024GD24-4000°K - CRI>80dali283711811070680-3.2
