GIOTTO – Mod. W5

(Medium optics 45°)

Outdoor led wallwasher. Silver extruded oxidate aluminium body, die cast aluminium caps, coated with polyester anticorrosion powder, silver color, 5 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, GIOTTO - 3001, Architectural Outdoor, GIOTTO
Models: 300
Color: Silver
Catalogue abstract
Installation instructions

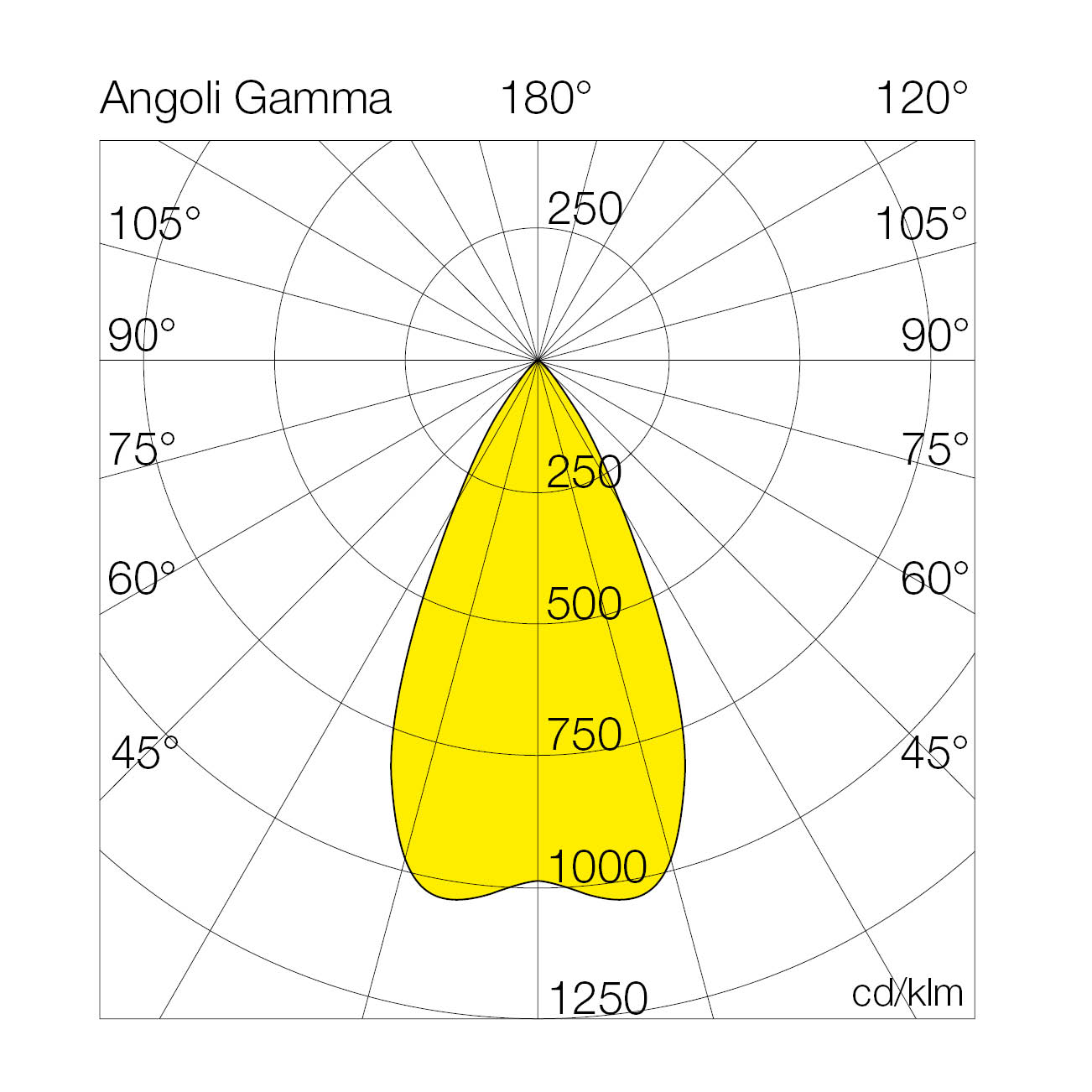

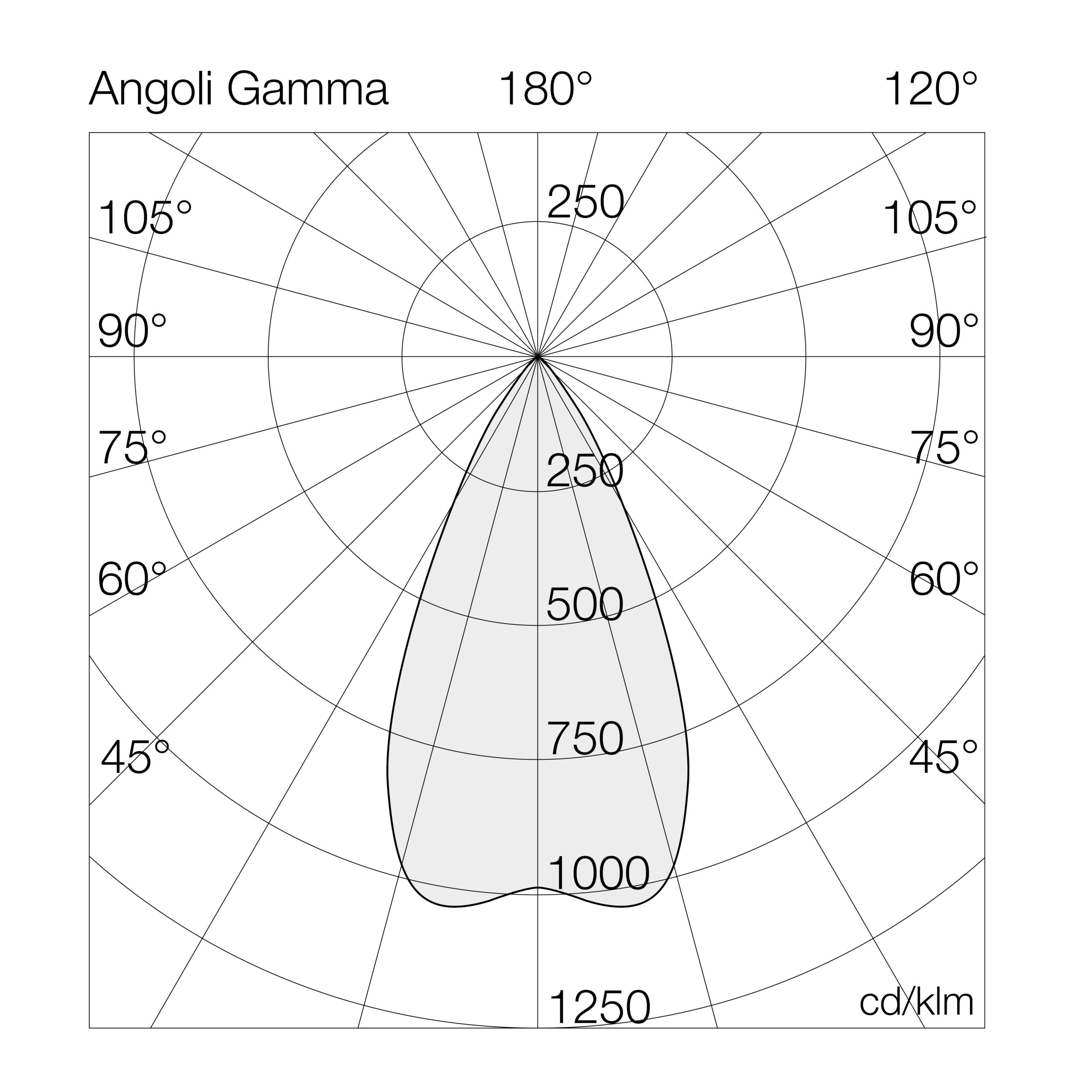

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001W527= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
40= 4000°K (CRI >80)1649FC= fila continua
93= 3000°K (CRI >90)1752FD= fila continua + dali 2
94= 4000°K (CRI >90)2461
2670
3288
35

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3001W54008GL8-4000°K - CRI>80on/off101812711070400-2.2
3001W54012GL12-4000°K - CRI>80on/off140111711070400-2.2
3001W54017GL17-4000°K - CRI>80on/off186811011070400-2.2
3001W54016GL16-4000°K - CRI>80on/off203812711070680-3.2
3001W54024GL24-4000°K - CRI>80on/off280211711070680-3.2
3001W54035GL35-4000°K - CRI>80on/off373710711070680-3.2
3001W54026GL26-4000°K - CRI>80on/off325312511070960-4.2
3001W54036GL36-4000°K - CRI>80on/off420311711070960-4.2
3001W54052GL52-4000°K - CRI>80on/off560510811070960-4.2
3001W54032GL32-4000°K - CRI>80on/off4075127110701240-5.2
3001W54049GL49-4000°K - CRI>80on/off5605114110701240-5.2
3001W54070GL70-4000°K - CRI>80on/off7474107110701240-5.2
3001W54042GL42-4000°K - CRI>80on/off5094121110701520-5.9
3001W54061GL61-4000°K - CRI>80on/off7006115110701520-5.9
3001W54088GL88-4000°K - CRI>80on/off9342106110701520-5.9
3001W54008GD8-4000°K - CRI>80dali101812711070400-2.2
3001W54012GD12-4000°K - CRI>80dali140111711070400-2.2
3001W54017GD17-4000°K - CRI>80dali186811011070400-2.2
3001W54016GD16-4000°K - CRI>80dali203812711070680-3.2
3001W54024GD24-4000°K - CRI>80dali280211711070680-3.2

Accessories
