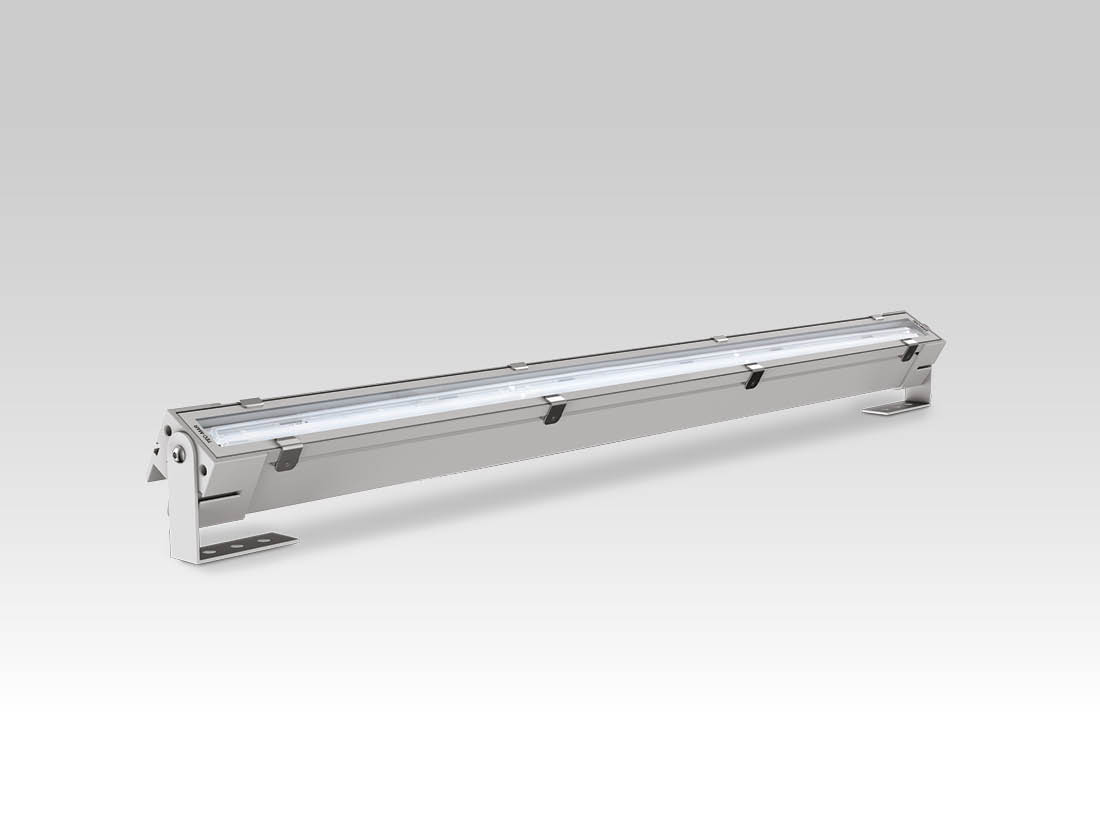

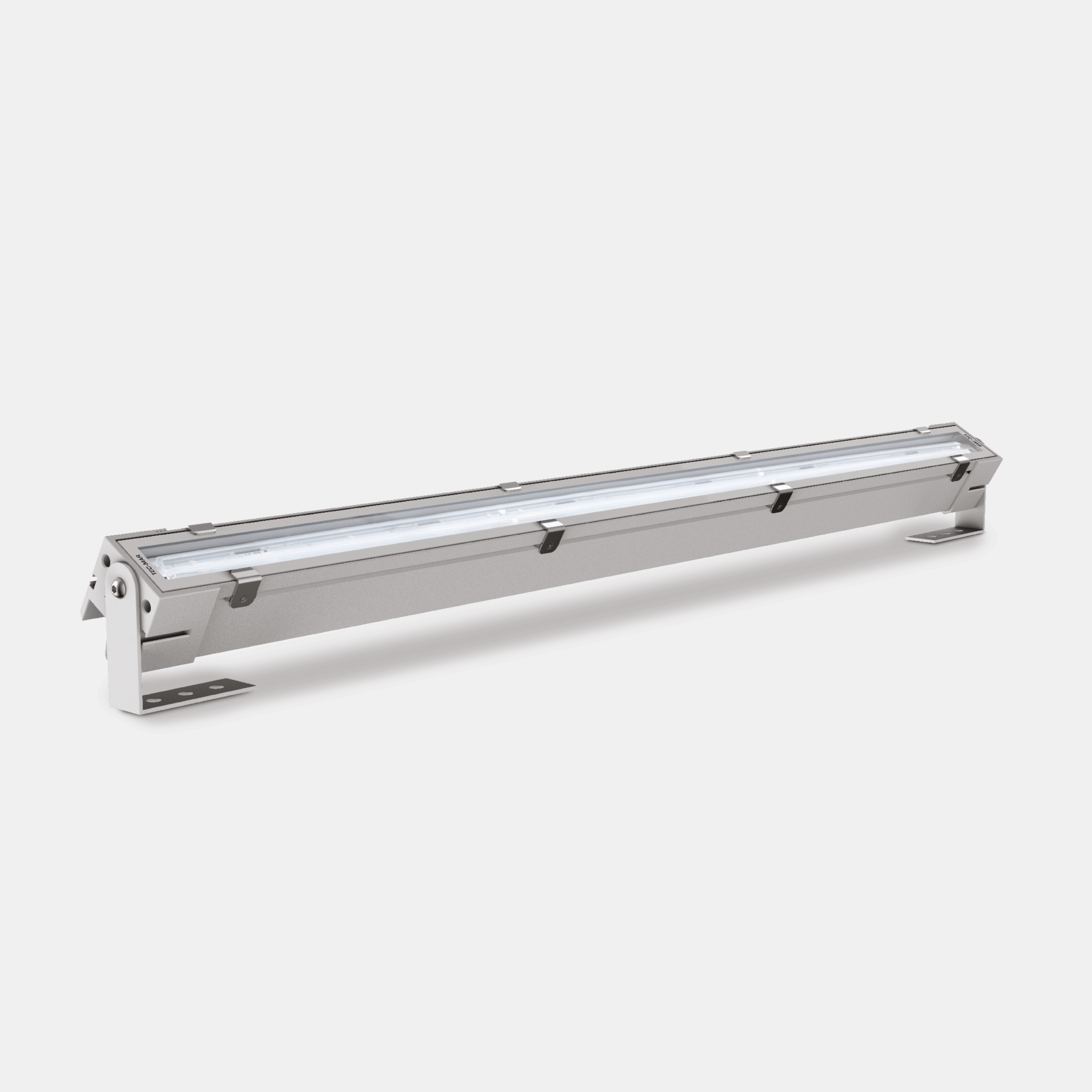

GIOTTO HE/EW

Outdoor led wallwasher. Silver extruded oxidate aluminium body, die cast aluminium caps, coated with polyester anticorrosion powder, silver color, 5 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, GIOTTO HE - 3003, Architectural Outdoor, art. 3003 Giotto HE
Models: 100
Color: Silver
Catalogue abstract
Installation instructions

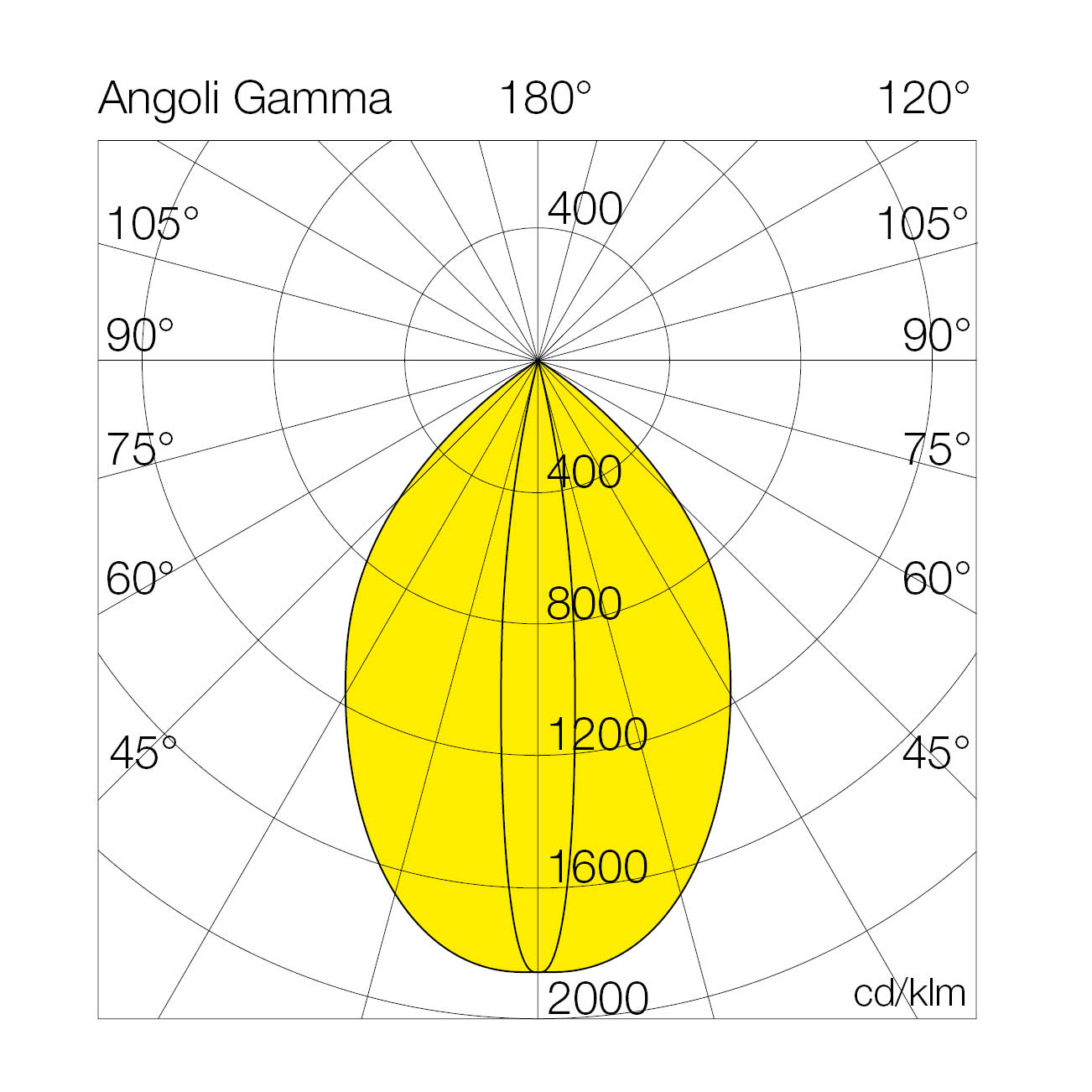

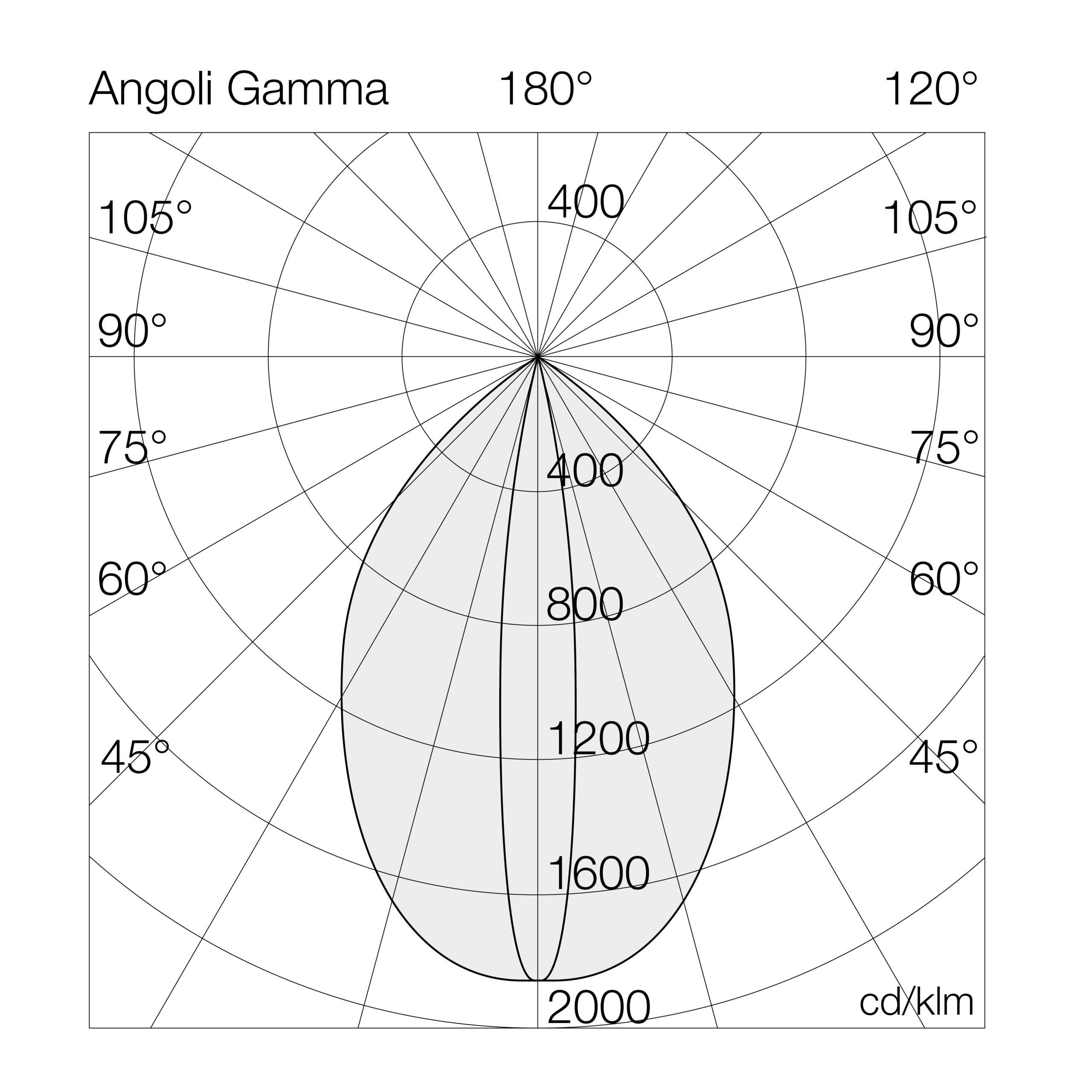

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3003EW27= 2700°K (CRI >80)0833GL= on/off
03= 3000°K (CRI >80)1237GD= dali 2
04= 4000°K (CRI >80)1742
93= 3000°K (CRI >90)2449
94= 4000°K (CRI >90)2560

Models

W tot.
°K - CRI
Options

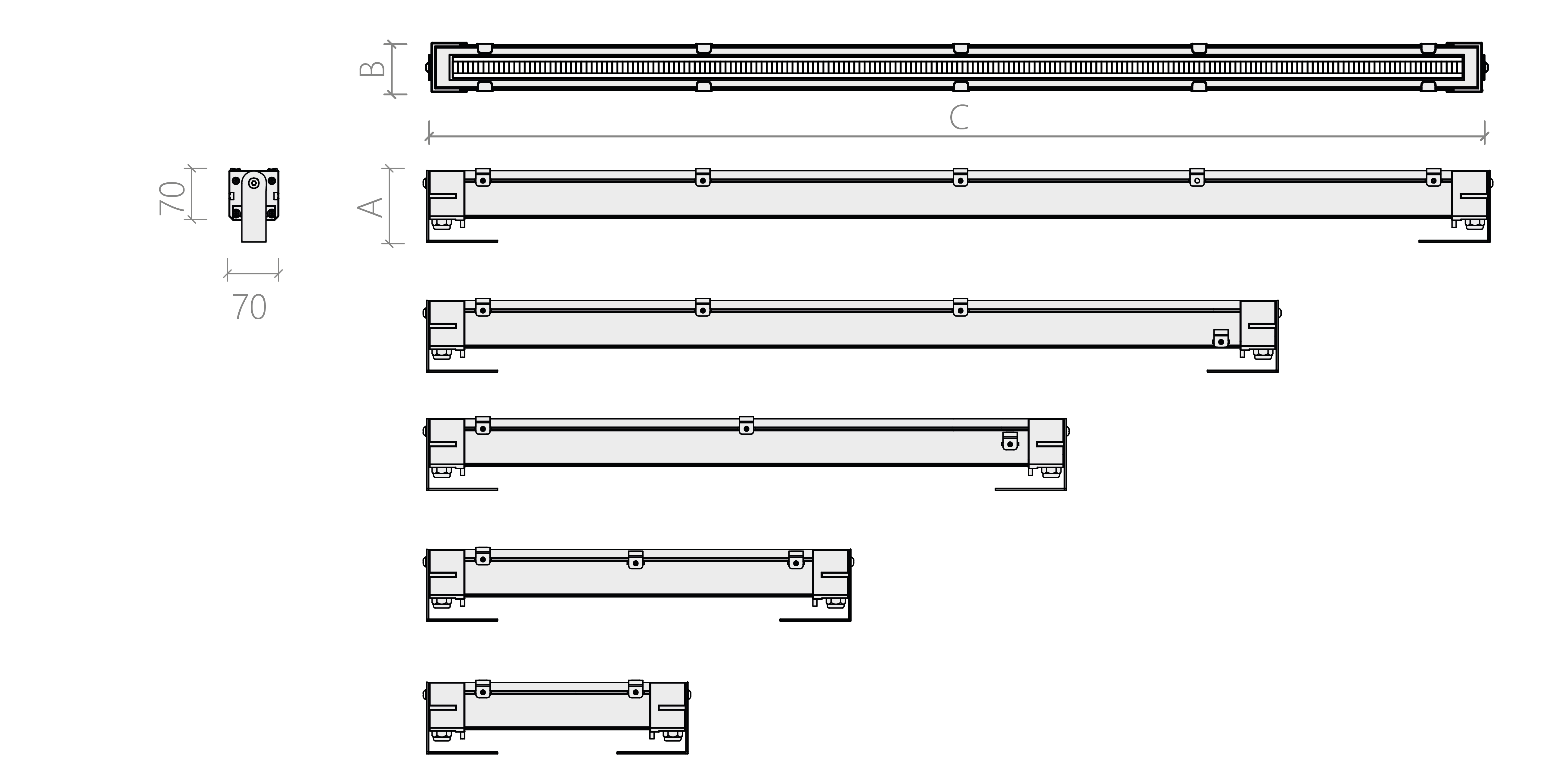

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3003EW0408GL8-4000°K - CRI>80on/off110113811070400-1.7
3003EW0412GL12-4000°K - CRI>80on/off141311811070400-1.7
3003EW0417GL17-4000°K - CRI>80on/off220313011070680-2.6
3003EW0424GL24-4000°K - CRI>80on/off305512711070680-2.6
3003EW0425GL25-4000°K - CRI>80on/off330413211070960-3.6
3003EW0437GL37-4000°K - CRI>80on/off458312411070960-3.6
3003EW0433GL33-4000°K - CRI>80on/off4406134110701240-4.5
3003EW0449GL49-4000°K - CRI>80on/off6110125110701240-4.5
3003EW0442GL42-4000°K - CRI>80on/off5507131110701520-5.4
3003EW0460GL60-4000°K - CRI>80on/off7638127110701520-5.4
3003EW0408GD8-4000°K - CRI>80dali110113811070400-1.7
3003EW0412GD12-4000°K - CRI>80dali141311811070400-1.7
3003EW0417GD17-4000°K - CRI>80dali220313011070680-2.6
3003EW0424GD24-4000°K - CRI>80dali305512711070680-2.6
3003EW0425GD25-4000°K - CRI>80dali330413211070960-3.6
3003EW0437GD37-4000°K - CRI>80dali458312411070960-3.6
3003EW0433GD33-4000°K - CRI>80dali4406134110701240-4.5
3003EW0449GD49-4000°K - CRI>80dali6110125110701240-4.5
3003EW0442GD42-4000°K - CRI>80dali5507131110701520-5.4
3003EW0460GD60-4000°K - CRI>80dali7638127110701520-5.4

Accessories
