GIOTTO XS – Mod. DP

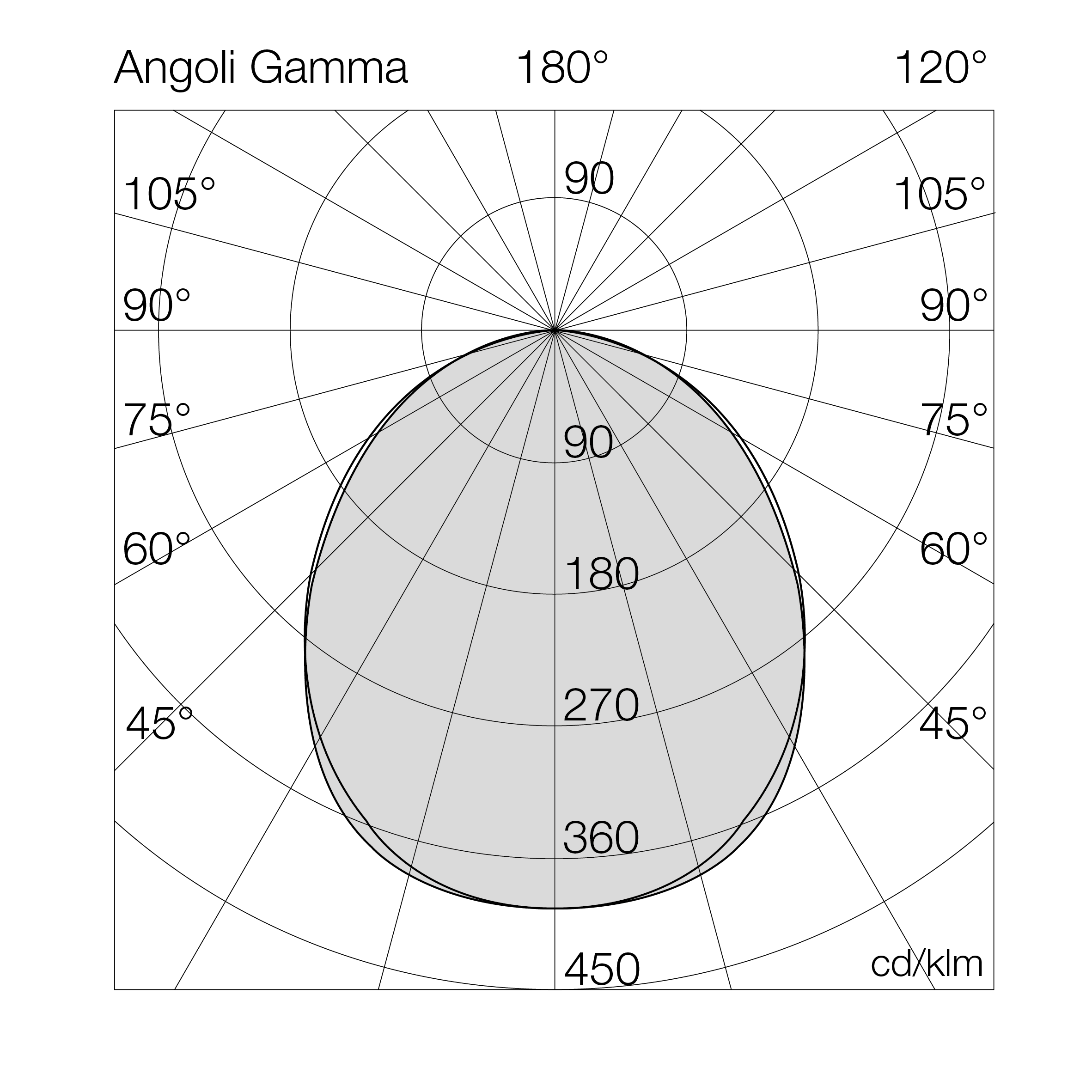

(90° diffusing optics)

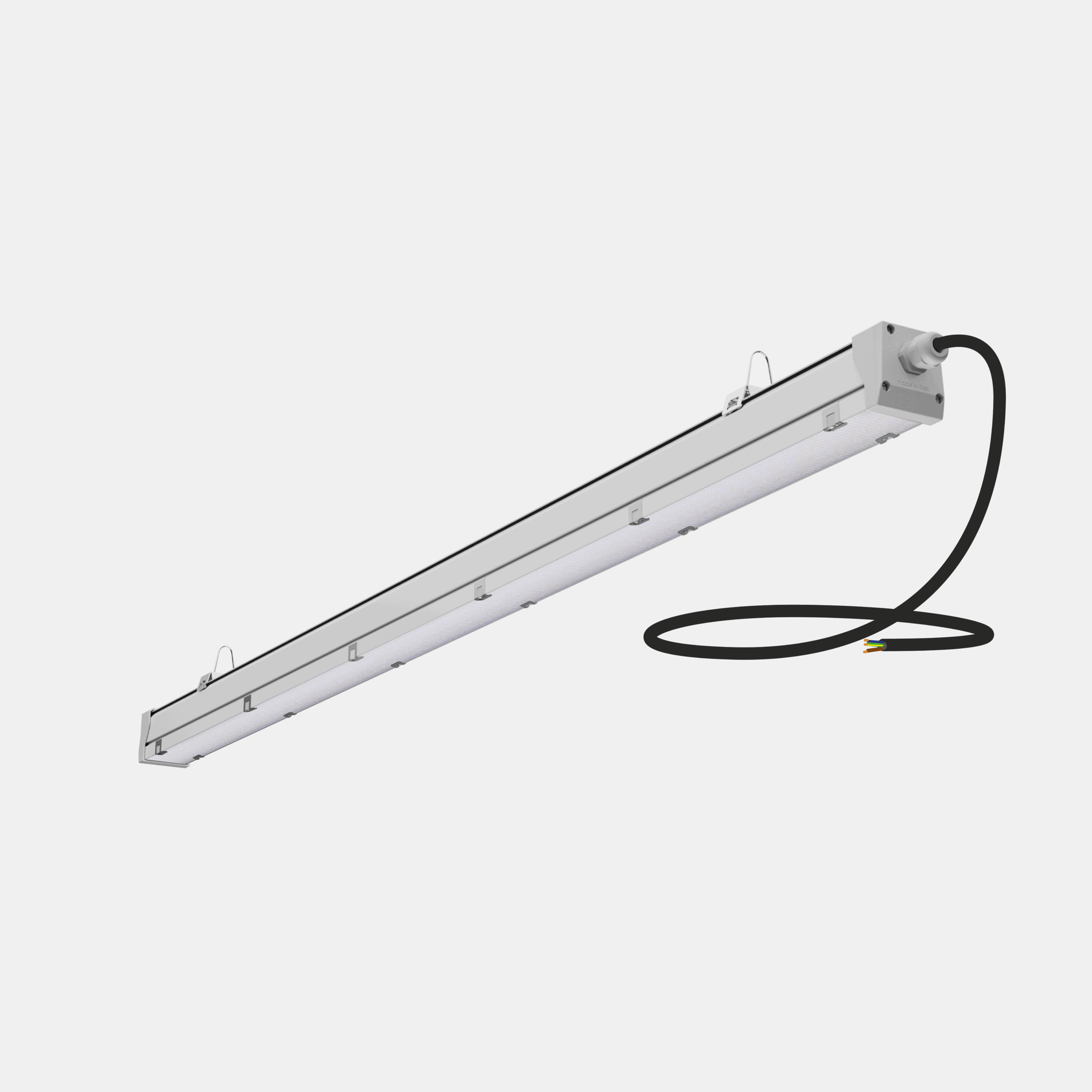

LED linear watertight fixture, suitable for ceiling, wall, blind, pole and pendant installation. Anodized extruded aluminum body in silver finish, die-cast aluminum end caps painted with thermosetting and anti-corrosion powders, silver color. Stainless steel closing clips, hardware and fixing brackets. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. 90° diffusing optics.
Categories: Led, GIOTTO XS, GIOTTO XS - 3004, Industrial, GIOTTO XS
Models: 525
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3004DP40= 4000°K (CRI >80)093050EL= on/off
50= 5000°K (CRI >80)123351GS= on/off (CPSS)
65= 6500°K (CRI >80)183554GD= dali 2 / dali 2 push
193656D1= dali 2 + em. 1h
203860G1= em. 1h
214166G3= em. 3h
234270GC= through wiring
244572
29

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3004DP4009EL9-4000°K - CRI>80on/off12591406262575--
3004DP4012EL12-4000°K - CRI>80on/off17601476262575--
3004DP4018EL18-4000°K - CRI>80on/off251814062120575--
3004DP4019EL19-4000°K - CRI>80on/off26201386262575--
3004DP4020EL20-4000°K - CRI>80on/off277013862120575--
3004DP4021EL21-4000°K - CRI>80on/off29111396262575--
3004DP4023EL23-4000°K - CRI>80on/off327014262120575--
3004DP4024EL24-4000°K - CRI>80on/off346214462148575--
3004DP4029EL29-4000°K - CRI>80on/off408814162148575--
3004DP4030EL30-4000°K - CRI>80on/off36861236262575--
3004DP4033EL33-4000°K - CRI>80on/off450713762120575--
3004DP4035EL35-4000°K - CRI>80on/off43101236262575--
3004DP4036EL36-4000°K - CRI>80on/off499713962120575--
3004DP4041EL41-4000°K - CRI>80on/off558013662120575--
3004DP4042EL42-4000°K - CRI>80on/off563413462148575--
3004DP4045EL45-4000°K - CRI>80on/off624613962148575--
3004DP4050EL50-4000°K - CRI>80on/off683013762120575--
3004DP4051EL51-4000°K - CRI>80on/off685413462148575--
3004DP4054EL54-4000°K - CRI>80on/off715713362148575--
3004DP4055EL55-4000°K - CRI>80on/off740013562120575--
