GIOTTO XS/EL

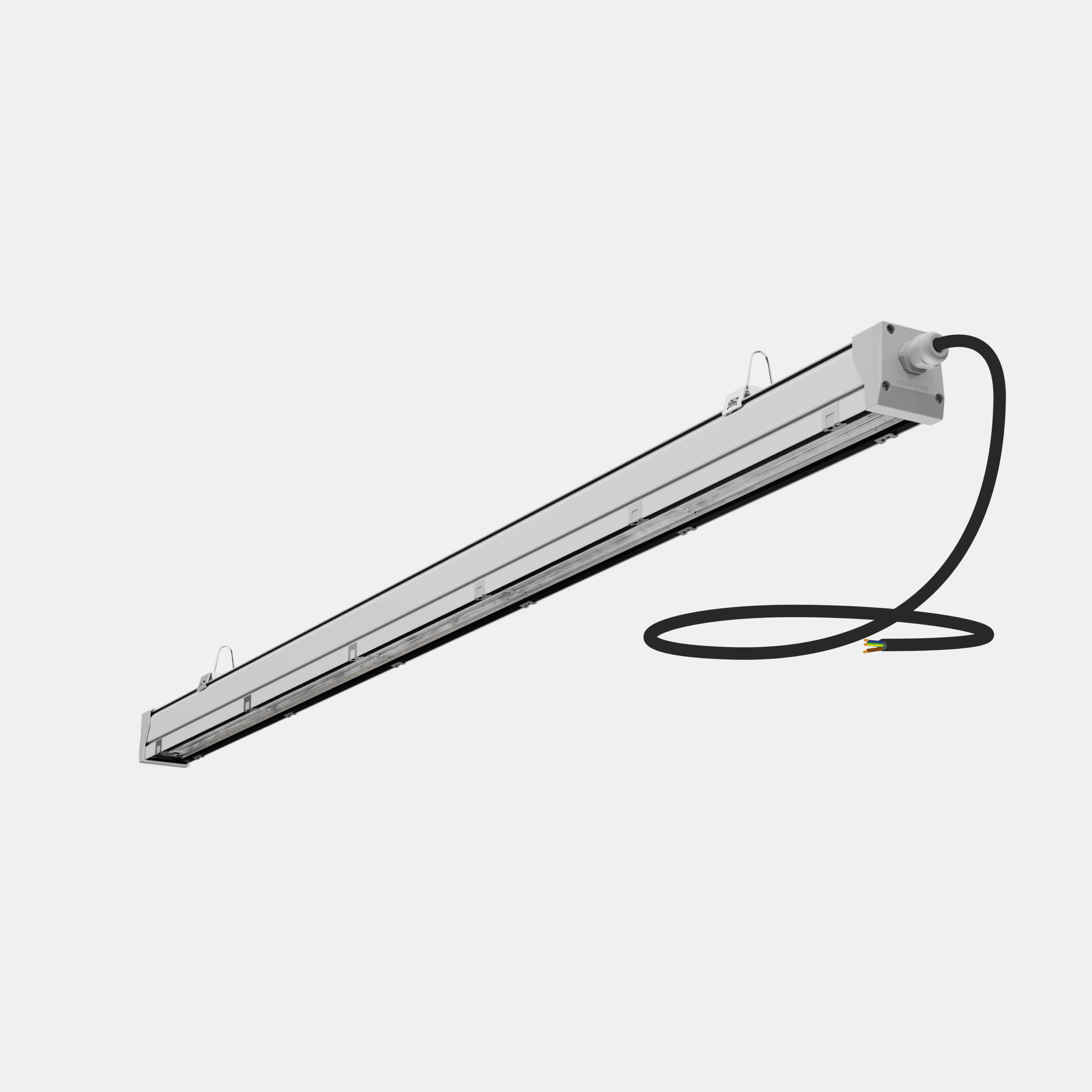

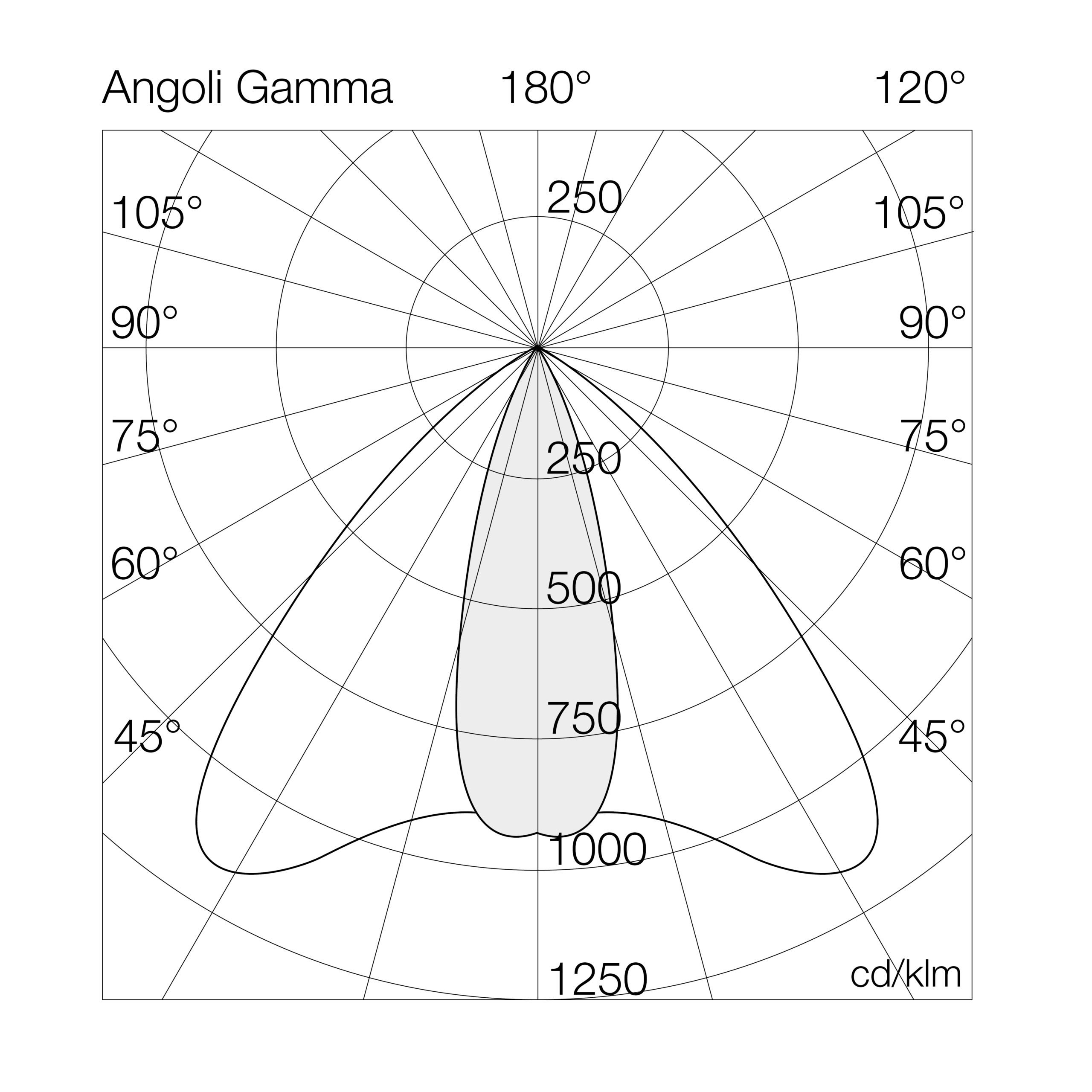

LED linear watertight fixture, suitable for ceiling, wall, blind, pole and pendant installation. Anodized extruded aluminum body in silver finish, die-cast aluminum end caps painted with thermosetting and anti-corrosion powders, silver color. Stainless steel closing clips, hardware and fixing brackets. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. Available in four types of optics with pre-painted steel sheet reflector in white color or with high-performance PMMA lenses: 120° diffusing optics, 120° diffusing optics (anti-glare etched glass diffuser), 90° diffusing optics (UGR<25) and 30°/70° elliptical optics (UGR<22).
Categories: Led, GIOTTO XS - 3004, art. 3004 Giotto XS, Industrial, art. 3004 Giotto XS
Models: 525
Color: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3004EL40= 4000°K (CRI >80)093050EL= on/off
50= 5000°K (CRI >80)123351GS= on/off (CPSS)
65= 6500°K (CRI >80)183554GD= dali 2 / dali 2 push
193656D1= dali 2 + em. 1h
203860G1= em. 1h
214166G3= em. 3h
234270GC= through wiring
244572
29

Models

W tot.
°K - CRI
Options

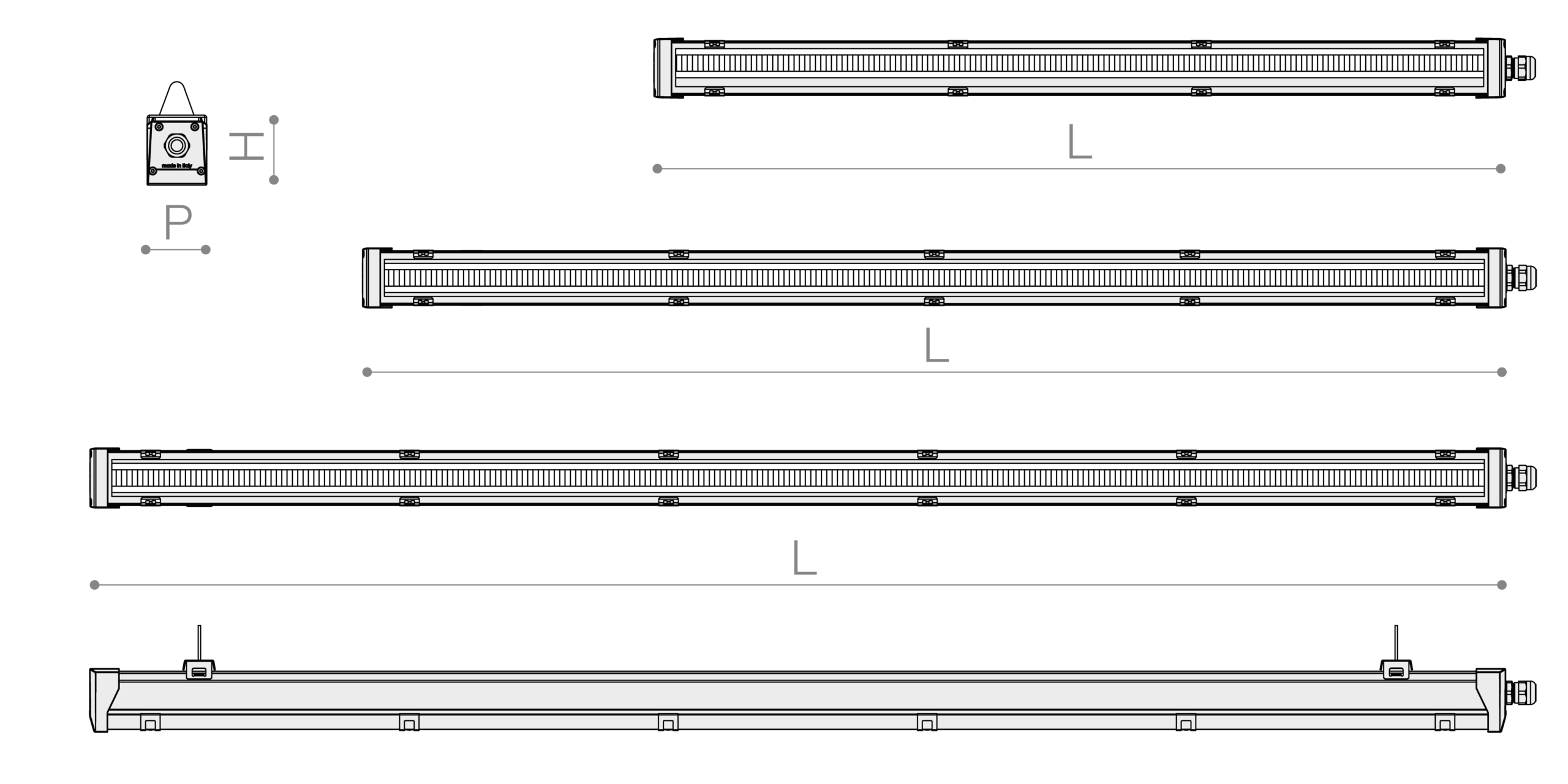

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3004EL4009EL9-4000°K - CRI>80on/off14341596262575--
3004EL4012EL12-4000°K - CRI>80on/off20041676262575--
3004EL4018EL18-4000°K - CRI>80on/off286815962120575--
3004EL4019EL19-4000°K - CRI>80on/off29851576262575--
3004EL4020EL20-4000°K - CRI>80on/off315515862120575--
3004EL4021EL21-4000°K - CRI>80on/off33161586262575--
3004EL4023EL23-4000°K - CRI>80on/off372416262120575--
3004EL4024EL24-4000°K - CRI>80on/off394416462148575--
3004EL4029EL29-4000°K - CRI>80on/off465616162148575--
3004EL4030EL30-4000°K - CRI>80on/off41991406262575--
3004EL4033EL33-4000°K - CRI>80on/off513415662120575--
3004EL4035EL35-4000°K - CRI>80on/off49101406262575--
3004EL4036EL36-4000°K - CRI>80on/off569215862120575--
3004EL4041EL41-4000°K - CRI>80on/off635615562120575--
3004EL4042EL42-4000°K - CRI>80on/off641715362148575--
3004EL4045EL45-4000°K - CRI>80on/off711415862148575--
3004EL4050EL50-4000°K - CRI>80on/off777915662120575--
3004EL4051EL51-4000°K - CRI>80on/off780715362148575--
3004EL4054EL54-4000°K - CRI>80on/off815215162148575--
3004EL4055EL55-4000°K - CRI>80on/off842815362120575--
