GIOTTO XS/S5

LED linear watertight fixture, suitable for ceiling, wall, blind, pole and pendant installation. Anodized extruded aluminum body in silver finish, die-cast aluminum end caps painted with thermosetting and anti-corrosion powders, silver color. Stainless steel closing clips, hardware and fixing brackets. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. Available in four types of optics with pre-painted steel sheet reflector in white color or with high-performance PMMA lenses: 120° diffusing optics, 120° diffusing optics (anti-glare etched glass diffuser), 90° diffusing optics (UGR<25) and 30°/70° elliptical optics (UGR<22).
Categories: Led, GIOTTO XS - 3004, art. 3004 Giotto XS, Industrial, art. 3004 Giotto XS
Models: 525
Color: Silver
Catalogue abstract
Installation instructions

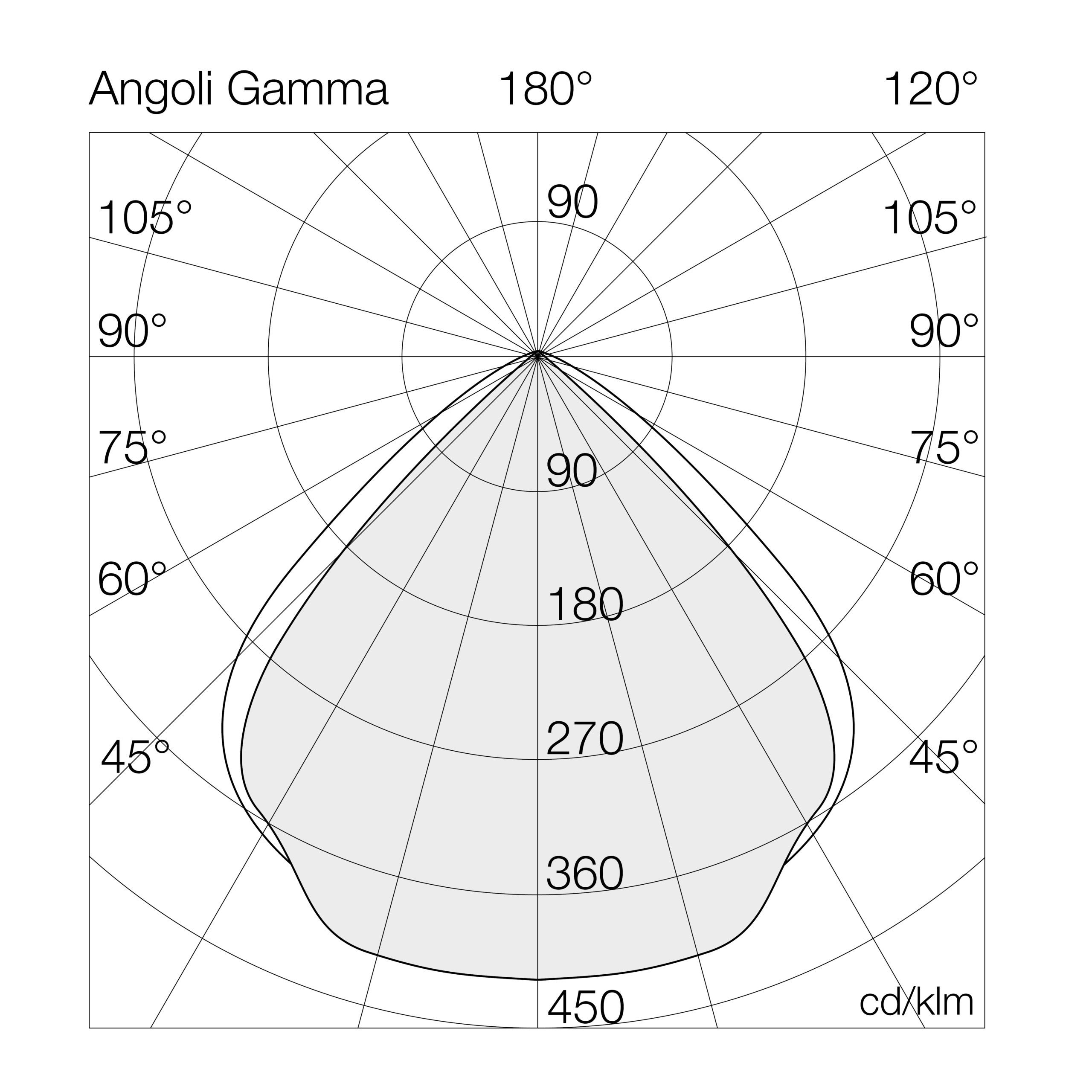

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3004S540= 4000°K (CRI >80)093050EL= on/off
50= 5000°K (CRI >80)123351GS= on/off (CPSS)
65= 6500°K (CRI >80)183554GD= dali 2 / dali 2 push
193656D1= dali 2 + em. 1h
203860G1= em. 1h
214166G3= em. 3h
234270GC= through wiring
244572
29

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3004S54009EL9-4000°K - CRI>80on/off13931556262575--
3004S54012EL12-4000°K - CRI>80on/off19471626262575--
3004S54018EL18-4000°K - CRI>80on/off278615562120575--
3004S54019EL19-4000°K - CRI>80on/off28991536262575--
3004S54020EL20-4000°K - CRI>80on/off306515362120575--
3004S54021EL21-4000°K - CRI>80on/off32211536262575--
3004S54023EL23-4000°K - CRI>80on/off361815762120575--
3004S54024EL24-4000°K - CRI>80on/off383116062148575--
3004S54029EL29-4000°K - CRI>80on/off452215662148575--
3004S54030EL30-4000°K - CRI>80on/off40791366262575--
3004S54033EL33-4000°K - CRI>80on/off498715162120575--
3004S54035EL35-4000°K - CRI>80on/off47691366262575--
3004S54036EL36-4000°K - CRI>80on/off552915462120575--
3004S54041EL41-4000°K - CRI>80on/off617415162120575--
3004S54042EL42-4000°K - CRI>80on/off623314862148575--
3004S54045EL45-4000°K - CRI>80on/off691015462148575--
3004S54050EL50-4000°K - CRI>80on/off755715162120575--
3004S54051EL51-4000°K - CRI>80on/off758314962148575--
3004S54054EL54-4000°K - CRI>80on/off791914762148575--
3004S54055EL55-4000°K - CRI>80on/off818714962120575--
