GIOTTO XS/VA

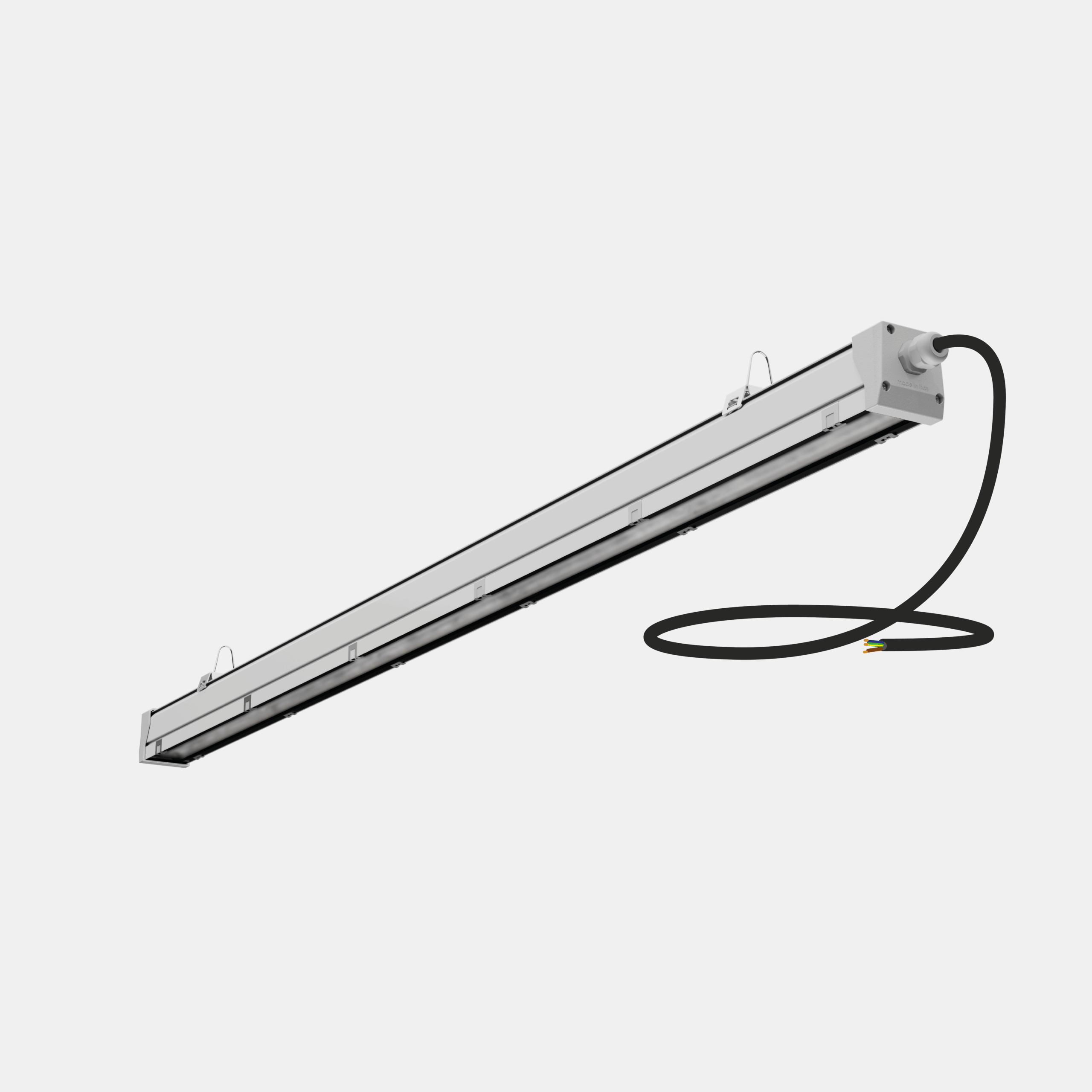

LED linear watertight fixture, suitable for ceiling, wall, blind, pole and pendant installation. Anodized extruded aluminum body in silver finish, die-cast aluminum end caps painted with thermosetting and anti-corrosion powders, silver color. Stainless steel closing clips, hardware and fixing brackets. Extra-clear tempered glass diffuser 4 mm thick, silicone gasket. Available in four types of optics with pre-painted steel sheet reflector in white color or with high-performance PMMA lenses: 120° diffusing optics, 120° diffusing optics (anti-glare etched glass diffuser), 90° diffusing optics (UGR<25) and 30°/70° elliptical optics (UGR<22).
Categories: Led, GIOTTO XS - 3004, art. 3004 Giotto XS, Industrial, art. 3004 Giotto XS
Models: 525
Color: Silver
Catalogue abstract
Installation instructions

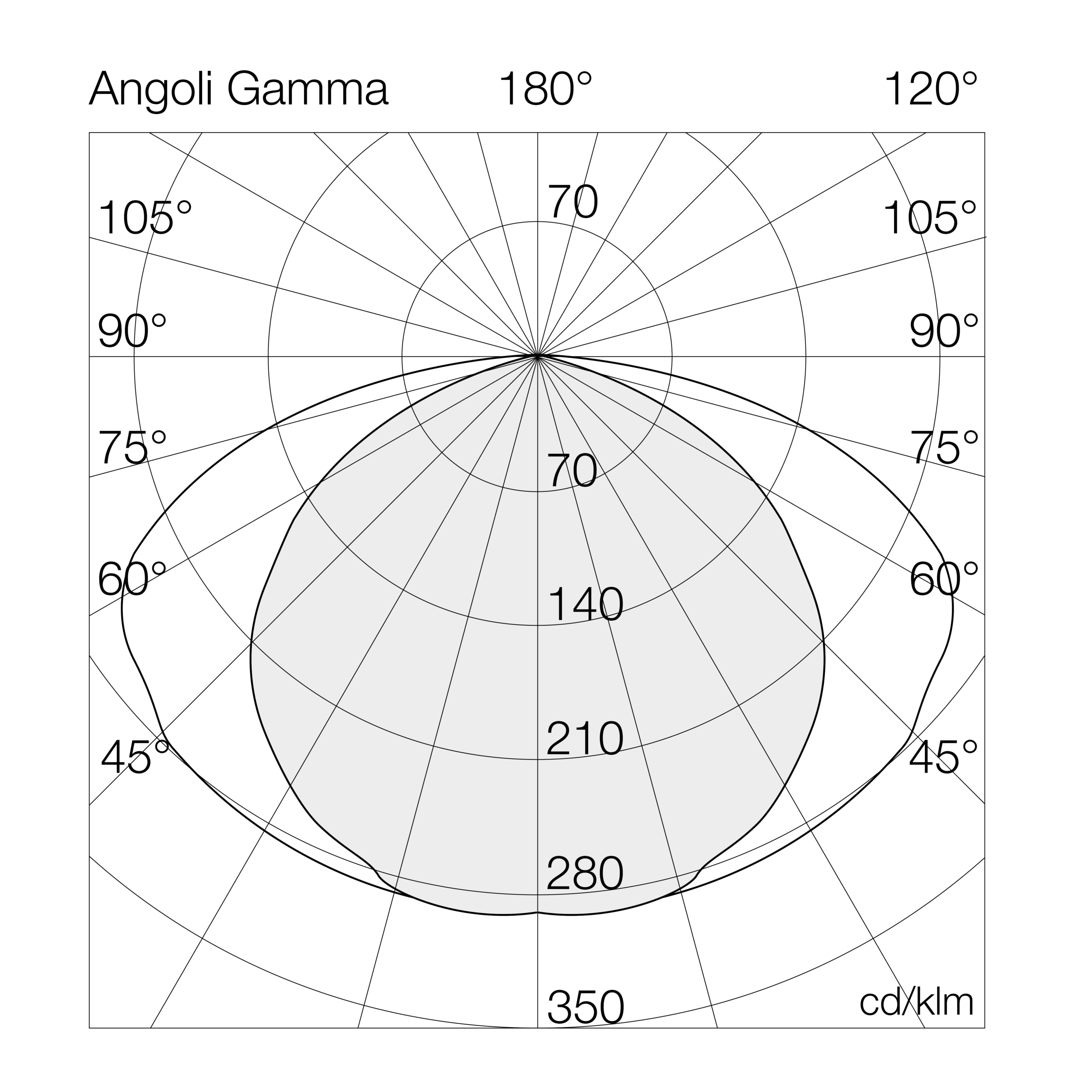

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3004VA40= 4000°K (CRI >80)093050EL= on/off
50= 5000°K (CRI >80)123351GS= on/off (CPSS)
65= 6500°K (CRI >80)183554GD= dali 2 / dali 2 push
193656D1= dali 2 + em. 1h
203860G1= em. 1h
214166G3= em. 3h
234270GC= through wiring
244572
29

Models

W tot.
°K - CRI
Options

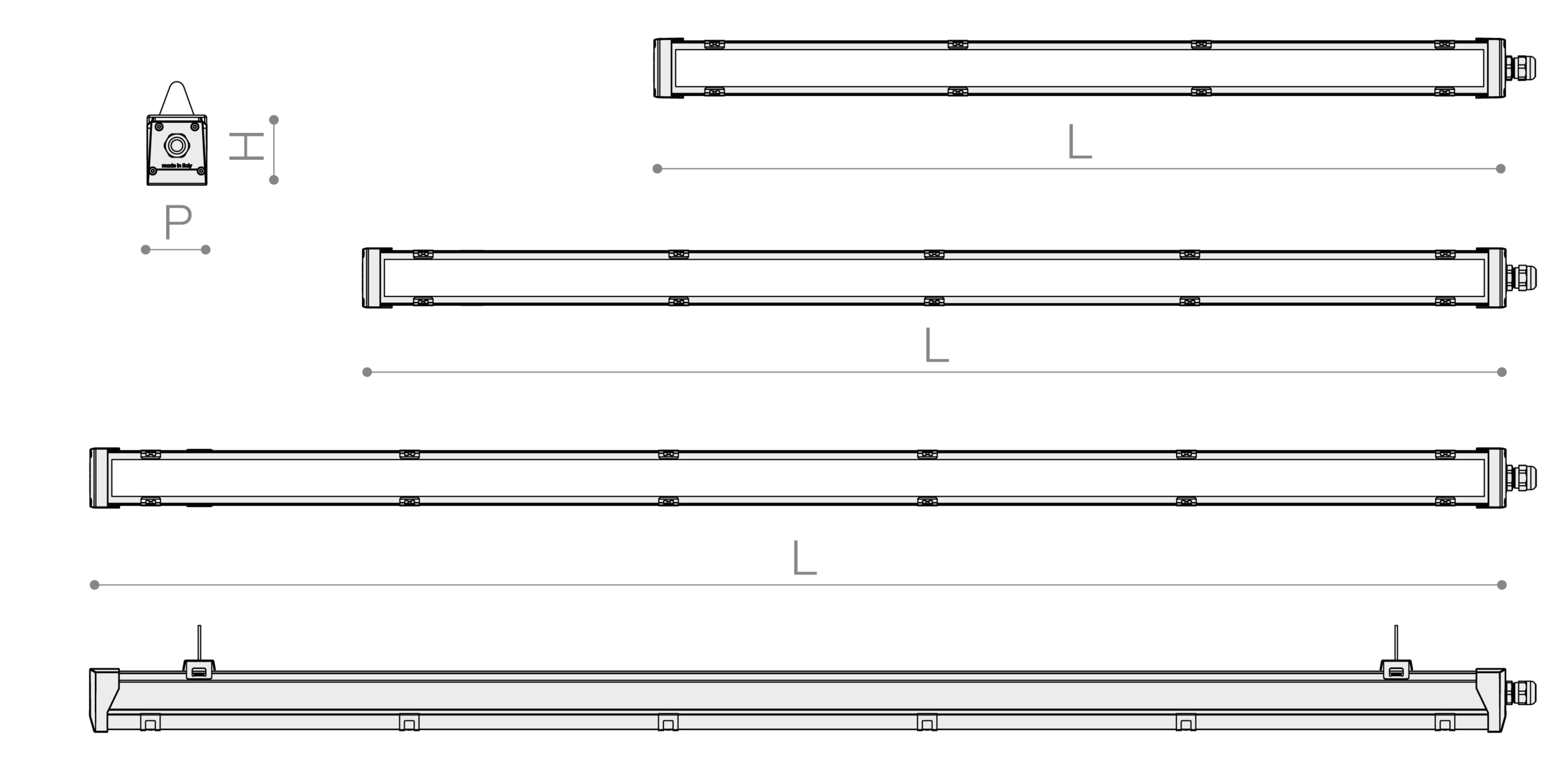

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3004VA4009EL9-4000°K - CRI>80on/off12501396262575--
3004VA4012EL12-4000°K - CRI>80on/off17471466262575--
3004VA4018EL18-4000°K - CRI>80on/off250013962120575--
3004VA4019EL19-4000°K - CRI>80on/off26021376262575--
3004VA4020EL20-4000°K - CRI>80on/off275013862120575--
3004VA4021EL21-4000°K - CRI>80on/off28901386262575--
3004VA4023EL23-4000°K - CRI>80on/off324714162120575--
3004VA4024EL24-4000°K - CRI>80on/off343814362148575--
3004VA4029EL29-4000°K - CRI>80on/off405914062148575--
3004VA4030EL30-4000°K - CRI>80on/off36601226262575--
3004VA4033EL33-4000°K - CRI>80on/off447513662120575--
3004VA4035EL35-4000°K - CRI>80on/off42801226262575--
3004VA4036EL36-4000°K - CRI>80on/off496213862120575--
3004VA4041EL41-4000°K - CRI>80on/off554113562120575--
3004VA4042EL42-4000°K - CRI>80on/off559413362148575--
3004VA4045EL45-4000°K - CRI>80on/off620113862148575--
3004VA4050EL50-4000°K - CRI>80on/off678213662120575--
3004VA4051EL51-4000°K - CRI>80on/off680513362148575--
3004VA4054EL54-4000°K - CRI>80on/off710613262148575--
3004VA4055EL55-4000°K - CRI>80on/off734713462120575--

Accessories
