GIOTTO XF/W1

Outdoor LED linear projector suitable for architectural lighting of facades, porches, architectural frames, walkways, underscoring, structural details, monuments and green spaces. Suitable for floor/ground, ceiling and wall installation. Extruded and anodized aluminum body in silver finish, die-cast aluminum end caps painted with anti-corrosion polyester thermosetting powders in silver color, silicone gasket. Stainless steel closing clips, hardware and adjustable fixing brackets. Extra-clear tempered flat glass diffuser 4 mm thick. Available in six types of optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses and steel plate reflectors painted matte black: four spot optics (8°-11°-13°-30°), one 45° medium optic and one 40°x13° elliptical optic
Categories: Led, GIOTTO XF - 3005, art. 3005 Giotto XF, Architectural Outdoor, art. 3005 Giotto XF
Models: 135
Color: Silver
Catalogue abstract
Installation instructions

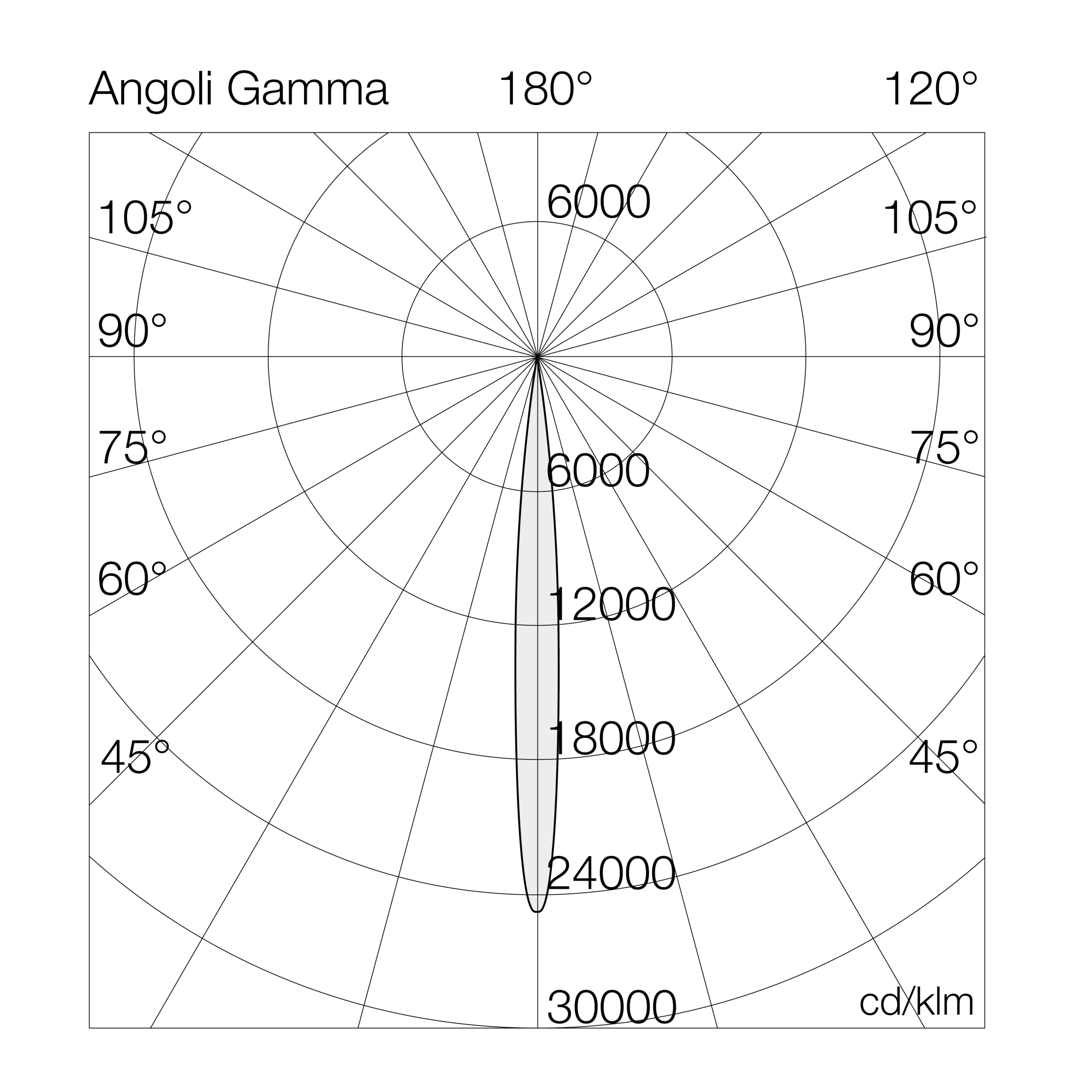

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001W127= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
1649FC= continuous row
1752
2461
2670
3288
35

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3005W14008GL8-4000°K - CRI>80on/off10821356231575--
3005W14012GL12-4000°K - CRI>80on/off14881246231575--
3005W14017GL17-4000°K - CRI>80on/off19851176231575--
3005W14016GL16-4000°K - CRI>80on/off21651356259575--
3005W14024GL24-4000°K - CRI>80on/off29781246259575--
3005W14035GL35-4000°K - CRI>80on/off39701136259575--
3005W14026GL26-4000°K - CRI>80on/off34561336287575--
3005W14036GL36-4000°K - CRI>80on/off44661246287575--
3005W14052GL52-4000°K - CRI>80on/off59551156287575--
3005W14032GL32-4000°K - CRI>80on/off433013562117575--
3005W14049GL49-4000°K - CRI>80on/off595512262117575--
3005W14070GL70-4000°K - CRI>80on/off794111362117575--
3005W14042GL42-4000°K - CRI>80on/off541212962145575--
3005W14061GL61-4000°K - CRI>80on/off744312262145575--
3005W14088GL88-4000°K - CRI>80on/off992511362145575--
3005W14008GD8-4000°K - CRI>80dali 210821356231575--
3005W14012GD12-4000°K - CRI>80dali 214881246231575--
3005W14017GD17-4000°K - CRI>80dali 219851176231575--
3005W14016GD16-4000°K - CRI>80dali 221651356259575--
3005W14024GD24-4000°K - CRI>80dali 229781246259575--

Accessories
