GIOTTO XF/W2

Outdoor LED linear projector suitable for architectural lighting of facades, porches, architectural frames, walkways, underscoring, structural details, monuments and green spaces. Suitable for floor/ground, ceiling and wall installation. Extruded and anodized aluminum body in silver finish, die-cast aluminum end caps painted with anti-corrosion polyester thermosetting powders in silver color, silicone gasket. Stainless steel closing clips, hardware and adjustable fixing brackets. Extra-clear tempered flat glass diffuser 4 mm thick. Available in six types of optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses and steel plate reflectors painted matte black: four spot optics (8°-11°-13°-30°), one 45° medium optic and one 40°x13° elliptical optic
Categories: Led, GIOTTO XF - 3005, art. 3005 Giotto XF, Architectural Outdoor, art. 3005 Giotto XF
Models: 135
Color: Silver
Catalogue abstract
Installation instructions

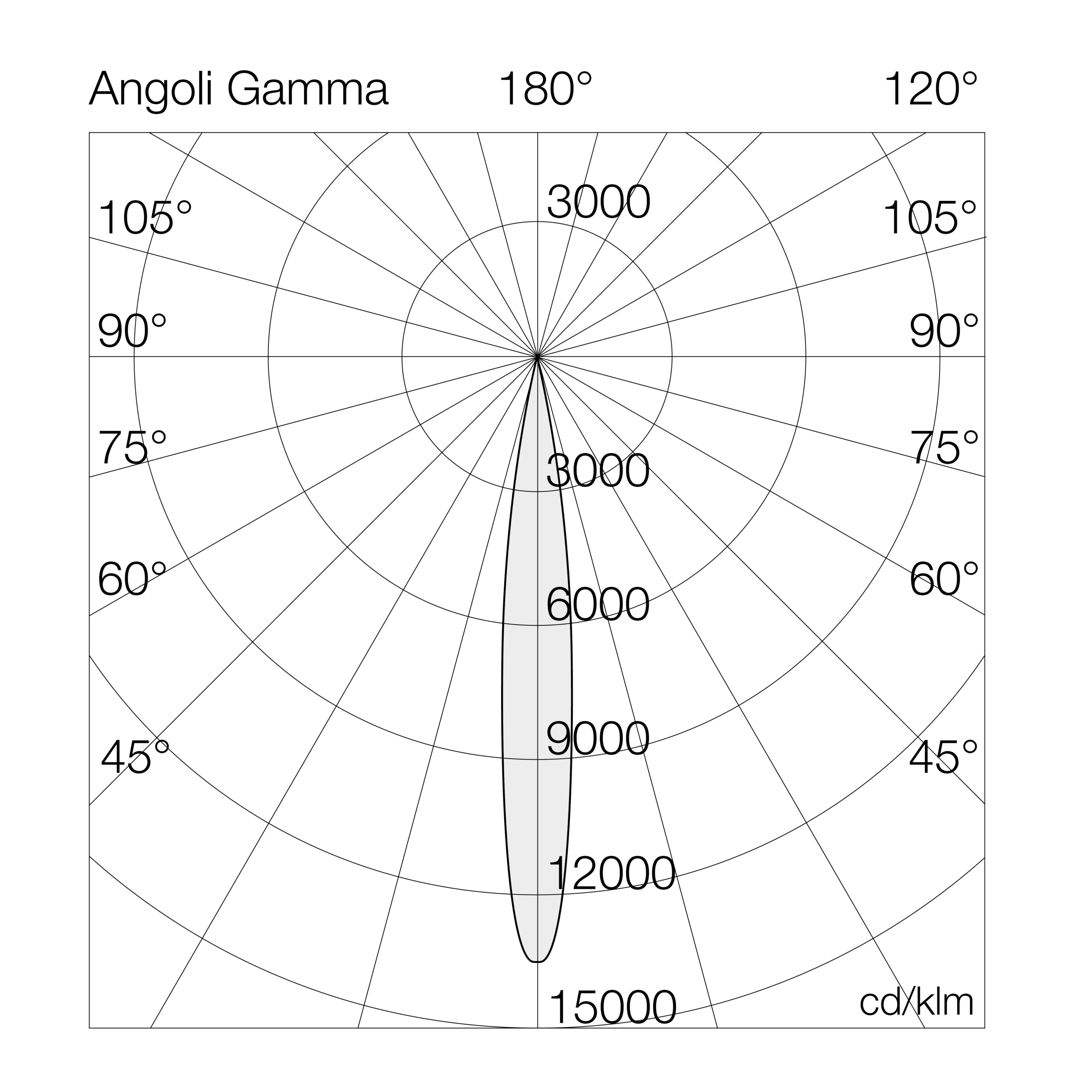

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001W227= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
1649FC= continuous row
1752
2461
2670
3288
35

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3005W24008GL8-4000°K - CRI>80on/off10691346231575--
3005W24012GL12-4000°K - CRI>80on/off14711236231575--
3005W24017GL17-4000°K - CRI>80on/off19611156231575--
3005W24016GL16-4000°K - CRI>80on/off21391346259575--
3005W24024GL24-4000°K - CRI>80on/off29431236259575--
3005W24035GL35-4000°K - CRI>80on/off39241126259575--
3005W24026GL26-4000°K - CRI>80on/off34151316287575--
3005W24036GL36-4000°K - CRI>80on/off44131236287575--
3005W24052GL52-4000°K - CRI>80on/off58851136287575--
3005W24032GL32-4000°K - CRI>80on/off427913462117575--
3005W24049GL49-4000°K - CRI>80on/off588512062117575--
3005W24070GL70-4000°K - CRI>80on/off784711262117575--
3005W24042GL42-4000°K - CRI>80on/off534812762145575--
3005W24061GL61-4000°K - CRI>80on/off735612162145575--
3005W24088GL88-4000°K - CRI>80on/off980911162145575--
3005W24008GD8-4000°K - CRI>80dali 210691346231575--
3005W24012GD12-4000°K - CRI>80dali 214711236231575--
3005W24017GD17-4000°K - CRI>80dali 219611156231575--
3005W24016GD16-4000°K - CRI>80dali 221391346259575--
3005W24024GD24-4000°K - CRI>80dali 229431236259575--

Accessories
