GIOTTO XF/W3

Outdoor LED linear projector suitable for architectural lighting of facades, porches, architectural frames, walkways, underscoring, structural details, monuments and green spaces. Suitable for floor/ground, ceiling and wall installation. Extruded and anodized aluminum body in silver finish, die-cast aluminum end caps painted with anti-corrosion polyester thermosetting powders in silver color, silicone gasket. Stainless steel closing clips, hardware and adjustable fixing brackets. Extra-clear tempered flat glass diffuser 4 mm thick. Available in six types of optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses and steel plate reflectors painted matte black: four spot optics (8°-11°-13°-30°), one 45° medium optic and one 40°x13° elliptical optic
Categories: Led, GIOTTO XF - 3005, art. 3005 Giotto XF, Architectural Outdoor, art. 3005 Giotto XF
Models: 135
Color: Silver
Catalogue abstract
Installation instructions

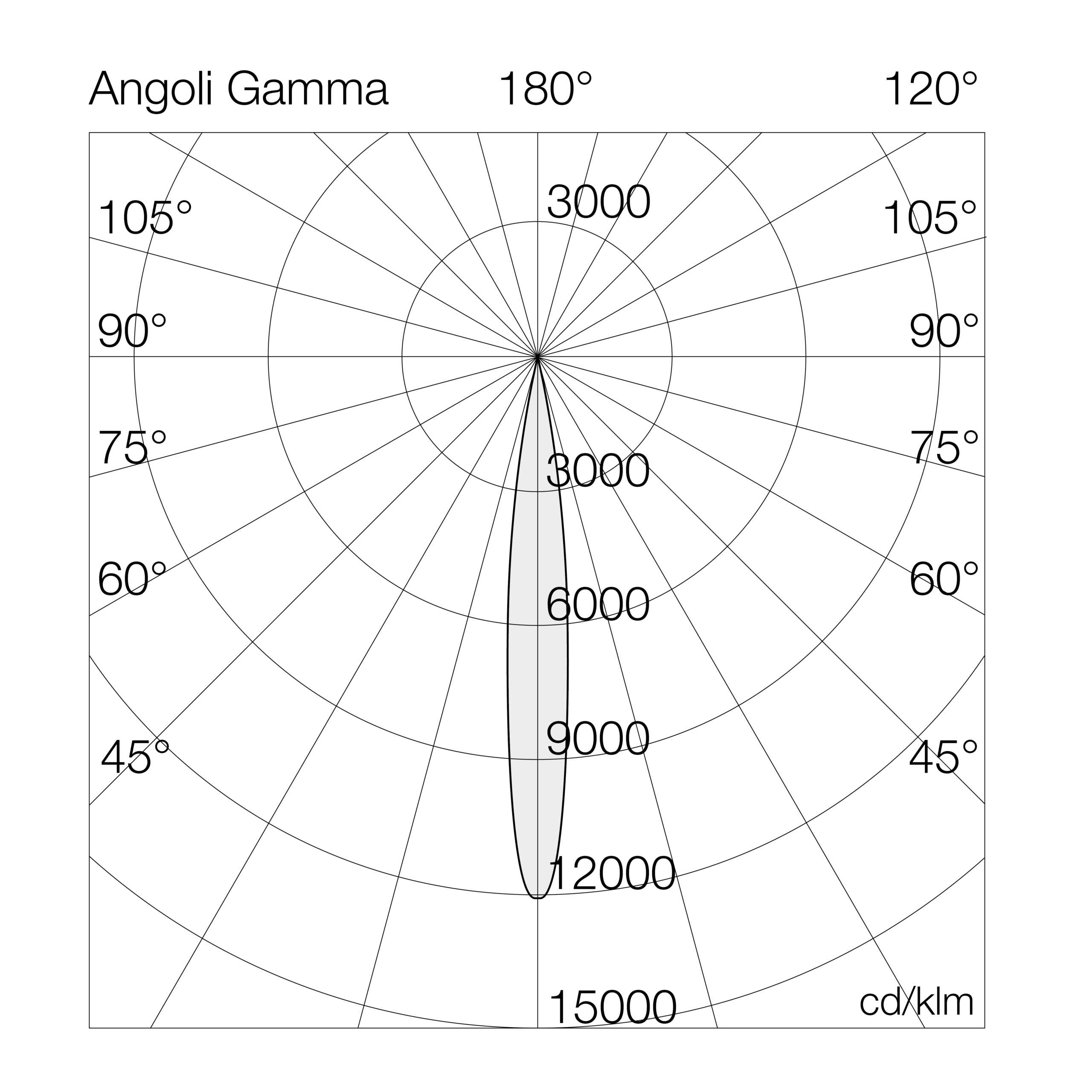

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001W327= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
1649FC= continuous row
1752
2461
2670
3288
35

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3005W34008GL8-4000°K - CRI>80on/off10571326231575--
3005W34012GL12-4000°K - CRI>80on/off14531216231575--
3005W34017GL17-4000°K - CRI>80on/off19381146231575--
3005W34016GL16-4000°K - CRI>80on/off21141326259575--
3005W34024GL24-4000°K - CRI>80on/off29071216259575--
3005W34035GL35-4000°K - CRI>80on/off38771116259575--
3005W34026GL26-4000°K - CRI>80on/off33751306287575--
3005W34036GL36-4000°K - CRI>80on/off43611216287575--
3005W34052GL52-4000°K - CRI>80on/off58151126287575--
3005W34032GL32-4000°K - CRI>80on/off422813262117575--
3005W34049GL49-4000°K - CRI>80on/off581511962117575--
3005W34070GL70-4000°K - CRI>80on/off775411162117575--
3005W34042GL42-4000°K - CRI>80on/off528512662145575--
3005W34061GL61-4000°K - CRI>80on/off726811962145575--
3005W34088GL88-4000°K - CRI>80on/off969211062145575--
3005W34008GD8-4000°K - CRI>80dali 210571326231575--
3005W34012GD12-4000°K - CRI>80dali 214531216231575--
3005W34017GD17-4000°K - CRI>80dali 219381146231575--
3005W34016GD16-4000°K - CRI>80dali 221141326259575--
3005W34024GD24-4000°K - CRI>80dali 229071216259575--

Accessories
