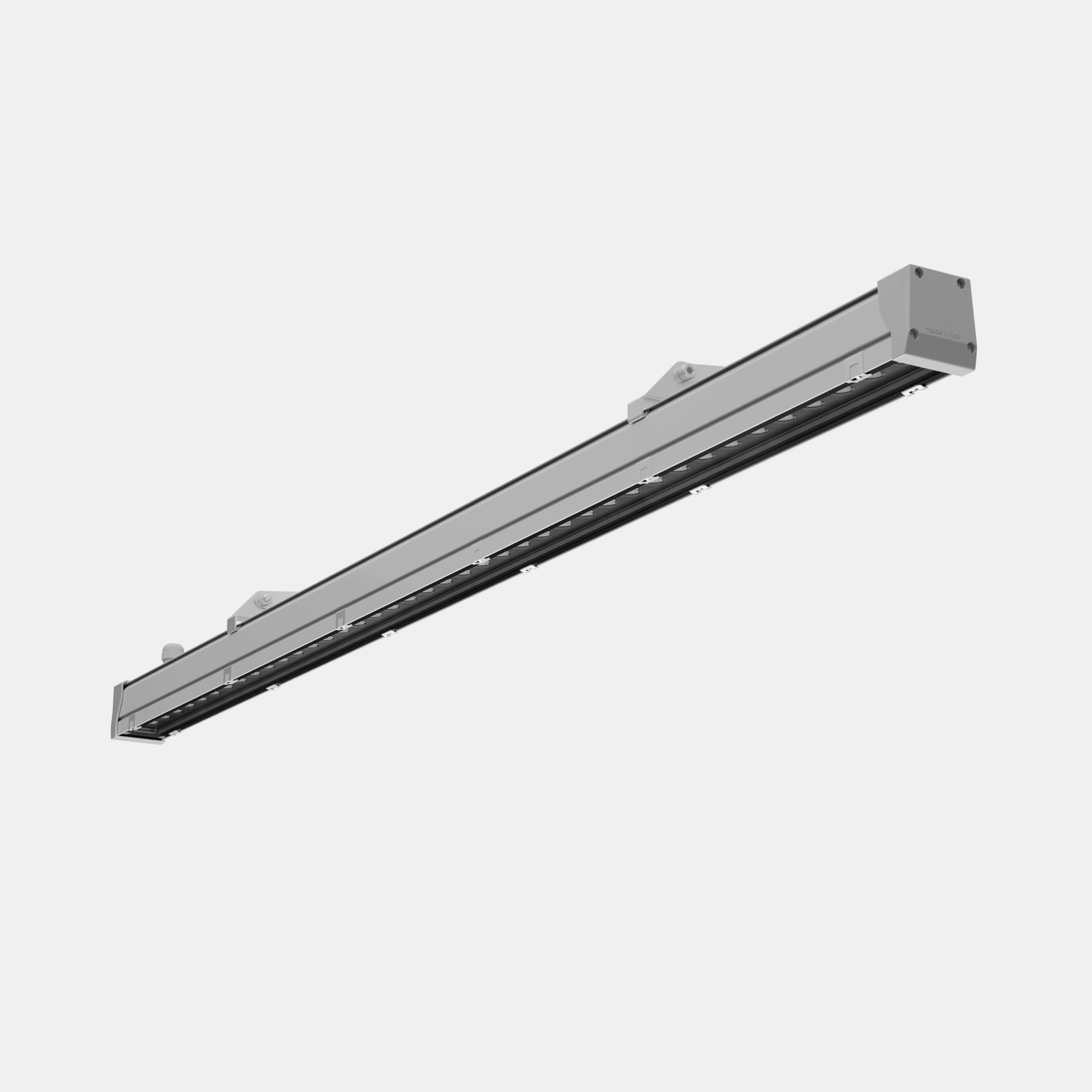

GIOTTO XF/W4

Outdoor LED linear projector suitable for architectural lighting of facades, porches, architectural frames, walkways, underscoring, structural details, monuments and green spaces. Suitable for floor/ground, ceiling and wall installation. Extruded and anodized aluminum body in silver finish, die-cast aluminum end caps painted with anti-corrosion polyester thermosetting powders in silver color, silicone gasket. Stainless steel closing clips, hardware and adjustable fixing brackets. Extra-clear tempered flat glass diffuser 4 mm thick. Available in six types of optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses and steel plate reflectors painted matte black: four spot optics (8°-11°-13°-30°), one 45° medium optic and one 40°x13° elliptical optic
Categories: Led, GIOTTO XF - 3005, art. 3005 Giotto XF, Architectural Outdoor, art. 3005 Giotto XF
Models: 135
Color: Silver
Catalogue abstract
Installation instructions

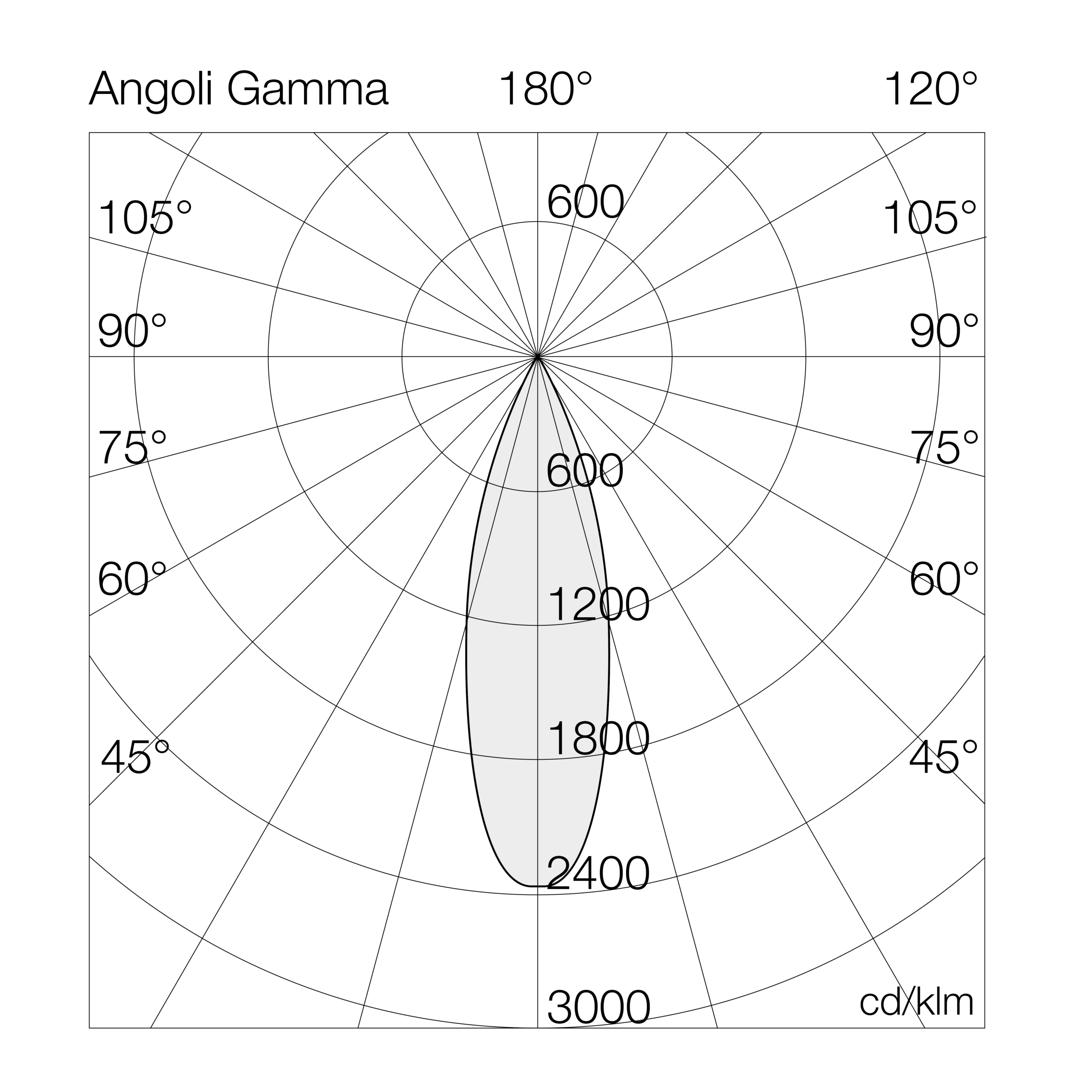

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001W427= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
1649FC= continuous row
1752
2461
2670
3288
35

Models

W tot.
°K - CRI
Options

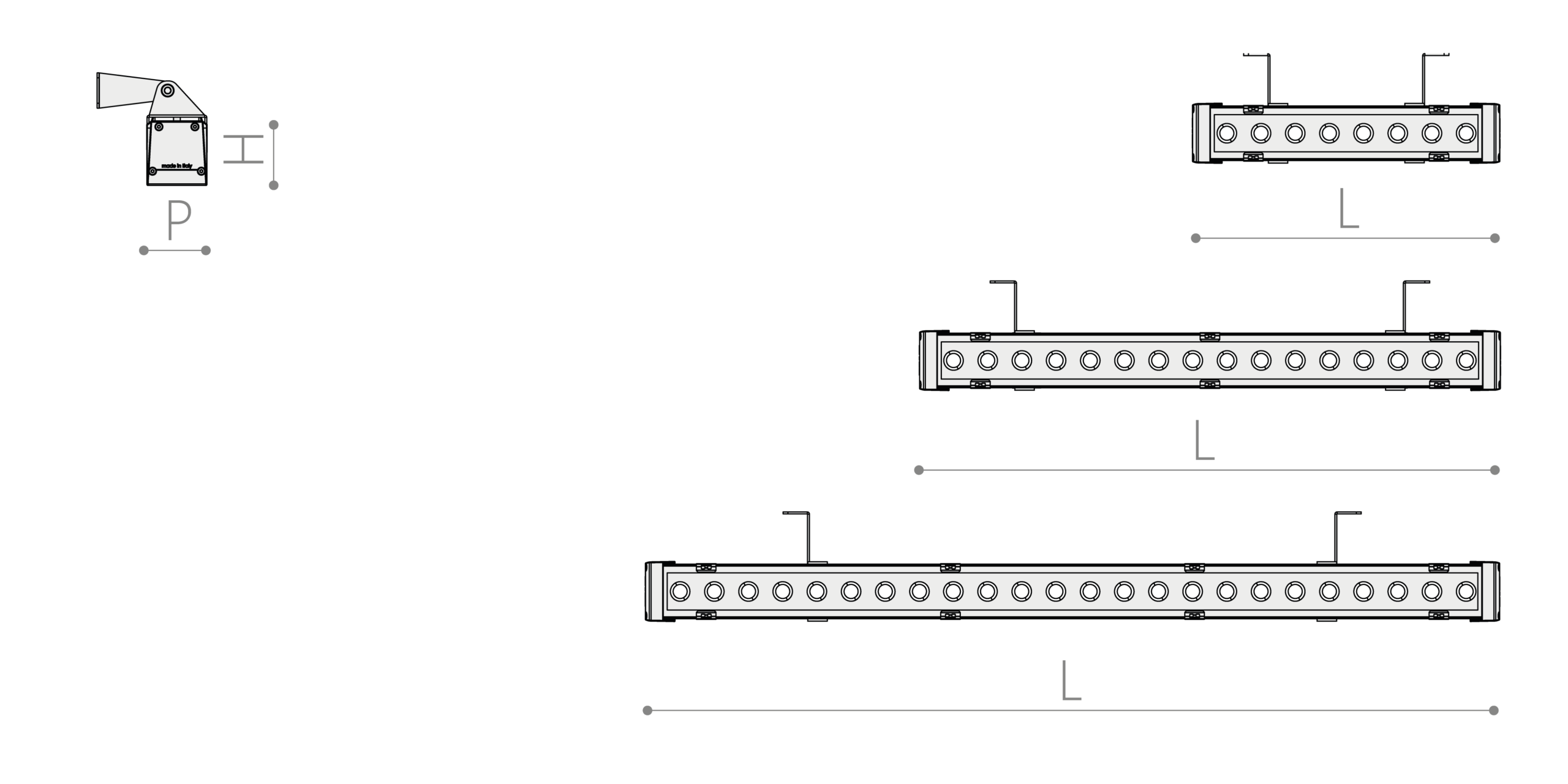

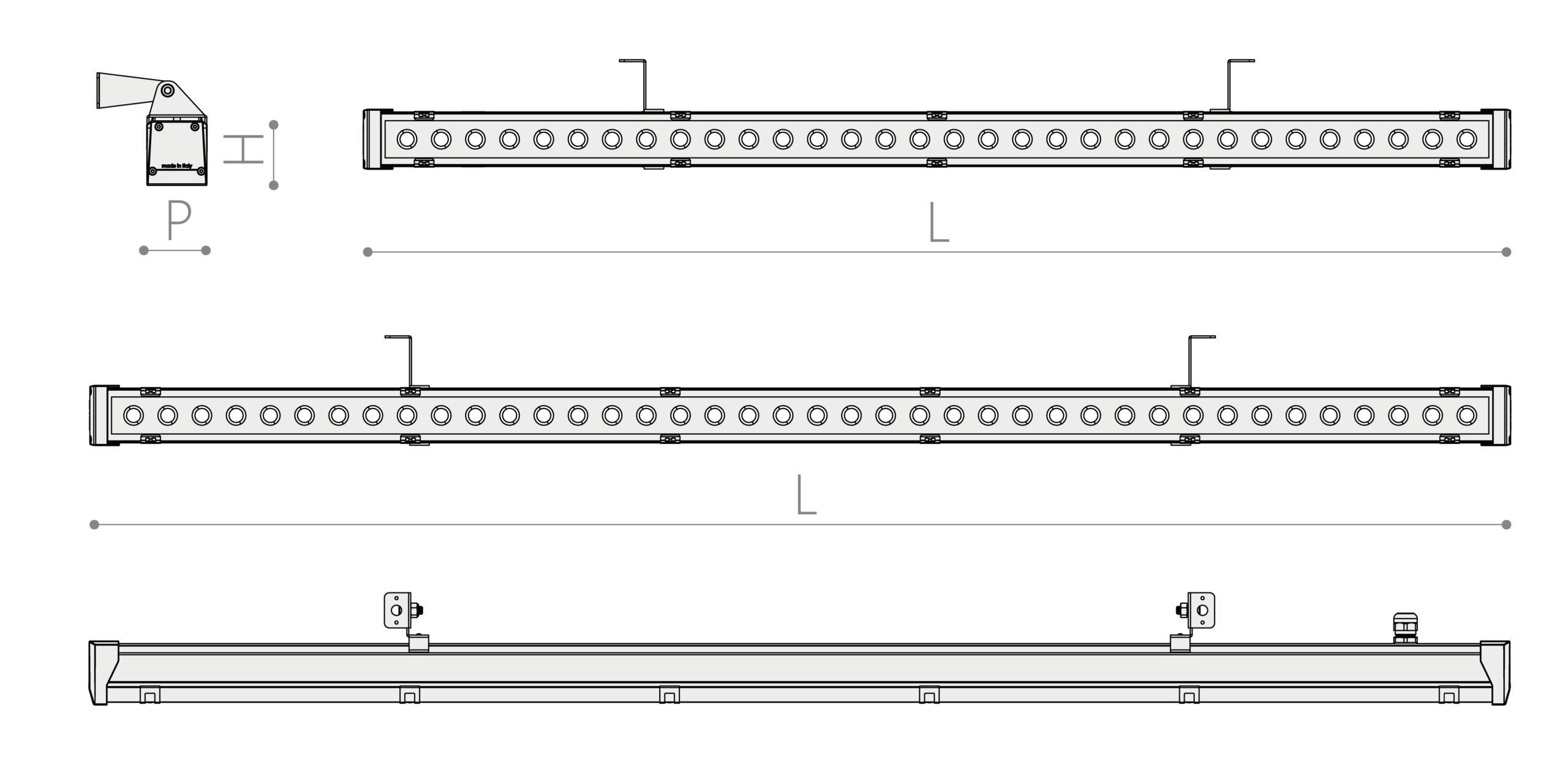

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3005W44008GL8-4000°K - CRI>80on/off10311296231575--
3005W44012GL12-4000°K - CRI>80on/off14181186231575--
3005W44017GL17-4000°K - CRI>80on/off18911116231575--
3005W44016GL16-4000°K - CRI>80on/off20631296259575--
3005W44024GL24-4000°K - CRI>80on/off28371186259575--
3005W44035GL35-4000°K - CRI>80on/off37841086259575--
3005W44026GL26-4000°K - CRI>80on/off32931276287575--
3005W44036GL36-4000°K - CRI>80on/off42561186287575--
3005W44052GL52-4000°K - CRI>80on/off56751096287575--
3005W44032GL32-4000°K - CRI>80on/off412612962117575--
3005W44049GL49-4000°K - CRI>80on/off567511662117575--
3005W44070GL70-4000°K - CRI>80on/off756710862117575--
3005W44042GL42-4000°K - CRI>80on/off515712362145575--
3005W44061GL61-4000°K - CRI>80on/off709311662145575--
3005W44088GL88-4000°K - CRI>80on/off945810762145575--
3005W44008GD8-4000°K - CRI>80dali 210311296231575--
3005W44012GD12-4000°K - CRI>80dali 214181186231575--
3005W44017GD17-4000°K - CRI>80dali 218911116231575--
3005W44016GD16-4000°K - CRI>80dali 220631296259575--
3005W44024GD24-4000°K - CRI>80dali 228371186259575--

Accessories
