GIOTTO XF/W5

Outdoor LED linear projector suitable for architectural lighting of facades, porches, architectural frames, walkways, underscoring, structural details, monuments and green spaces. Suitable for floor/ground, ceiling and wall installation. Extruded and anodized aluminum body in silver finish, die-cast aluminum end caps painted with anti-corrosion polyester thermosetting powders in silver color, silicone gasket. Stainless steel closing clips, hardware and adjustable fixing brackets. Extra-clear tempered flat glass diffuser 4 mm thick. Available in six types of optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses and steel plate reflectors painted matte black: four spot optics (8°-11°-13°-30°), one 45° medium optic and one 40°x13° elliptical optic
Categories: Led, GIOTTO XF - 3005, art. 3005 Giotto XF, Architectural Outdoor, art. 3005 Giotto XF
Models: 135
Color: Silver
Catalogue abstract
Installation instructions

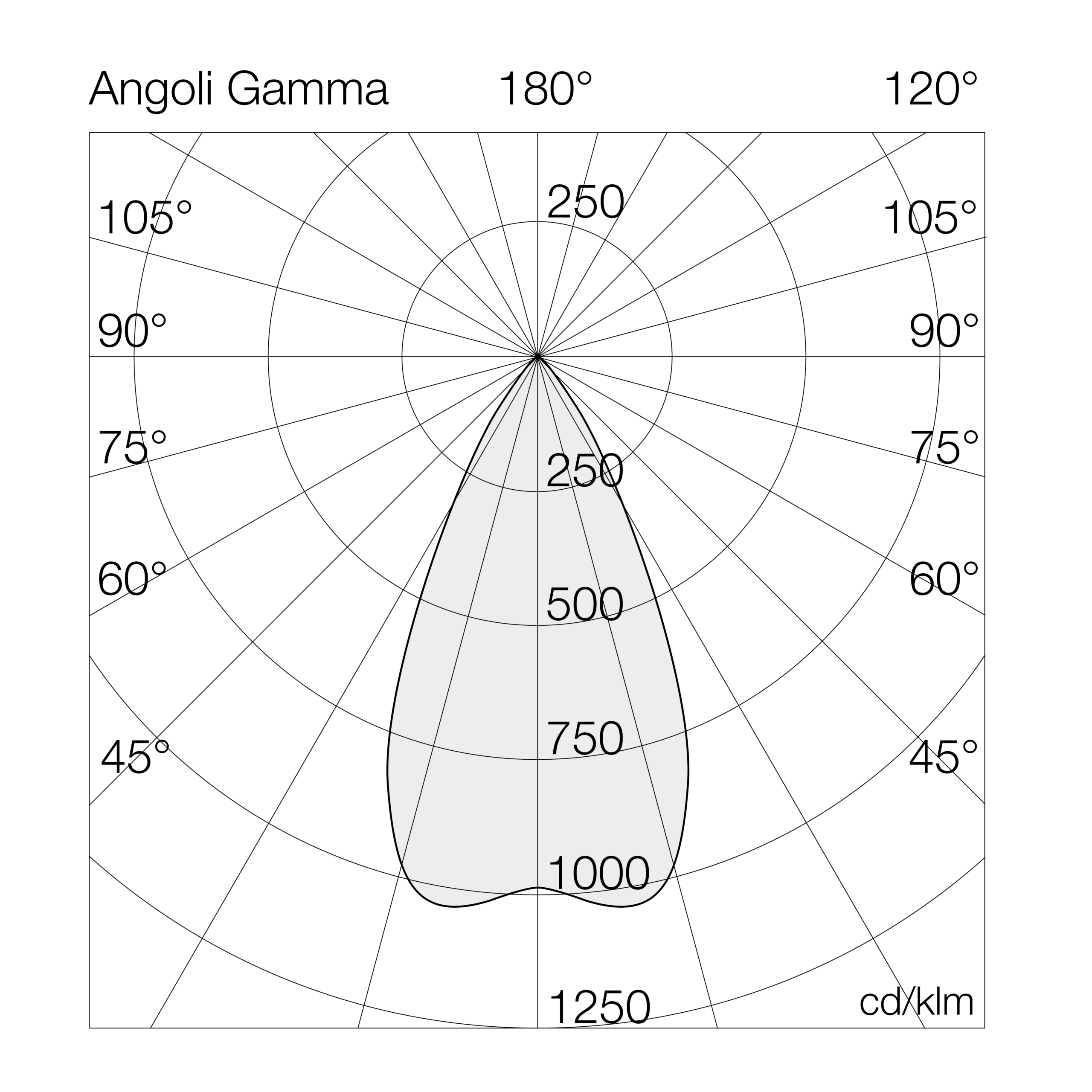

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3001W527= 2700°K (CRI >80)0836GL= on/off
30= 3000°K (CRI >80)1242GD= dali 2
1649FC= continuous row
1752
2461
2670
3288
35

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3005W54008GL8-4000°K - CRI>80on/off10181276231575--
3005W54012GL12-4000°K - CRI>80on/off14011176231575--
3005W54017GL17-4000°K - CRI>80on/off18681106231575--
3005W54016GL16-4000°K - CRI>80on/off20381276259575--
3005W54024GL24-4000°K - CRI>80on/off28021176259575--
3005W54035GL35-4000°K - CRI>80on/off37371076259575--
3005W54026GL26-4000°K - CRI>80on/off32531256287575--
3005W54036GL36-4000°K - CRI>80on/off42031176287575--
3005W54052GL52-4000°K - CRI>80on/off56051086287575--
3005W54032GL32-4000°K - CRI>80on/off407512762117575--
3005W54049GL49-4000°K - CRI>80on/off560511462117575--
3005W54070GL70-4000°K - CRI>80on/off747410762117575--
3005W54042GL42-4000°K - CRI>80on/off509412162145575--
3005W54061GL61-4000°K - CRI>80on/off700611562145575--
3005W54088GL88-4000°K - CRI>80on/off934210662145575--
3005W54008GD8-4000°K - CRI>80dali 210181276231575--
3005W54012GD12-4000°K - CRI>80dali 214011176231575--
3005W54017GD17-4000°K - CRI>80dali 218681106231575--
3005W54016GD16-4000°K - CRI>80dali 220381276259575--
3005W54024GD24-4000°K - CRI>80dali 228021176259575--

Accessories
